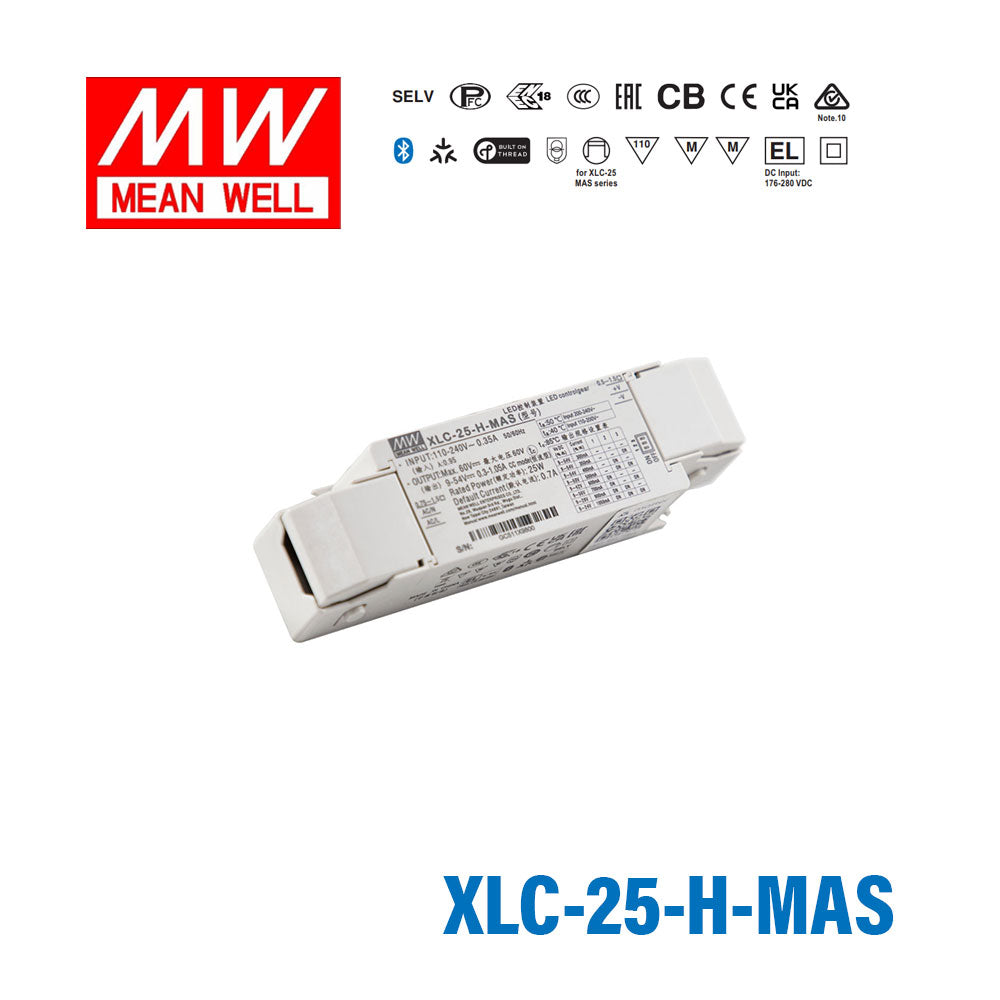

Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, C...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.5%
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~85°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
-
Weight0.14 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-MAS to wirelessly dim LED downlights through a Matter-compatible controller?
Yes. The XLC-25-H-MAS includes Matter 1.3 wireless dimming, enabling control from any Matter-compatible hub or app. It delivers 25W at 700mA with a CC voltage range of 9–54V, suitable for LED downlights within that voltage range.
Is the XLC-25-H-MAS suitable for LED arrays in a smart building project using Matter protocol?
Yes. The driver operates at 25W constant current with flicker-free output and Matter 1.3 support, making it appropriate for small LED arrays in smart building or commercial retrofit projects. The current can be set between 0.3A and 1.05A using the dip switch.
Can this driver be used with LED signage modules that require wireless dimming capability?
Yes. The XLC-25-H-MAS can supply constant current to LED signage modules whose combined forward voltage falls within 9–54V, and the integrated Matter wireless interface allows brightness adjustment without separate dimming hardware. The number of LED modules depends on their individual forward voltages.
Does the XLC-25-H-MAS include strain relief, and how does that affect installation?
Yes. The XLC-25-H-MAS includes integrated strain relief, which is useful for applications where cables are subject to movement or where installation standards require it. This distinguishes it from the XLC-25-H-MA, which has the same electrical specs but omits the strain-relief fitting.
What operating temperatures does the XLC-25-H-MAS support?
The XLC-25-H-MAS is rated from -25°C to +85°C. It is a Class II driver suitable for enclosed luminaire installations within that temperature range.
How many LEDs can the XLC-25-H-MAS support in a single string?
The driver outputs constant current over a CC voltage range of 9–54V at 700mA. The number of LEDs that fit in a string is determined by each LED's forward voltage — the total string voltage must fall within 9–54V at the operating current.
Other XLC-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLC-25-H-KNS LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System, With Strain-Relief | 25W | 60V | 0.3A | Indoor | View |
| Mean Well XLC-25-H-KN LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System | 25W | 60V | 0.3A | Indoor | View |
| Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming | 25W | 60V | 0.7A | Indoor | View |
