Mean Well

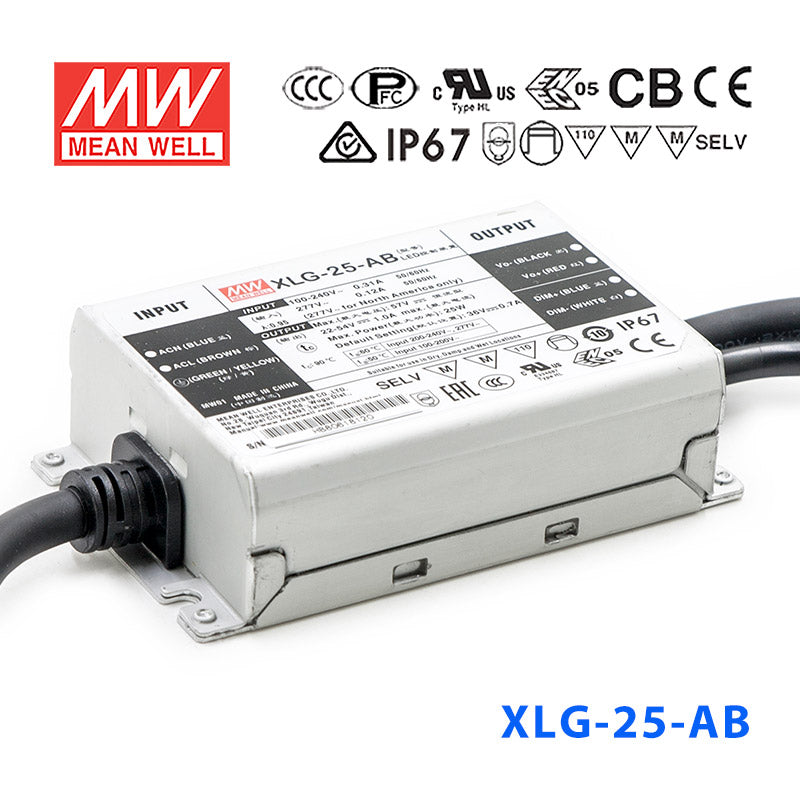

Mean Well XLG-25-AB Power Supply 25W 700mA - Adjustable and Dimmable

metal caseeconomical100~305VAC wide range inputefficiency up to 90%
SKU XLG-25-AB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

XLG-25-AB is the model of this series: rated power 90VAC ~ 305VAC 25W, typical efficiency 88%.

XLG-25 series is a 25W AC/DC LED driver featuring the constant power mode output. XLG-25 operates from 90~305VAC. Thanks to the high efficiency up to 88%, The entire series is able to operate between -40℃~85℃ wide case temperature range with air convection. The design of metal housing and Ip67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-25 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

  • Constant Power mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • 3 in 1 dimming function (Dim to off and Isolation design)
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

XLG-25-ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT (Default)
700mA
CONSTANT CURRENT REGIONNote.2
22 ~54V
RATED POWER
90VAC ~ 305VAC 25W
CURRENT RIPPLE
5.0% max. @rated current
OPEN CIRCUIT VOLTAGE (max.)
57V
CURRENT ADJ. RANGE
0.25 ~ 1.05A
SETUP, RISE TIMENote.3
500ms, 100ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.4
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)Note.10
88%
AC CURRENT
0.29A / 115VAC 0.15A / 230VAC 0.13A/277VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for A,<0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF)

PROTECTION

OVER POWER
110-150% Over Power Protection, recovers automatically after fault condition is removed
OVER CURRENT
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE
Hiccup mode, recovers automatically after fault condition is removed
INPUT OVER VOLTAGENote.8
320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+85℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP.
-40 ~ +80℃
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB/T19510.1,GB/T19510.213, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)( for XLG-25I type only); NOM-058-SCFI-2017 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55015(CISPR15) ,GB/T 17743
RadiatedBS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic CurrentBS EN/EN61000-3-2 ,GB17625.1Class C @load≥50%
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN61547

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/EN61000-4-3Level 3
EFT/BurstBS EN/EN61000-4-4Level 3
SurgeBS EN/EN61000-4-54KV/Line-Line 6KV/Line-Earth
ConductedBS EN/EN61000-4-6Level 3
Magnetic FieldBS EN/EN61000-4-8Level 4
Voltage Dips and InterruptionsBS EN/EN61000-4-11>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF
3931.6 K hrs min. Telcordia SR-332 (Bellcore) 399.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
105*63*30mm (L*W*H)
PACKING
0.41Kg;24pcs/ 10.5Kg/0.81CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.81CUFT for AB-type

Certifications & ratings

Type
HL
Test conditions and notes16
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  4. 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  7. 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  8. 8. Input over voltage only for XLG-25 I series ,and I series without UL/CSA certificate.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 10. Only for XLG-25-A
  11. 11. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  13. 13. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  14. 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
  15. 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
  16. 16. This series need to consider build in using to comply with Type HL application.

Technical drawings

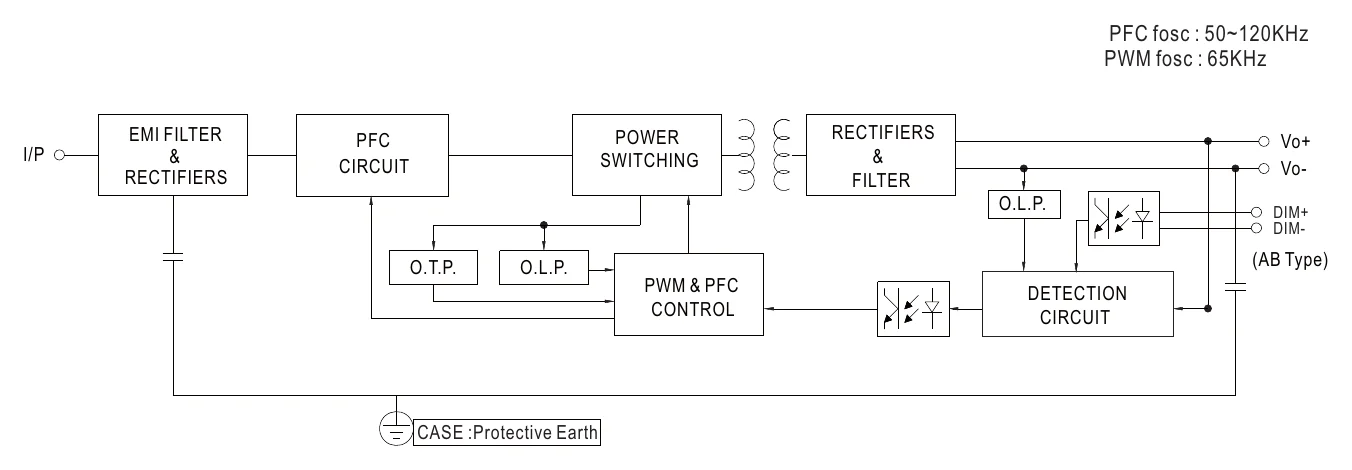

XLG-25-AB Block Diagram
Block Diagram

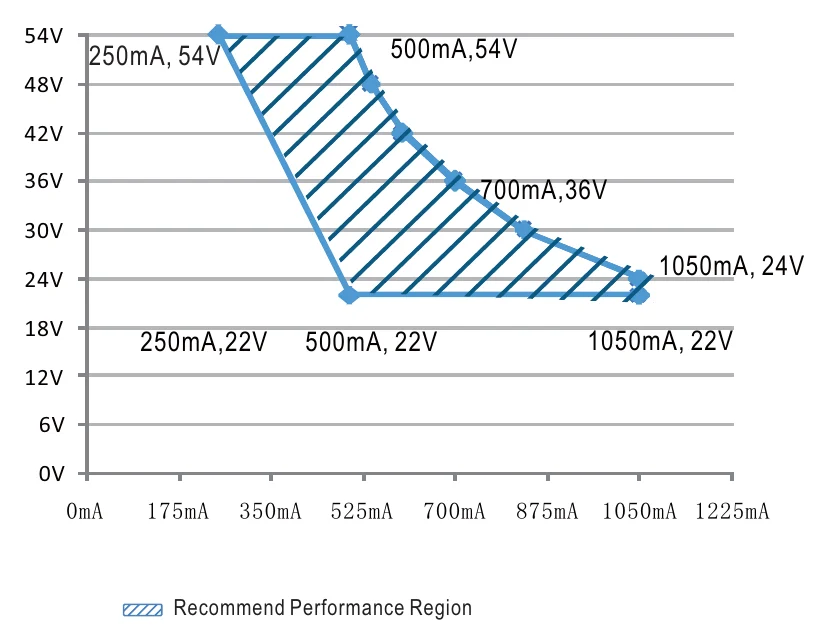

XLG-25-AB DRIVING METHODS OF LED MODULE
DRIVING METHODS OF LED MODULE

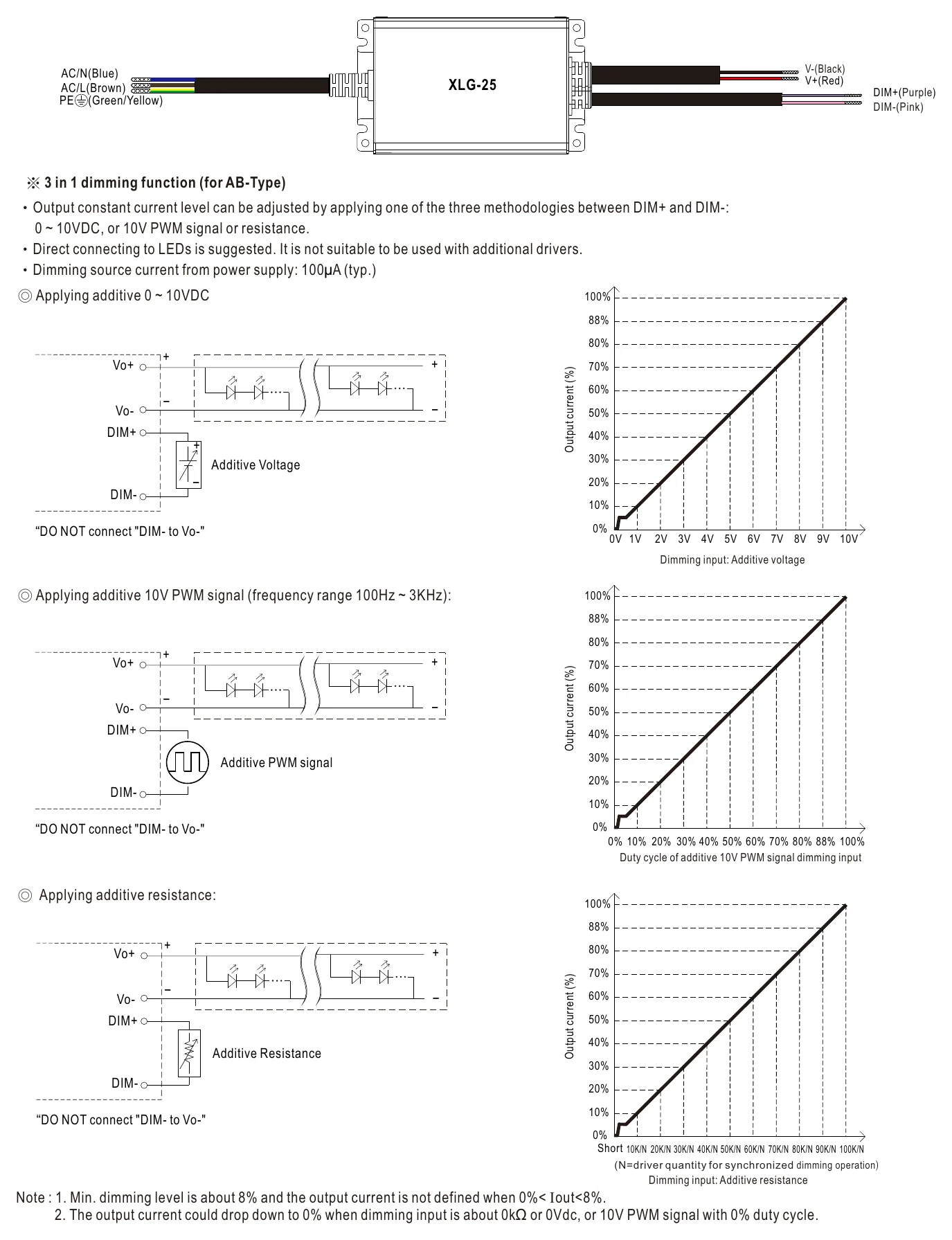

XLG-25-AB DIMMING OPERATION
DIMMING OPERATION

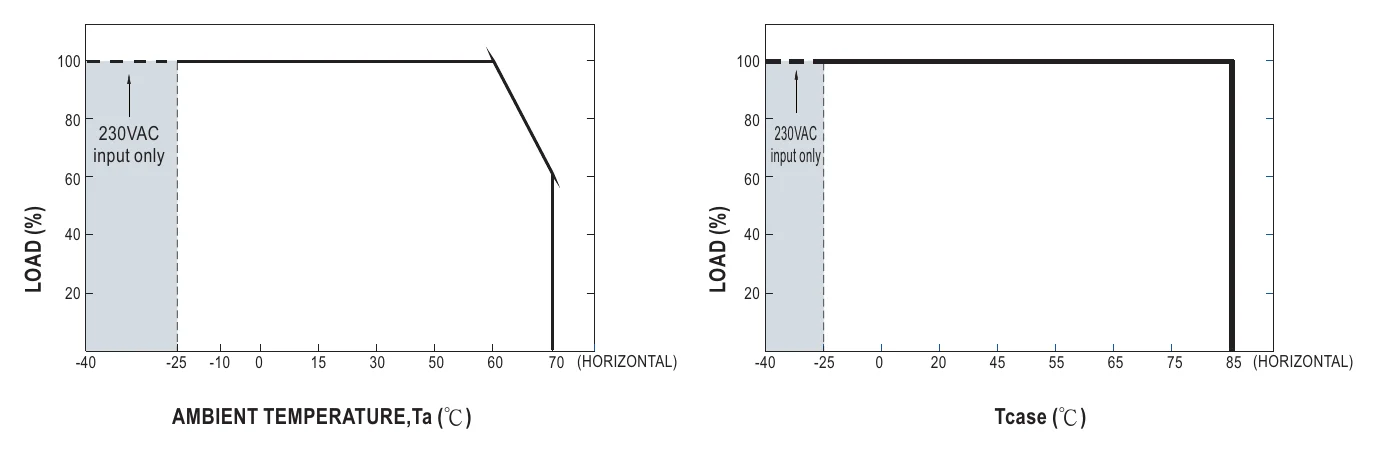

XLG-25-AB OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE

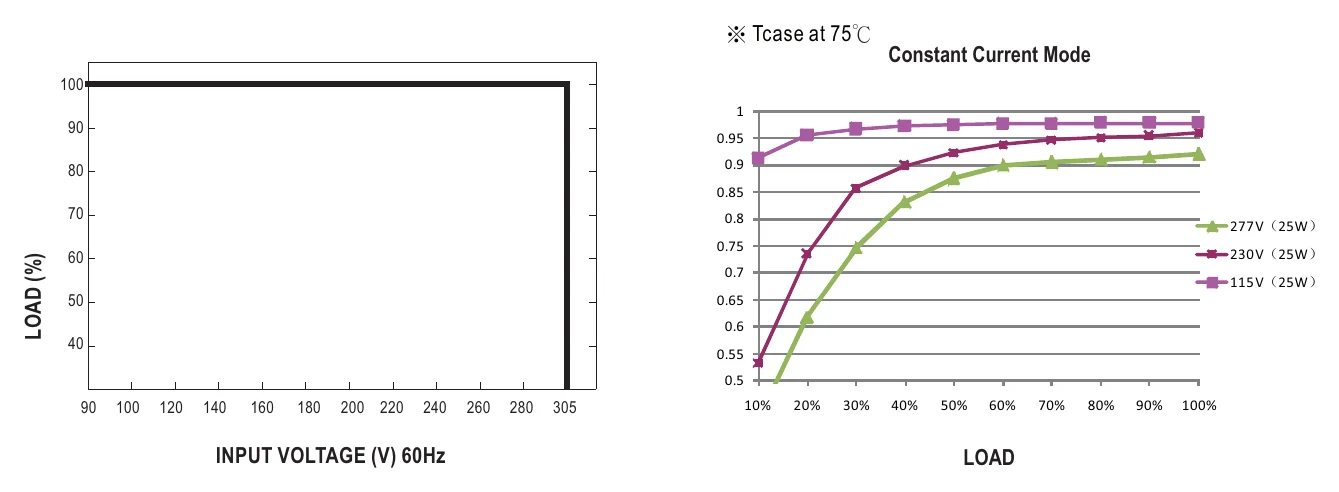

XLG-25-AB STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

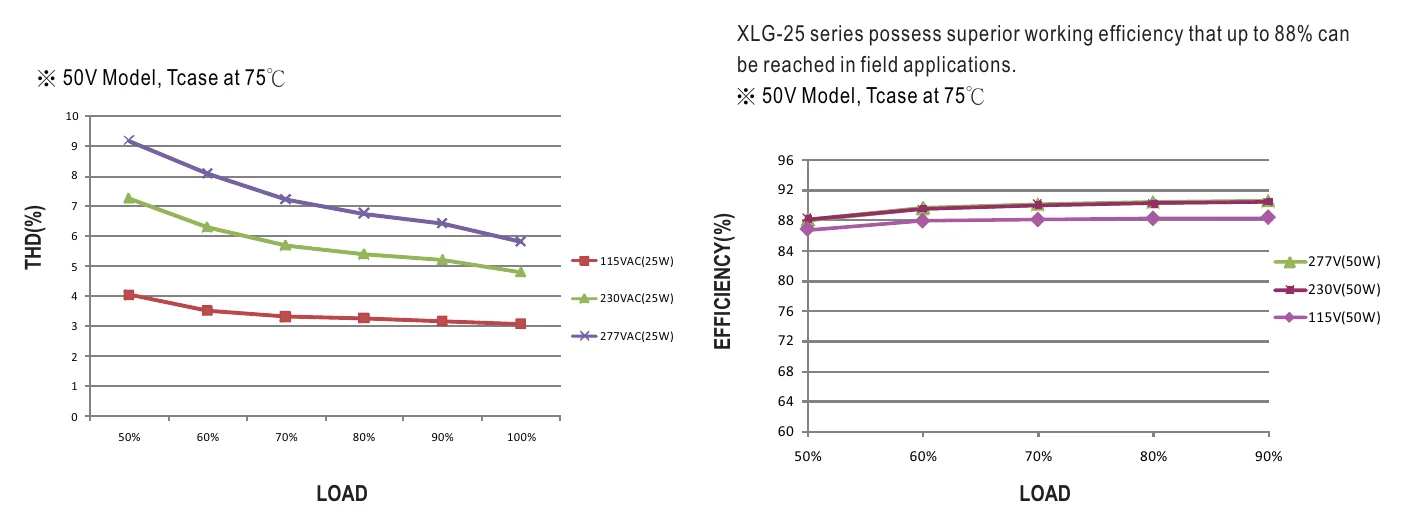

XLG-25-AB TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

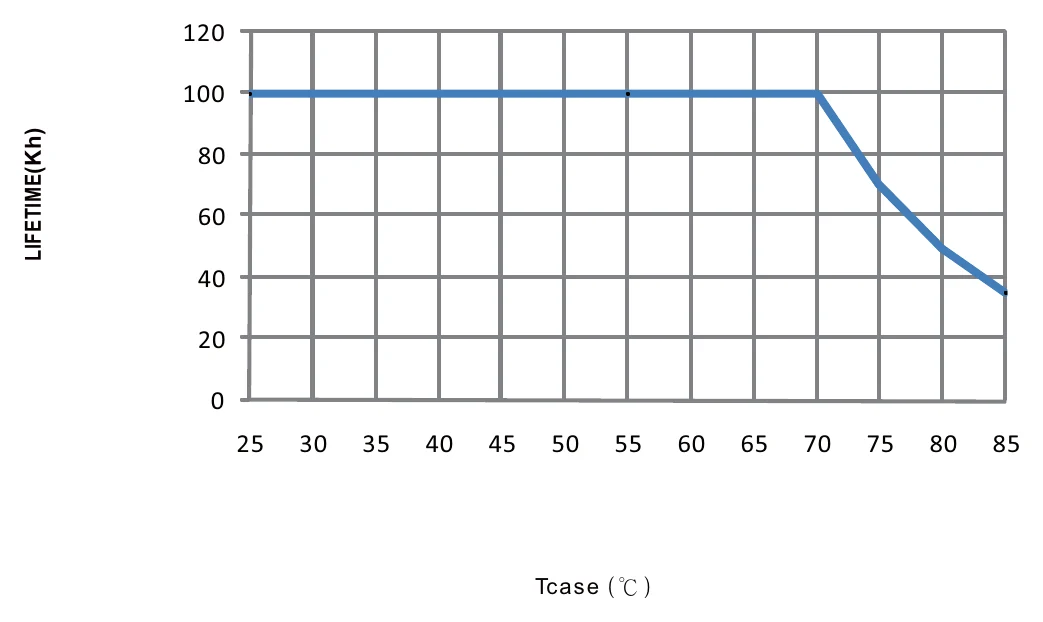

XLG-25-AB LIFE TIME
LIFE TIME

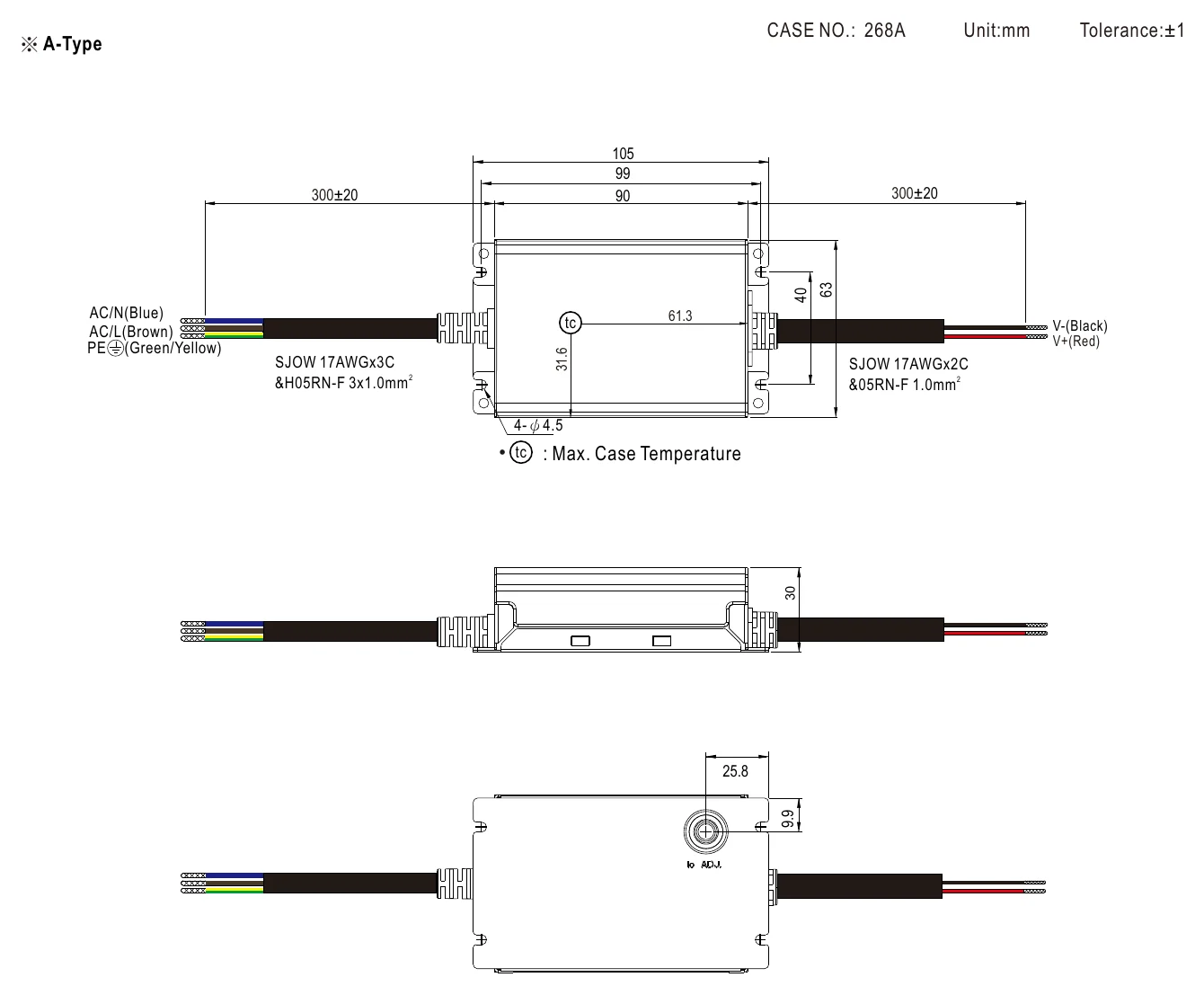

XLG-25-AB Mechanical Specification
Mechanical Specification

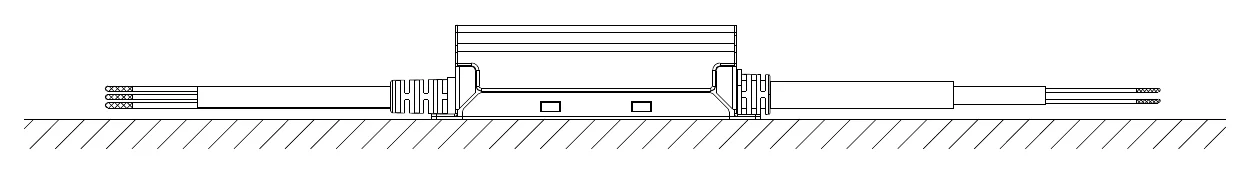

XLG-25-AB Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I dim the XLG-25-AB from a wall dimmer or smart lighting controller?

Yes. The AB suffix indicates a built-in dimming interface that accepts 0-10V or PWM control signals from compatible dimming systems. This enables the driver to work with standard wall dimmers, occupancy-based controllers, or smart home lighting platforms.

Is the XLG-25-AB suitable for small outdoor accent or landscape fixtures?

Yes. The IP67 waterproof rating allows the driver to be installed in outdoor luminaires exposed to rain or moisture. Its compact size (105 × 63 × 30 mm) and 0.41 kg weight make it easy to fit inside small pathway lights, garden spotlights, or step fixtures.

What is the maximum LED strip length the XLG-25-AB can drive?

The driver delivers up to 25W. Divide 25W by your strip's power per meter to get the maximum length — for example, a 5 W/m strip supports up to 5 m (25 ÷ 5). Check your specific strip's rated wattage per meter and leave a 20% headroom margin.

Can I use the XLG-25-AB to power a dimmable LED spotlight in a bathroom or wet-zone fixture?

Yes. The IP67 rating makes the driver protected against water ingress, suitable for damp or wet-rated bathroom zones and similar applications. The 22–54V CC output range accommodates many single LED module spotlight arrays.

Does the XLG-25-AB work on 230V European or 277V US commercial circuits?

Yes. The 90–305VAC input range covers 230V European residential mains, 277V US commercial circuits, and standard 120V supplies. No transformer or manual voltage switching is required.

How does the XLG-25-AB differ from the XLG-25-A?

Both are 25W, 0.7A constant-current drivers with a 22–54V CC range and IP67 rating in the same compact housing. The XLG-25-AB includes a 3-in-1 dimming control input (0-10V, PWM, or resistance); the XLG-25-A provides only manual potentiometer adjustment. Select the AB model when external dimming is needed.
