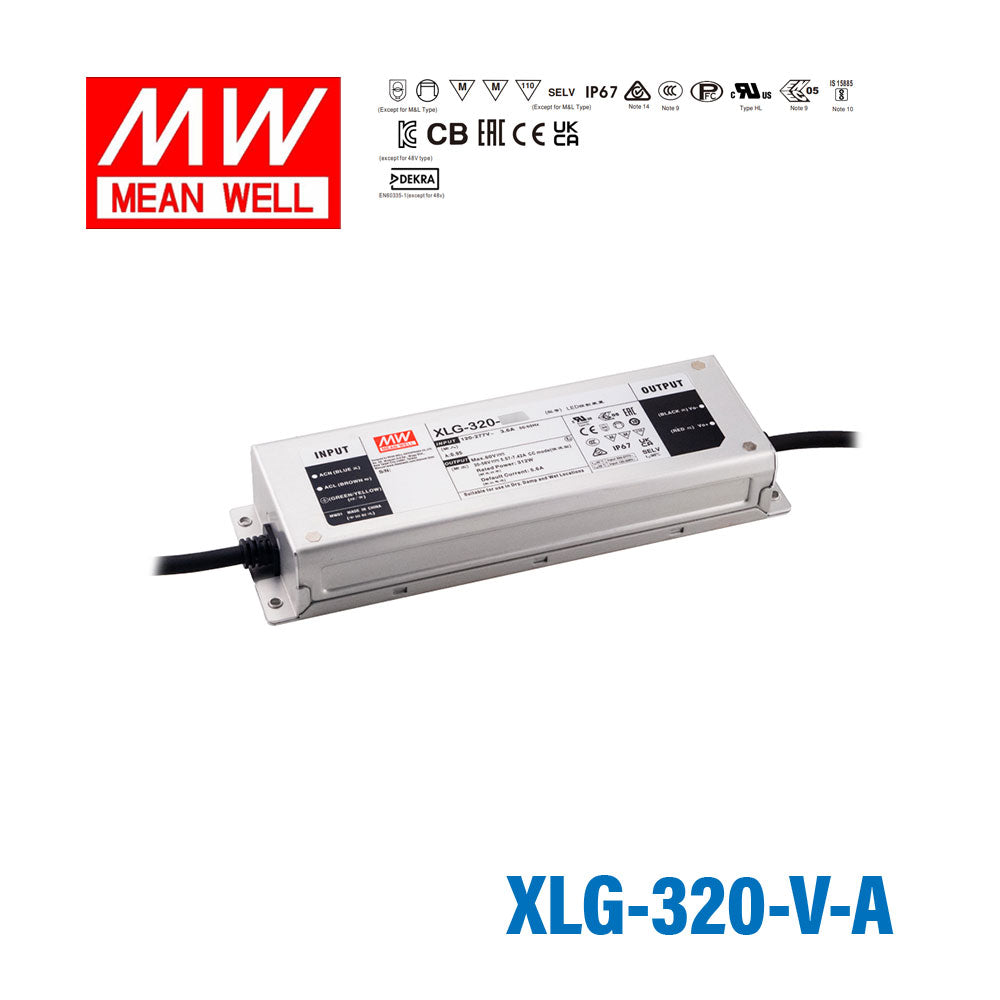

Mean Well XLG-320-V-A Power Supply 312W 24V or 216W 12V - Switchabl...
Please Login for Pricing
Description
Description
The XLG-320-V is a 315W Mean Well power converter (operating temperature: -40~+85℃).
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004; IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating312 Watt
-
Output Voltage24 Volt
-
Rated Current13 Ampere
-
Input Voltage142V~431V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-

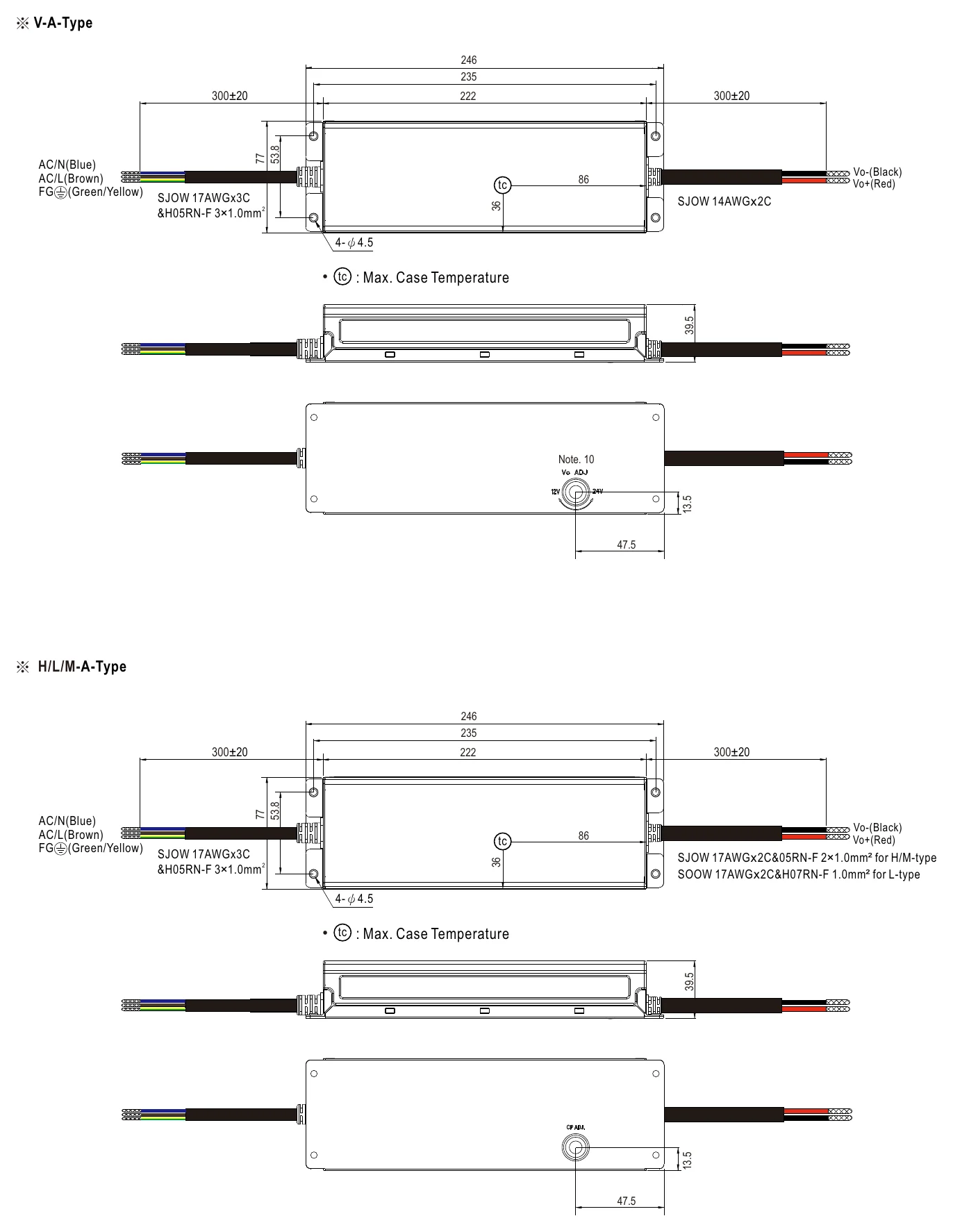

Length24.6 cm
-
Width7.7 cm
-
Height3.95 cm
-
Weight1.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-320-V-A power a large 24V LED strip installation in an outdoor environment?
Yes. The XLG-320-V-A is IP67-rated for dustproof and waterproof performance and operates from -40°C to +85°C, covering harsh outdoor conditions. At 312W and 24V, it can drive a substantial 24V LED strip load in exterior architectural, landscape, or sign lighting applications.
How much 24V LED strip can the XLG-320-V-A support?
The XLG-320-V-A delivers up to 312W at 24V. For a 24V strip rated at 14.4W/m, that covers approximately 21.7 meters at full load; for a 24W/m strip, roughly 13 meters. Always verify your strip's rated power per meter and limit continuous load to 80% of the driver's capacity, which gives a working budget of about 250W.
Is the XLG-320-V-A appropriate for cold storage or outdoor signage in freezing climates?
Yes. With a low-end operating temperature of -40°C, this driver is rated for extreme cold environments including cold storage facilities, outdoor signage in northern climates, and refrigerated display cases using 24V LED strip lighting.
Can I use the XLG-320-V-A to power large LED panels or channel letter signs?
Yes. The 24V output and 312W capacity make it well suited for powering multiple LED modules in channel letter signs or backlit display panels. Its wide input range of 142-431VAC also accommodates three-phase or high-voltage single-phase supplies common in commercial sign installations.
Is the XLG-320-V-A suitable for powering LED drivers in a daisy-chain or distributed lighting network?
The XLG-320-V-A operates in constant current mode at 24V with 13A output. It is designed as a single-output driver rather than a bus supply for distributed sub-drivers. For runs requiring distributed power, you would typically use this unit to feed one continuous LED strip segment or LED load up to 312W.
Other XLG-320 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-320-48-ABV Power Supply 312W 48V 6.5A | 312W | 48V | 6.5A | IP67 | View |
| Mean Well XLG-320-M-DA2 Power Supply 310.8W 2800mA - DALI2 Dimmable | 310.8W | 180V | 2.8A | IP67 | View |
| Mean Well XLG-320-L-DA2 Power Supply 315W 1400mA - DALI2 Dimmable | 315W | 340V | 1.4A | IP67 | View |
| Mean Well XLG-320-H-DA2 Power Supply 312W 5600mA - DALI2 Dimmable | 312W | 65V | 5.6A | IP67 | View |
