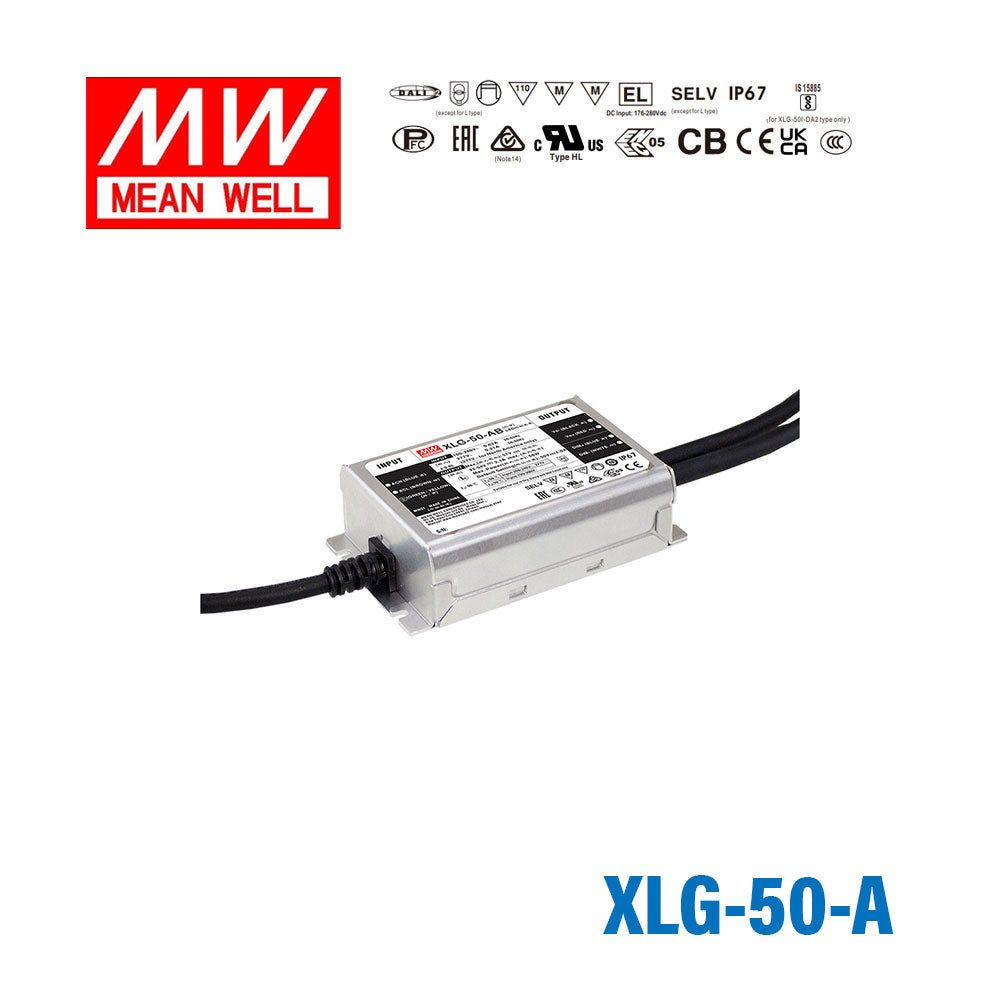

Mean Well XLG-50-A Power Supply 50W 1A - Adjustable

Yes. The XLG-50-A carries an IP67 waterproof rating, making it suitable for outdoor and wet-location installations such as exterior retail signage, under-canopy lighting, or outdoor display cases. Its 50W capacity at 1A constant current is appropriate for a single zone of compatible LED strip or LED module array.

The XLG-50-A outputs up to 50W. For example, a strip rated at 7.5W/m would allow up to about 6.6 meters at full load, and a 10W/m strip up to about 5 meters. Always check your strip's rated power per meter and size to no more than 80% of the driver's maximum (40W working load) for reliable continuous operation.

Yes. The IP67 rating and compact 105 × 63 × 32 mm form factor make the XLG-50-A well suited for small illuminated cabinet letters, slim lightboxes, or under-counter LED strip lighting in wet or outdoor locations. The 90-305VAC input range also works across international mains voltages.

Yes. The operating temperature range is -40°C to +90°C, making this driver suitable for outdoor sign and display installations in cold climates, as well as high-ambient indoor environments such as industrial or commercial kitchens.

Yes. The IP67 rating means the XLG-50-A is fully sealed against dust and protected against temporary water immersion, qualifying it for wet area installations. Position the driver in a ventilated enclosure outside the splash zone where required by local electrical codes, and pair it with appropriately rated LED strip for the wet zone.

Both the XLG-50-A and XLG-50-AB share the same 50W, 1A, 57V output, IP67 rating, and input range. The XLG-50-AB adds a dimming interface (the -AB suffix indicates adjustable and dimmable), while the XLG-50-A is adjustable output current only without a dedicated dimming control input.
