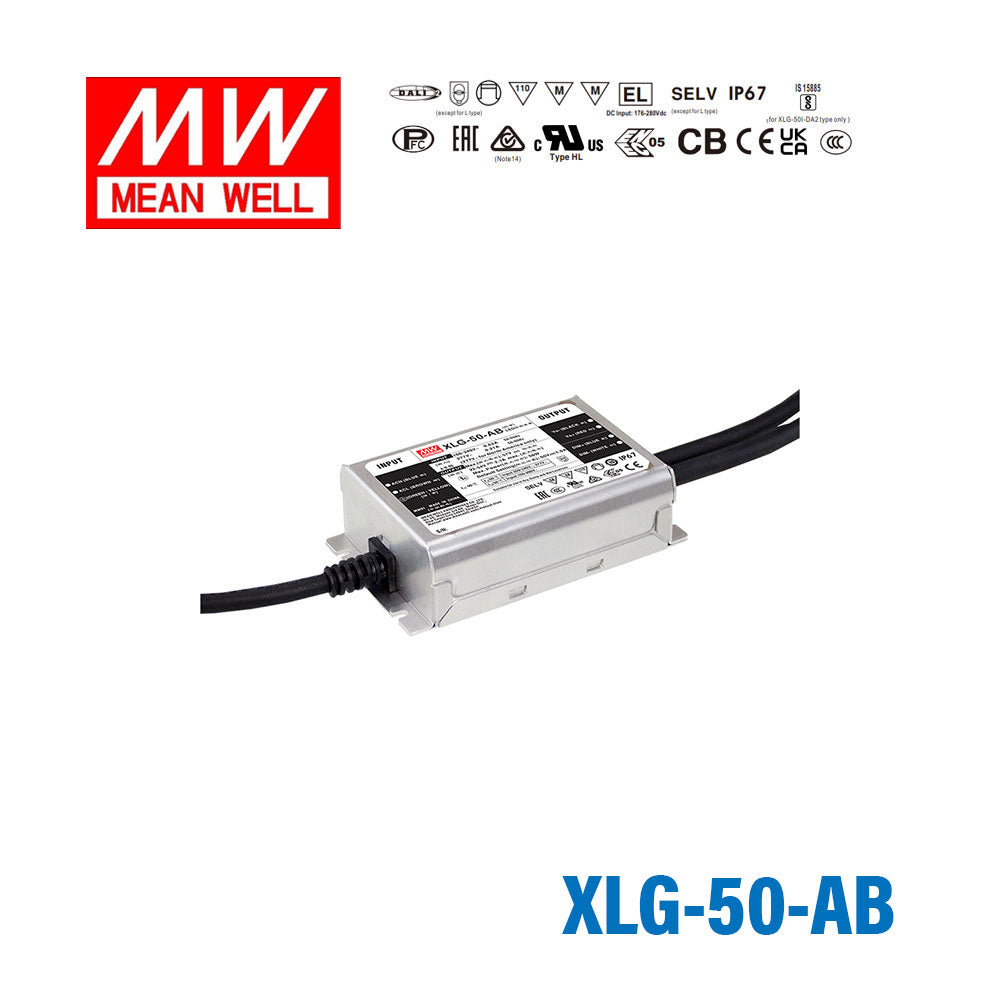

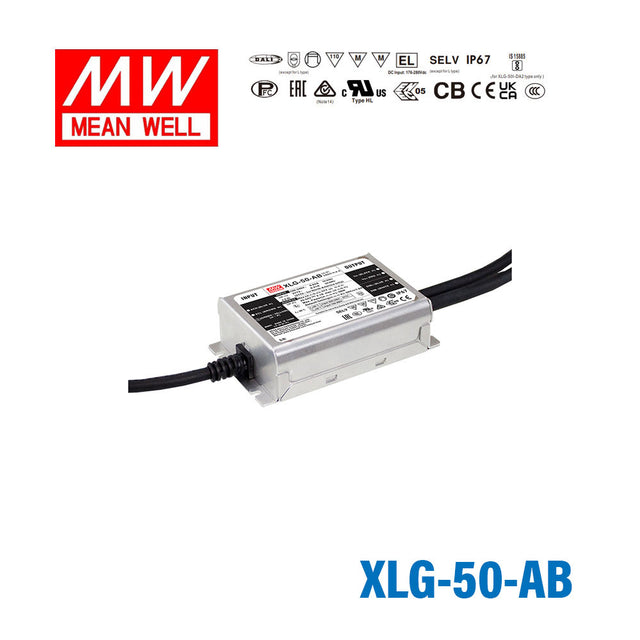

Mean Well XLG-50-AB Power Supply 50W 1A - Adjustable and Dimmable

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU XLG-50-AB

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLG-50-AB is the model of this series: rated power 100VAC ~ 305VAC 50W, typical efficiency 90%.

XLG-50 series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50 operates from 90~305VAC. Thanks to the high efficiency up to 90%, The entire series is able to operate between -40℃~90℃ wide case temperature range with air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-50 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
3 in 1 dimming function (Dim to off and Isolation design)

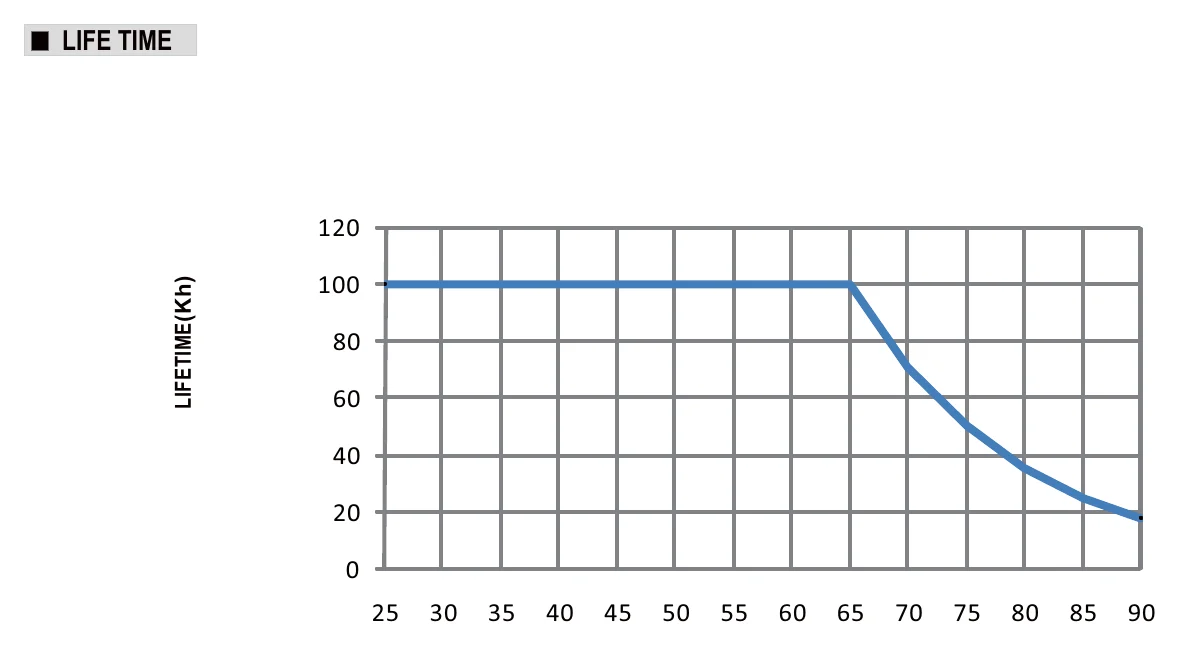

Typical lifetime>50000 hours
5 years warranty

Specifications

XLG-50-ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT (Default): 1A
CONSTANT CURRENT REGION^Note.2: 22 ~54V
RATED POWER: 100VAC ~ 305VAC 50W
CURRENT RIPPLE: 5.0% max. @rated current
OPEN CIRCUIT VOLTAGE (max.): 57V
CURRENT ADJ. RANGE: 0.53 ~ 2.1A
SETUP, RISE TIME^Note.3: 500ms, 100ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.10: 90%
AC CURRENT: 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF)

PROTECTION

OVER POWER: 110-150% Over Power Protection, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE: Hiccup mode, recovers automatically after fault condition is removed
INPUT OVER VOLTAGE^Note.8: 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95%
STORAGE TEMP.: -40 ~ +80℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB/T19510.1, GB/T19510.213, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)( for XLG-50I type only); NOM-058-SCFI-2017 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 3931.6 K hrs min. Telcordia SR-332 (Bellcore) 394.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 105*63*30mm (L*W*H)
PACKING: 0.41Kg;24pcs/ 10.5Kg/0.81CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.81CUFT for AB-type

Test conditions and notes16

Technical drawings

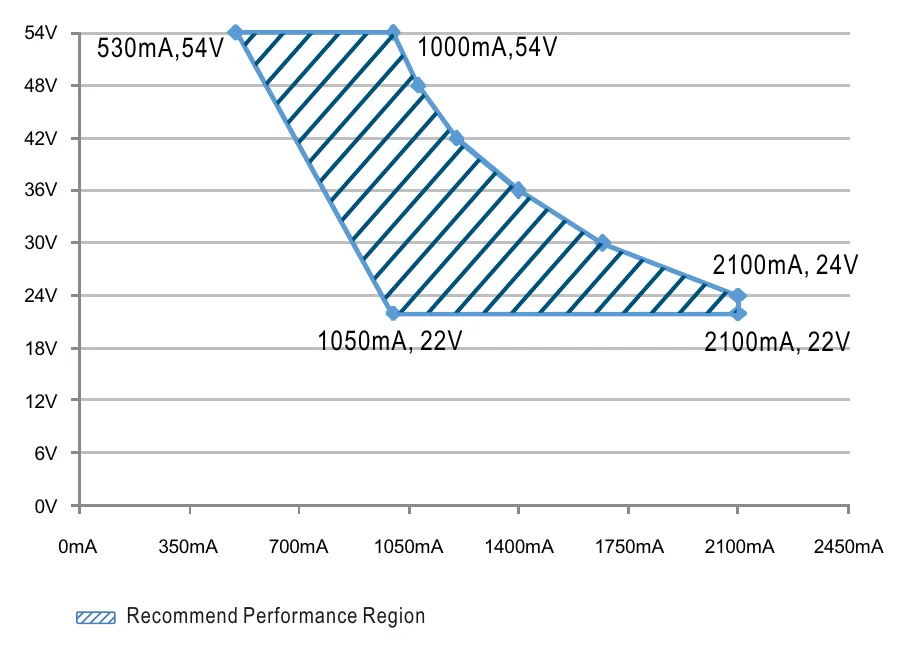

XLG-50-AB DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

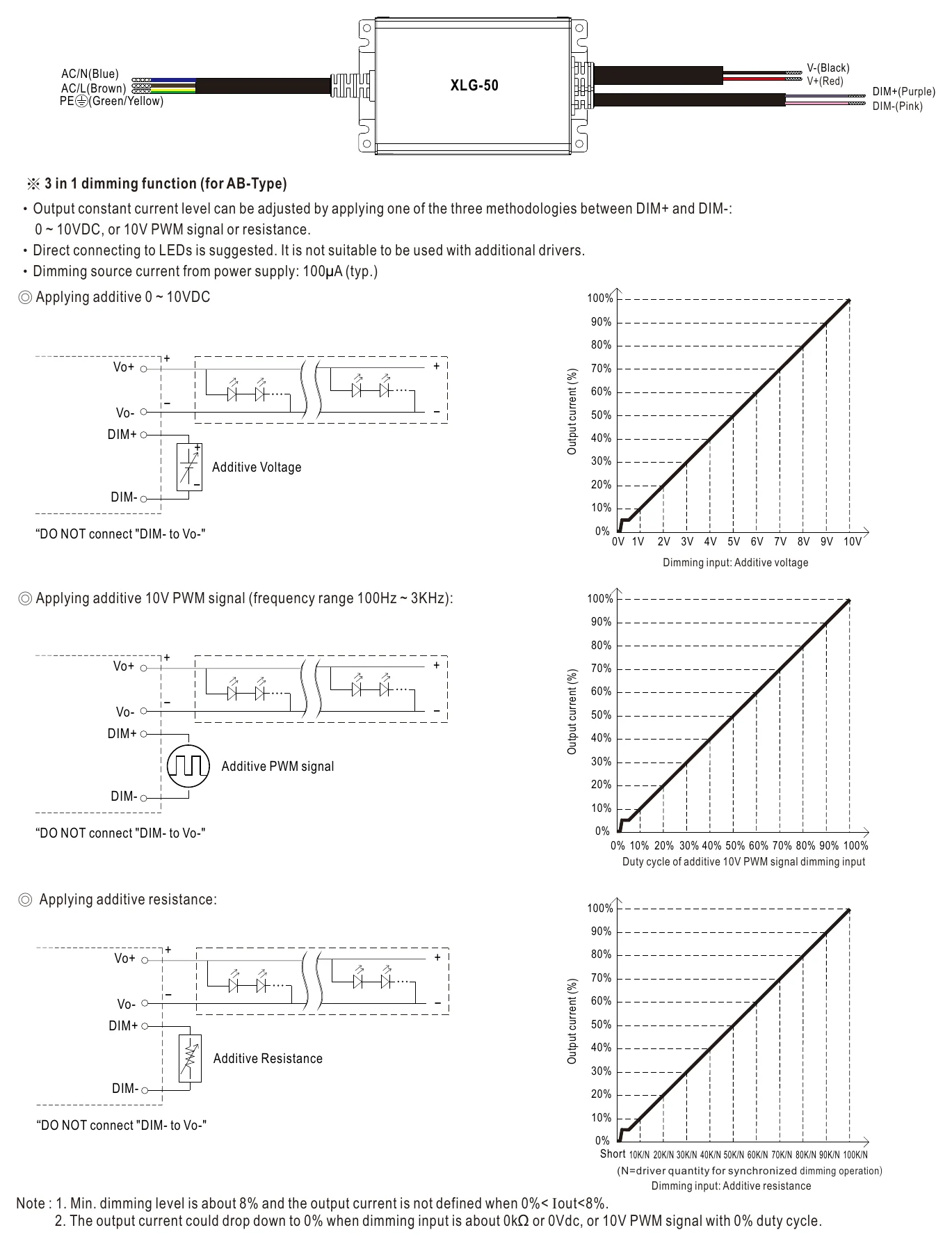

XLG-50-AB DIMMING OPERATION — DIMMING OPERATION

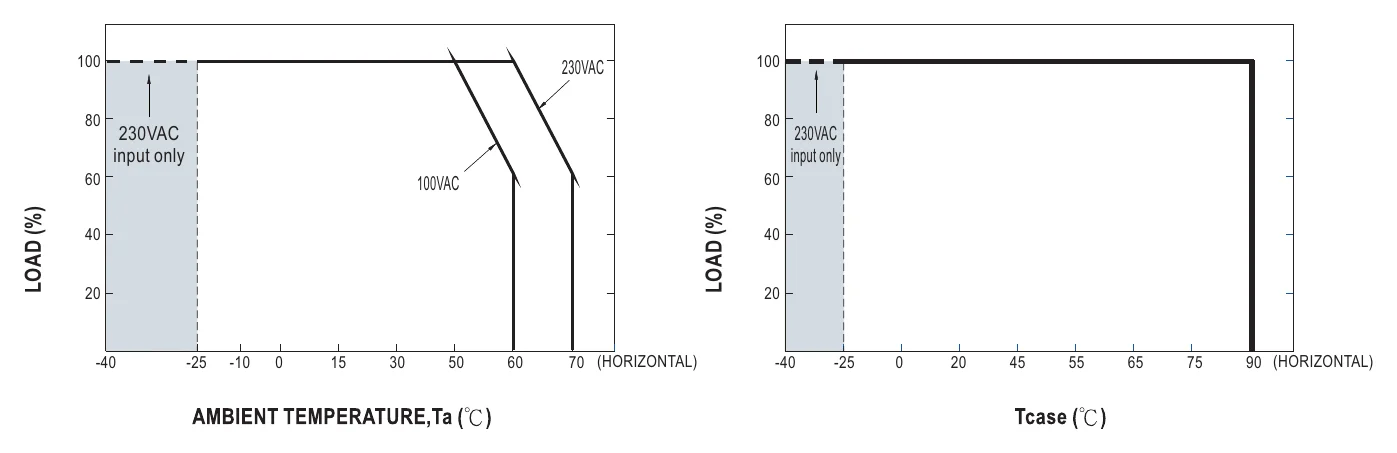

XLG-50-AB OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

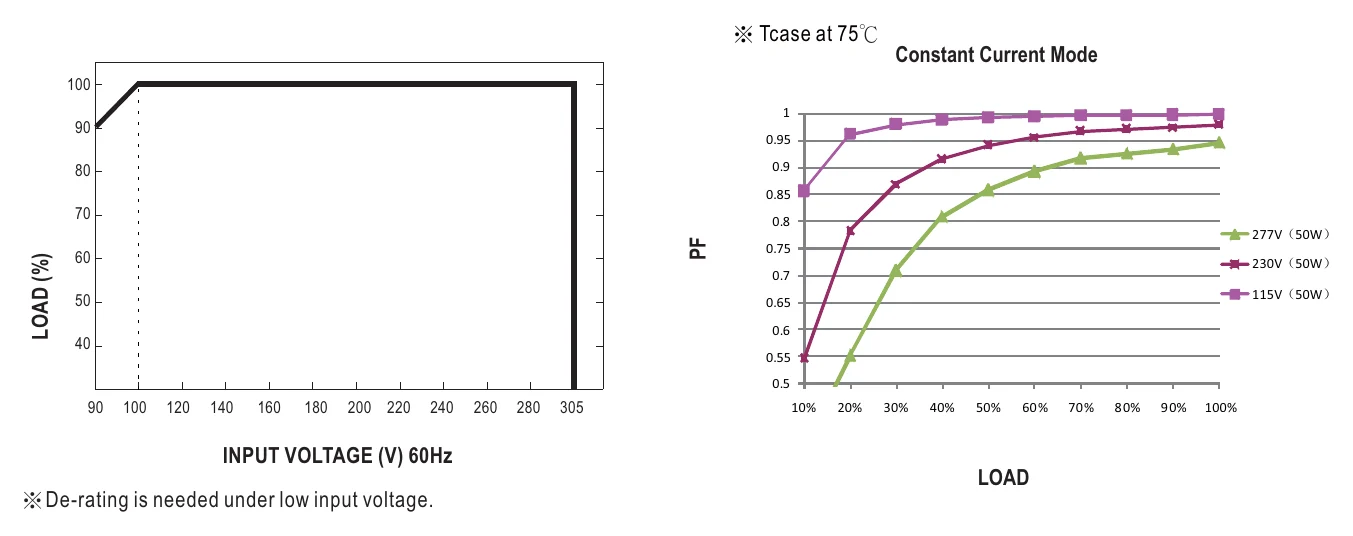

XLG-50-AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

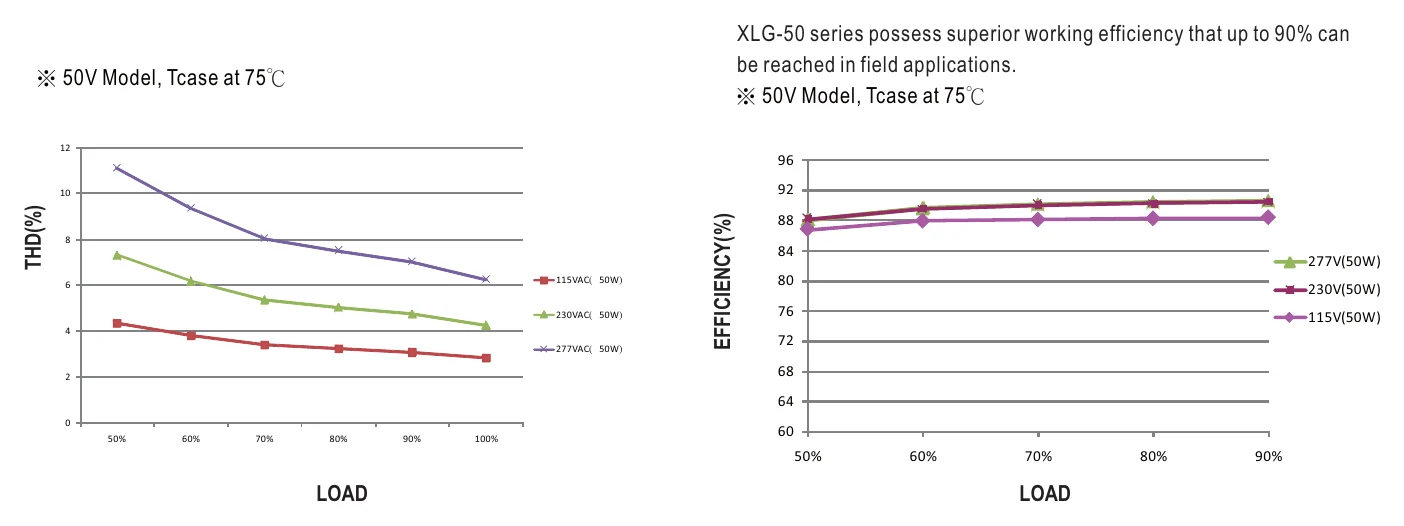

XLG-50-AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

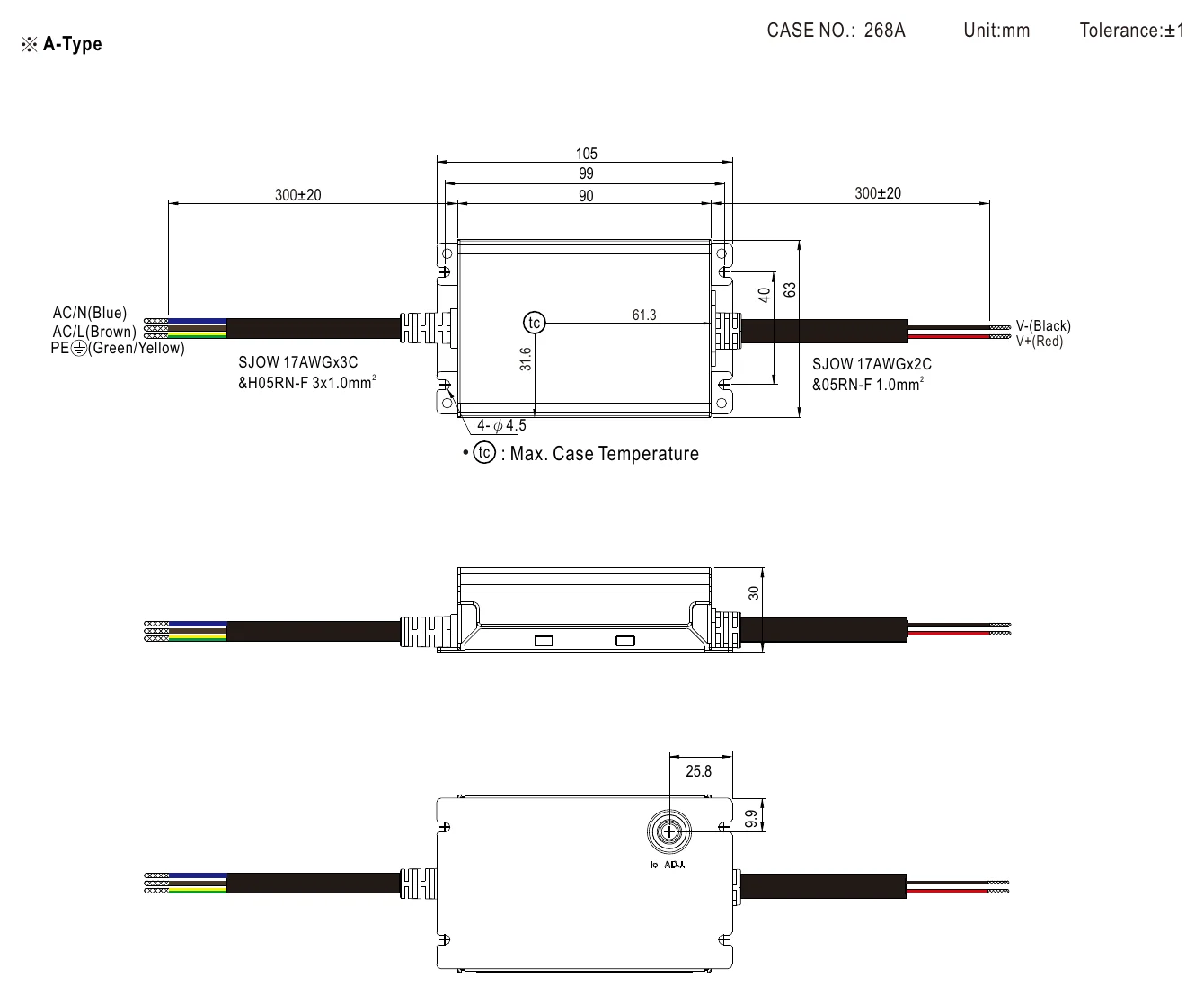

XLG-50-AB Mechanical Specification — Mechanical Specification

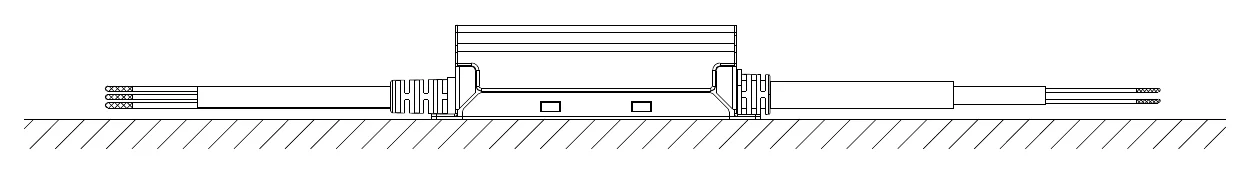

XLG-50-AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates2

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the XLG-50-AB be used to drive dimmable LED strip in an outdoor architectural lighting scheme?

Yes. The XLG-50-AB is IP67-rated for outdoor and wet-location use and includes dimming capability, making it suitable for exterior architectural cove lighting, garden path lighting, or outdoor accent strip installations where brightness control is required.

What LED strip length can the XLG-50-AB drive reliably?

The XLG-50-AB is a constant power LED driver with a rated output of 50W. It operates in a constant current region of 22~54V with a current adjustment range of 0.53~2.1A. For a 24V strip rated at 10W/m, the driver can support approximately 5 meters at full load. Confirm your strip's voltage and power per meter rating to ensure it falls within the driver's constant current region and power limits.

Can I use the XLG-50-AB for a dimmable LED display or illuminated sign that needs to run outdoors?

Yes. The combination of IP67 waterproofing and built-in dimming makes the XLG-50-AB a practical choice for dimmable outdoor sign cabinets, illuminated menu boards, and exterior display lighting where the driver must tolerate rain and dust. Its -40°C to +90°C operating range also handles outdoor thermal extremes.

Is the XLG-50-AB suitable for humid or splash-zone environments such as pool surrounds or outdoor bars?

Yes. The IP67 rating certifies protection against complete dust ingress and temporary water immersion to 1 meter for 30 minutes. This makes the XLG-50-AB appropriate for pool surround accent lighting, outdoor bar lighting, or similar wet-area LED strip applications, subject to applicable local electrical codes.

Can the dimming function on the XLG-50-AB be controlled by a standard 0-10V lighting controller?

Yes. The XLG-50-AB features a 3-in-1 dimming function compatible with 0~10VDC, 10V PWM signals, or resistance. You can control the dimming level by applying a 0~10VDC signal between the DIM+ and DIM- terminals. Note that DIM- should not be connected to Vo-.
