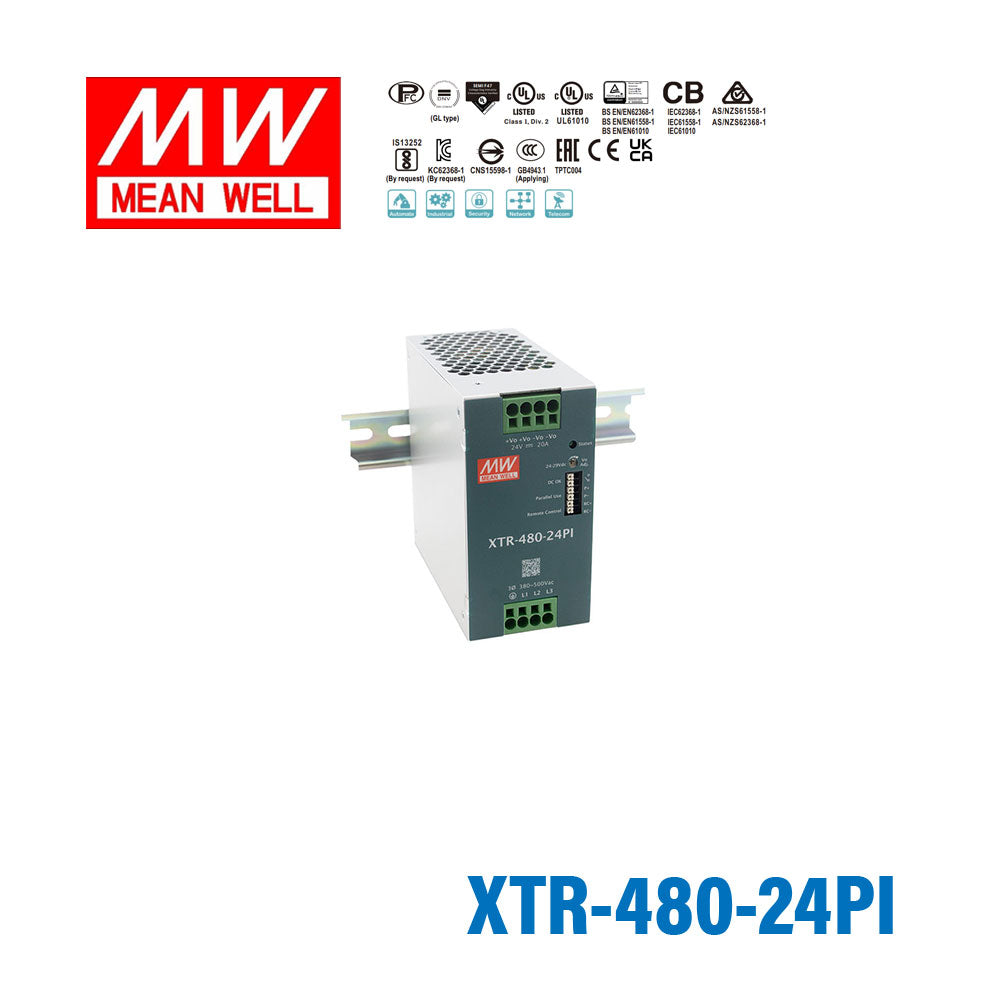

Mean Well XTR-480-24PI Three Phase Din Rail Power Supply 480W 24V -...
Please Login for Pricing
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length12.5 cm
-
Width6.3 cm
-
Height12.52 cm
-
Weight1.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XTR-480-24PI used for?
The XTR-480-24PI is a DIN rail AC-DC power supply for industrial and B2B power systems that need a 24V DC output. Its 480W power rating and 20A rated current make it suitable for demanding control panels, automation equipment, and other industrial applications requiring stable DC power.
What are the main output specifications of the XTR-480-24PI?
This model provides a 24V DC output with a rated current of 20A. Its total power rating is 480W, placing it in the higher-power range for DIN rail power supplies.
Does the XTR-480-24PI support three-phase input?
Yes. The XTR-480-24PI is described as a three-phase DIN rail power supply with a 320 to 600Vac wide input range, and the product description also notes that dual-phase operation is possible.
Is the XTR-480-24PI suitable for harsh environments?
The listed operating temperature range is -40°C to 85°C, which supports use in demanding industrial environments. Its description also highlights advanced protection mechanisms and robust performance for reliable operation.
How does the XTR-480-24PI differ from lower-power DIN rail power supplies?
The key difference is its 480W power rating with a 24V, 20A output. Buyers typically choose this model when a DIN rail power supply needs to support higher current loads than smaller 24V units.
What warranty is listed for the XTR-480-24PI?
The XTR-480-24PI has a listed warranty period of 5 years. This is useful for B2B buyers comparing lifecycle support across industrial power supply options.
How much does the XTR-480-24PI weigh?
The listed weight for this model is 1.3 kg. This can help buyers assess panel layout, handling, and shipping considerations when comparing DIN rail power supplies.
