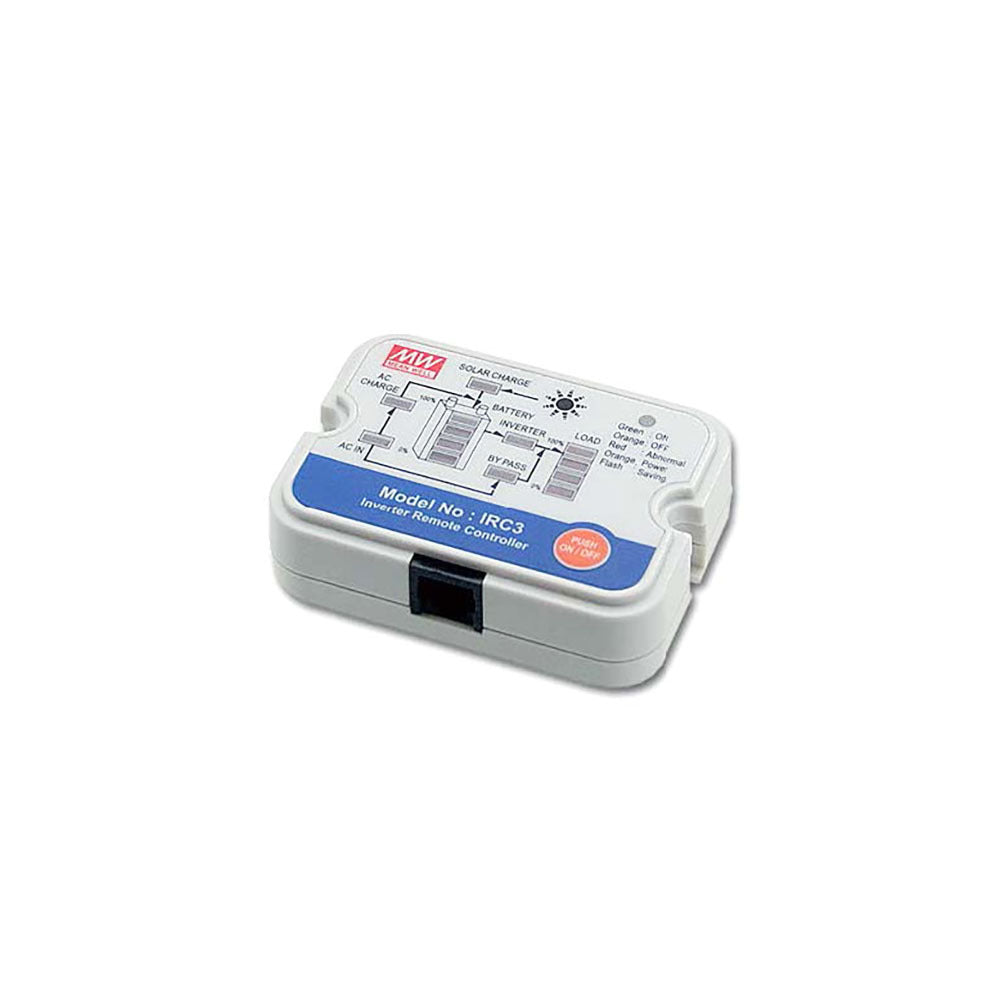

Meanwell IRC3 Power Inverter Remote Control
Please Login for Pricing
Description
Description
IRC1/IRC2/IRC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal sent by inverter series and display through digital meters. IRC1/IRC2/IRC3 can also turn ON/OFF of inverter remotely that make the basic control more easily
Key Features
- ✓Wall-mount and control panel acceptable
- ✓Built-in ON/OFF button
- ✓Digital meters for battery level, output load level, and operating status on remote control panel
- ✓LED indicators for remote ON/OFF, abnormal and power saving mode
- ✓Remote panel with 10FT cable length, optional for 25FT or 50FT
- ✓Connect directly ro the remote socket of inverter, no power supply needed
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRC Series
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length7.3 cm
-
Width5.5 cm
-
Height2.1 cm
-
Weight0.26 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Meanwell IRC3 remote control do?
The Meanwell IRC3 is a monitoring and control panel for supported inverter series. It lets you remotely turn the inverter on or off and view key operating information on the panel. The display and indicators show battery level, output load level, and operating status.
What information can the IRC3 display?
The IRC3 includes digital meters for battery level, output load level, and operating status. It also has LED indicators for remote ON/OFF, abnormal condition, and power saving mode. This makes it a practical option when users want quick status visibility without checking the inverter directly.
Is the IRC3 suitable for panel or wall mounting?
Yes. The IRC3 is designed for either wall-mount use or installation in a control panel. That flexibility makes it suitable for commercial, industrial, and mobile power system environments where remote access is useful.
Does the IRC3 need its own power supply?
No. The product description states that it connects directly to the inverter's remote interface and does not require a separate power supply. That helps keep the remote control arrangement simple and compact.
What cable length is included with the IRC3?
The standard remote panel cable length is 10 feet. Optional 25-foot and 50-foot cable lengths are also available for applications that need a longer reach between the inverter and the control location.
What operating environment is the IRC3 rated for?
The listed operating temperature range is -20°C to 50°C. This makes the IRC3 suitable for a wide range of indoor or protected equipment environments, provided the overall system is designed within those limits.
What warranty comes with the Meanwell IRC3?
The IRC3 includes a 3-year warranty. That warranty period can be useful for buyers evaluating remote accessories for long-term inverter system support and maintenance planning.
