Nordlux Wall Norma Grey
Log in to see priceOverview

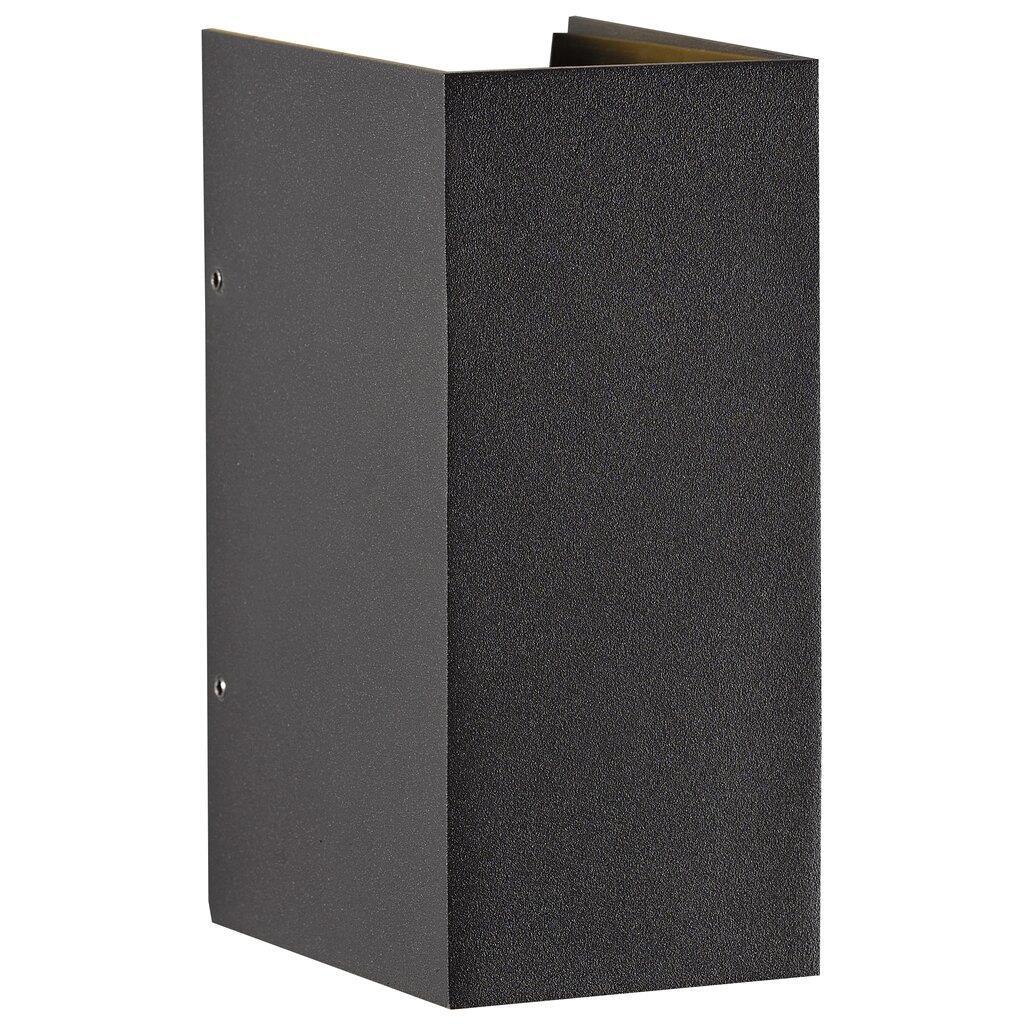

ND-77611010 is an outdoor Nordlux wall light in grey (metal/glass).

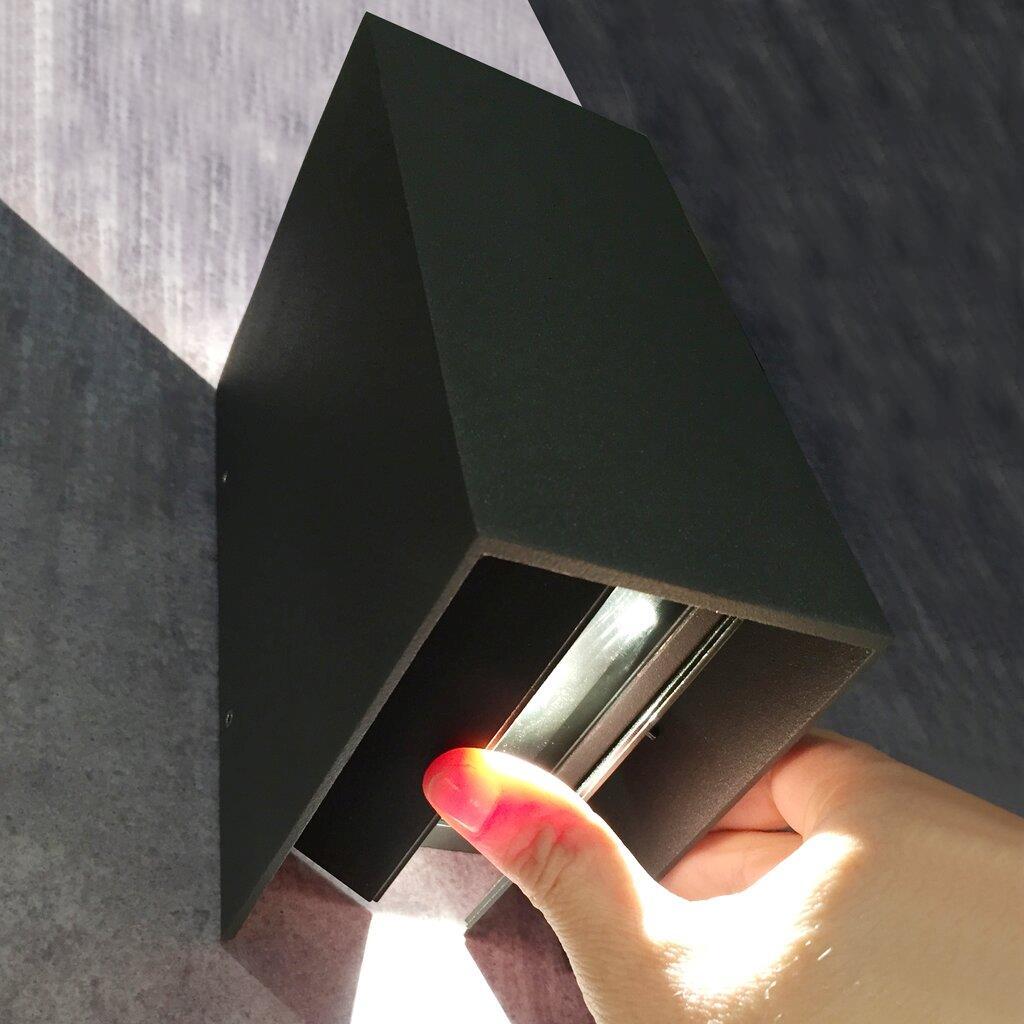

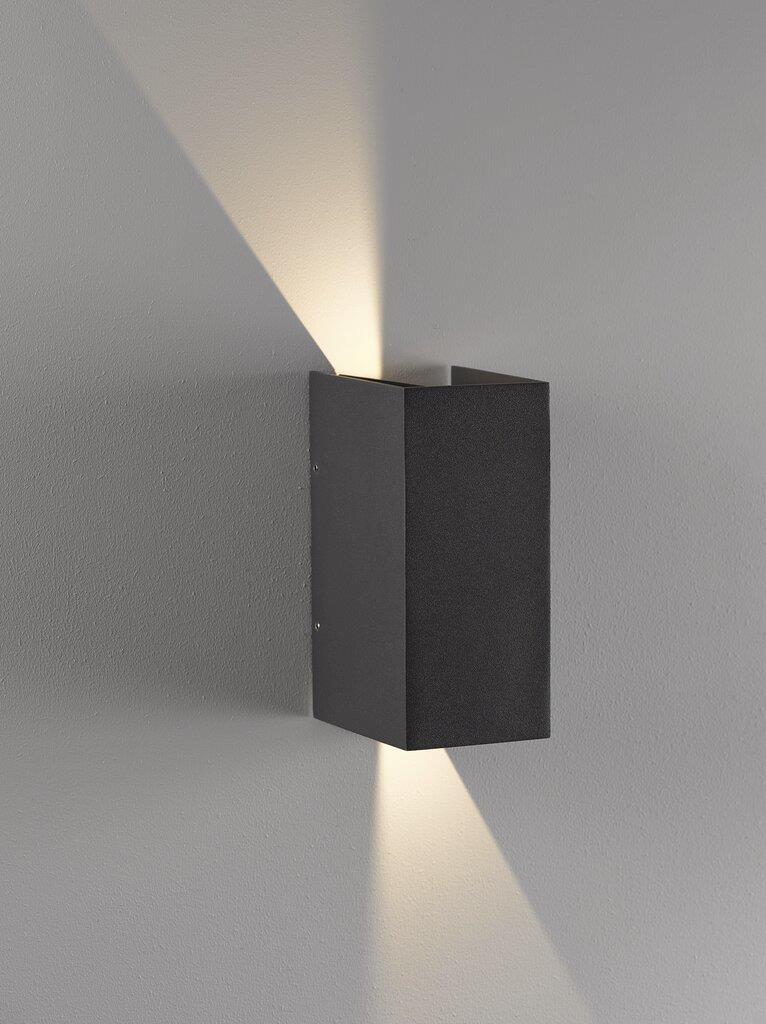

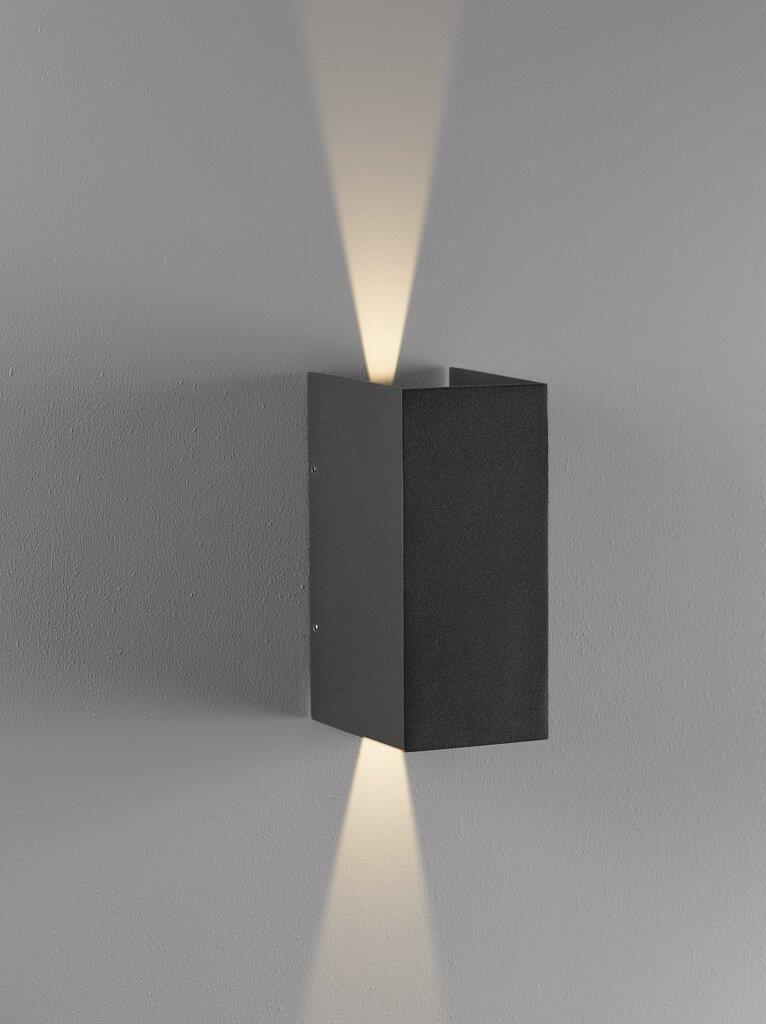

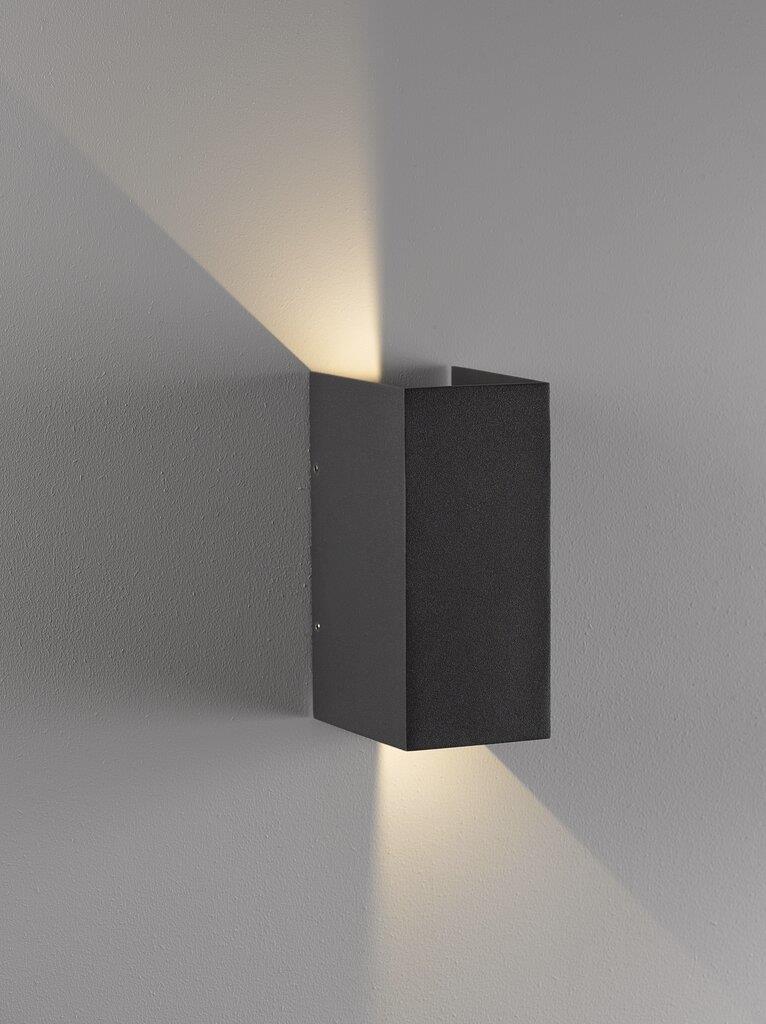

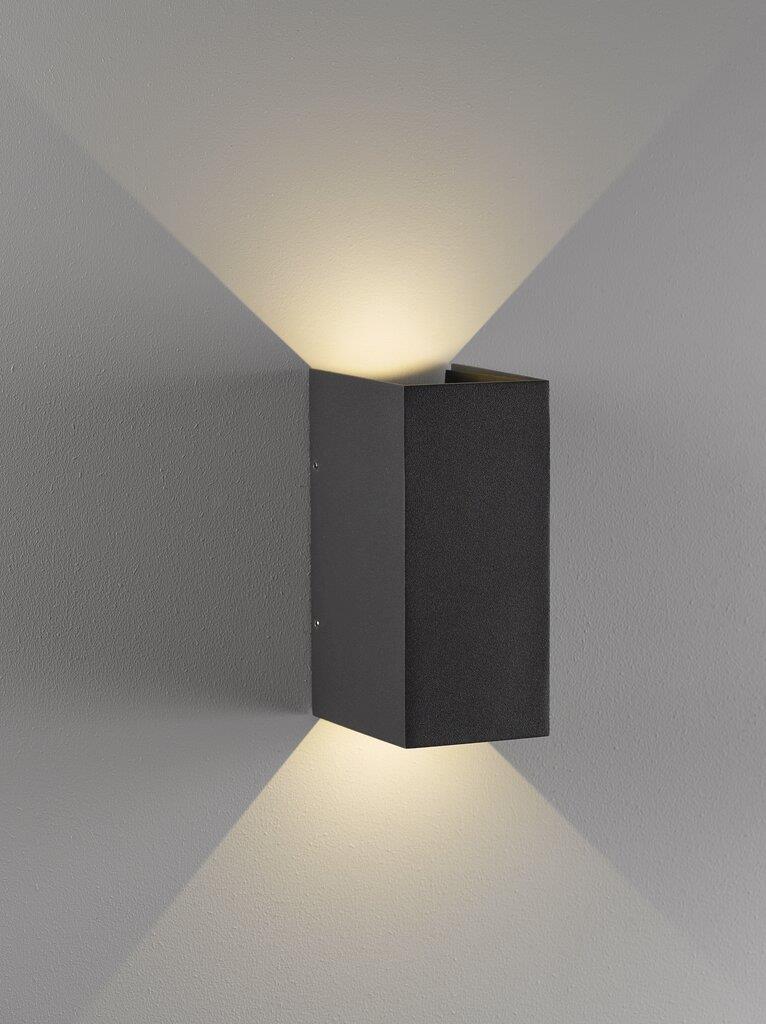

NORMA has clean lines, and its style is distinctively minimalist. Norma offers both upward facing and downward facing light, as well as light at different angles to illuminate facades or other surfaces exactly the way you want.

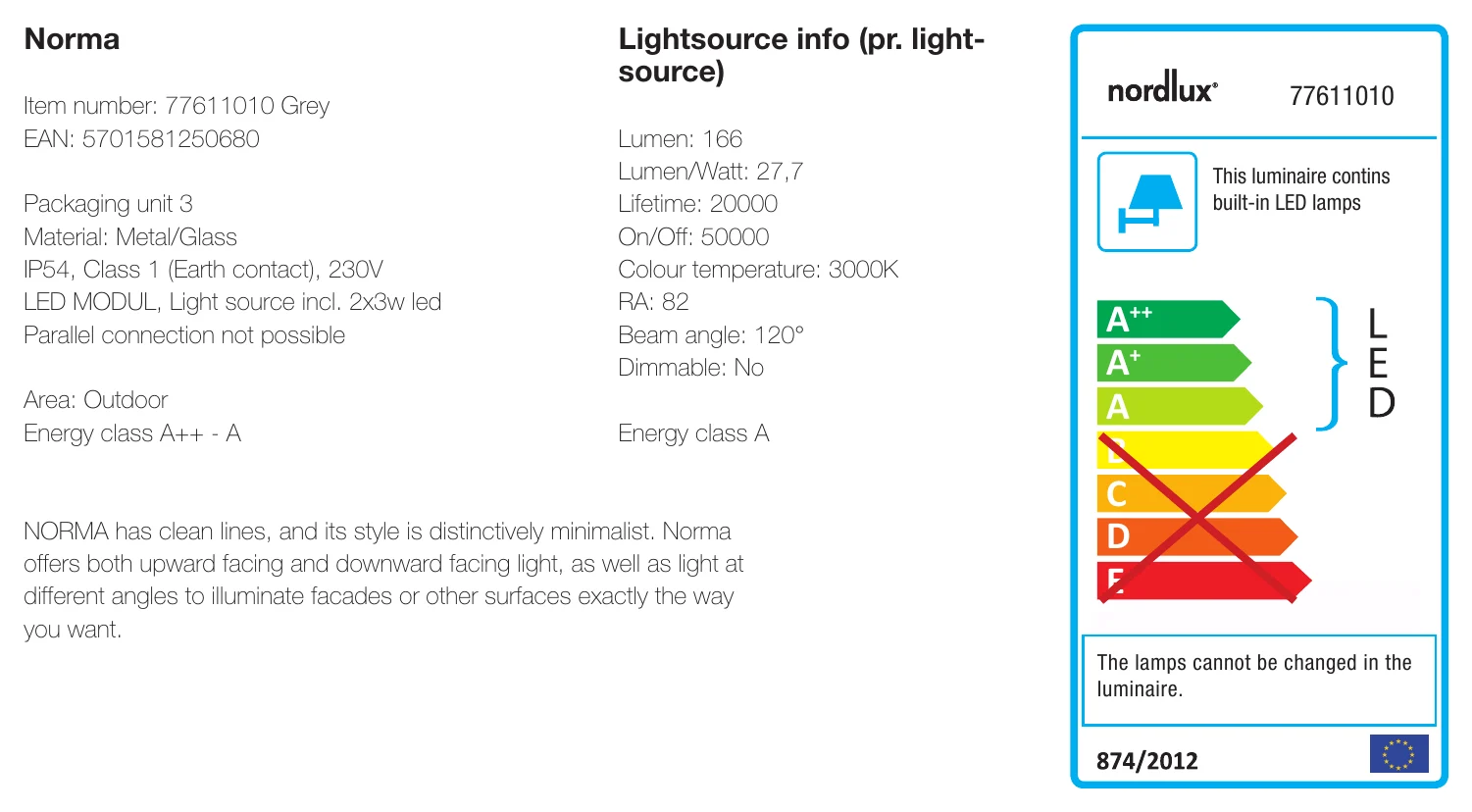

Specifications
Dimensions & materials
- Material
- Metal/Glass
- Colour temperature
- 3000K
- Height (cm)
- 17.2
- Projection (cm)
- 10.8
- Width (cm)
- 7.9
- Wall box (cm)
- 16 x 6,5
Light & electrical
- Class
- Class 1 (Earth contact)
- Voltage
- 230V
- Compatible bulb energy classes
- A++ - A
- Lumen
- 166
- Lumen/Watt
- 27,7
- Lifetime
- 20000
- RA
- 82
- Dimmable
- No
- Energy class
- A
Protection & use
- IP
- IP54
- Area
- Outdoor
Ordering information
- Item number
- 77611010 Grey
- EAN
- 5701581250680
- Packaging unit
- 3
Other
- LED MODUL
- Light source incl. 2x3w led
- Parallel connection
- not possible
- On/Off
- 50000
- Beam angle
- 120°
- Marked features
- The lamps cannot be changed in the luminaire.

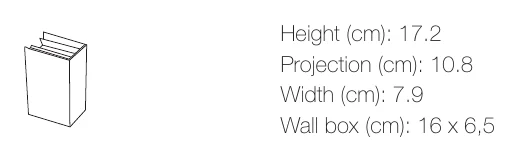

Technical drawings
Downloads
FAQ
Is the Nordlux Wall Norma Grey suitable for outdoor use?
Yes. This model is designed for outdoor use and has an IP54 rating, which helps protect it against dust and water splashes. It operates on 230V and is suitable for many exterior wall applications.
What kind of light output does the Nordlux Wall Norma Grey provide?
The fixture includes integrated LED modules rated at 2 x 3W and delivers 166 lumens. It casts both upward and downward light, helping highlight facades and wall surfaces with a more architectural effect. The beam angle is 120° and the color temperature is 3000K for a warm white appearance.
Is the Nordlux Wall Norma Grey dimmable?
No. This model is listed as non-dimmable, so it is intended for standard on/off operation only. If dimming is required, a different wall light model would be a better fit.
Where is the Nordlux Wall Norma Grey typically used?
This wall light is commonly used on exterior facades, entryways, patios, and other outdoor wall surfaces where a clean, minimalist look is preferred. Because it provides both upward and downward illumination, it also works well for accent lighting on modern commercial or residential buildings.
What are the main size and material details for this wall light?
The Nordlux Wall Norma Grey is made from metal and glass. It measures 17.2 cm in height, 7.9 cm in width, and projects 10.8 cm from the wall. The finish color is grey.
How long is the expected LED lifetime for this model?
The integrated LED is rated for a lifetime of 20,000 hours. It is also specified for 50,000 on/off cycles. This makes it a practical option for applications where long-term, low-maintenance lighting is important.
