Purple Plug

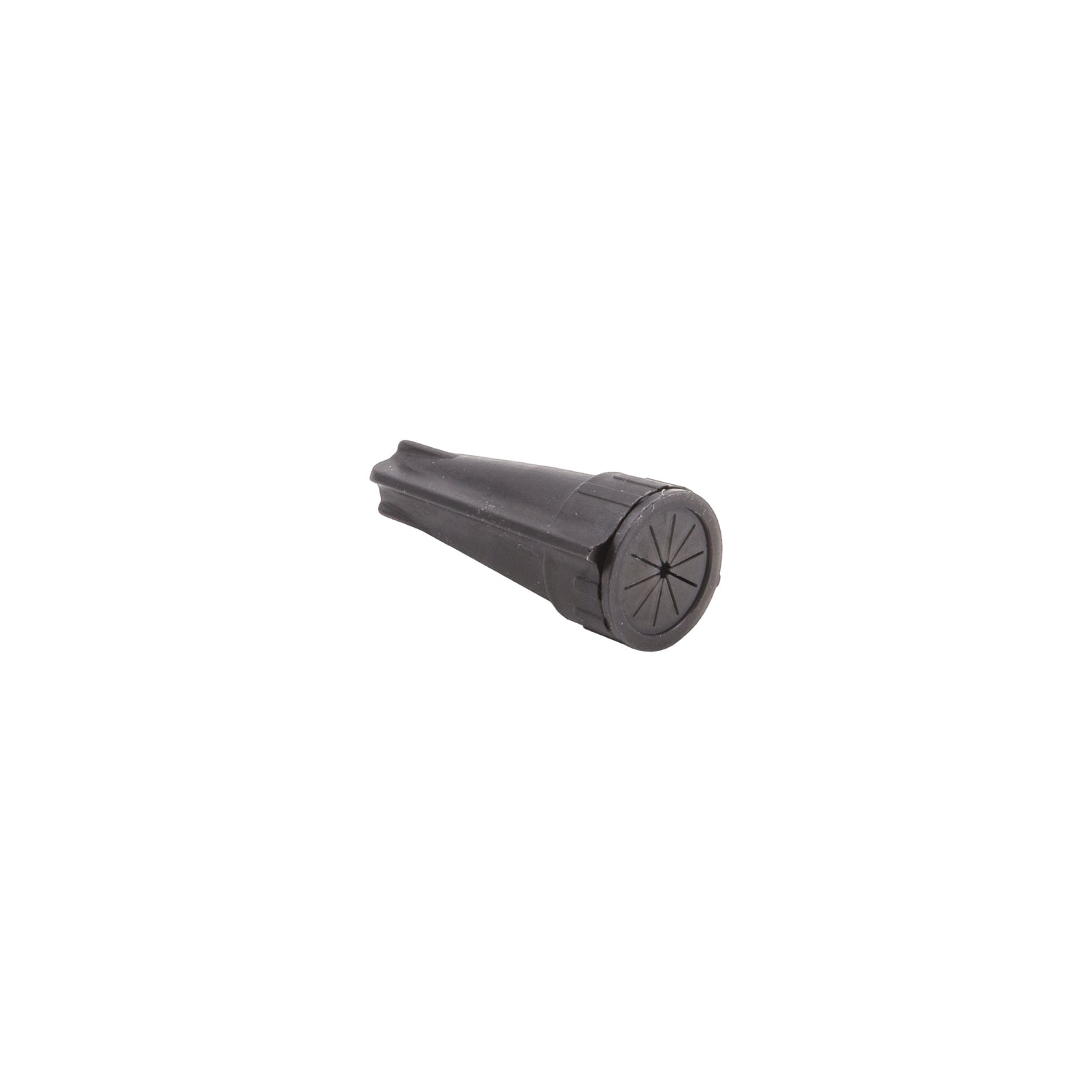

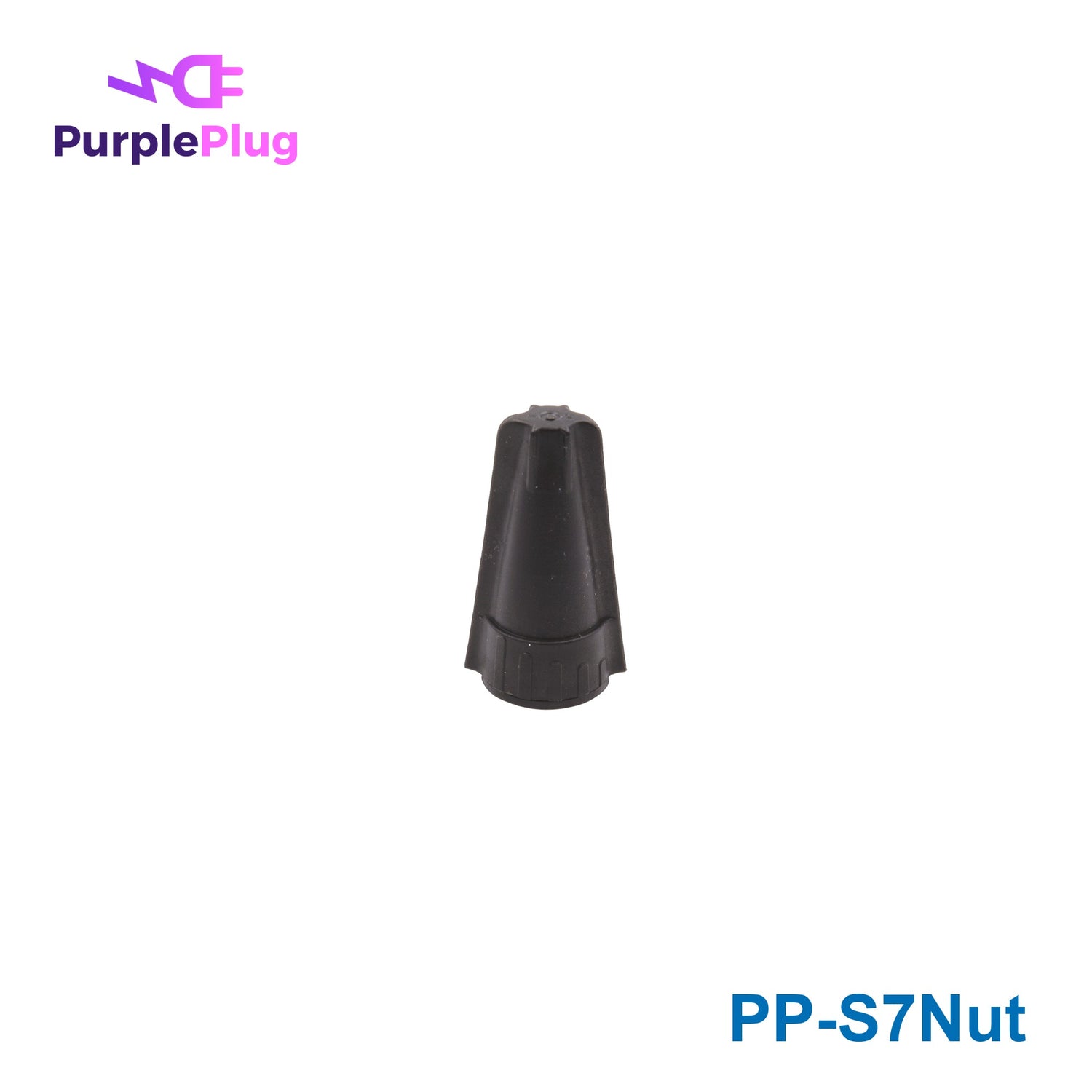

Purple Plug Wire Connector Nut 20-8AWG, Waterproof

PP, 20-8AWG
Please for Pricing
|

Description

This S7 Terminal wire connector nut is crafted for dependable connections, accepting wires from 20 to 8AWG, and offering a robust voltage and temperature rating.

Easy Installation and Durable Connections

PurplePlug's winged wire connector nuts revolutionize the installation process. With a simple insertion of the connected wire's head into the electrical wire caps followed by a quick rotation, installation is complete without the need for electrical tapes or sealants, saving valuable time. The unique wing design ensures secure and hassle-free wire connections, simplifying both installation and removal, especially in tight spaces.

Premium Material and Safety Assurance

PurplePlug's electrical wire seal nuts come pre-filled with silicone sealant for effective waterproofing and corrosion prevention, ideal for outdoor wiring. Crafted from durable thermoplastic, they prioritize durability and flame resistance. The internal spring ensures stability, enhancing safety. With a flame-retardant shell and exceptional electrical insulation up to UL94V-2, PurplePlug guarantees reliability. These outdoor electrical caps feature a rugged, wear-resistant surface, suitable for outdoor use.

Versatile Compatibility

PurplePlug nuts are versatile for numerous direct burial and wet location electrical connections. Ideal for applications such as garden irrigation, lamp facilities, and waterproof wiring equipment, valves, and instrument lights, this product excels in performance. It serves as an excellent alternative to traditional tape and waterproof tape, offering superior reliability and durability.

Technical Specifications

  • Applicable Wire: 20-8 AWG
  • Voltage Rating: 300 Volt Max.
  • Material: PP
  • Temperature Rating: -40°F to +185°F (-40°C to +85°C)
  • Conductor: Spring
  • Waterproof Glue: Silicone
  • Color: Black

Specifications
  • Brand
    Purple Plug
  • Series
    Purple Plug Accessory
  • Warranty
    5 Year
  • Height
    4.7 cm

File Downloads

::specification::
