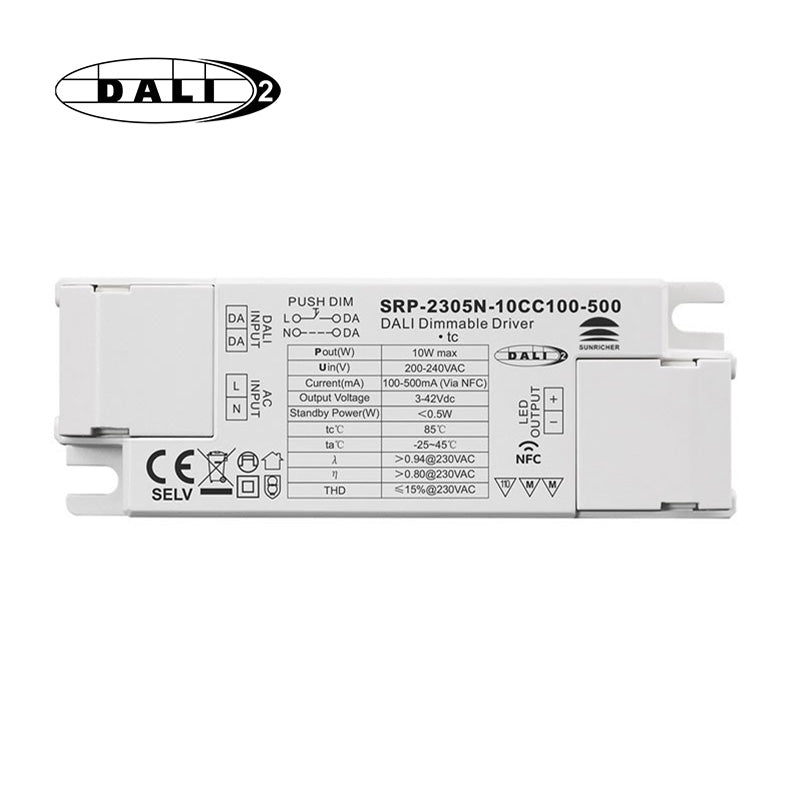

ENVO DALI2 DT6 CC Driver, 10W, 100-500mA, NFC Contol
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandEnvo
-
SeriesSunricher Triac Series
-
Power Rating10 Watt
-
Output Voltage42 Volt
-
Rated Current0.1 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty3 Year
-
Length10.1 cm
-
Width3.6 cm
-
Height2.5 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of LED driver is the ENVO DALI2 DT6 CC Driver SRP-2305N-10CC100-500?
This model is a constant current LED driver designed for applications that use DALI dimming control. It is rated at 10W and supports an output current range of 100-500mA. The listed output voltage is 42V.
Is this a constant current or constant voltage driver?
The SRP-2305N-10CC100-500 is a constant current driver. That makes it suitable for LED loads that are specified by drive current rather than fixed output voltage. Its adjustable current range is 100-500mA.
Does this driver support DALI dimming?
Yes, this model is identified as a DALI2 DT6 constant current driver and its dimming control is listed as DALI. It is intended for projects where DALI-based lighting control is required. Buyers looking for a non-DALI driver should compare it against models with different control types.
What applications is this 10W driver best suited for?
This model is best suited for lower-power constant current LED lighting applications where DALI control is needed. Its 10W rating and 100-500mA current range make it a fit for compact commercial or architectural LED fixtures that match those electrical requirements. It is generally selected when controllability matters more than higher wattage capacity.
What operating temperature range does this driver support?
The specified ambient temperature range for this model is -20°C to 45°C. That makes it suitable for many indoor and controlled-environment lighting applications within that range. If your project will see temperatures outside those limits, a different driver should be considered.

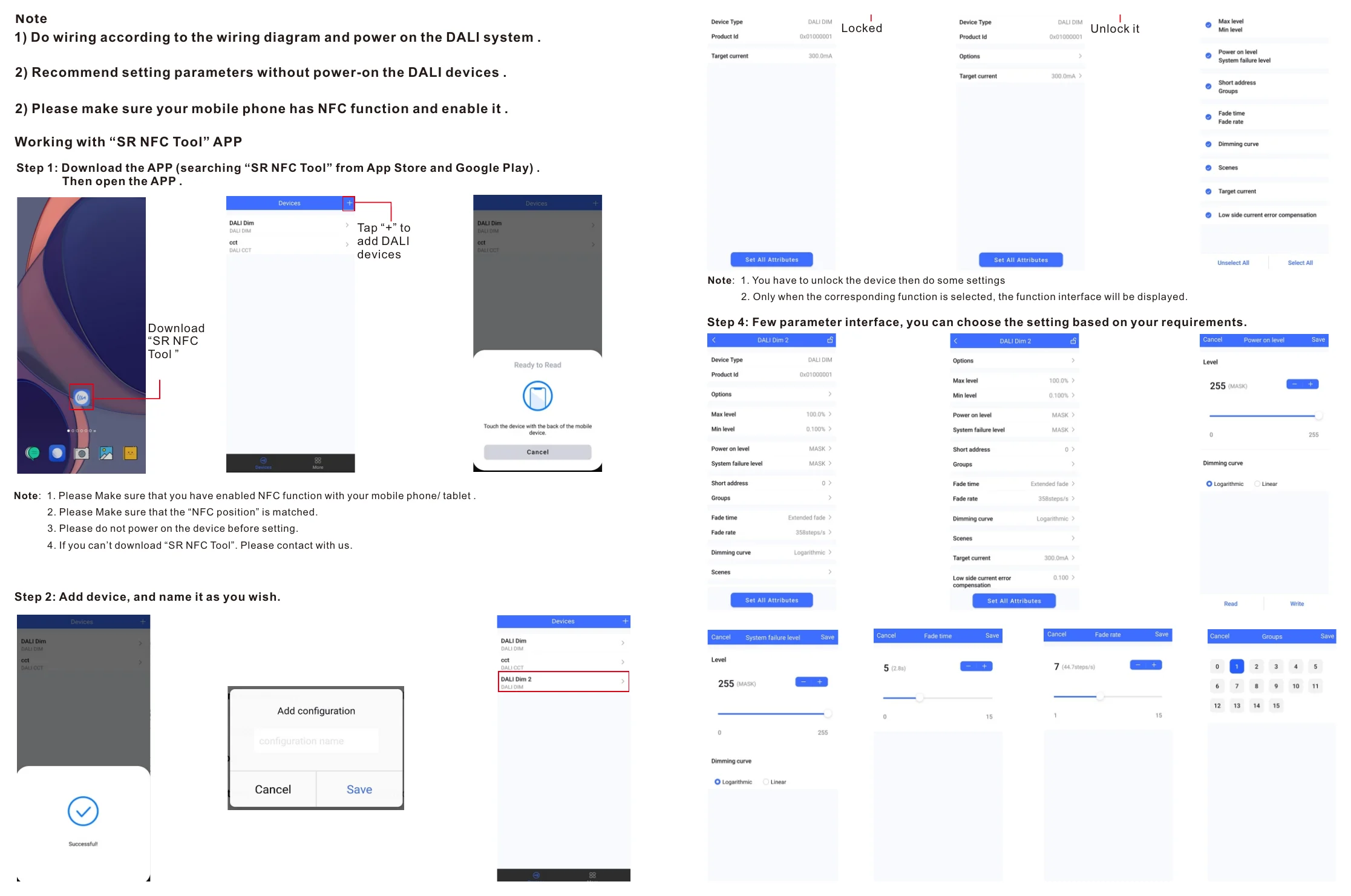

Does this model include NFC control?
Yes, the product name identifies this driver as having NFC control. That is a differentiating feature for buyers comparing programmable or configurable LED drivers within the same power class. For exact NFC workflow or software support, the product documentation should be checked separately.
What warranty is offered for this LED driver?
The listed warranty period for the SRP-2305N-10CC100-500 is 3 years. That gives buyers a defined support window for commercial purchasing and maintenance planning. Warranty terms and claim conditions would still depend on the seller's policy.
