Envo

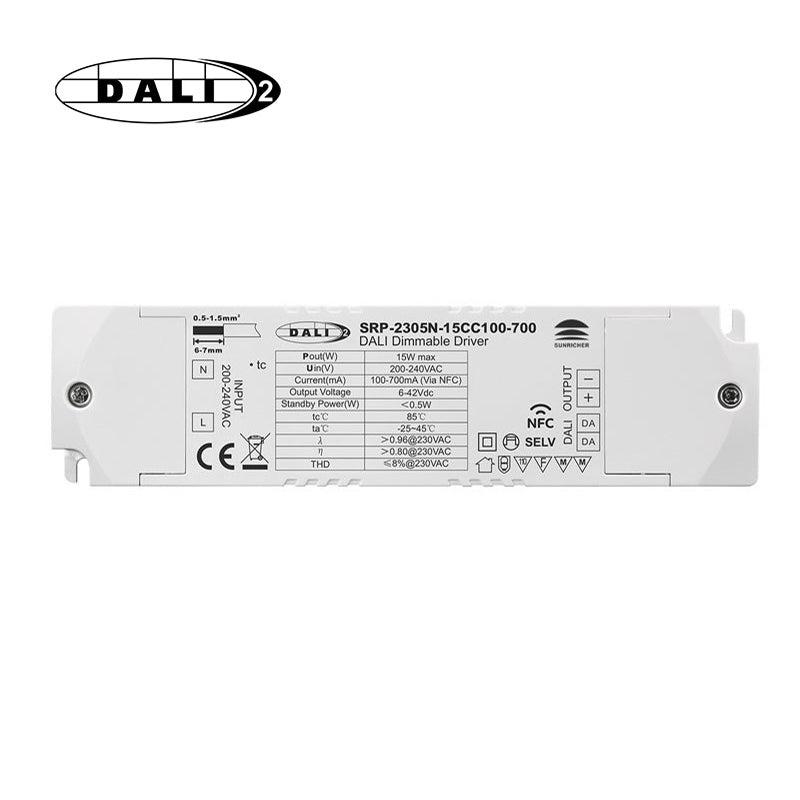

ENVO SRP-2305N-15CC100-700 DT6 CC Driver, 15W, 100-700mA, NFC Control

15W NFC Programmable DALI DT6 LED Driver (Constant Current)
SKU SRP-2305N-15CC100-700
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

SRP-2305N-15CC100-700
In stock
|

Overview

SRP-2305N-15CC100-700 is the 6-42V output model of this series: rated power Max. 15W.

Features

  • In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
  • Built-in DALI-2 interface, DALI DT6 device
  • Dimmable LED driver. Max. output power 15W
  • 100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
  • DALI Address/Group/Scene setting via NFC program tool.
  • Class Ⅱ power supply, full isolated plastic case
  • High power factor and efficiency
  • To switch and dim LED lighting luminaries
  • Amplitude/CCR dimming, smooth and deep dimming
  • Compatible with universal DALI masters that support DT6 commands
  • Error report function
  • IP20 rating, suitable for indoor LED lighting applications
  • 5 years warranty

Specifications

SRP-2305N-15CC100-700Specifications from the official datasheetDownload datasheet PDF

Output

LED Channel
1
DC Voltage
6-42V
Current
100-700mA via NFC setting; Min.current gear lower to 0.1mA
Current Accuracy
±3% (±1% @ certain full load) @ full load
Rated Power
Max. 15W

Input

Voltage Range
200-240VAC/176-280VDC
Frequency Range
0/50/60Hz
Power Factor (Typ.)
> 0.96 @ 230VAC full load
Total Harmonic Distortion
≤ 8% (@ full load / 230VAC)
Efficiency (Typ.)
＞80% @ 230VAC full load
AC Current (Typ.)
0.1A @ 230VAC
Inrush Current (Typ.)
Max. 3.96A at 230VAC; 90μs duration
Leakage Current
< 5mA / 230VAC
Standby Power Consumption
＜0.5W
Anti Surge
L-N: 2KV

Control

Dimming Interface
DALI Device Type 6 (DALI consumption < 2mA) / AC Push
Dimming Range
0.01%-100% @ max current
Dimming Method
Amplitude/CCR dimming
Dimming Curve
Linear/Logarithmic optional

Protection

Short Circuit
Yes, recovers automatically after fault condition is removed
Over Current
Yes, recovers automatically after fault condition is removed
Over Temperature
Yes, recovers automatically after temperature drop

Environment

Working Temp.
-25℃ ~ +45℃
Max. Case Temp.
TC=85℃ (Ta=45℃)
Working Humidity
10% ~ 95% RH non-condensing
Storage Temp. & Humidity
-40℃ ~ +80℃, 10% ~ 95% RH

Safety & EMC

Safety Standards
EN61347-1, EN61347-2-13
Withstand Voltage
I/P-O/P: 3.75KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
EN55015, EN61000-3-2, EN61000-3-3
EMC Immunity
EN61547, EN61000-4-2,3,4,5,6,8,11

Others

MTBF
191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
Dimension
135x35x20mm (L*W*H)
Warranty
5 Years

Technical drawings

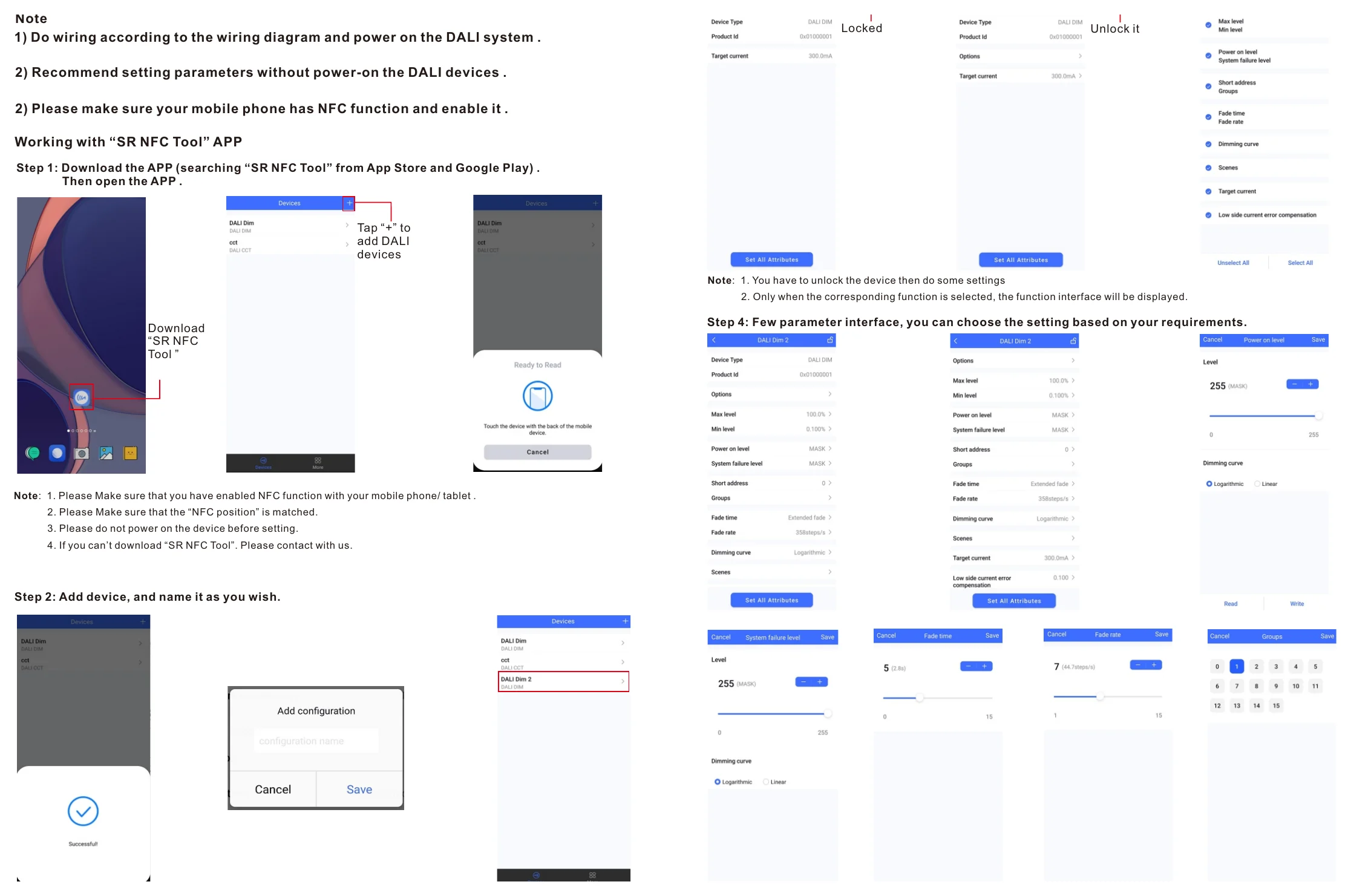

SRP-2305N-15CC100-700 Diagram
Diagram

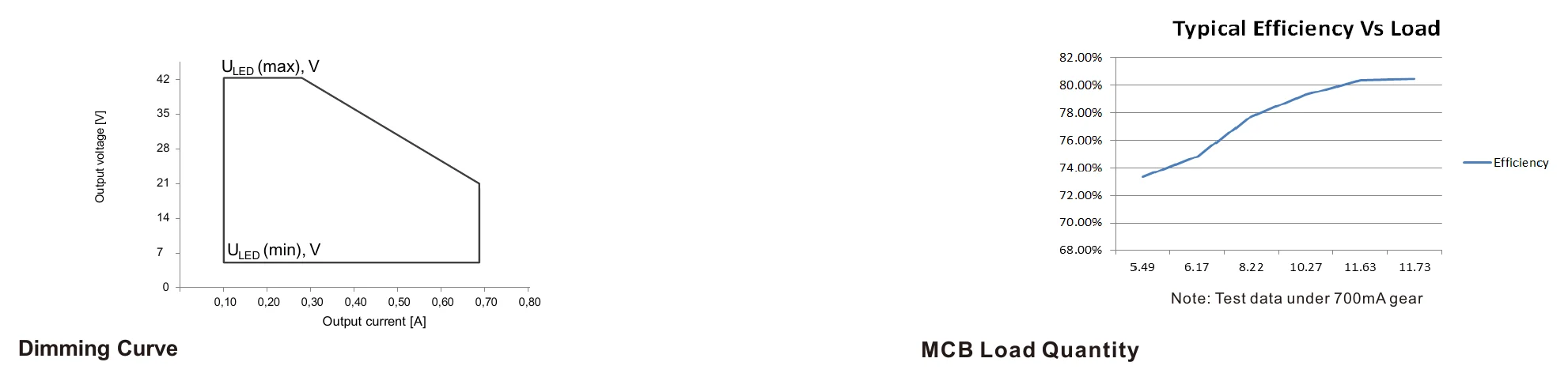

SRP-2305N-15CC100-700 Diagram
Diagram

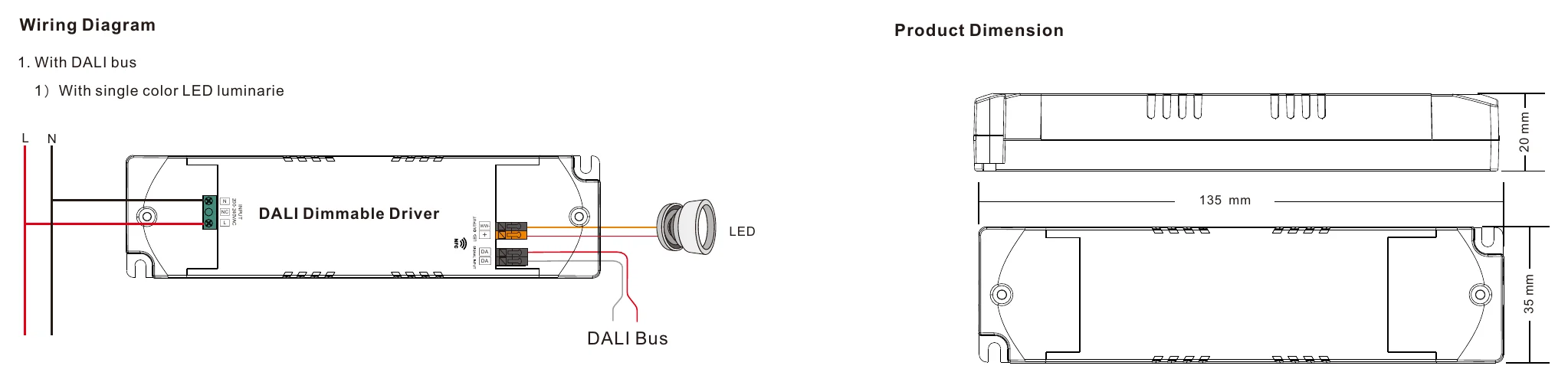

SRP-2305N-15CC100-700 Wiring Diagram
Wiring Diagram

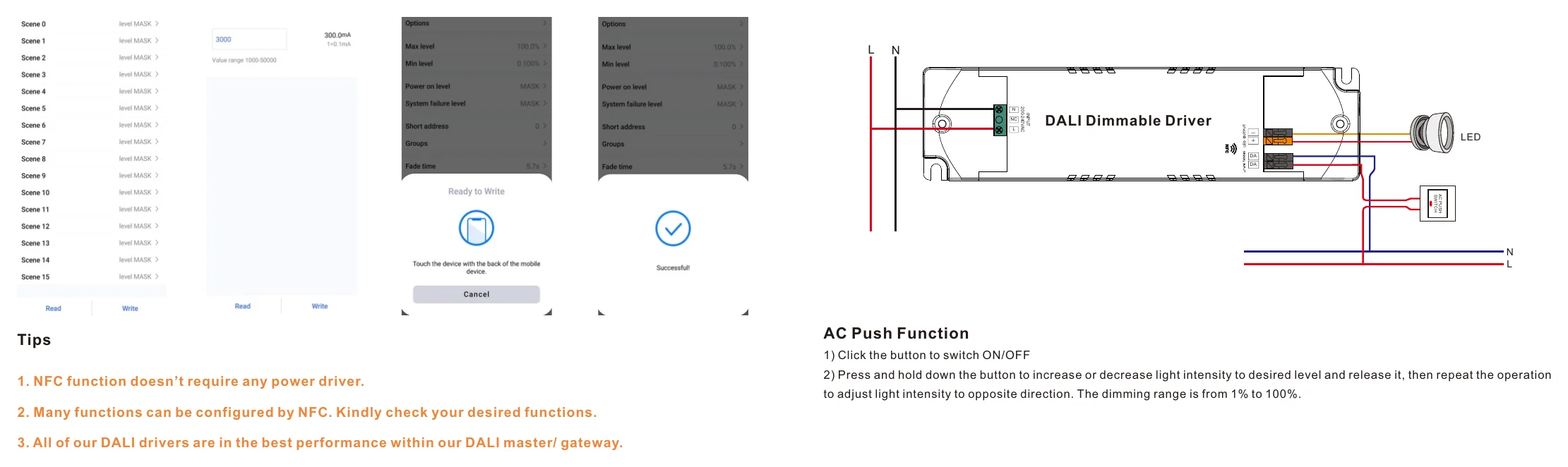

SRP-2305N-15CC100-700 Diagram
Diagram

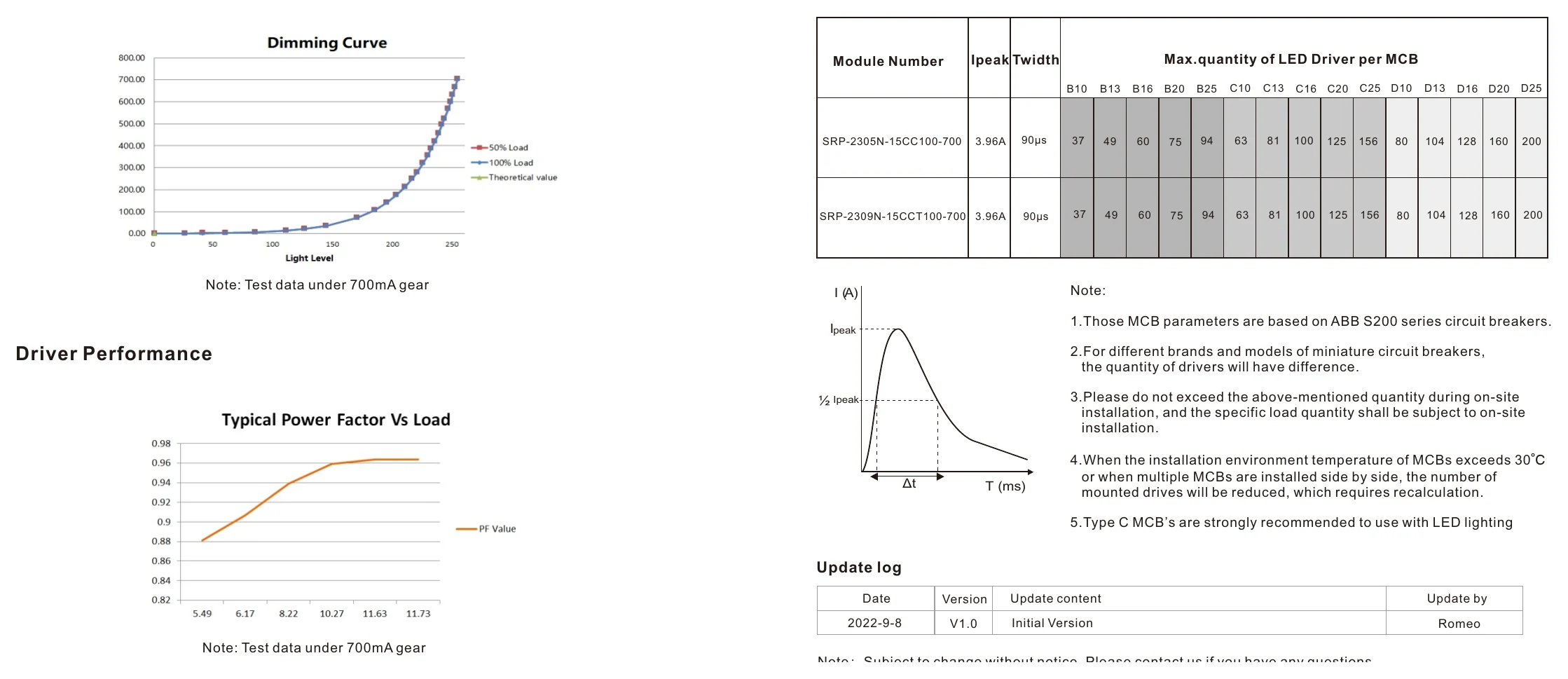

SRP-2305N-15CC100-700 Max.quantity of LED Driver per MCB
Max.quantity of LED Driver per MCB

Downloads

FAQ

What type of LED application is the SRP-2305N-15CC100-700 designed for?

This model is a constant-current LED driver for fixtures that need an adjustable output current between 100mA and 700mA. It is intended for LED loads that fit within its 15W power rating and up to 42V output.

Does this driver support DALI lighting control?

Yes. The SRP-2305N-15CC100-700 is a DALI2 DT6 constant-current driver, so it is intended for LED lighting systems that use DALI dimming control. The product name also states NFC control, which distinguishes it from basic non-programmable drivers.

What key output specifications should I check before choosing this driver?

The main selection points are its 15W power rating, adjustable 100-700mA constant-current output, and maximum 42V output. Your LED fixture needs to match those electrical limits for this model to be the right fit.

How does this model compare with a fixed-current LED driver?

A fixed-current driver is limited to one preset output current, while this ENVO model covers a wider 100-700mA range. That makes it more flexible when a project needs one driver family that can suit different constant-current fixture requirements.

Is this driver suitable for colder or warmer indoor operating conditions?

This model is rated for ambient temperatures from -25°C to +45°C. That makes it suitable for environments that may drop below freezing, provided the overall application stays within that operating range.

What warranty is offered on this LED driver?

The listed warranty period for the SRP-2305N-15CC100-700 is 5 years. For commercial buyers, that gives a clear support window when specifying this driver for lighting projects.
