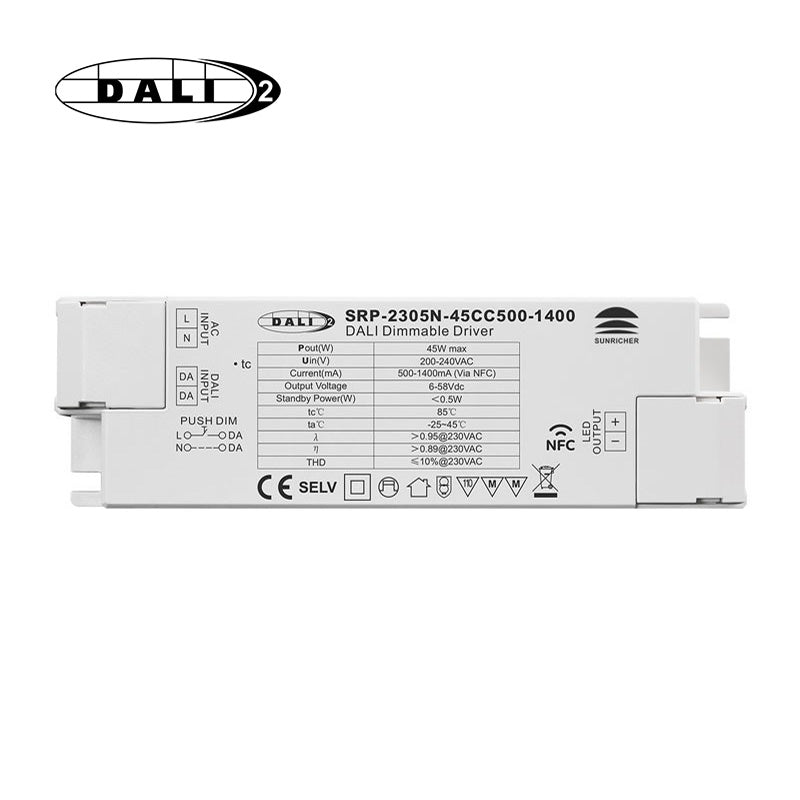

ENVO DALI2 DT6 CC Driver, 45W, 500-1400mA, NFC Contol
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandEnvo
-
SeriesSunricher Triac Series
-
Power Rating45 Watt
-
Output Voltage58 Volt
-
Rated Current0.5 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty3 Year
-
Length14.5 cm
-
Width4.5 cm
-
Height2.8 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of LED application is the SRP-2305N-45CC500-1400 designed for?
This model is a constant-current LED driver for lighting applications that need regulated output current rather than constant voltage. It is suited to projects that also require DALI2 DT6 dimming control and a compact 45W driver.
What output range does this ENVO driver support?
The SRP-2305N-45CC500-1400 is rated at 45W with a maximum output voltage of 58V. Its listed output current range is 500-1400mA, making it suitable for fixtures matched to that constant-current range.
Does this driver support DALI dimming?
Yes. This model is identified as a DALI2 DT6 constant-current driver, and its dimming control is listed as DALI. That makes it a fit for lighting systems specified around DALI-based dimming control.
How is this model different from a fixed-current LED driver?
This driver stands out by supporting an adjustable 500-1400mA constant-current range instead of only one fixed output current. That added flexibility can help buyers match one driver model to a wider set of compatible LED load requirements within its 45W and 58V limits.
Is this driver suitable for demanding temperature conditions?
This model is specified for operation from -20°C to 45°C. Buyers should confirm their ambient conditions stay within that range when selecting it for commercial or industrial lighting applications.
What should buyers know about size-related handling or product weight?
The listed product weight is 0.200 kg, which indicates a relatively lightweight driver for its power class. That can be useful when comparing driver options for fixtures or housings where component weight matters.
What warranty is provided for this LED driver?
The SRP-2305N-45CC500-1400 has a listed warranty period of 3 years. For procurement teams, that provides a clear baseline for support expectations on this specific model.
