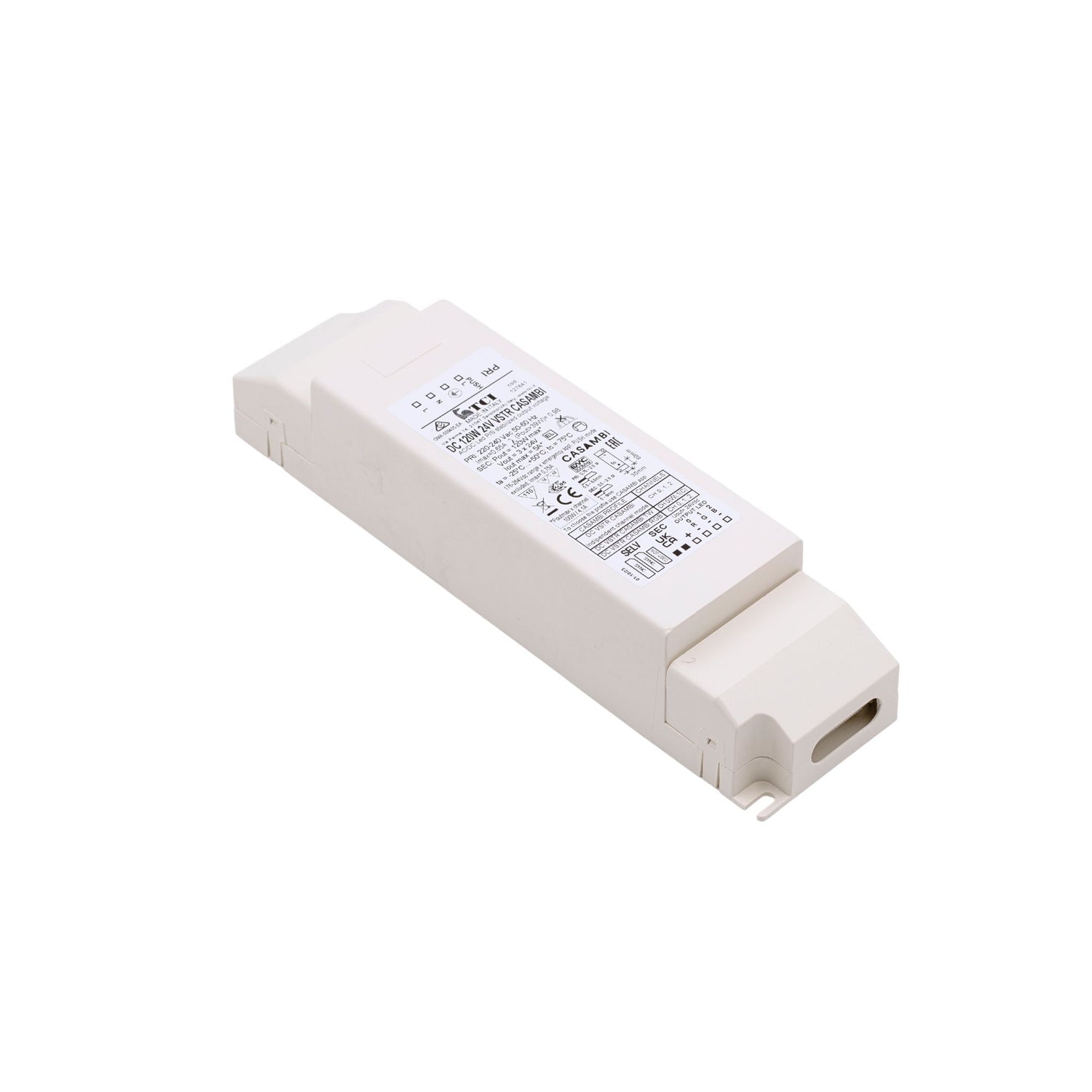

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
TCI Casambi 120W 24V Constant Voltage Driver(127641) 5A
Please Login for Pricing
Description
Description
Features:
- Dimmable electronic driver with RGB control for applications where the primary purpose of the light is the scenographic effect.
- Dimmable electronic driver with output voltage for LED modules, three outputs for LED modules (RGB) with integrated wireless CASAMBI module.
- IP20 independent driver, for indoor use.
- Class I protection against electric shock for direct or indirect contact.
- Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13).
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads;
- protection fuse at the input.
- Thermal protection = C.5.a.
- 10 Years Warranty
General Specification
Rated Voltage
220 - 240 V
Frequency
50-60 Hz
AC Operation range
198 - 264 V
Power
0 - 120 W
Standards compliance
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61347-1
EN 61347-2-13
EN 61547
EN 62311
ETSI EN 300 328
ETSI EN 301 489-1
ETSI EN 301 489-17
Dimension (LxWxH)
240 x 49 x 60 mm
Specifications
Specifications
-
BrandTCI
-
SeriesTCI Casambi Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage220V~240V
-
Standards MetEAC,EN,ENEC,ETSI,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty10 Year
-
Length24 cm
-
Width4.9 cm
-
Height6 cm
-
Weight0.29 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the TCI Casambi 120W 24V Constant Voltage Driver designed for?
This driver is intended for indoor LED applications where a 24V constant voltage supply is required and scenographic lighting effects are important. It is specifically described as a dimmable electronic driver with RGB control and an integrated wireless Casambi module.
Does this model support Casambi wireless dimming control?
Yes. This model includes an integrated wireless Casambi module, and the listed dimming control is Casambi. That makes it suitable for projects that need wireless lighting control without adding a separate external Casambi unit.
What are the key electrical ratings of this driver?
The TCI-CA-120-24 is rated at 120W output power with a 24V output voltage. Its rated current is 5A, so it is intended for 24V constant voltage LED loads within that output capacity.
Is this driver suitable for RGB LED applications?
Yes. The product description states that it has three outputs for LED modules (RGB) and is intended for applications where the primary purpose of the light is scenographic effect. That makes it a relevant option for RGB lighting projects that use 24V constant voltage operation.
Can this driver be used outdoors or in wet locations?
No. This is an IP20 independent driver for indoor use, so it is not designed for exposure to water or weather. It should be selected for dry interior environments within its stated operating conditions.
What operating temperature range does this model support?
The stated temperature range is from -20°C to 50°C. That gives it a relatively broad indoor operating range, but it should still be used only in environments that stay within those limits.
How does this model differ from a standard non-dimming 24V power supply?
This model is more specialized than a basic 24V power supply because it combines 24V constant voltage output with dimming capability, RGB control, and integrated Casambi wireless functionality. It is aimed at lighting applications needing controllable effects rather than simple fixed-output power only.
What warranty is listed for the TCI Casambi 120W 24V driver?
The listed warranty period for this model is 10 years. That is a notable specification for buyers comparing long-term support expectations across professional LED driver options.
