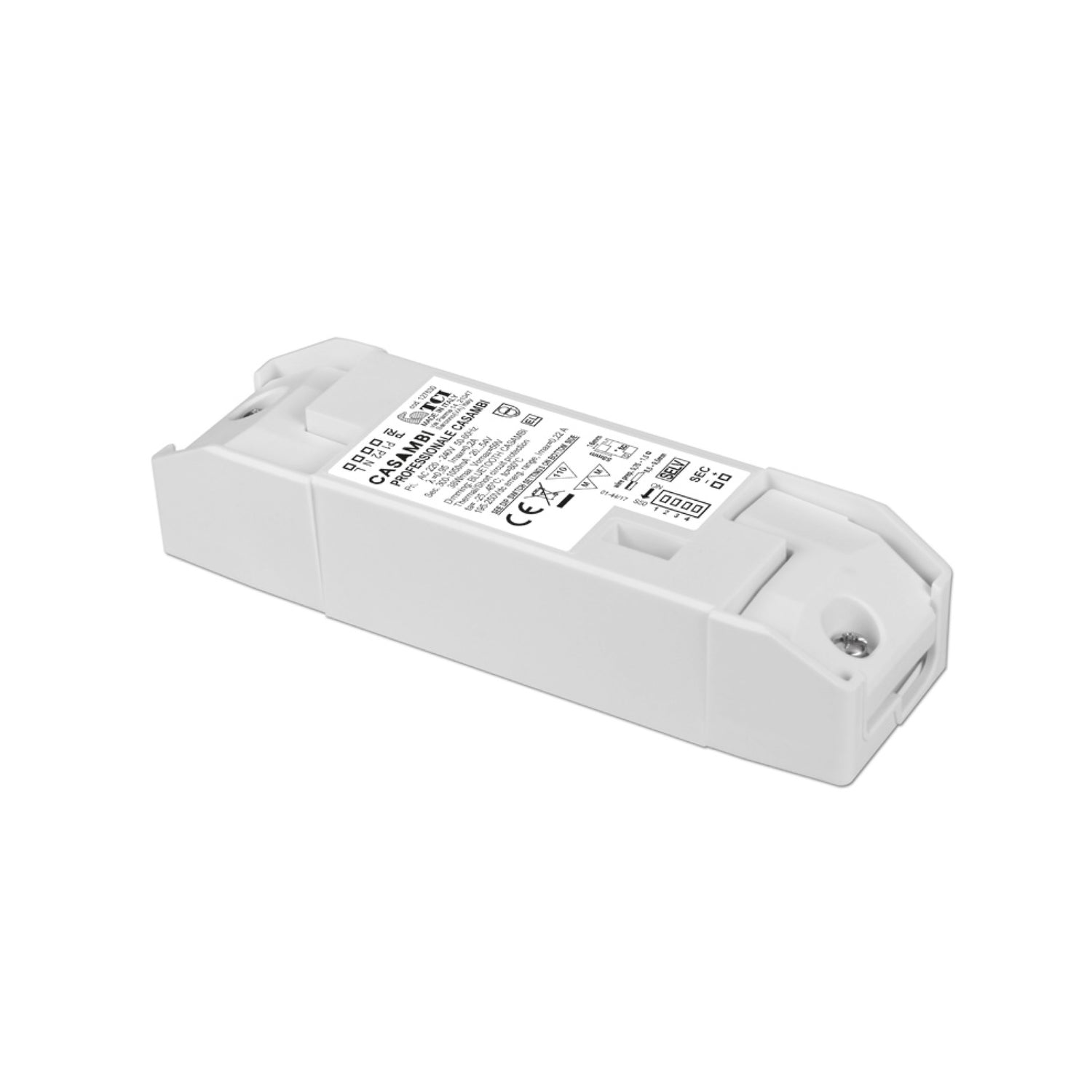

TCI Casambi 45W 650-1400mA adjustable constant current driver(127660)


|

Description

Features

•  Multipower driver supplied with dip-switch for the selection of

the output current with integrated wireless CASAMBI

receiver.

•  IP20 independent driver, for indoor use (PROFESSIONALE HC

CASAMBI).

•  Class II protection against electric shock for direct or indirect

contact (PROFESSIONALE HC CASAMBI).

•  Driver for built-in use (PROFESSIONALE HC CASAMBI BI).

•  It can be used for lighting equipment in protection class I and II

(PROFESSIONALE HC CASAMBI BI).

•  Active Power Factor Corrector.

•  Current regulation ±5 % including temperature variations.

•  Input and output terminal blocks on opposite sides

(wire cross-section up to 1,5 mm2 / AWG15).

•  Clamping screws on primary and secondary circuits for cables

with diameter: min. 2 mm - max. 9 mm

(PROFESSIONALE HC CASAMBI).

•  Driver can be secured with slot for screws.

•  Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

•  Thermal protection = C.5.a.

•  Do not apply within 0,2 m from human body.

Specifications

  • Brand
    TCI
  • Series
    TCI Casambi Series
  • Power Rating
    45 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    0.65 Ampere
  • Input Voltage
    198V~264V
  • Standards Met
    EN,ENEC,ETSI,SELV
  • Operation Mode
    Constant Current
  • Operating Temperature
    -25°C~40°C
  • Warranty
    7 Year
  • Length
    14.65 cm
  • Width
    4.4 cm
  • Height
    3 cm
  • Weight
    0.14 kg
