Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

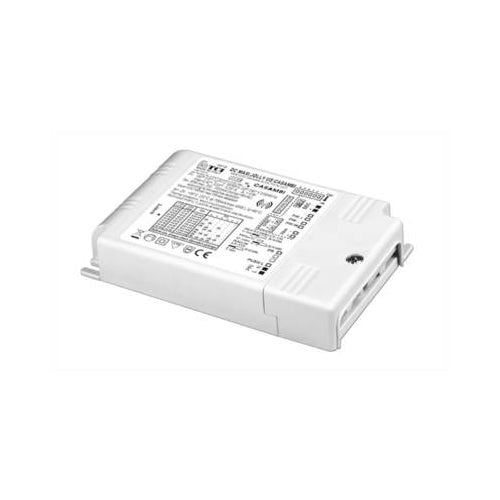

TCI Casambi 50W 350-1200mA adjustable constant current driver(127645)
Log in to see priceFeatures
• Multipower driver supplied with dip-switch for the selection of
the output current with integrated wireless CASAMBI module.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect
contact.
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Auxiliary output 12 V max. 100 mA.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side
(wire cross-section up to 2,5 mm2 / AWG13).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
-
BrandTCI
-
SeriesTCI Casambi Series
-
Power Rating50 Watt
-
Output Voltage60 Volt
-
Rated Current0.35 Ampere
-
Input Voltage99V~264V
-
Standards MetEN,ENEC,ETSI,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty7 Year
-
Length12.4 cm
-
Width7.9 cm
-
Height2.2 cm
-
Weight0.22 kg
::specification::
