Description
Description
Features
• Multipower driver supplied with dip-switch for the selection of
the output current with integrated wireless CASAMBI module.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact. • Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Auxiliary output 12 V max. 100 mA.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a
Specifications
Specifications
-
BrandTCI
-
SeriesTCI Casambi Series
-
Power Rating60 Watt
-
Output Voltage90 Volt
-
Rated Current0.35 Ampere
-
Input Voltage99V~264V
-
Standards MetEN,ENEC,ETSI,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty7 Year
-

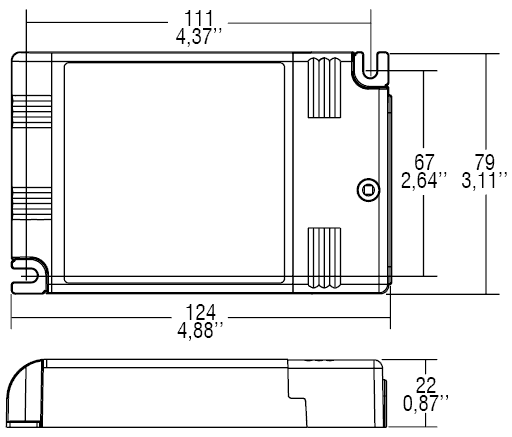

Length12.4 cm
-
Width7.9 cm
-
Height2.2 cm
-
Weight0.22 kg
