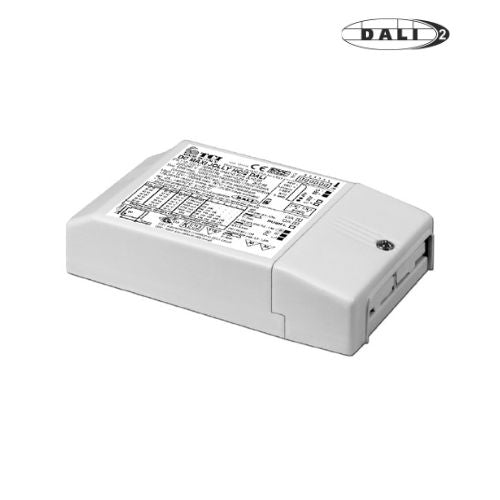

TCI DALI 55W 1050-2100mA adjustable constant current driver(123314)
Please Login for Pricing
Description
Description
Features
• Multipower driver supplied with dip-switch for the selection
of the output current.
• IP20 independent driver, for indoor use
(DC MAXI JOLLY HC/2 DALI).
• Class I protection against electric shock for direct or indirect
contact (DC MAXI JOLLY HC/2 DALI).
• Driver for built-in use (DC MAXI JOLLY HC DALI BI).
• It can be used for lighting equipment in protection class I.
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Auxiliary output 12 V max. 100 mA.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side
(wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY HC/2
DALI).
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
Specifications
Specifications
-
BrandTCI
-
SeriesTCI DALI Series
-
Power Rating55 Watt
-
Output Voltage55 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~264V
-
Standards MetBSI,EN,SAA,SELV,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~45°C
-
Warranty7 Year
-

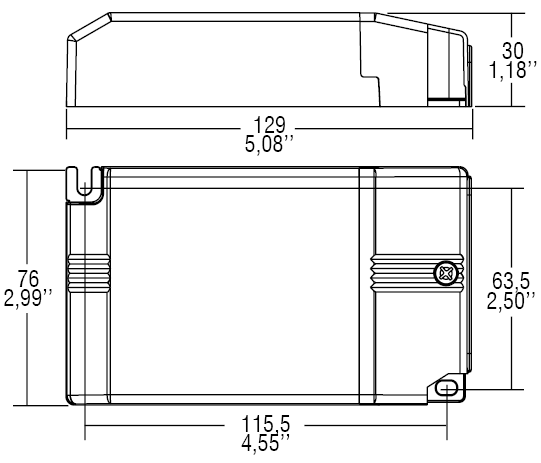

Length11.55 cm
-
Width6.35 cm
-
Height3 cm
-
Weight0.25 kg
File Downloads
File Downloads
::specification::
