TCI

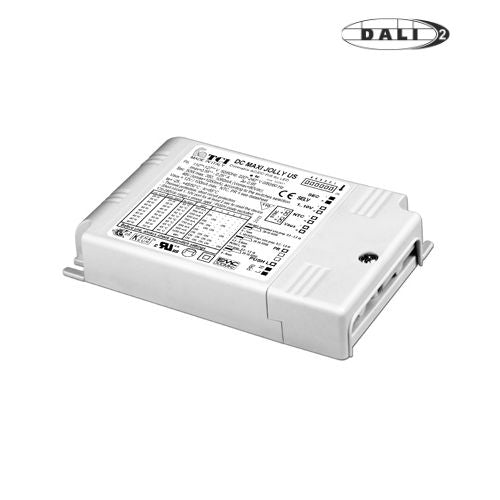

TCI DALI 60W 350-1050mA adjustable constant current driver(127413)

Please for Pricing
|

Description

Features

•  Multipower driver supplied with dip-switch for the selection

of the output current.

•  IP20 independent driver, for indoor use (DC MAXI JOLLY US DALI).

•  Class II protection against electric shock for direct or indirect

contact (DC MAXI JOLLY US DALI).

•  Driver for built-in use (DC MAXI JOLLY US BI DALI).

•  It can be used for lighting equipment in protection class I and II

(DC MAXI JOLLY US BI DALI).

•  Active Power Factor Corrector.

•  Analogical input (NTC) for thermal sensor connection.

•  Auxiliary output 12 V max. 100 mA.

•  Current regulation ±5 % including temperature variations.

•  Input and output terminal blocks on the same side

(wire cross-section up to 2,5 mm2 / AWG13).

•  Clamping screws on primary and secondary circuits for cables

with diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY US

DALI).

•  Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

•  Thermal protection = C.5.a.

Specifications
  • Brand
    TCI
  • Series
    TCI DALI Series
  • Power Rating
    60 Watt
  • Output Voltage
    90 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    99V~264V
  • Standards Met
    BSI,CCC,CSA,EN,ENEC,SAA,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -25°C~50°C
  • Warranty
    7 Year
  • Length
    12.4 cm
  • Width
    7.9 cm
  • Height
    2.2 cm
  • Weight
    0.22 kg

File Downloads

::specification::
