What is the output of the Thinkwise PSTW-12V-20W power supply?

This model provides a 12V output with a 20W power rating and a rated current of 1.67A. It is designed as a constant-voltage power supply for suitable 12V lighting applications.

What types of applications is the PSTW-12V-20W suitable for?

The PSTW-12V-20W is intended for interior low-voltage lighting uses such as LED strip lighting and steplights. It is a compact option for projects that need a 12V constant-voltage supply within its rated 20W capacity.

Is this power supply dimmable?

No, this model does not include a dimming control function. If your project requires dimming, you would need to confirm that the wider system is designed around a separate compatible dimming approach.

What operating temperature range is this model rated for?

The Thinkwise PSTW-12V-20W is rated for operation from -20°C to 50°C. That makes it suitable for a range of indoor environments, provided the surrounding conditions stay within that temperature window.

What makes this model different from higher-wattage 12V power supplies?

This unit is a lower-power 12V option rated at 20W and 1.67A, which suits smaller lighting loads rather than larger multi-fixture runs. Buyers comparing models should focus on matching the required 12V output and total load to the unit's rated capacity.

What warranty is offered on the PSTW-12V-20W?

This model is listed with a 3-year warranty period. That can be useful for trade and project buyers who need a defined warranty term for maintenance planning and procurement review.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Thinkwise

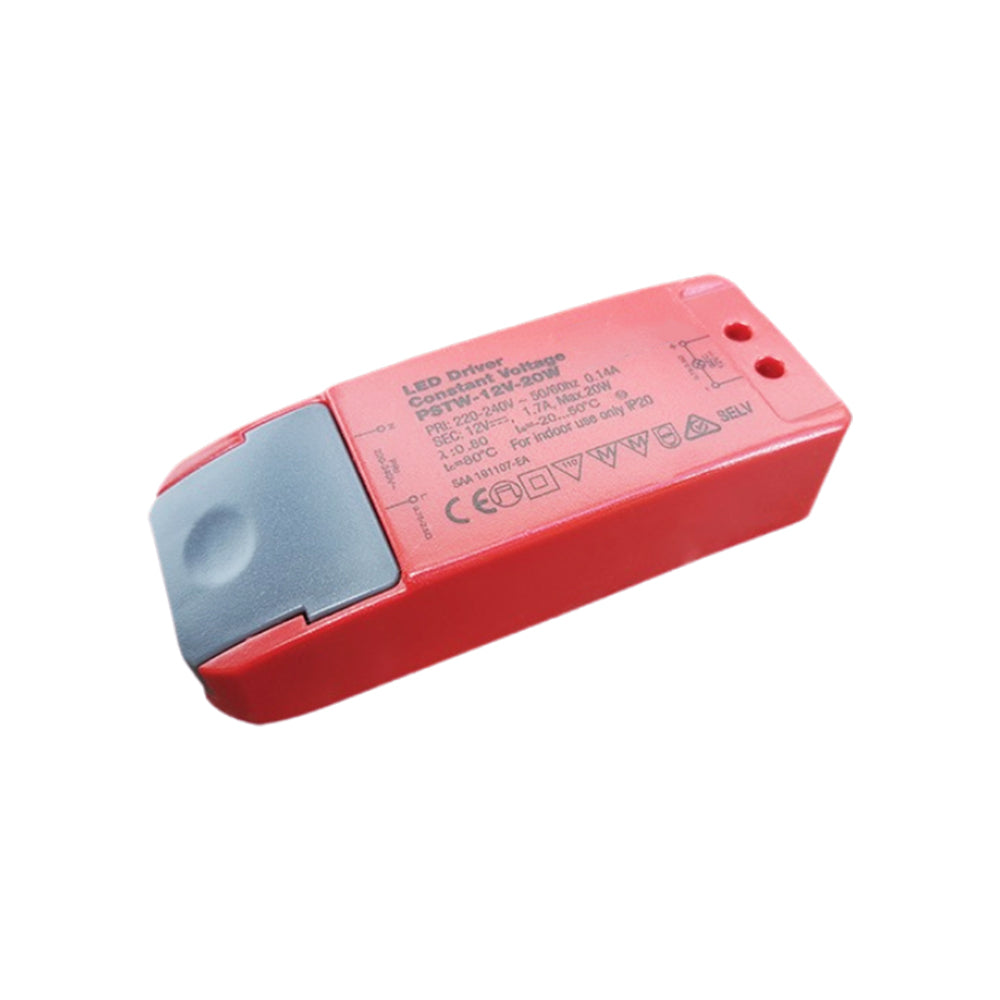

Thinkwise PSTW-12V-20W Power Supply - 20W 12V 1.67A - Large Screw Terminal

SKU:

PSTW-12V-20W

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

A small interior power supply suitable for running led strip, steplights etc.
Wide load range
Large 6mm primary terminals for easy looping input cables.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Thinkwise PSTW-12V-40W Power Supply - 40W 12V 3A - Large Screw Terminal	40W	12V	3A	IP20	View
Thinkwise PSTW-12V-75W Power Supply - 75W 12V 6.3A - Large Screw Terminal	75W	12V	6.3A	IP20	View
Thinkwise PSTW-12V-60W Power Supply - 60W 12V 5A - Large Screw Terminal	60W	12V	5A	IP20	View
Thinkwise PSTW-12V-50W Power Supply - 50W 12V 4.2A - Large Screw Terminal	50W	12V	4.2A	IP20	View
Thinkwise PSTW-12V-150W Power Supply - 150W 12V 12.5A - Large Screw Terminal	150W	12V	12.5A	IP20	View
Thinkwise PSTW-12V-12W Power Supply - 12W 12V 1A - Large Screw Terminal	12W	12V	1A	IP20	View
Thinkwise PSTW-12V-100W Power Supply - 100W 12V 8.36A - Large Screw Terminal	100W	12V	8.36A	IP20	View
