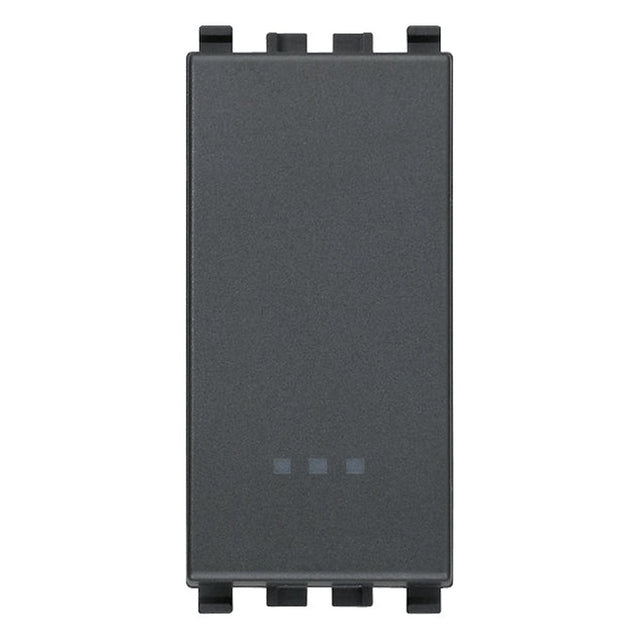

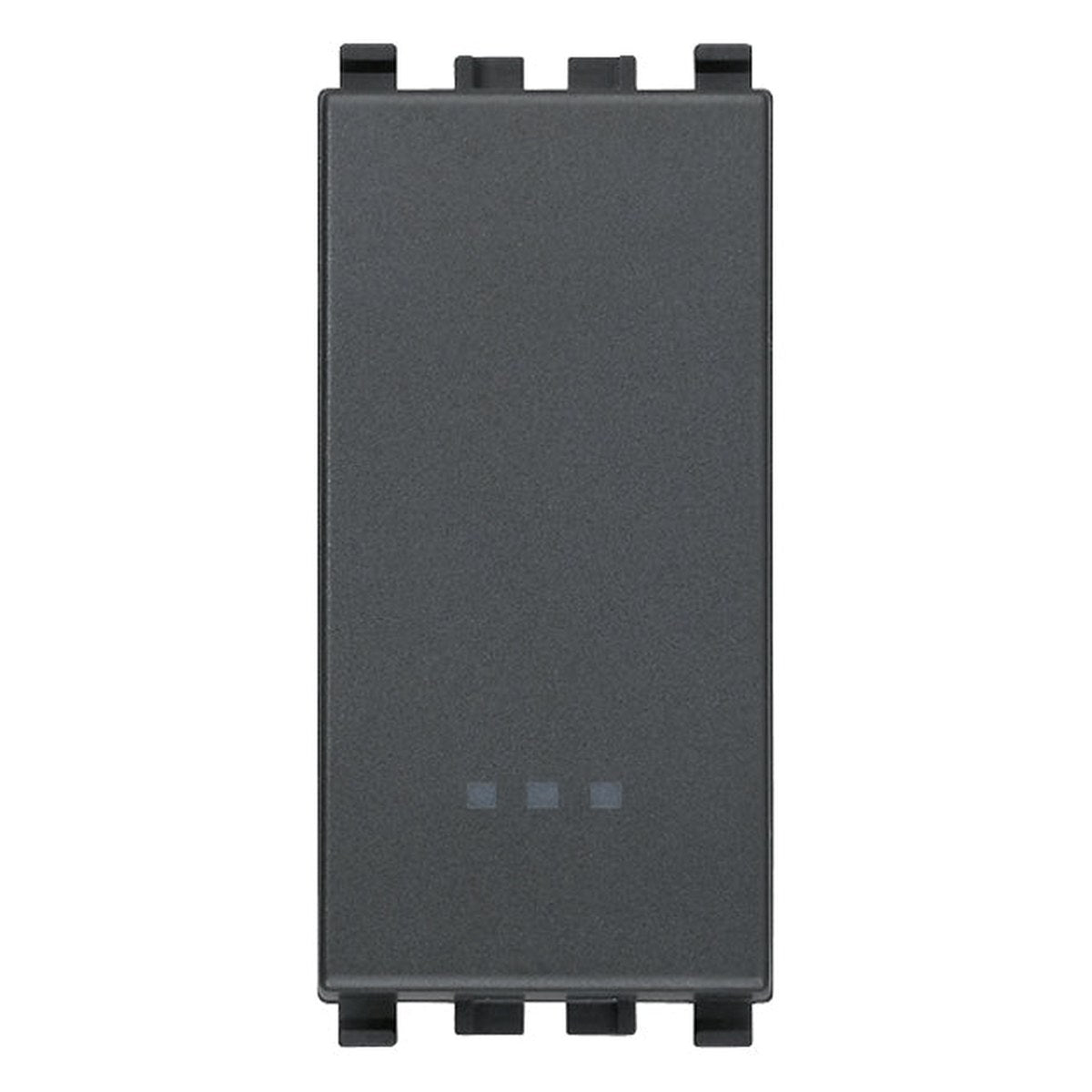

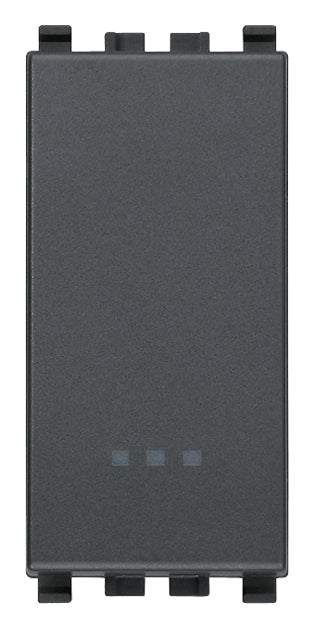

Vimar 1P NC 10A Push Button Mechanism

Push Button Mechanism

SKU VM-20010

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-20010 is Vimar EIKON 20010, 1P NC 10A push button grey.

1P NC 10 A 250 V~ push button, lightable, replaceable button, grey

Specifications

VM-20010Specifications from the official datasheet

Technical data

Product type: Push button
Assembly arrangement: Modular device for domestic switching devices
Model: Single push button
Operating method: Push button
Number of rockers: 1
Number of modules (module system): 100
Number of poles: 1
Nominal voltage: 250 V
Rated current: 10 A
With lighting: Yes
Monitoring contact: No
Mounting method: Built-in
Type of fastening: Engage (snap)
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Matt
Colour: Grey
RAL-number (similar): 7024
Transparent: No
Label space/information surface: Yes
Suitable for degree of protection (IP): IP40
Device width: 22.3 mm
Device height: 49 mm
Device depth: 36.15 mm

Packaging

EAN: 8007352250987
Packed size (cm): 4.1 × 2.8 × 5.3
Packed weight: 26.2 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), INMETRO (Brazil), IMQ (Italy), TISI (Thailand), TSE (Turkey), ISI (India), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive

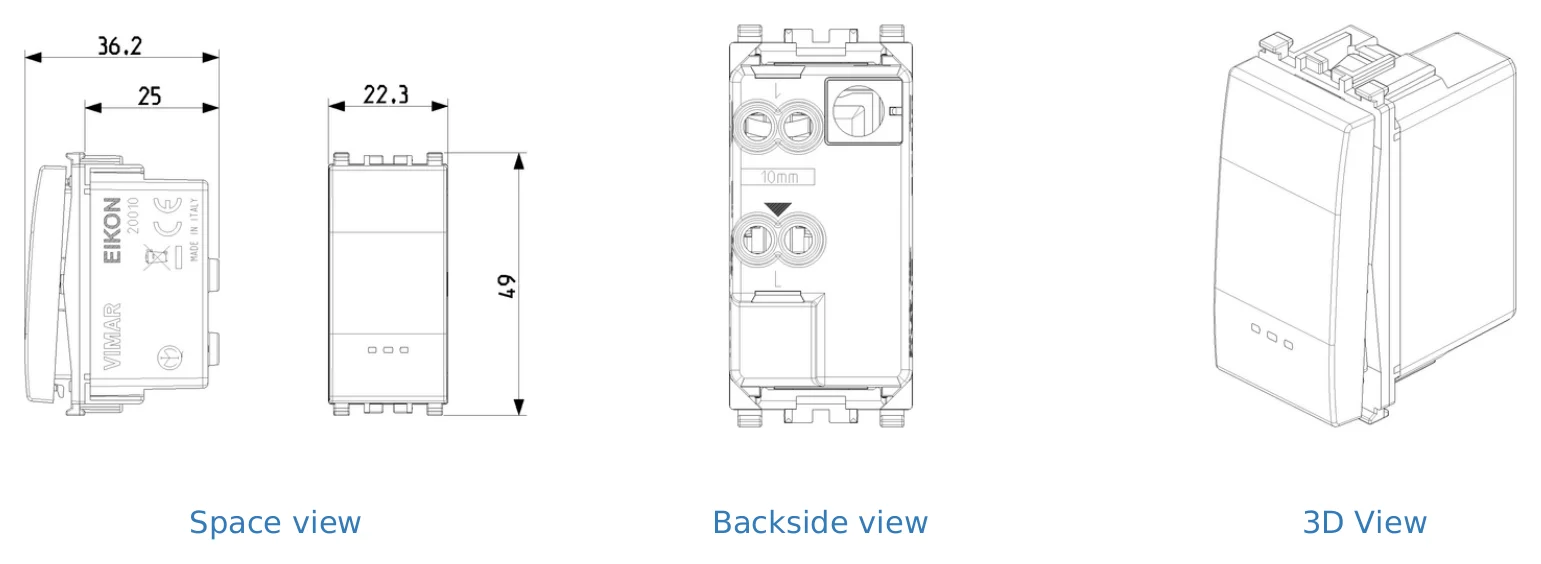

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What is the Vimar VM-20010 push button mechanism used for?

The Vimar VM-20010 is a 1-pole normally closed push button mechanism for use in compatible switch systems. It is suited to buyers looking for a grey, lightable push button module in the Eikon Next switch range.

Is the VM-20010 a normally closed push button?

Yes. This model is specified as a 1P NC push button, meaning it is a one-pole normally closed mechanism.

What electrical rating does this Vimar push button support?

The VM-20010 is rated at 10 A and 250 V~. These are the stated ratings for this specific push button mechanism.

Can the button on the VM-20010 be replaced?

Yes. The product description specifies a replaceable button, which can be useful for maintaining a consistent switch appearance over time.

What operating temperature range is specified for the VM-20010?

The VM-20010 is specified for temperatures from -20 °C to 50 °C. This range helps confirm whether the mechanism is appropriate for the expected operating environment.

What finish colour is available for this model?

This VM-20010 push button mechanism is grey. The grey finish is part of the product specification for this SKU.
