Vimar Connected NFC/RFID Outer Switch Next

NFC/RFID Outer Switch
SKU VM-20462.N
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Available to order
|

Overview

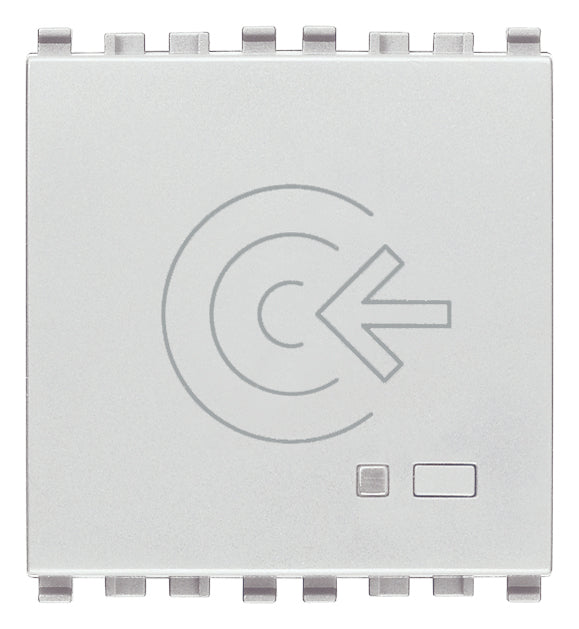

VM-20462.N is Vimar EIKON 20462.N, connected RFID outer switch Next.

RFID smart card landing reader, card configuration using View Wireless App, Bluetooth technology standard, IoT technology on Bluetooth technology 5.0 standard for the creation of View Wireless mesh system, 1 relay output NO 16 A 120-240 V~ 50/60 Hz, 1 DND input, LED with brightness control, 100-240 V~ 50/60 Hz power supply, Next - 2 modules

Specifications

VM-20462.NSpecifications from the official datasheet

Technical data

Product type
Access control system component
Model
Reader
Standalone
Yes
Networkable
No
PC-binding
No
Max. number of users
200
Type of reading technique
Code
Signalling
Light signal
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
230 - 230.01 V
Operating voltage AC 60 Hz
230 - 230.01 V
Degree of protection (IP)
IP20
Colour
Silver
Material
Plastic
Width
44.9 mm
Height
49 mm
Depth
41.5 mm

Packaging

EAN
8007352659896
Packed size (cm)
6 × 5.4 × 5.2
Packed weight
74.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), UK PSTI compliance, Bluetooth technology, WEEE Directive

Technical drawings

VM-20462.N Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-20462.N used for?

The Vimar VM-20462.N is an NFC/RFID smart card landing reader for use with Vimar Next modular switch systems. It is intended for smart card-based access or presence-related applications where Bluetooth-enabled View Wireless integration is required.

Does this NFC/RFID reader work with the Vimar View Wireless system?

Yes. This model supports configuration using the View Wireless App and uses Bluetooth technology for integration with the View Wireless mesh system. It is built on Bluetooth 5.0 standard technology.

What output does the VM-20462.N provide?

The VM-20462.N includes 1 normally open relay output rated at 16 A for 120-240 V~ at 50/60 Hz. It also includes 1 DND input and an LED with brightness control.

What makes this model different from a basic card reader?

This model combines NFC/RFID smart card reading with Bluetooth-based View Wireless mesh capability. It can be configured using the View Wireless App and includes a relay output, DND input, and adjustable LED brightness.

What temperature range is this product rated for?

The VM-20462.N is rated for operation from -20 °C to 50 °C. This makes it suitable for environments within that specified temperature range.

What size and finish is the Vimar VM-20462.N?

This product is a Vimar Next 2-module device with a silver finish. Its listed weight is 0.0748 kg.

What warranty period is listed for this product?

The listed warranty period for the Vimar VM-20462.N is 3 years. Buyers should confirm warranty handling and coverage terms with the seller or distributor when ordering.
