Vimar

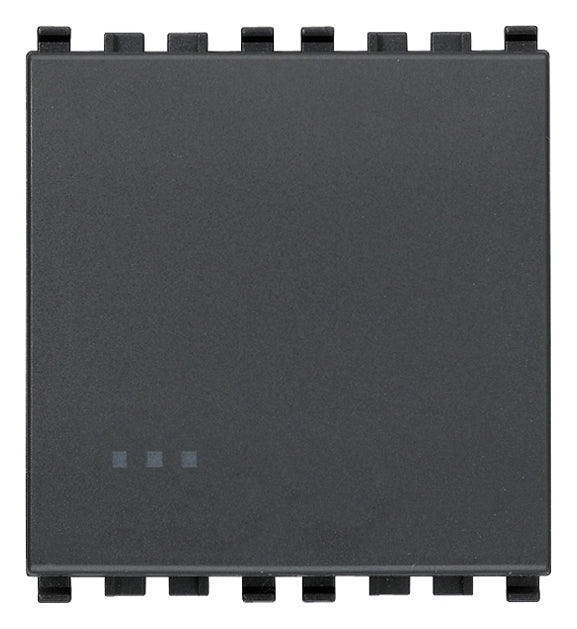

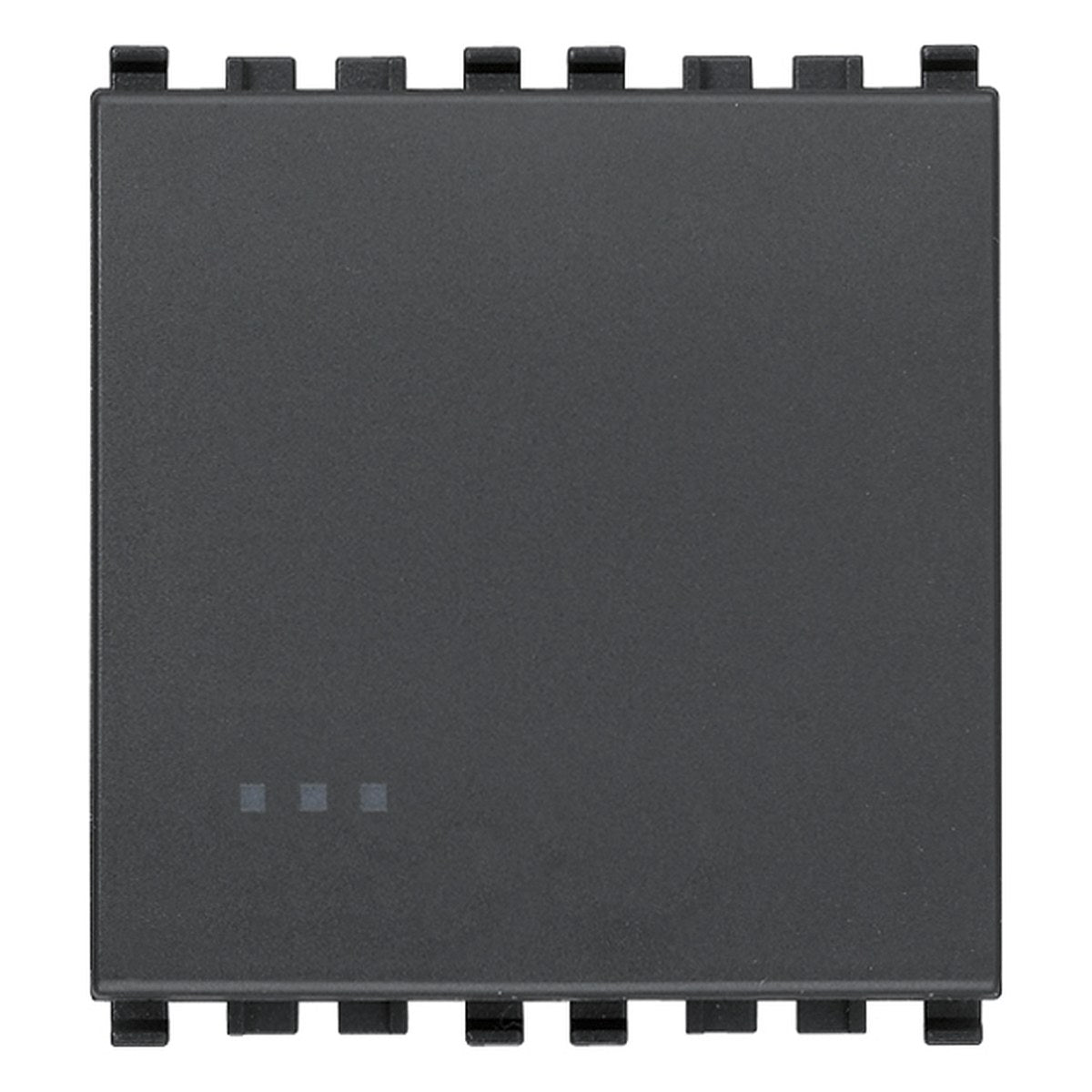

Vimar Eikon 1P 16AX 1-Way Switch 2M Grey

1P NO 16A 2M Grey
SKU VM-20001.2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-20001.2 is Vimar EIKON 20001.2, 1P 16AX 1-way switch 2M grey.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-20001.2Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44.8 mm
Device height
49 mm
Device depth
36.1 mm
Built-in depth
25 mm

Packaging

EAN
8007352281707
Packed size (cm)
5.1 Γ— 4.3 Γ— 5.3
Packed weight
32.4 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), RoHS UAE, INMETRO (Brazil), SASO (Saudi Arabia), WEEE Directive

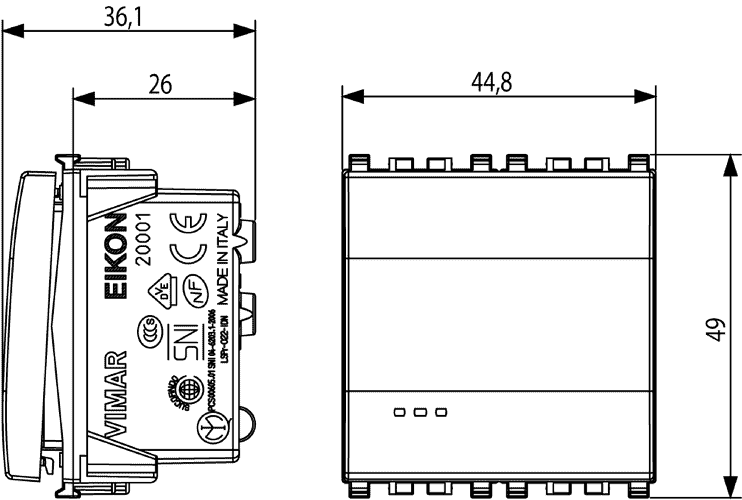

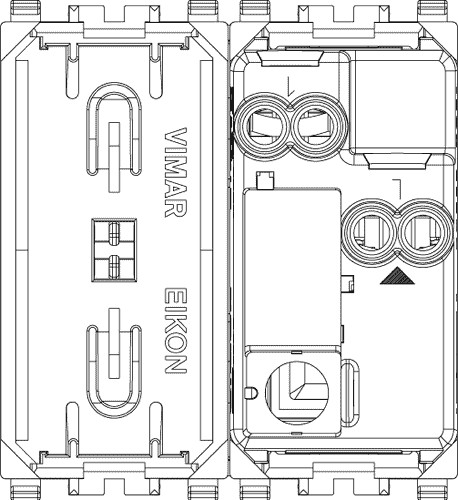

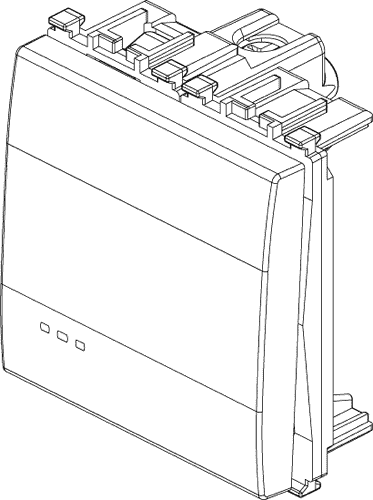

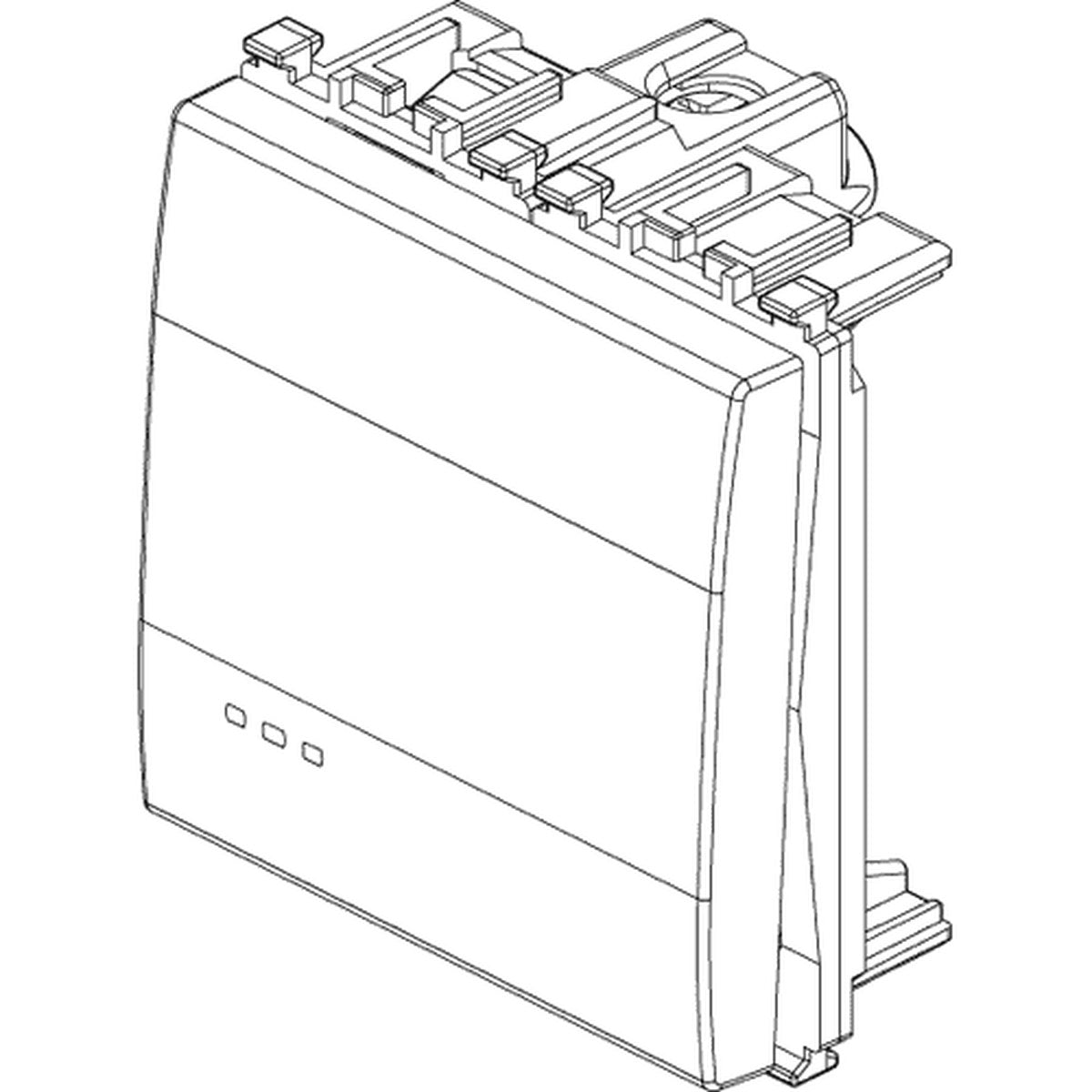

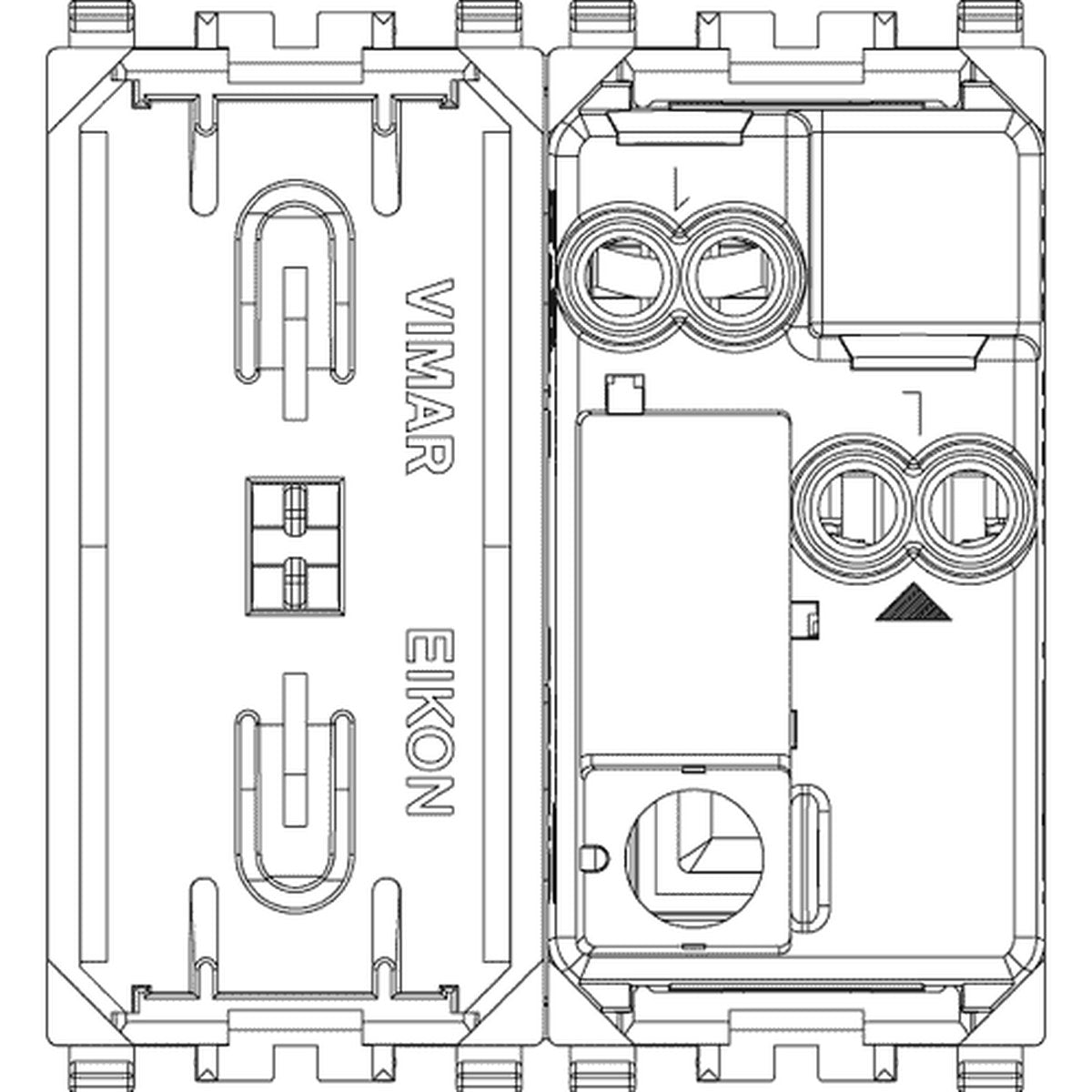

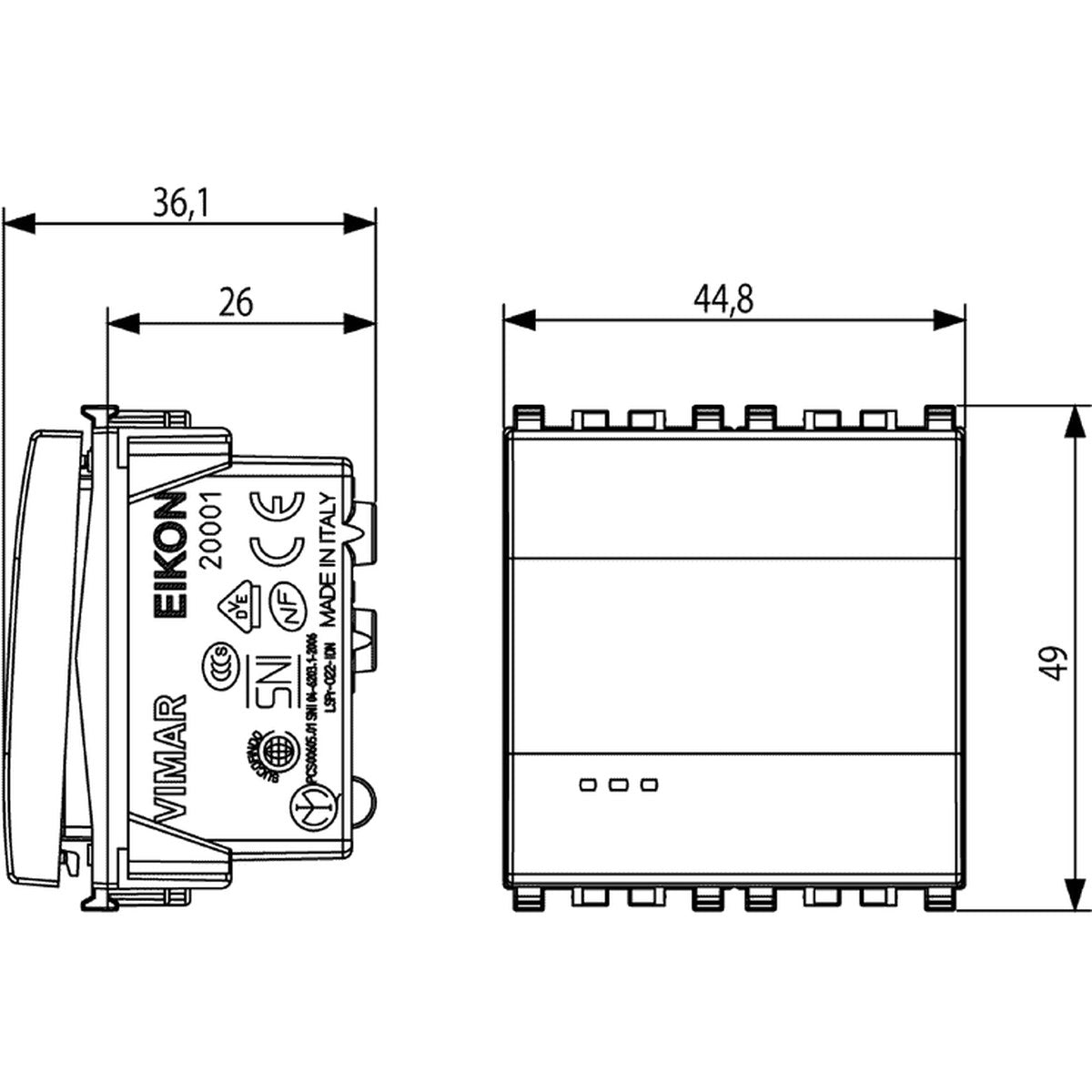

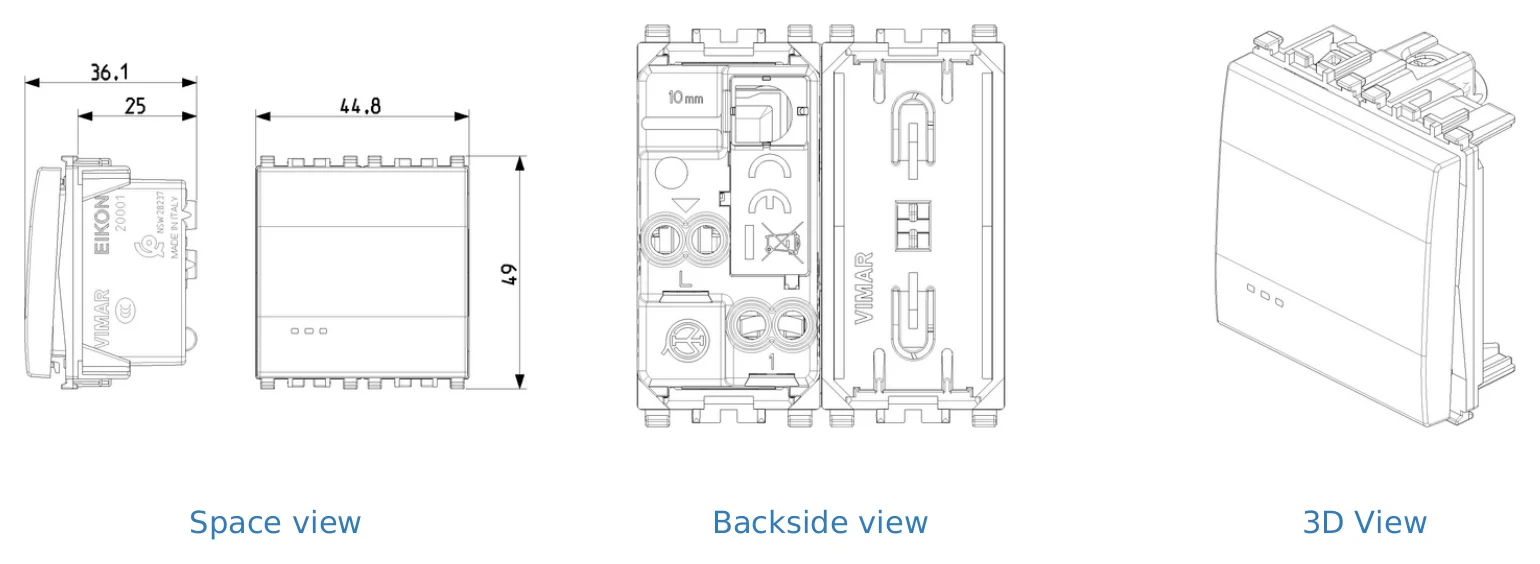

Technical drawings

VM-20001.2 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-20001.2 used for?

The Vimar VM-20001.2 is a 1-way switch module for the Eikon Exe range. It is intended for light switch and socket projects where a grey 2M switch module is required.

What is the rated current of this switch?

This model is rated at 16AX. The product data lists the rated current as 16.0000 A.

Which Vimar series is this switch compatible with?

This switch belongs to the Vimar Eikon Exe series. It is categorized under Eikon Exe switch and dimmer modules, so it is intended for use within that product family.

What colour and finish is the VM-20001.2?

The VM-20001.2 is supplied in grey. Its Eikon Exe design is described as minimal and refined, with squared styling intended to match the series' cover plate aesthetic.

What temperature range is this switch rated for?

The listed operating temperature range is from -20.0000 Β°C to 50.0000 Β°C. This helps buyers confirm whether the switch suits the expected ambient conditions for the project.

How does this model differ from a generic light switch?

This is a Vimar Eikon Exe 1P 16AX 1-way switch module in a 2M grey format. It is part of a specific Italian-designed modular switch range rather than a standalone generic switch.

What warranty period is listed for this product?

The listed warranty period for the Vimar VM-20001.2 is 3.0000 years. This applies to this specific SKU as provided in the product data.
