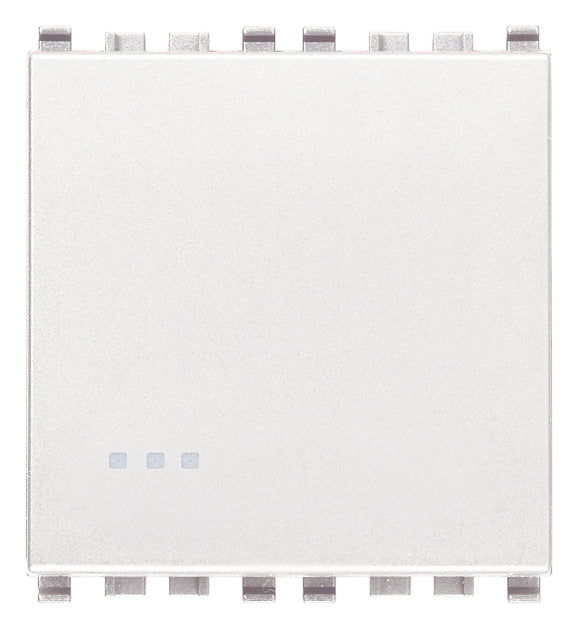

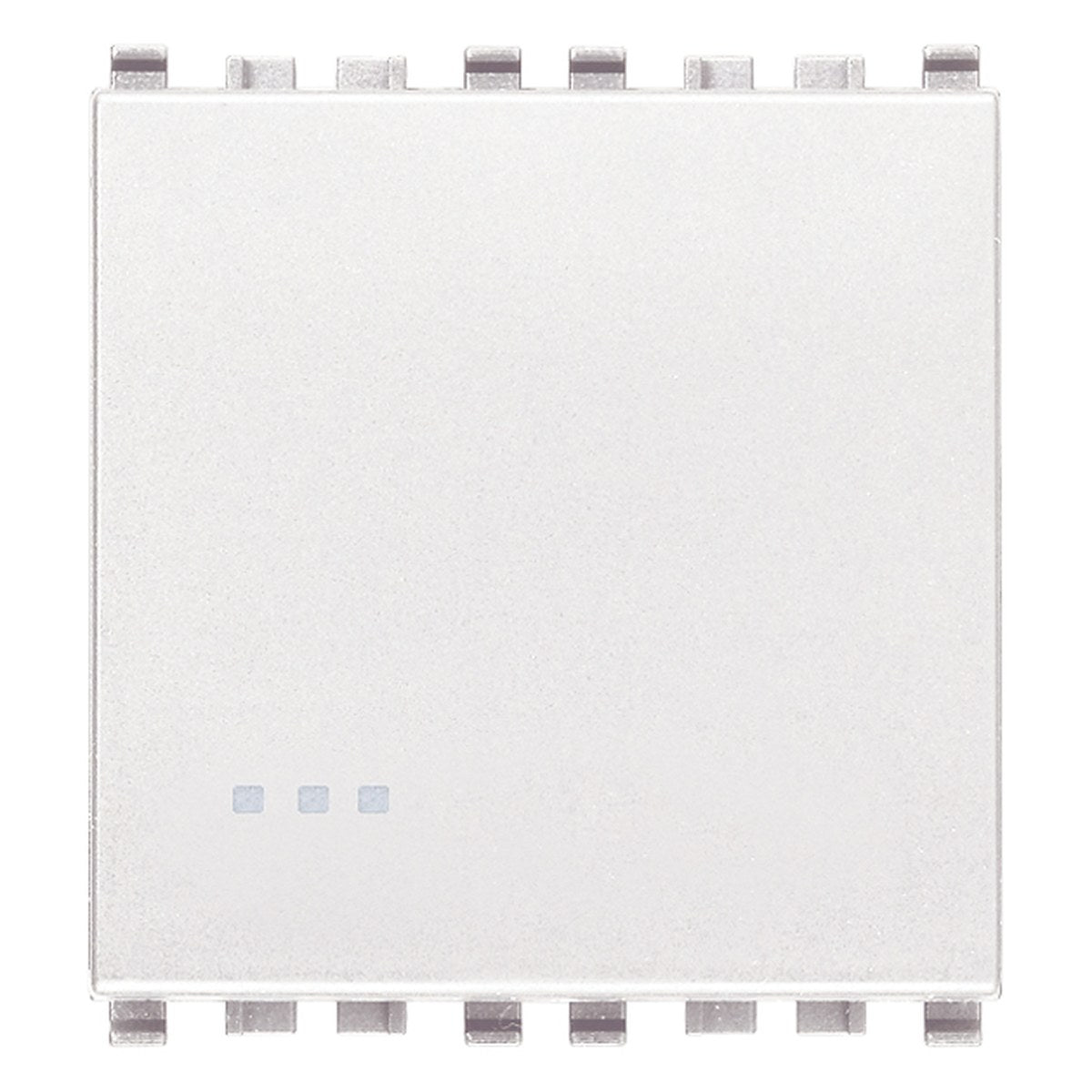

Vimar Eikon 1P 16AX 1-Way Switch 2M White

1P NO 16A 2M White
SKU VM-20001.2.B
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

In stock
|

Overview

VM-20001.2.B is Vimar EIKON 20001.2.B, 1P 16AX 1-way switch 2M white.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, white - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-20001.2.BSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44.8 mm
Device height
49 mm
Device depth
36.1 mm
Built-in depth
25 mm

Packaging

EAN
8007352315259
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
34.2 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), RoHS UAE, INMETRO (Brazil), SASO (Saudi Arabia), WEEE Directive

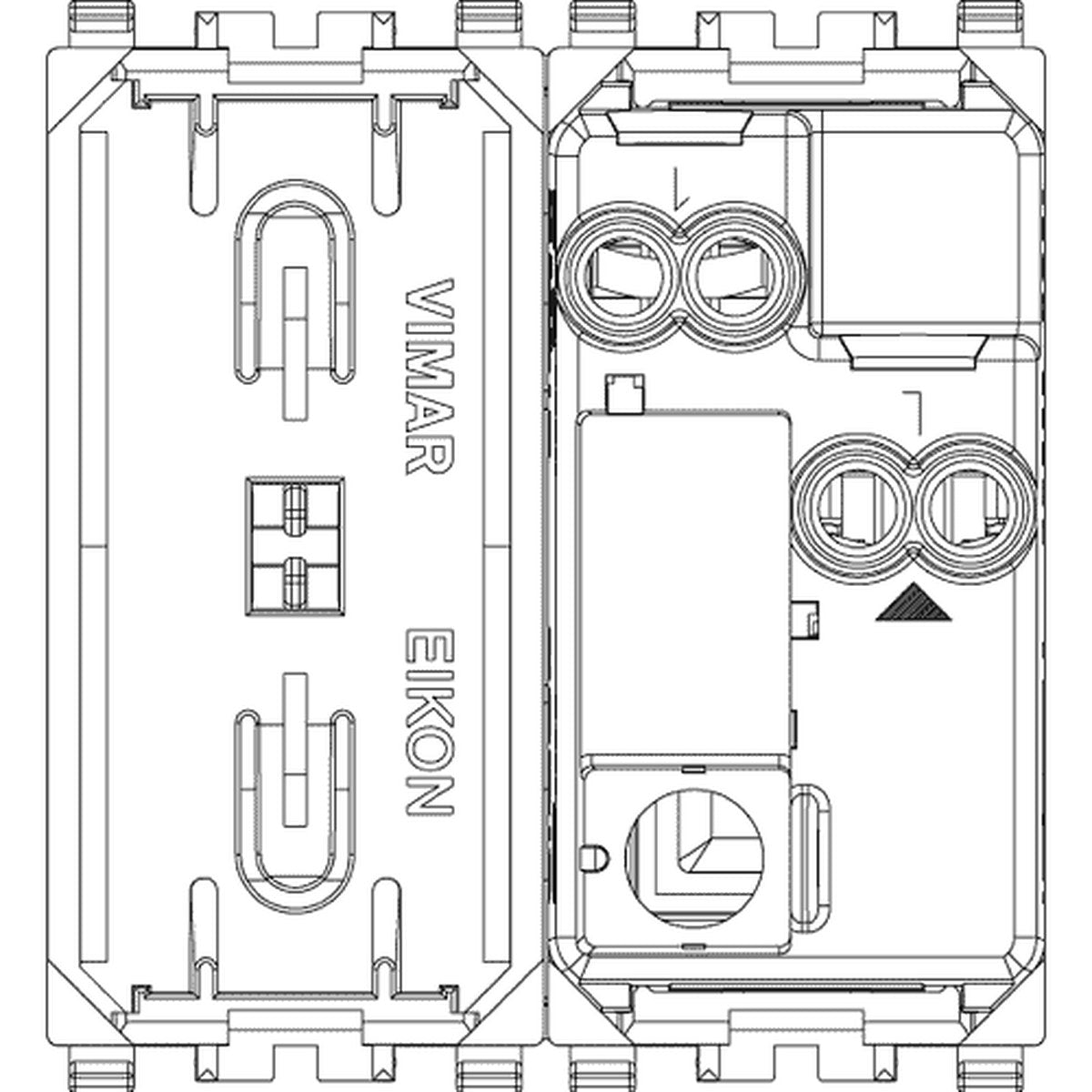

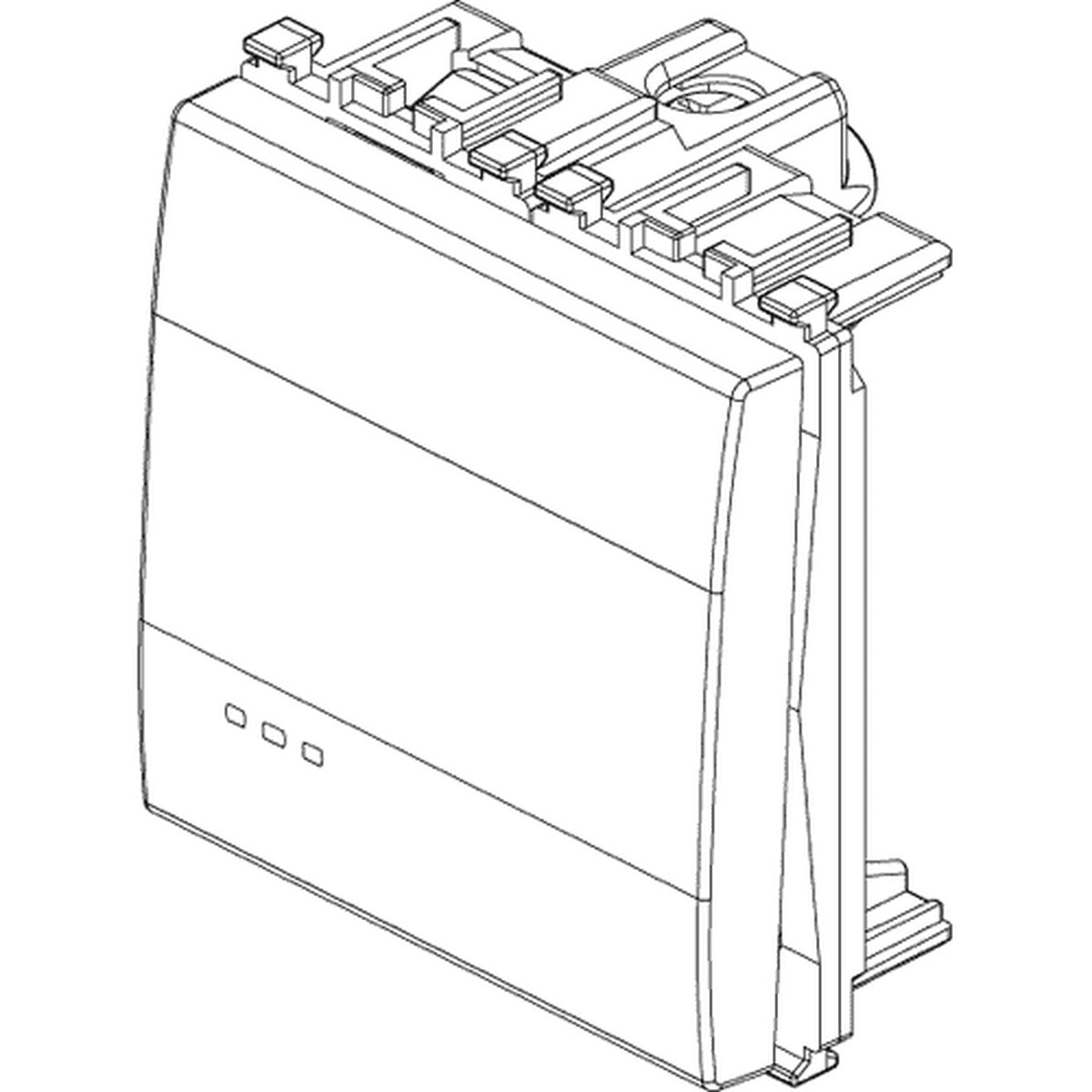

Technical drawings

VM-20001.2.B Drawings
Drawings

Downloads

FAQ

What is the rated current of the Vimar VM-20001.2.B switch?

The Vimar VM-20001.2.B is rated at 16AX. This makes it suitable for product selections where a 16AX 1-way switch module is required.

What type of product is the Vimar VM-20001.2.B?

This model is a Vimar Eikon Exe 1P 1-way switch module. It is intended for use as a switch module within compatible Eikon Exe switch and dimmer ranges.

Which Vimar series does this switch belong to?

The VM-20001.2.B belongs to the Vimar Eikon Exe series. It is listed under Eikon Exe switch, dimmer, module, and light switch categories.

What colour and finish is this Vimar switch module?

This model is supplied in white. The Eikon Exe range is described as having a pure, minimal look with refined styling details.

What operating temperature range is specified for this switch?

The specified temperature range for the VM-20001.2.B is -20 °C to 50 °C. This range should be checked against the intended site conditions before purchase.

How much does the Vimar VM-20001.2.B weigh?

The listed weight for this switch module is 0.0342 kg. This low weight is typical for an individual modular switch component.

What warranty period is listed for this product?

The Vimar VM-20001.2.B has a listed warranty period of 3 years. Warranty handling may depend on the seller’s terms and the purchase channel.
