Overview

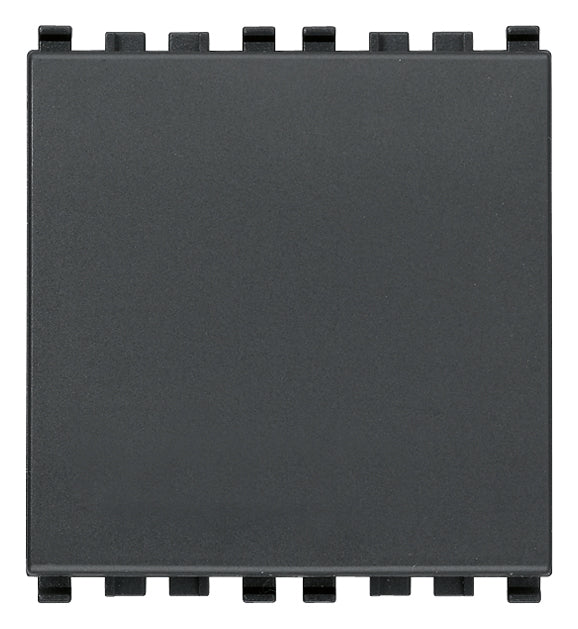

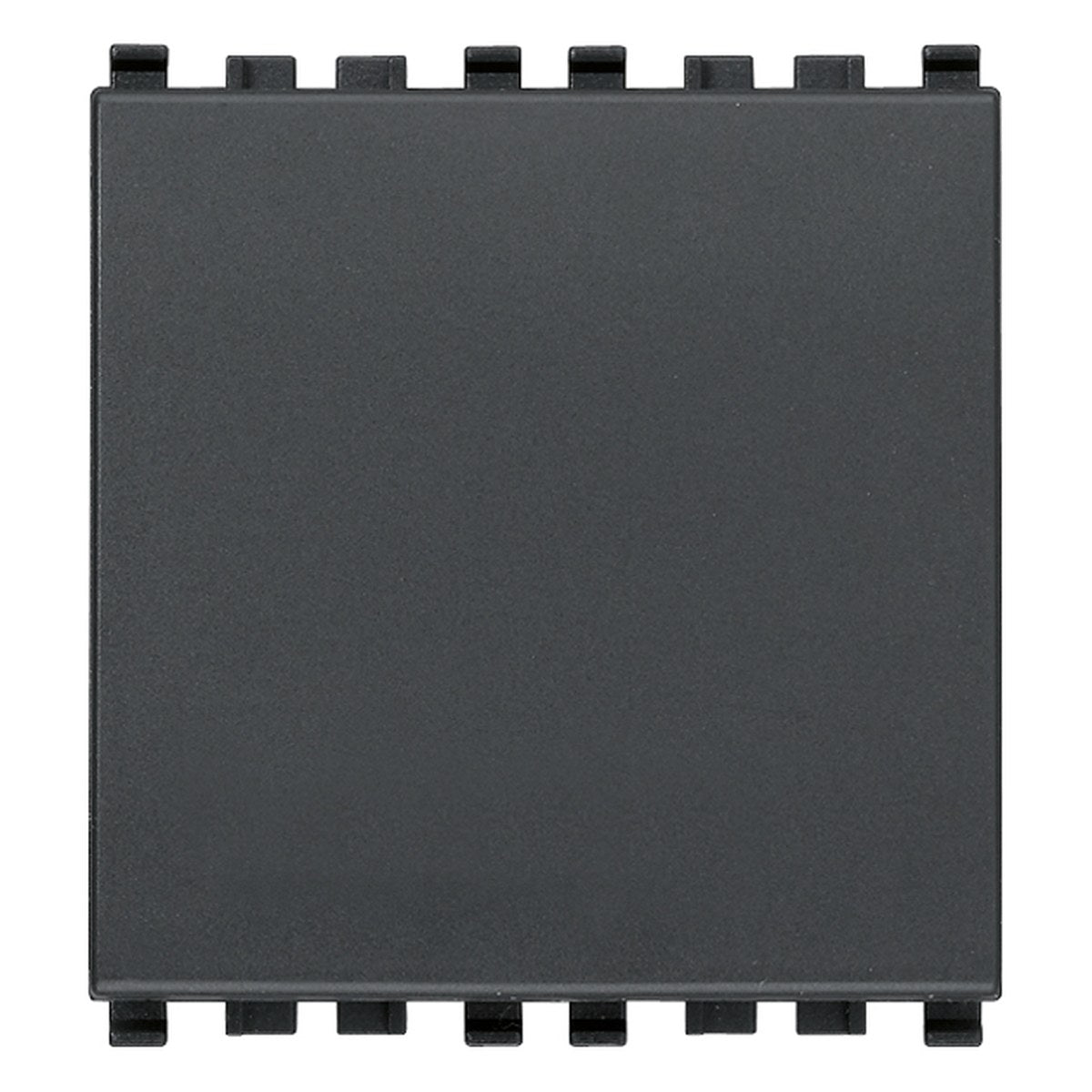

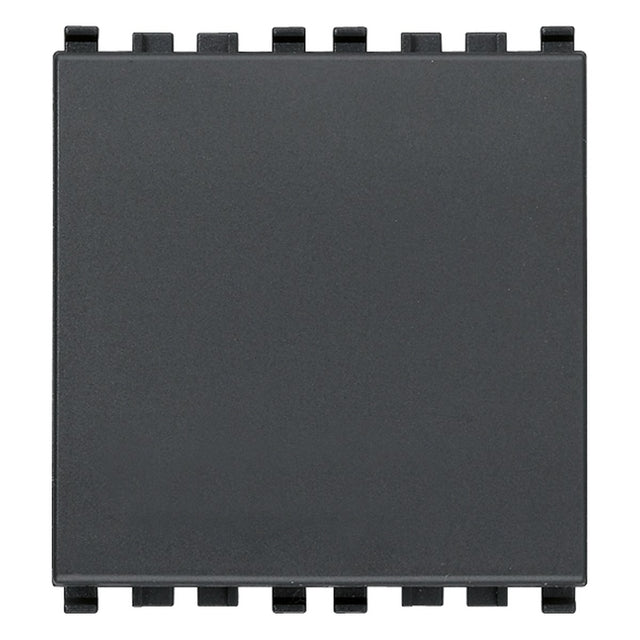

VM-20005.2 is Vimar EIKON 20005.2, 1P 16AX 2-way switch 2M grey.
1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, grey - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669- 1:2017)
Specifications
Technical data
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Washing machine switch
- No
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 35.9 mm
- Built-in depth
- 25 mm
Packaging
- EAN
- 8007352281745
- Packed size (cm)
- 5.1 × 4.3 × 5.3
- Packed weight
- 36.93 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), RoHS UAE, NOM (Mexico), INMETRO (Brazil), WEEE Directive, SASO (Saudi Arabia)

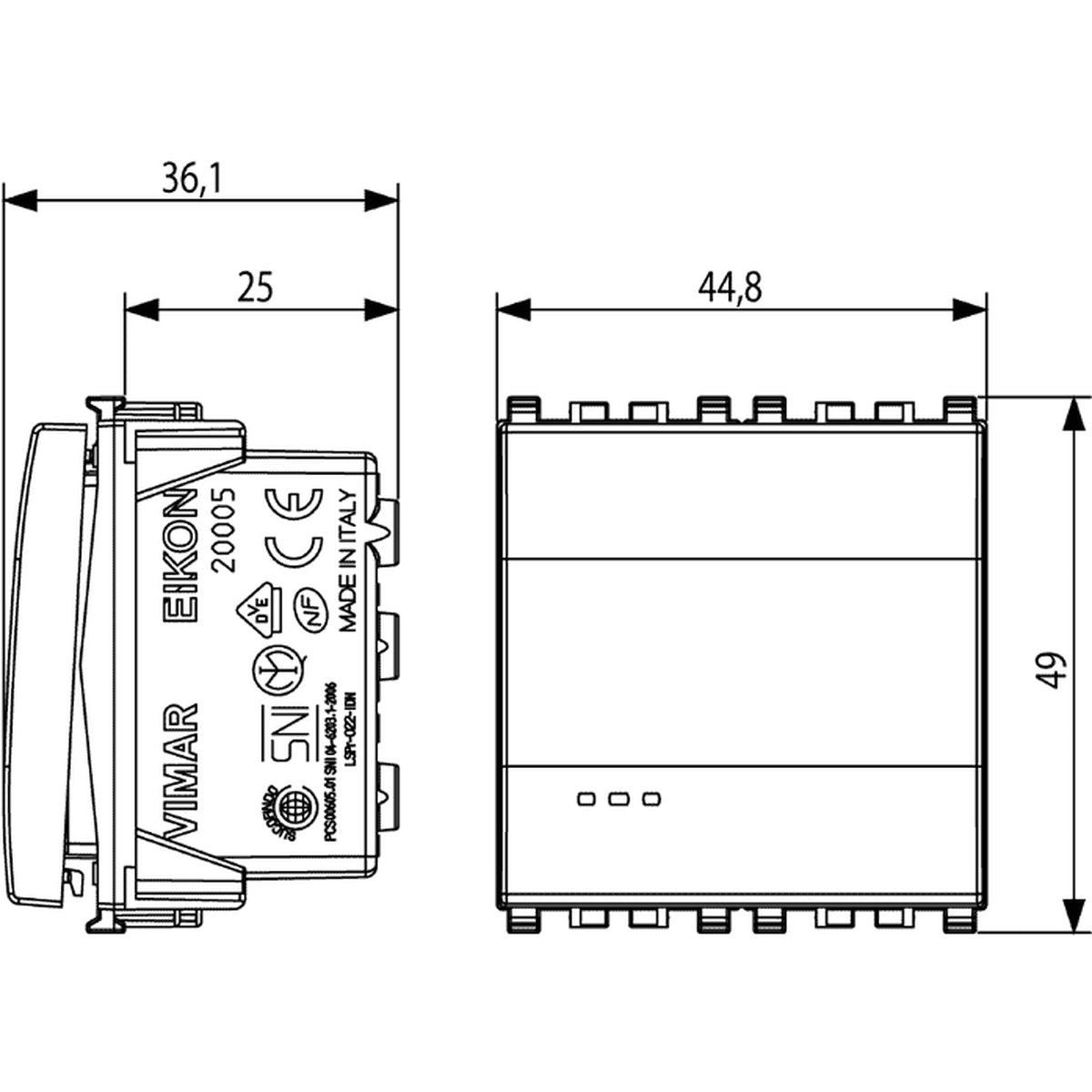

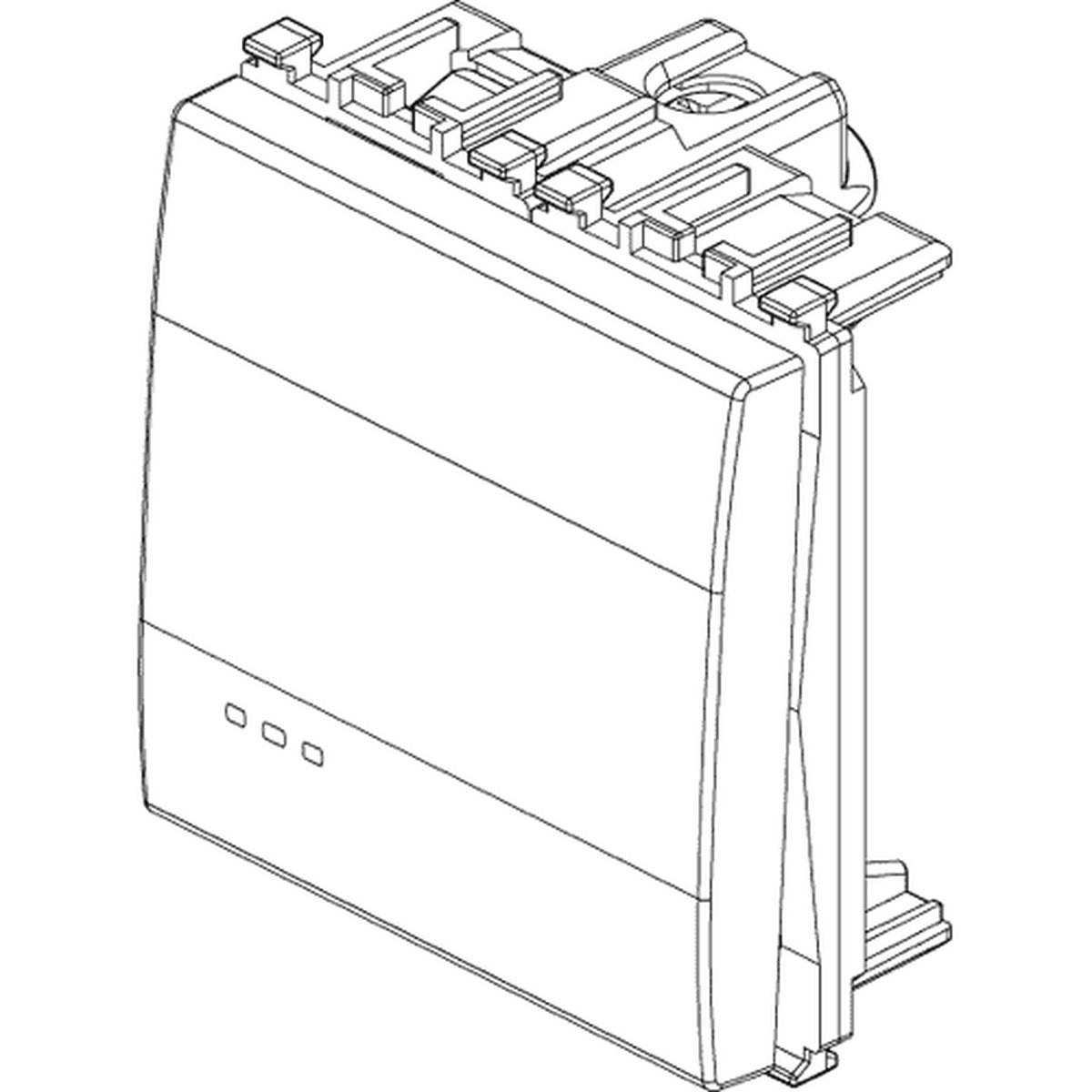

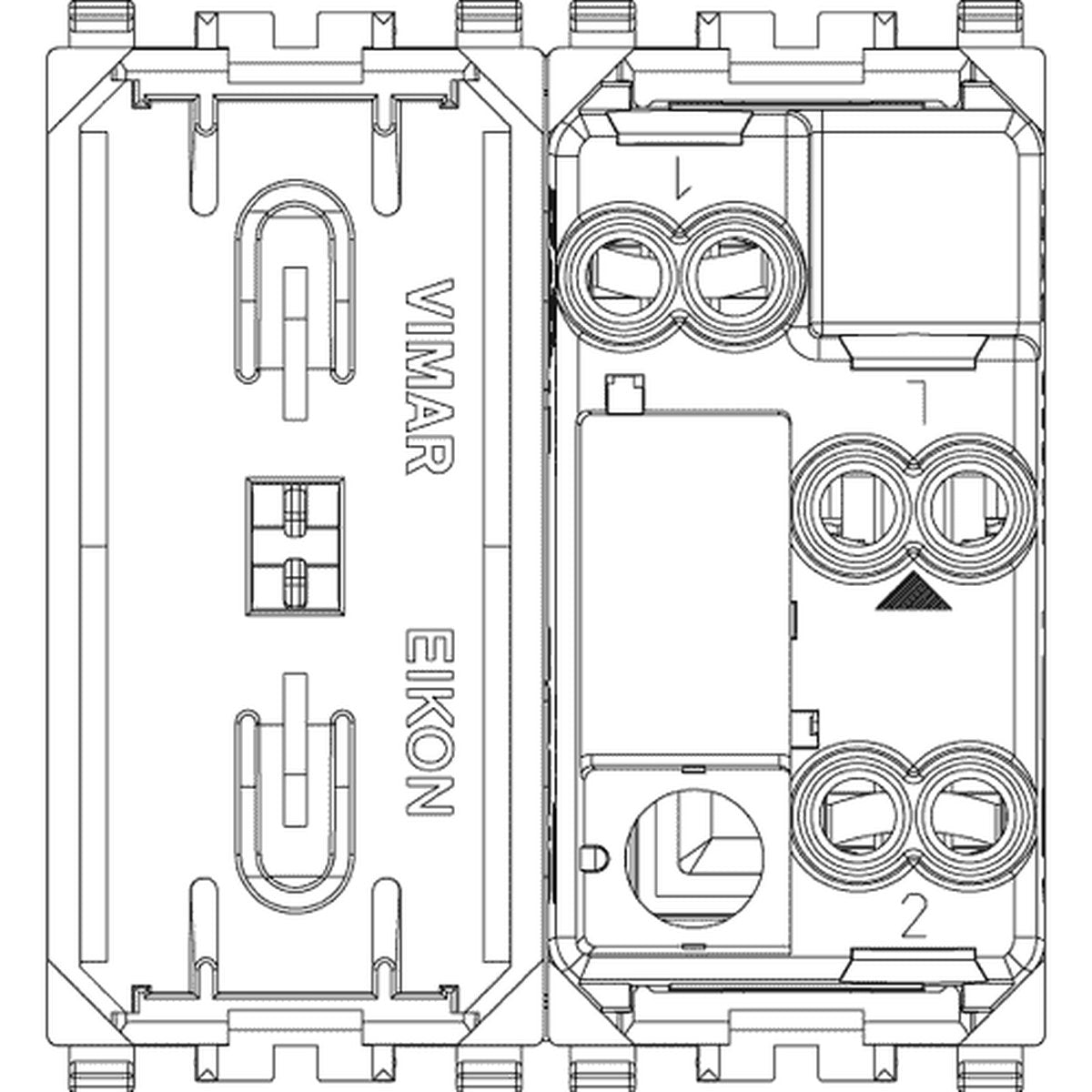

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
FAQ
What is the Vimar VM-20005.2 used for?
The Vimar VM-20005.2 is a 1-pole 2-way switch module from the Eikon Exe range. It is intended for light switch and socket installations where a grey 2-module switch from the Vimar Eikon Exe series is required.
What current rating does this switch have?
This model is rated at 16AX. That rating is specific to the VM-20005.2 and is suitable for buyers matching a Vimar Eikon Exe switch module to a specified 16AX requirement.
Is this switch part of the Vimar Eikon Exe series?
Yes, the VM-20005.2 belongs to the Vimar Eikon Exe switch module range. It is listed for Eikon Exe switch and dimmer categories and has a 2-module format.
What colour and finish is the VM-20005.2?
The VM-20005.2 is supplied in grey. Its finish is designed to match the minimal, squared Eikon Exe style described for the range.
What operating temperature range is specified for this switch?
The specified temperature range for this model is -20 °C to 50 °C. This helps buyers confirm whether the switch matches the environmental requirements of the project.
What is the warranty period for this Vimar switch?
The warranty period listed for the VM-20005.2 is 3 years. This applies to this specific product listing and should be considered alongside the supplier's warranty terms.
How does this model differ from other Eikon Exe switch modules?
This specific model is a grey 1P 16AX 2-way switch in a 2-module format. When comparing it with other Eikon Exe options, buyers should match the colour, module size, switch type, and current rating to the project specification.
