Overview

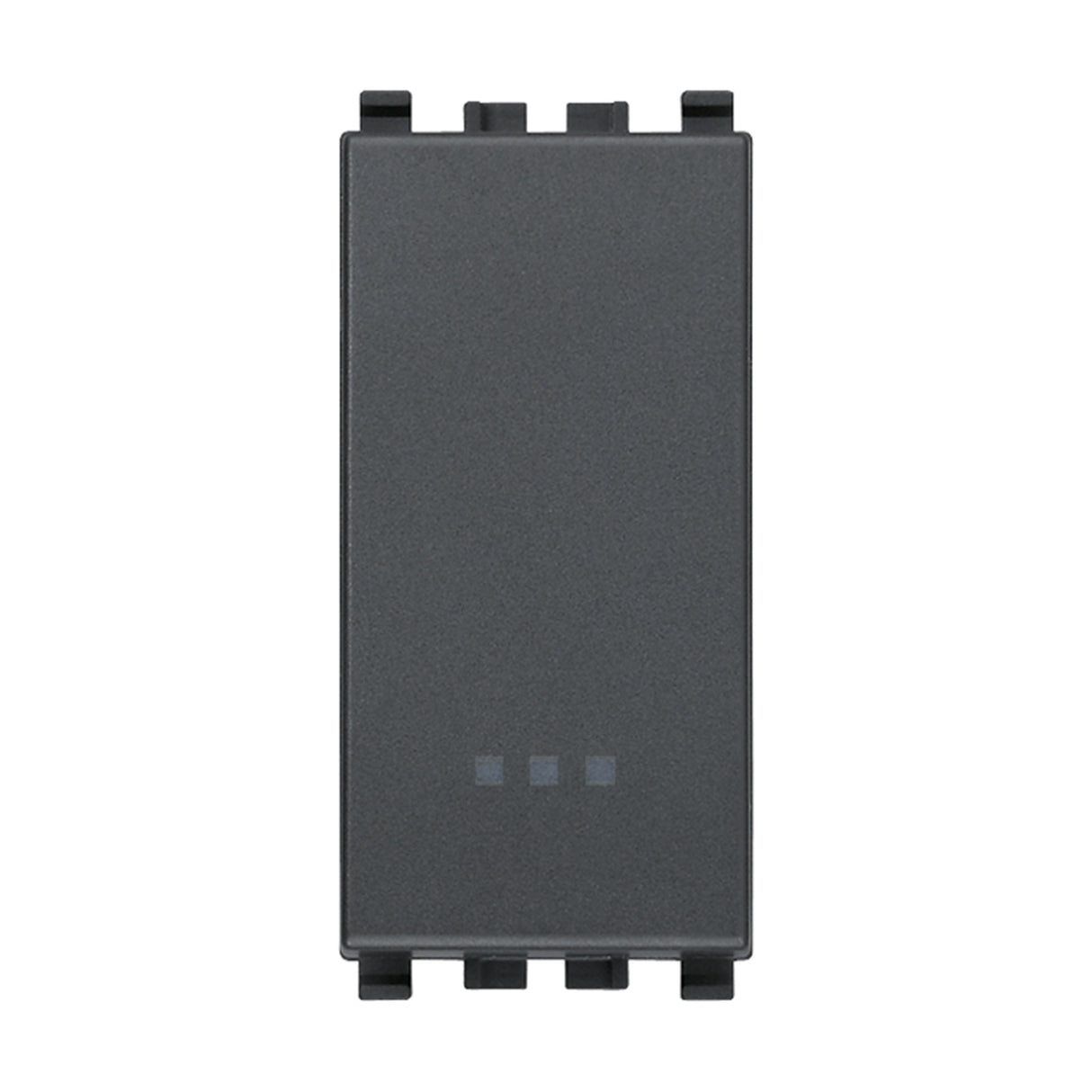

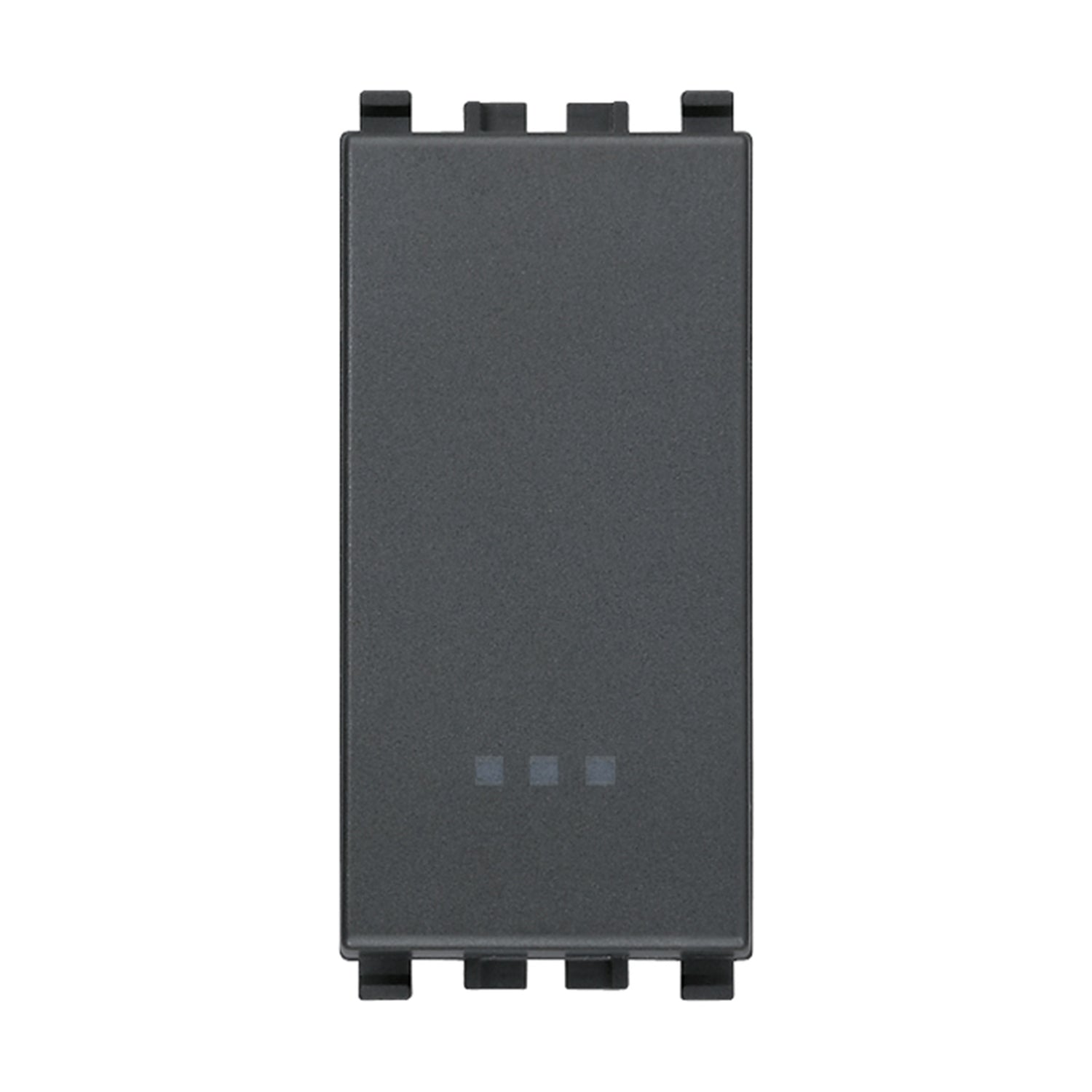

VM-20008 is Vimar EIKON 20008, 1P NO 10A push button grey.
1P NO 10 A 250 V~ push button, lightable, replaceable button, grey
Specifications
Technical data
- Product type
- Push button
- Assembly arrangement
- Modular device for domestic switching devices
- Model
- Single push button
- Operating method
- Push button
- Number of rockers
- 1
- Number of modules (module system)
- 100
- Number of poles
- 1
- Nominal voltage
- 250 V
- Rated current
- 10 A
- With lighting
- Yes
- Monitoring contact
- No
- Mounting method
- Built-in
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Transparent
- No
- Label space/information surface
- Yes
- Suitable for degree of protection (IP)
- IP40
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 36.1 mm
Packaging
- EAN
- 8007352250789
- Packed size (cm)
- 4.1 × 2.8 × 5.3
- Packed weight
- 26.07 g
- Pieces per box
- 50
Certifications
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), RoHS UAE, IQC (Argentina), INMETRO (Brazil), WEEE Directive, SASO (Saudi Arabia)

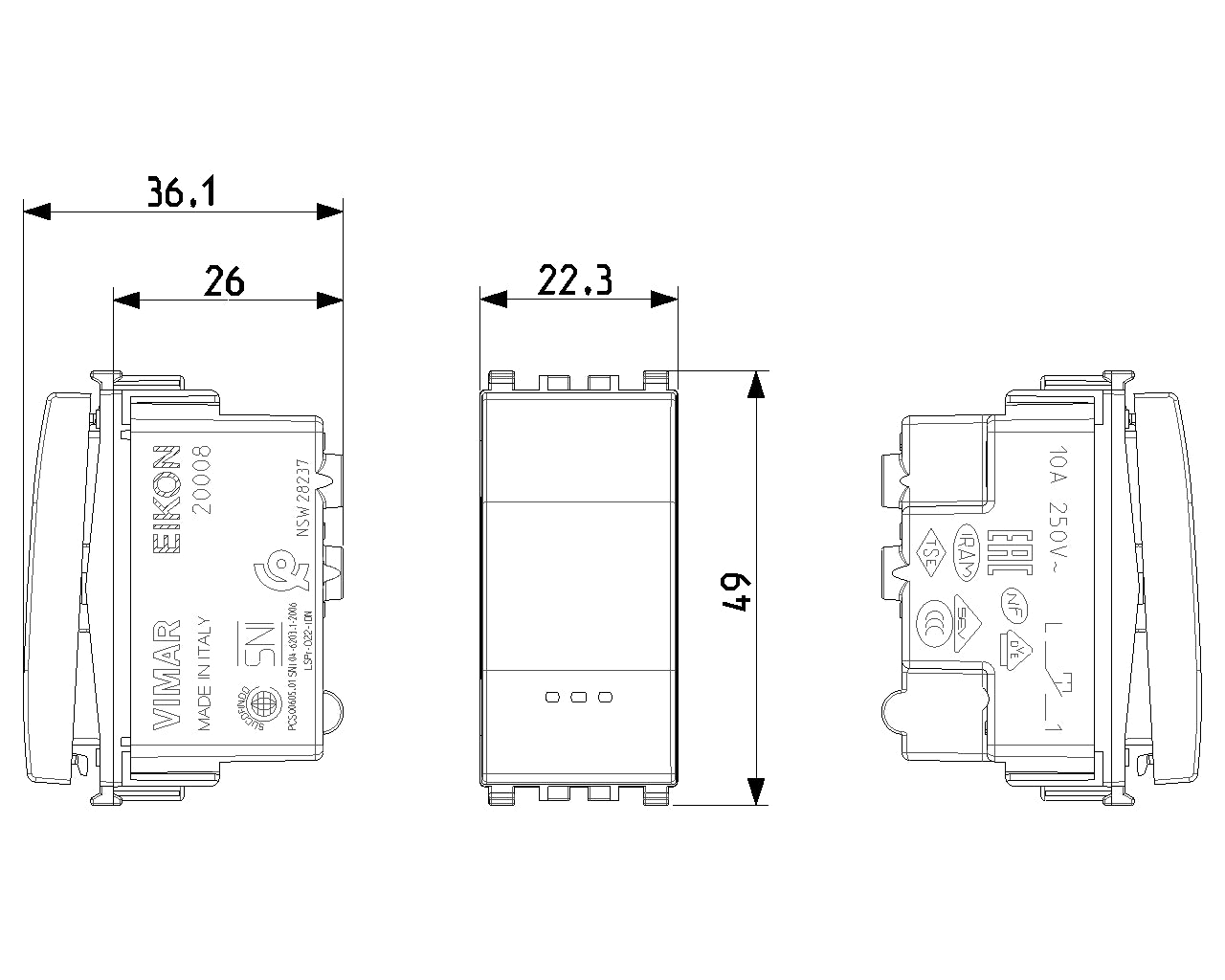

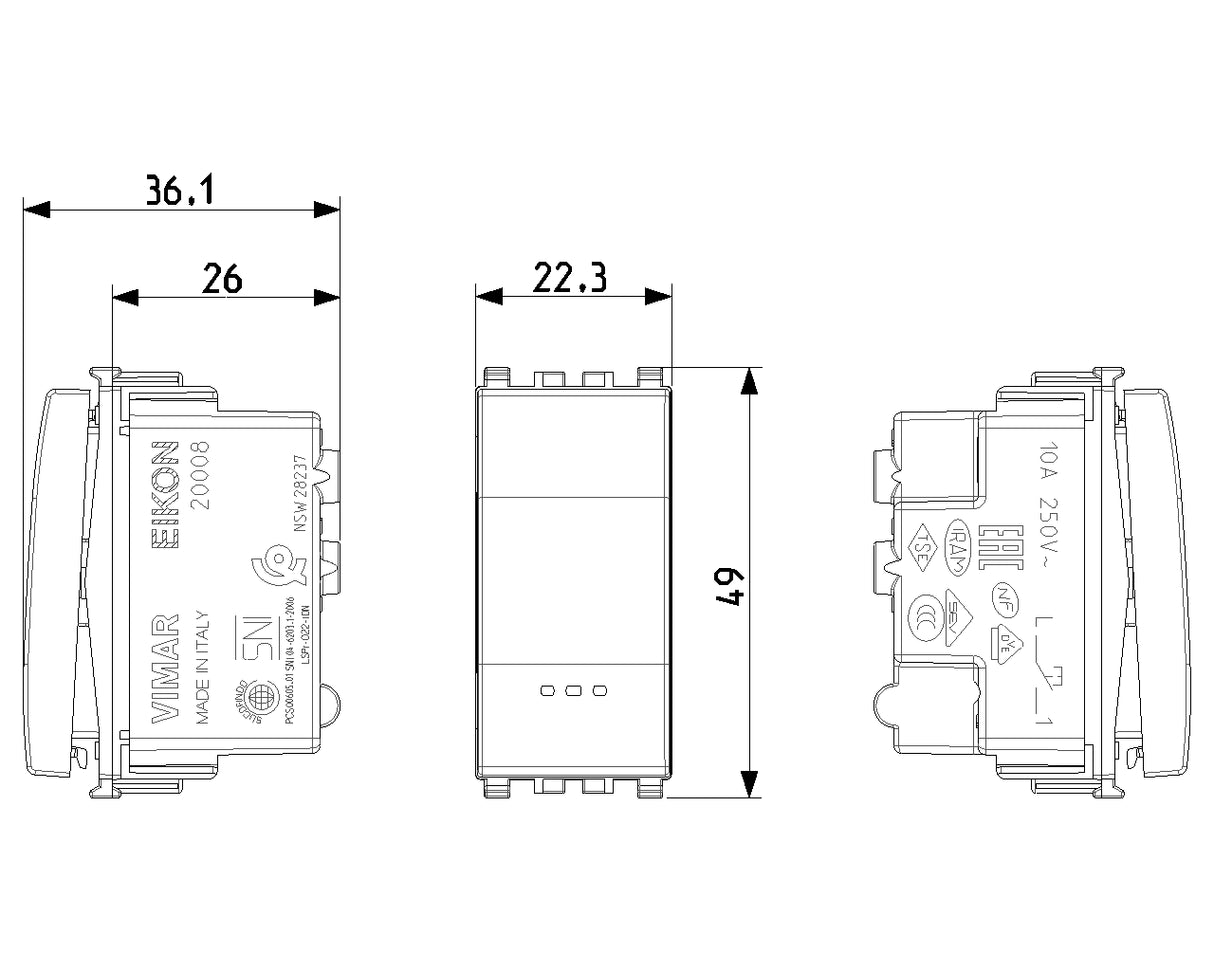

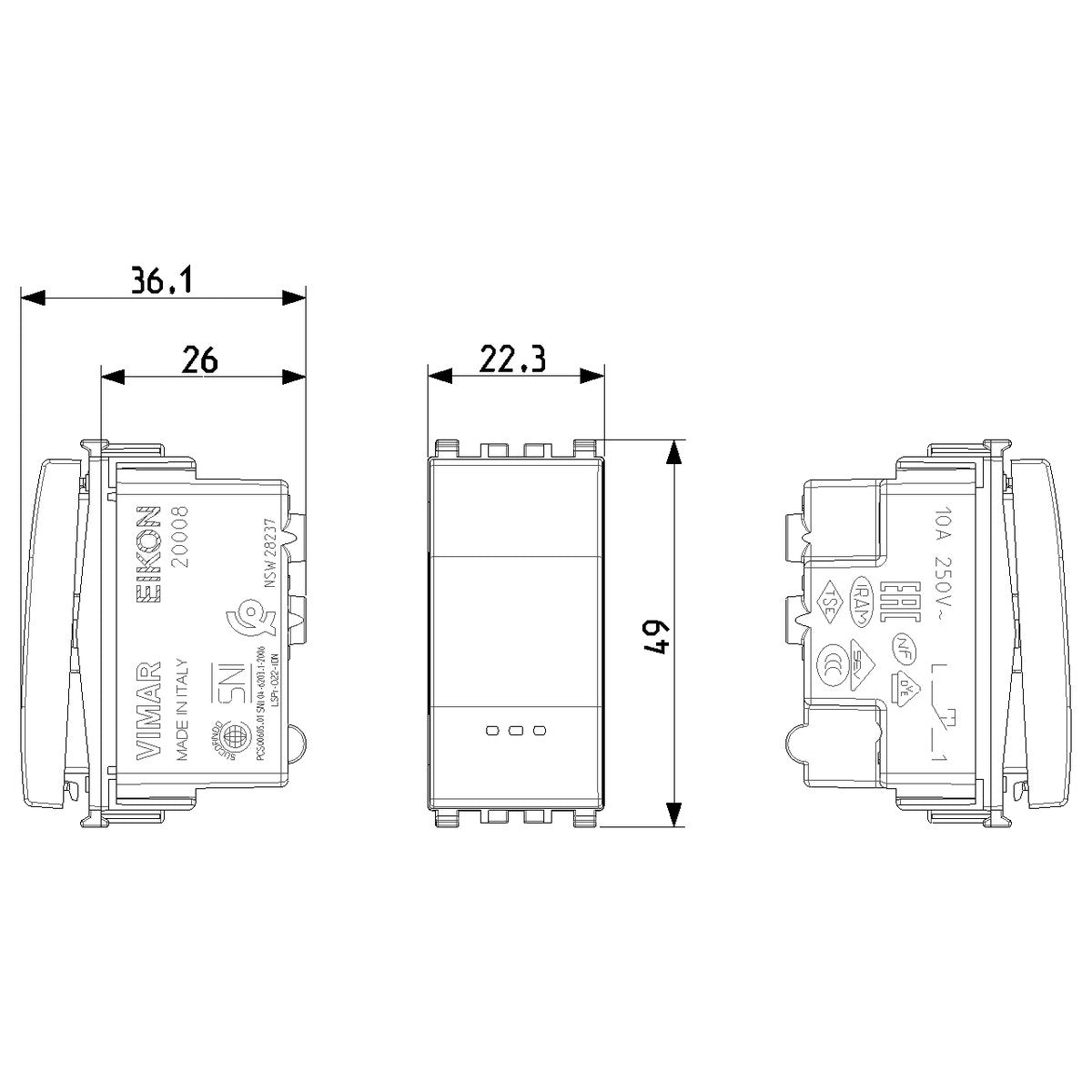

Technical drawings
Downloads
Datasheet1
Certificates2
Catalogues15
FAQ
What is the Vimar VM-20008 used for?
The VM-20008 is a Vimar Eikon Exé 1P normally open push button for switching applications where a momentary push control is required. It is suited to Eikon Exé light switch and socket layouts where a grey finish is needed to match the design scheme.
Is the VM-20008 a maintained switch or a push button?
This model is listed as a 1P NO push button, meaning it is a normally open push-button device rather than a standard maintained on/off switch. It is intended for applications that require a momentary control action.
What current rating does the Vimar VM-20008 support?
The VM-20008 has a rated current of 10 A. Buyers should confirm that this rating matches the requirements of the intended system or specification before ordering.
Which Vimar range is this push button part of?
This product belongs to the Vimar Eikon Exé range. It is a grey switch module intended for Eikon Exé switch, dimmer, and module configurations.
What environments is the VM-20008 rated for?
The listed operating temperature range is -20 °C to 50 °C. This makes it suitable for indoor specification projects that remain within those temperature limits.
What finish and design style does this model have?
The VM-20008 has a grey finish and is part of the Eikon Exé design family. The range is described with pure, minimal shapes and cover plates designed to blend into different interior environments.
What warranty period applies to this product?
The warranty period listed for the VM-20008 is 3 years. This can be useful for B2B buyers comparing product lifecycle requirements across switch modules.
