Vimar

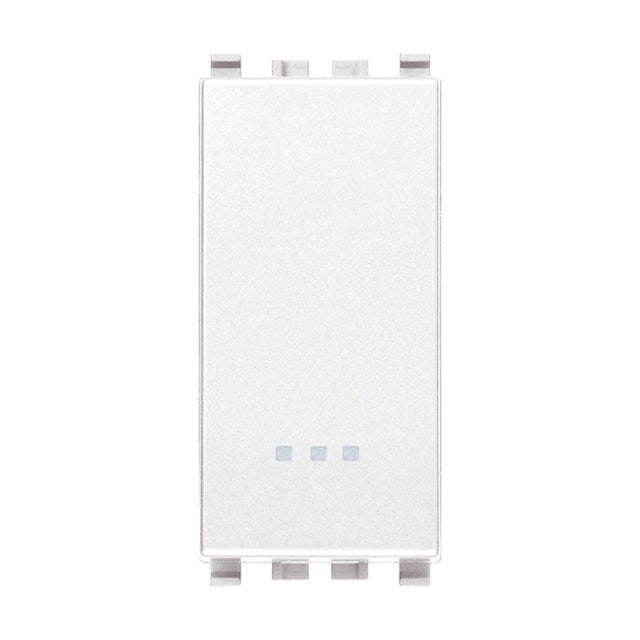

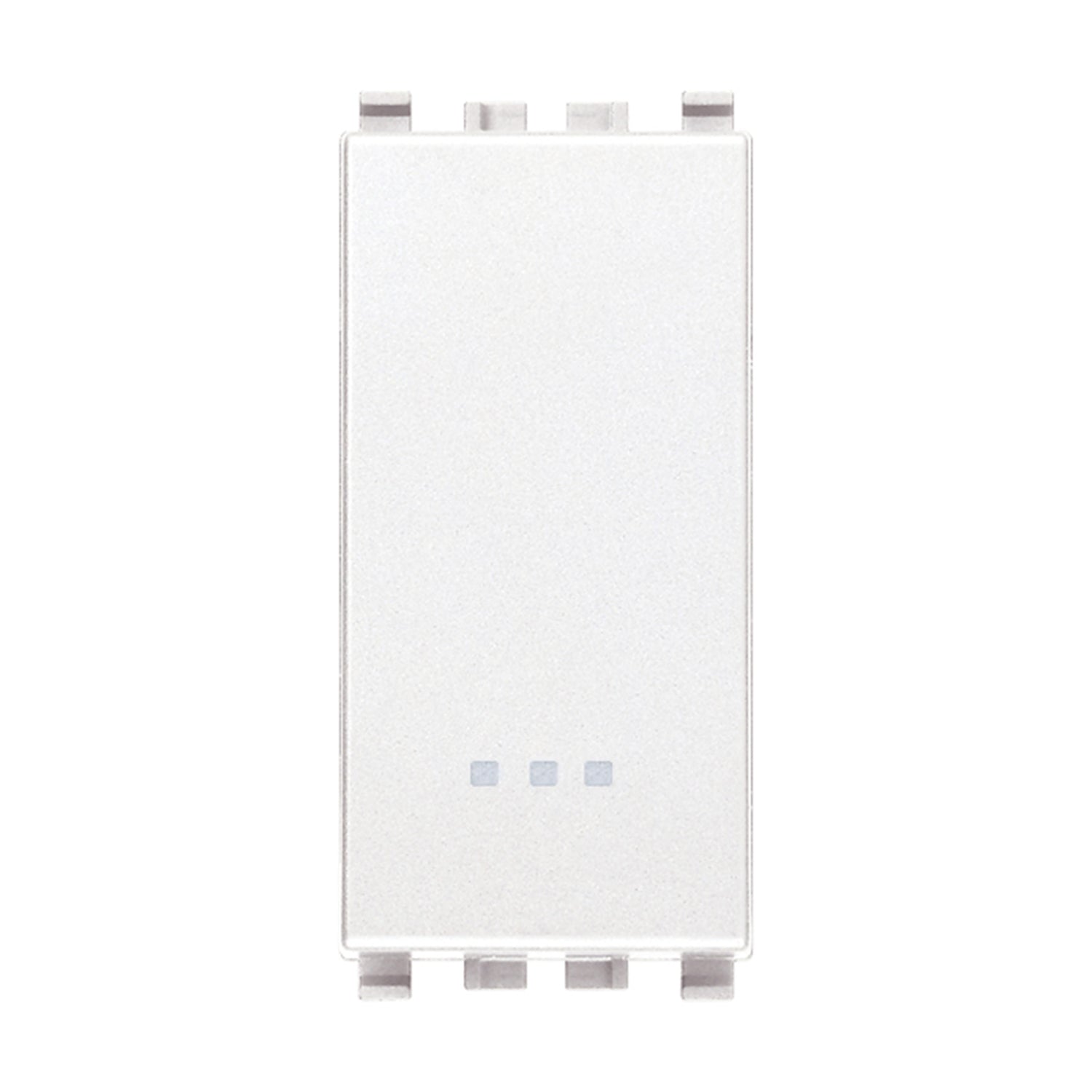

Vimar Eikon 1P NO 10A Push Button White

1P NO 10A White
SKU VM-20008.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-20008.B is Vimar EIKON 20008.B, 1P NO 10A push button white.

1P NO 10 A 250 V~ push button, lightable, replaceable button, white

Specifications

VM-20008.BSpecifications from the official datasheet

Technical data

Product type
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Operating method
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22.3 mm
Device height
49 mm
Device depth
36.1 mm

Packaging

EAN
8007352316485
Packed size (cm)
4.1 Γ— 2.8 Γ— 5.3
Packed weight
26.27 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), SNI-SUCOFINDO Indonesia, ISI (India), TSE (Turkey), CCC (China), Product Environm. Profile, NOM (Mexico), RoHS UAE, IQC (Argentina), INMETRO (Brazil), WEEE Directive, SASO (Saudi Arabia)

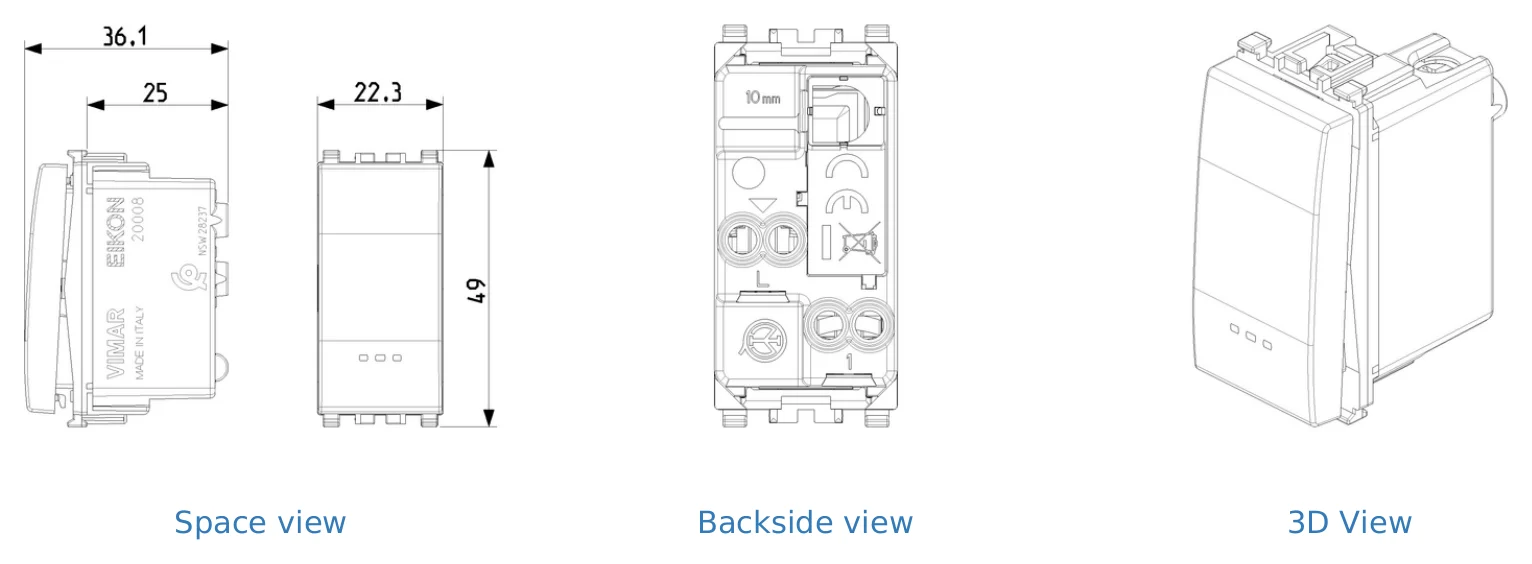

Technical drawings

VM-20008.B Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-20008.B used for?

The VM-20008.B is a Vimar Eikon Exe 1P NO push button module intended for light switch and control applications within compatible Eikon Exe switch systems. It is suited for projects where a white push button module is needed to match the Eikon Exe design range.

What does 1P NO mean for this push button?

1P indicates a single-pole push button, and NO means normally open. This describes the contact behavior of the model without changing its visible Eikon Exe white finish.

What is the rated current of the Vimar Eikon VM-20008.B?

This push button is rated at 10 A. That rating should be considered when selecting the product for a project or specification.

Is this push button part of the Vimar Eikon Exe range?

Yes, the VM-20008.B belongs to the Vimar Eikon Exe switch and dimmer module range. Its white finish and minimal design are intended to coordinate with Eikon Exe cover plates and related modules.

What operating temperature range is specified for this model?

The VM-20008.B is specified for temperatures from -20 Β°C to 50 Β°C. This range helps buyers confirm whether the product fits the expected environment for the project.

What warranty period applies to the VM-20008.B?

The listed warranty period for this Vimar push button is 3 years. This applies to the VM-20008.B model as specified in the product data.

How much does the Vimar VM-20008.B weigh?

The listed weight for this push button module is 0.0263 kg. Its compact weight is typical for a modular switch component used in coordinated wall switch systems.
