Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

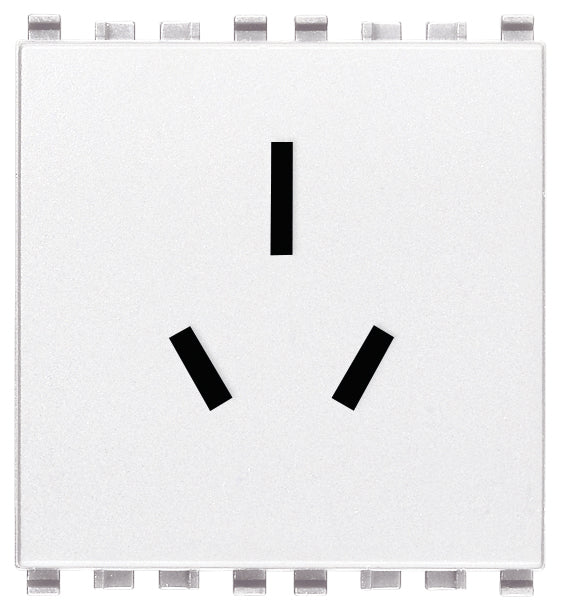

Vimar Eikon 2P+E 15A Australian Sicury Outlet White

2P+E 15A White
SKU VM-20262.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-20262.B is Vimar EIKON 20262.B, 2P+E 15A Australian SICURY outlet white.

2P+E 15 A 250 V~ SICURY socket outlet, Australian standard, white - 2 modules

Specifications

VM-20262.BSpecifications from the official datasheet

Technical data

Product type
Socket outlet
Model
Australian standard AS/NZS 3112 (type I)
Number of socket outlets
1
Number of modules (module system)
2
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Overvoltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Frequency
50 - 60 HZ
Suitable for degree of protection (IP)
IP20
Device width
44.8 mm
Device height
49 mm
Device depth
38.9 mm

Packaging

EAN
8007352571051
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
45.3 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), RCM (Australia), WEEE Directive

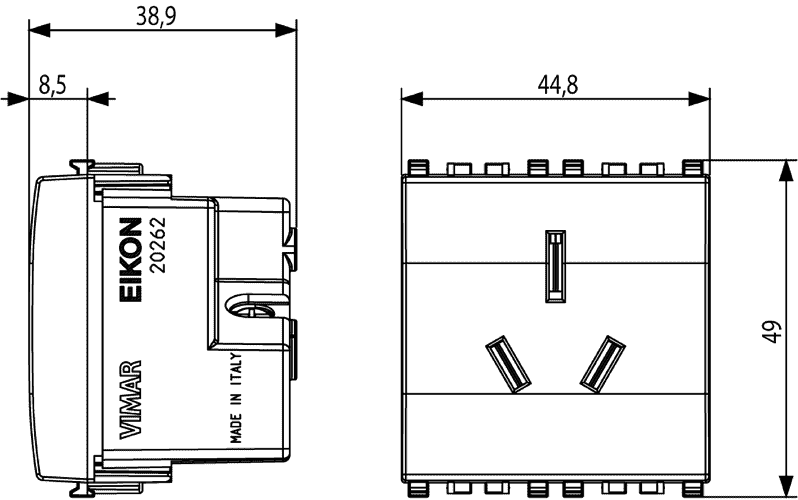

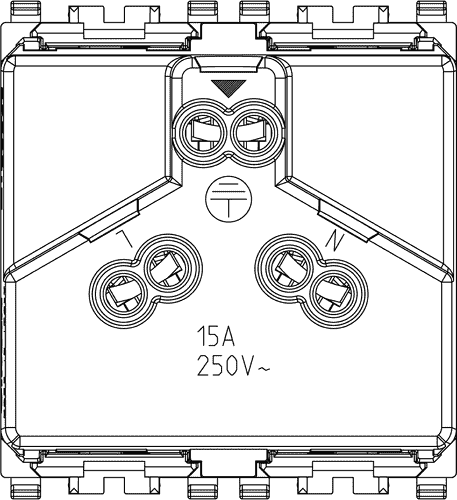

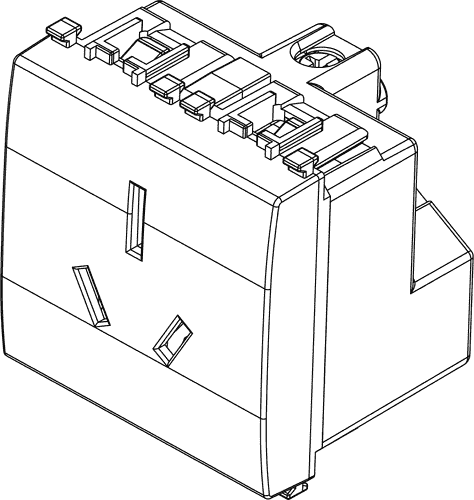

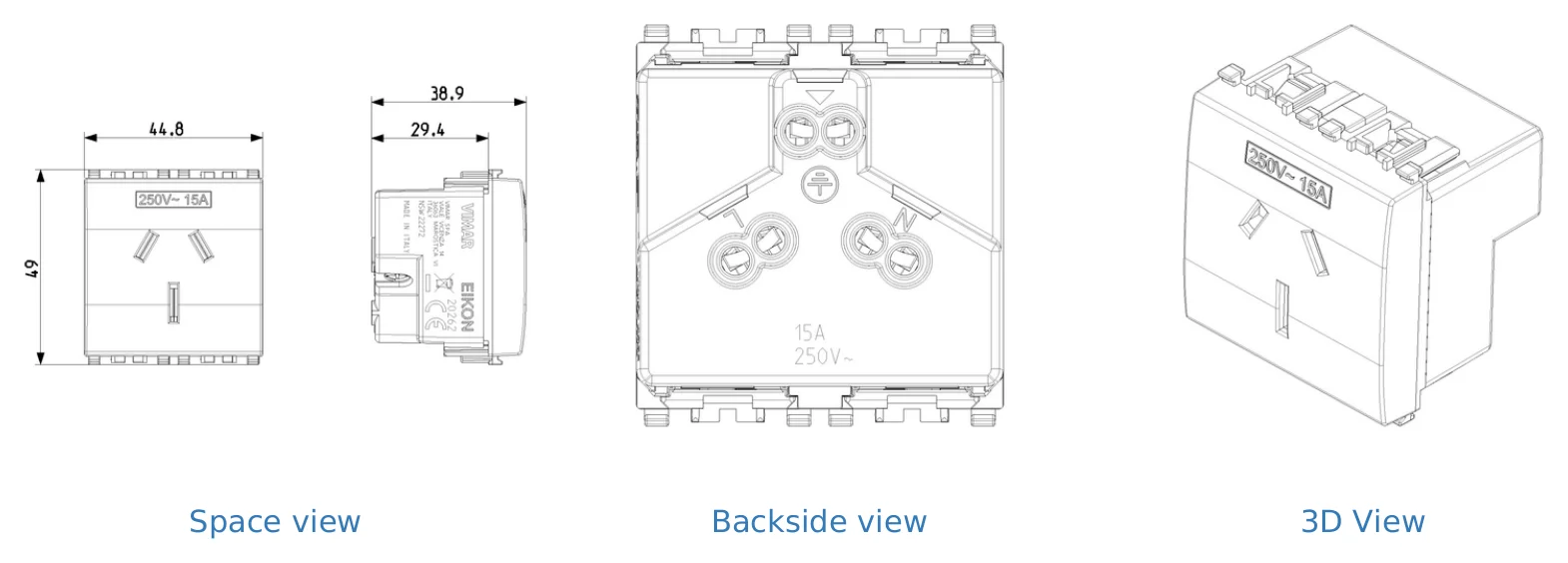

Technical drawings

VM-20262.B Drawings
Drawings

Downloads

FAQ

What is the VM-20262.B used for?

The VM-20262.B is a Vimar Eikon 2P+E 15A Australian Sicury outlet in white. It is intended for product pages or specifications requiring a matching Eikon Exe socket module with a clean, minimal white finish.

What current rating does this Vimar outlet have?

This model is rated at 15 A. The rating is specific to SKU VM-20262.B and should be checked against the requirements of the project or equipment specification.

Is this outlet part of the Vimar Eikon Exe series?

Yes. The product name and category data identify it as a Vimar Eikon outlet associated with the Eikon Exe socket range.

What colour and finish is the VM-20262.B?

The listed finish colour for this model is white. Its Eikon Exe styling is described as pure and minimal, with squared corners and a design intended to blend into modern interiors.

What temperature range is specified for this outlet?

The listed operating temperature range is -20 °C to 50 °C. This helps buyers assess whether the model fits the environmental conditions of the intended location.

What warranty period is listed for this product?

The VM-20262.B has a listed warranty period of 3 years. Warranty terms may depend on the seller, region, and applicable project documentation.
