Vimar

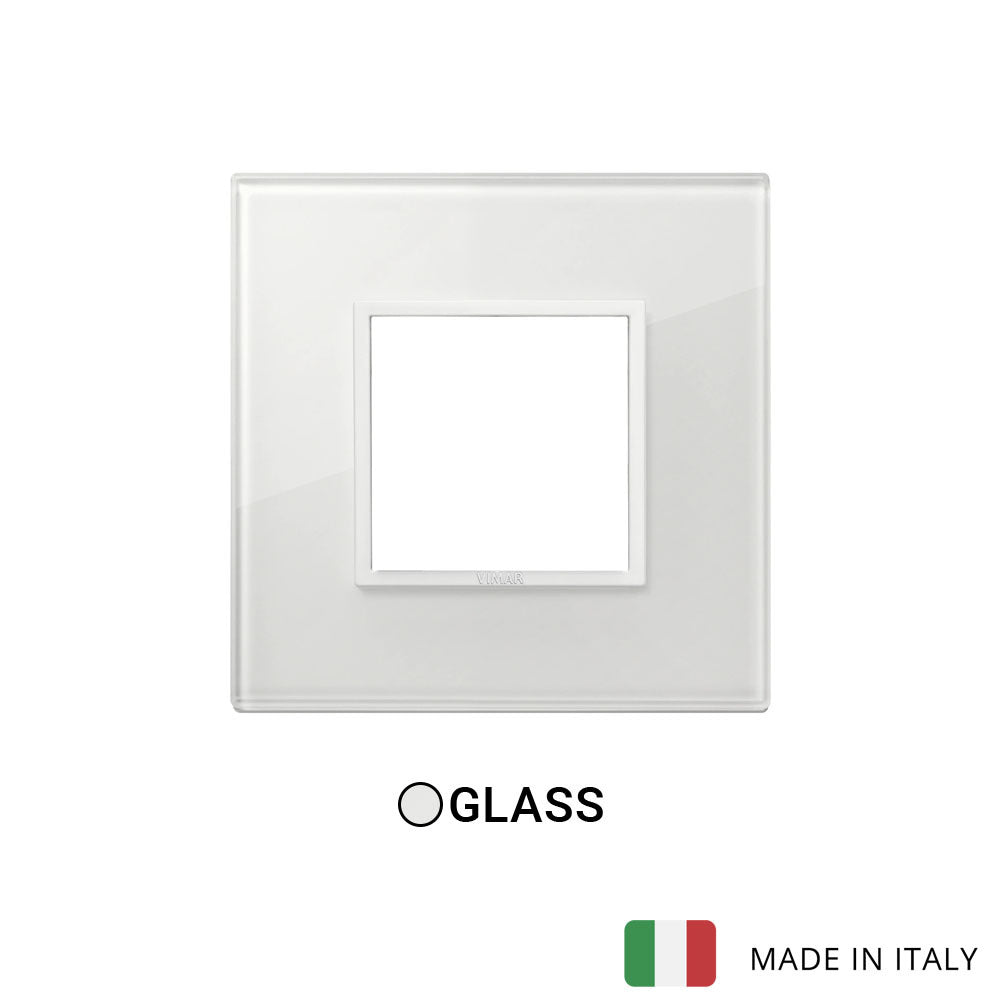

Vimar Eikon Evo Plate 2M Crystal Total White Diamond - Square

2 ModuleWhiteSquare
SKU VM-21642.87
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-21642.87 is Vimar EIKON 21642.87, plate 2M crystal total white diamond.

2-module cover plate, bevelled crystal, total white diamond

Specifications

VM-21642.87Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95.4 mm
Height
95.4 mm
Depth
10.3 mm
Built-in width
95.4 mm
Built-in height
95.4 mm

Packaging

EAN
8007352418516
Packed size (cm)
13.55 × 14.1 × 3.9
Packed weight
149.7 g

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

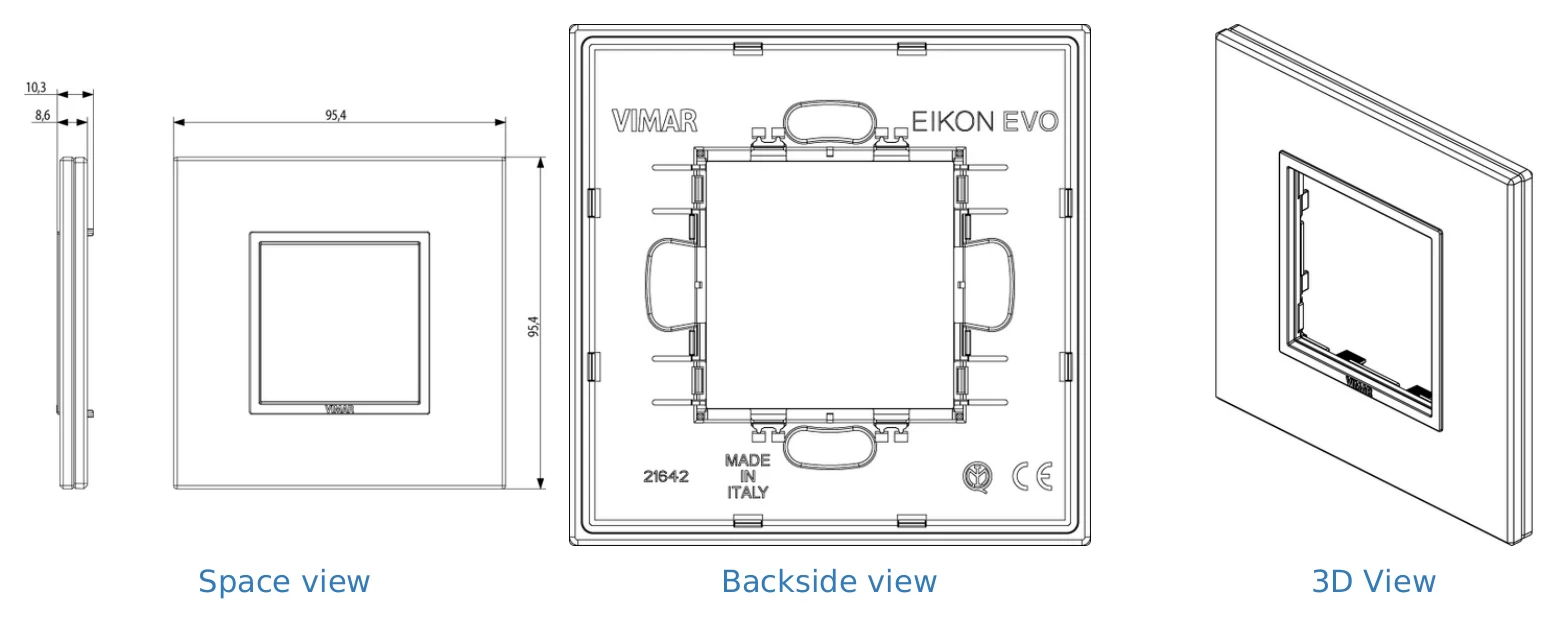

Technical drawings

VM-21642.87 Drawings
Drawings

Downloads

FAQ

What range is the Vimar VM-21642.87 cover plate designed for?

The VM-21642.87 is part of the Vimar Eikon Evo cover plate range. It is intended for Eikon Evo light switch and socket applications where a 2M square plate is required.

What colour and finish is this Vimar Eikon Evo plate?

This model is Crystal Total White Diamond with a white finish. The design is described as a square Eikon Evo plate with an ultra-thin profile and a decorative glass material style.

Where is this 2M cover plate typically used?

This cover plate is used as the visible finishing plate for compatible Eikon Evo switch or socket points. Its white crystal appearance suits residential, hospitality, and commercial interiors where a clean, high-end finish is preferred.

What makes the Eikon Evo cover plate range different from basic switch plates?

Eikon Evo plates are positioned as a design-led range with distinctive forms, ultra-thin profiles, and material options aligned with interior design trends. This specific model uses a Crystal Total White Diamond finish for a more decorative look than a plain standard plate.

What is the warranty period for SKU VM-21642.87?

The listed warranty period for this Vimar Eikon Evo plate is 3 years. This applies to SKU VM-21642.87 as specified for the product.

How much does this Vimar Eikon Evo cover plate weigh?

The listed weight for this product is 0.5000 kg. This can help buyers estimate handling, shipping, or project quantities for the VM-21642.87 plate.
