Vimar

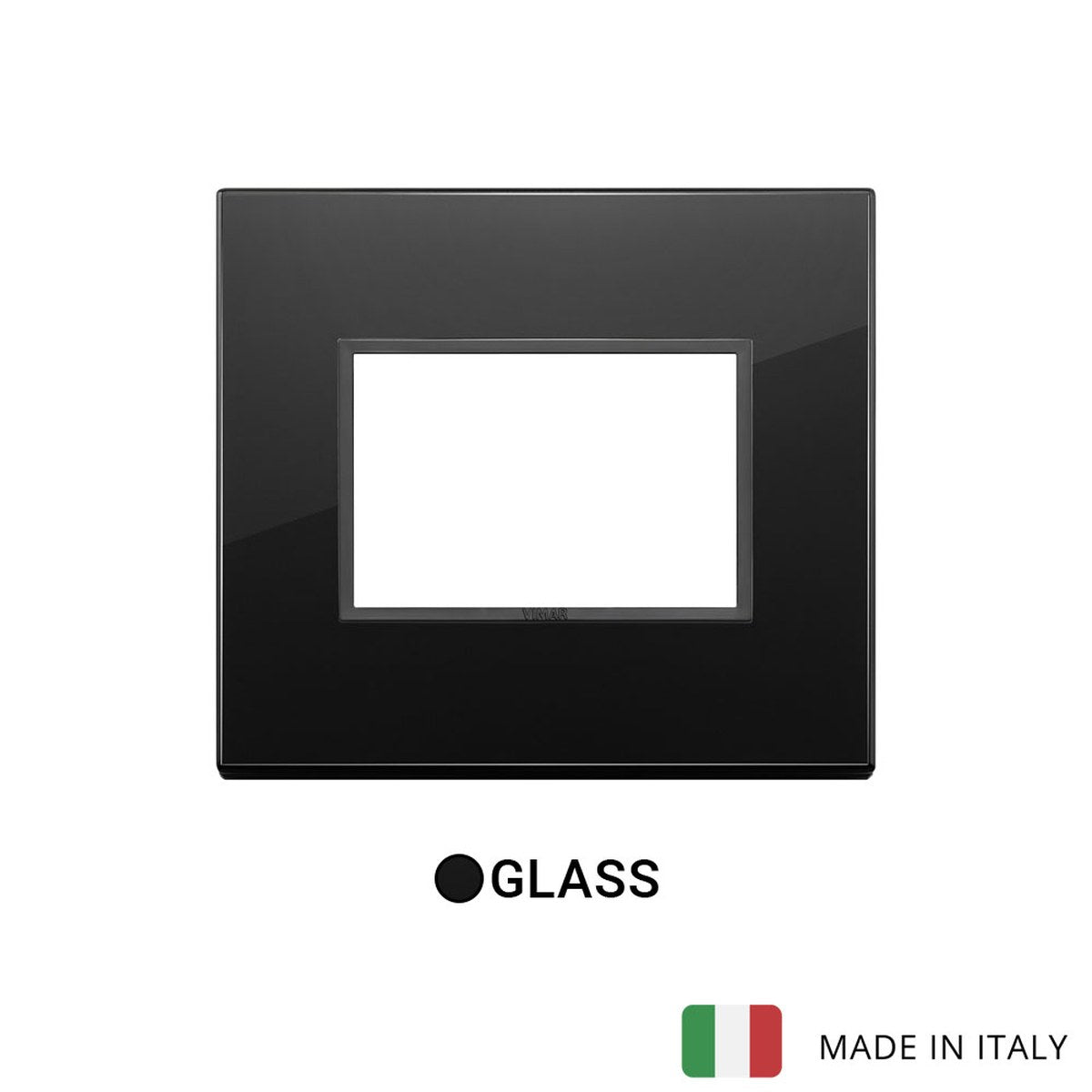

Vimar Eikon Evo Plate 3M Crystal Total Black Diamond

3 ModuleBlack
SKU VM-21653.88
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-21653.88 is Vimar EIKON 21653.88, plate 3M crystal total black diamond.

3-module cover plate, bevelled crystal, total black diamond

Specifications

VM-21653.88Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
118 mm
Height
106 mm
Depth
9.9 mm
Built-in width
118 mm
Built-in height
106 mm

Packaging

EAN
8007352418912
Packed size (cm)
15.8 × 14.1 × 3.9
Packed weight
167 g

Certifications

Certifications
CE marking (EU), IMQ (Italy)

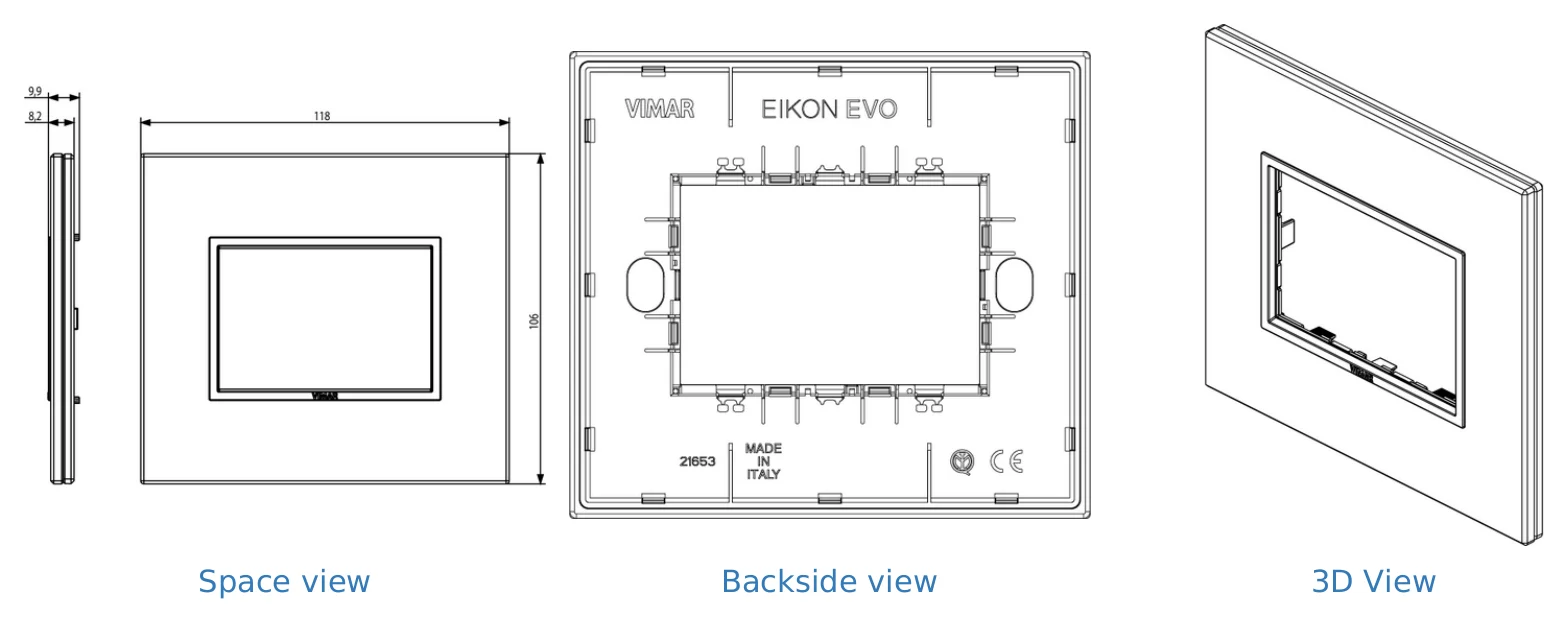

Technical drawings

VM-21653.88 Drawings
Drawings

Downloads
