Vimar

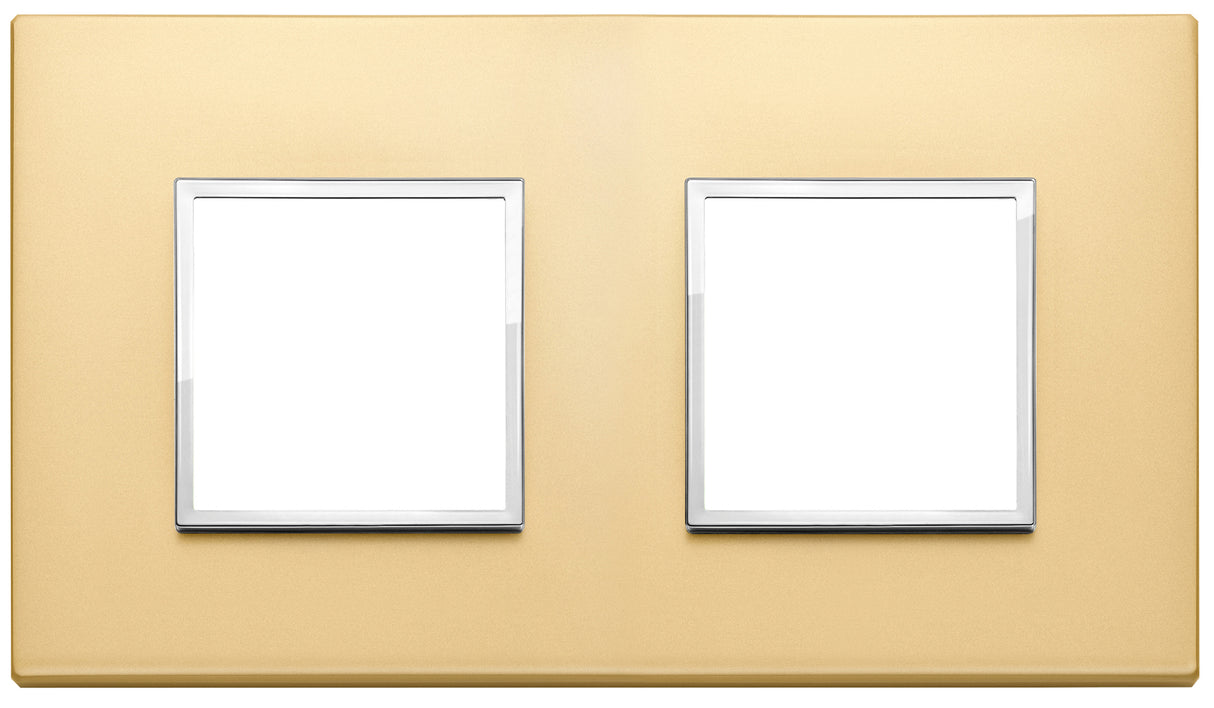

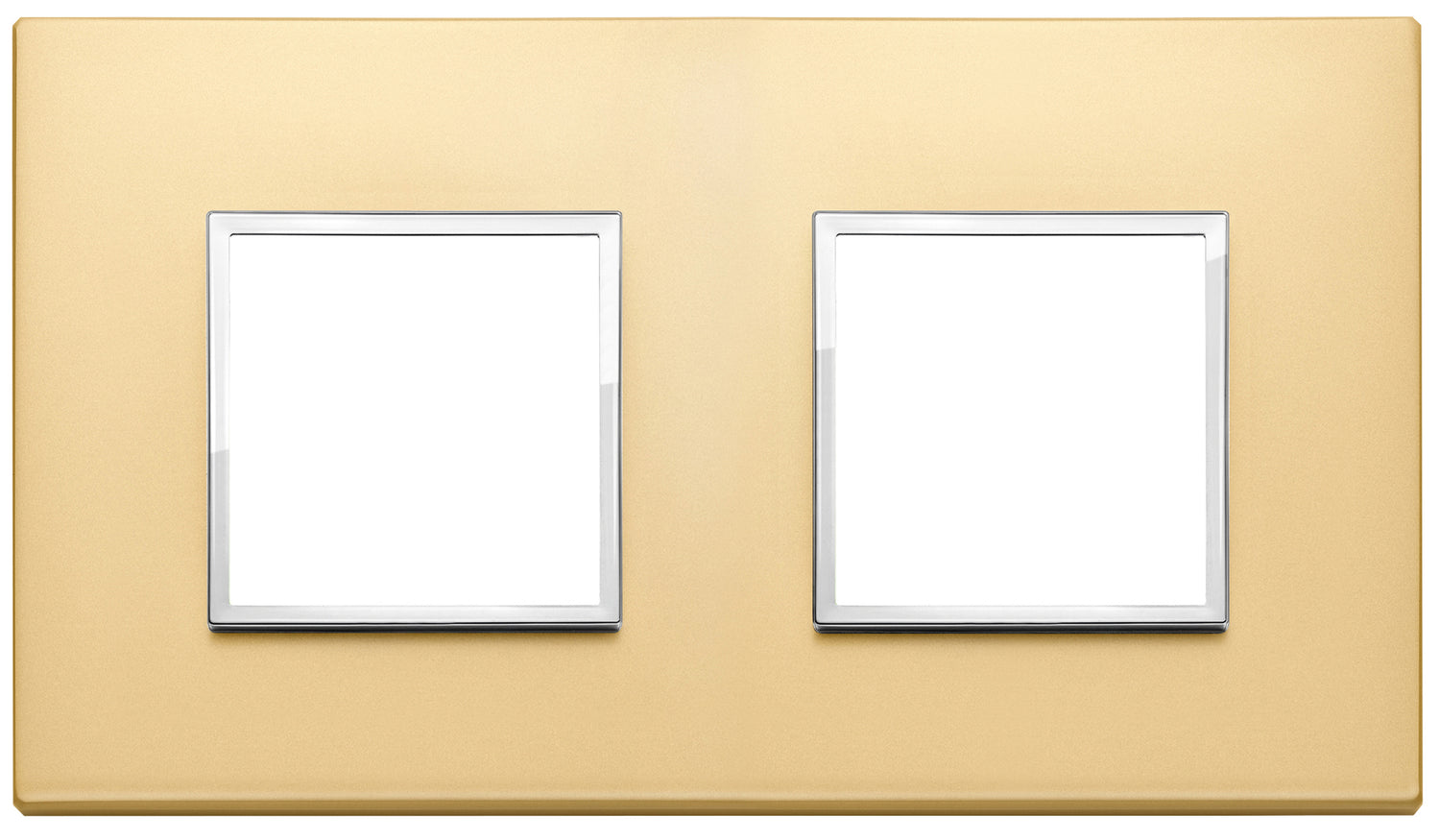

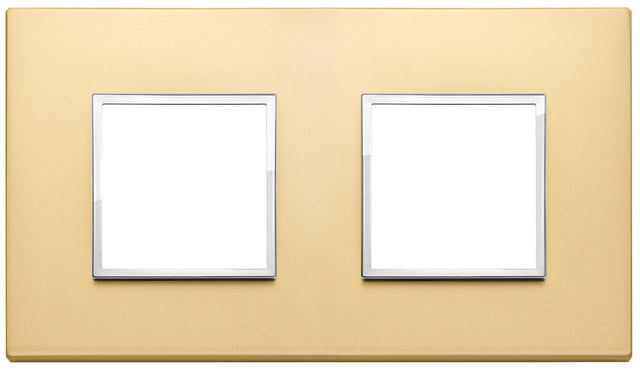

Vimar Eikon Evo Plate 4M (2+2) 71MM Aluminium Satin Gold

4 ModuleGold
SKU VM-21643.10
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-21643.10 is Vimar EIKON 21643.10, plate 4M (2+2) 71mm satin gold.

4-module cover plate (2+2, 71 mm distance between centres), Esclusivi refined aluminium, satin gold

Specifications

VM-21643.10Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95.4 mm
Height
166.4 mm
Depth
9.6 mm
Built-in width
95.4 mm
Built-in height
166.4 mm

Packaging

EAN
8007352436206
Packed size (cm)
16.8 × 9.7 × 1.7
Packed weight
116.2 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), CCC (China), IMQ (Italy)

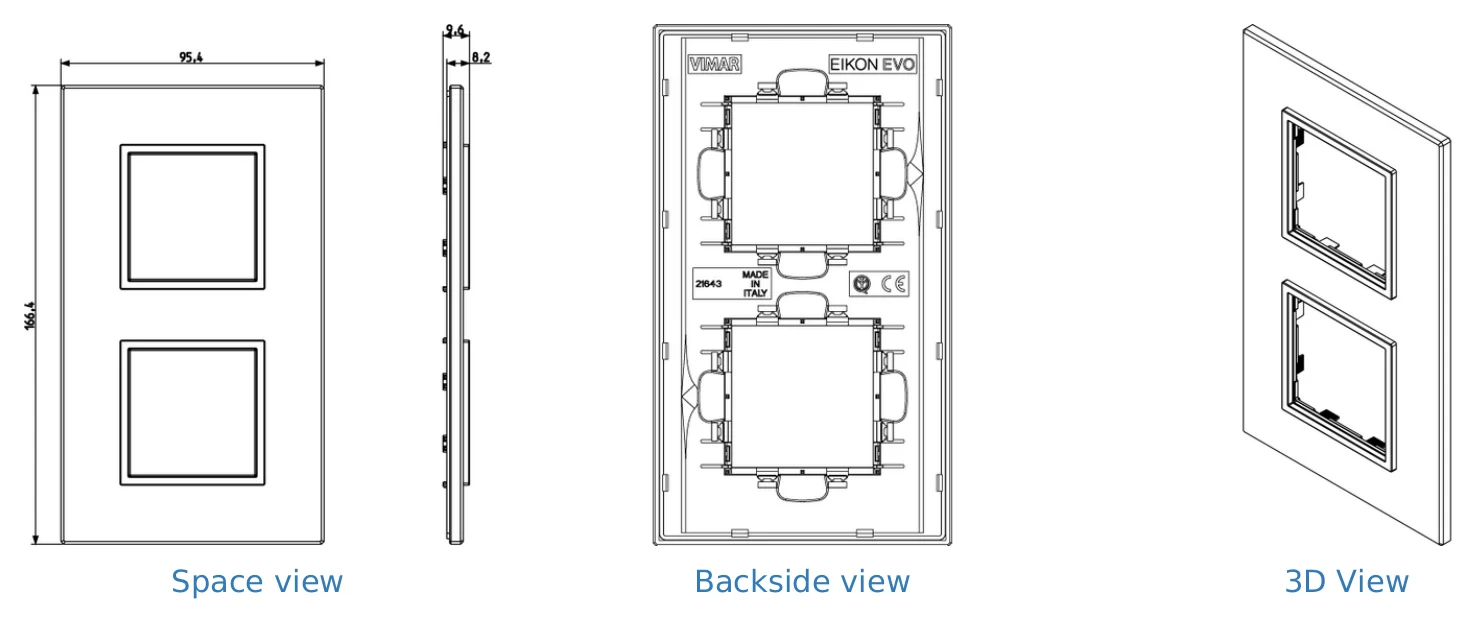

Technical drawings

VM-21643.10 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-21643.10 cover plate?

The VM-21643.10 is a Vimar Eikon Evo switch cover plate for a 4M configuration, arranged as 2+2 modules. It is described as a 71 mm plate in aluminium with a satin gold finish.

Which Vimar series is this plate for?

This cover plate belongs to the Vimar Eikon Evo range. It is intended for use where Eikon Evo cover plates are specified for the matching switch or socket system.

Where is the satin gold finish most suitable?

The satin gold finish is suited to interiors where the switch plate is intended to be visible as part of the room design. Its aluminium material and metallic gold colour make it a good match for decorative residential, hospitality, or commercial spaces using Eikon Evo styling.

How does this Eikon Evo plate differ from a basic plastic cover plate?

This model is listed as an aluminium cover plate with a satin gold finish, giving it a more design-led appearance than a basic plastic plate. The Eikon Evo range is described as having ultra-thin profiles, distinctive colours, and materials selected to match current interior design trends.

What are the weight and warranty for this model?

The listed weight for the Vimar VM-21643.10 is 0.6370 kg. The product is supplied with a 3 year warranty period.
