Vimar

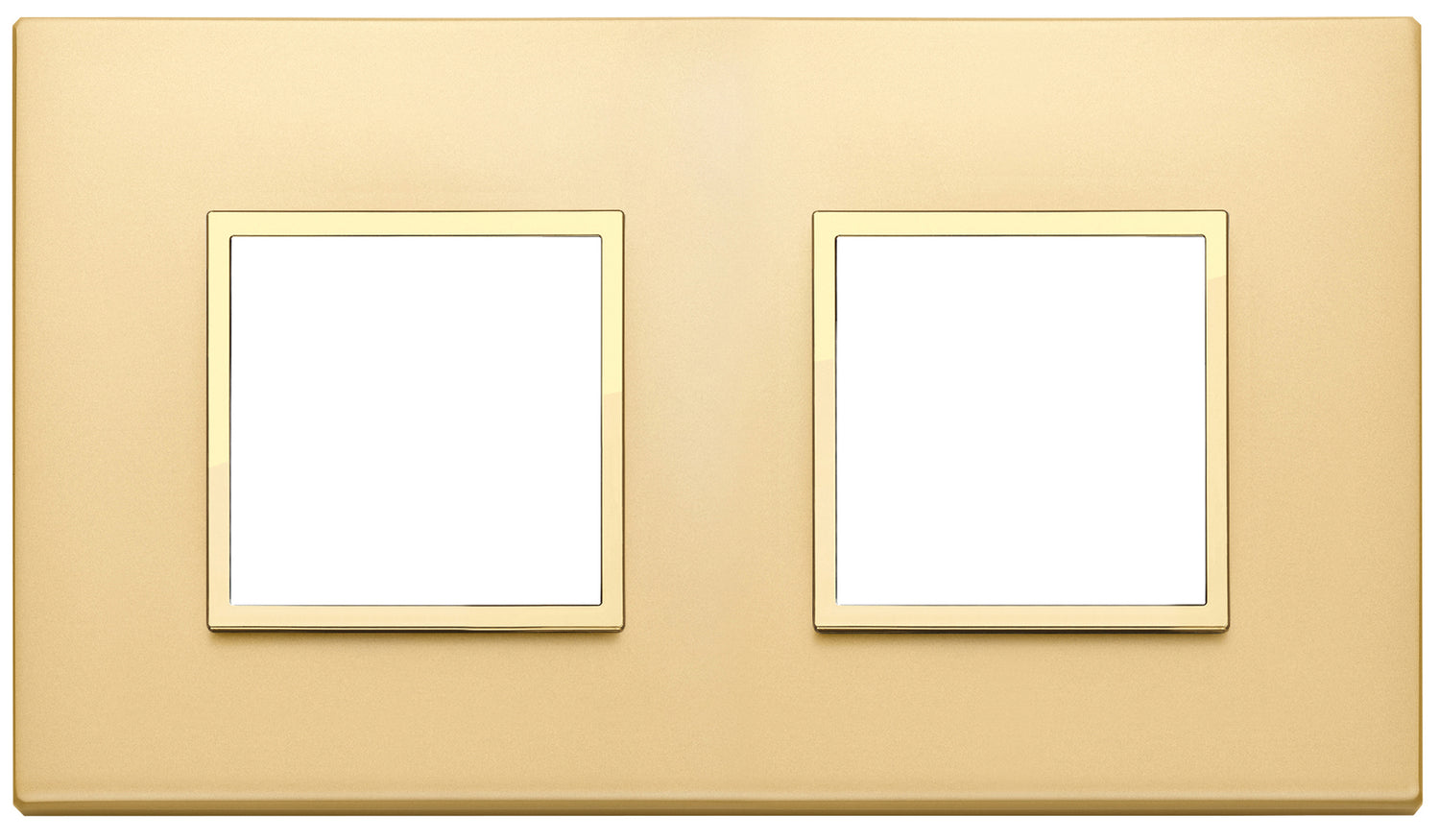

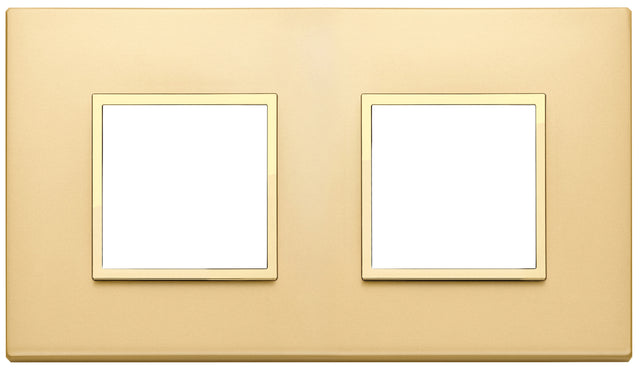

Vimar Eikon Evo Plate 4M (2+2) 71MM Aluminium Satin Gold

4 ModuleGold
SKU VM-21643.G10
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-21643.G10 is Vimar EIKON 21643.G10, plate 4M (2+2) 71mm satin gold.

4-module cover plate (2+2, 71 mm distance between centres), Esclusivi refined aluminium and golden frame, satin gold

Specifications

VM-21643.G10Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95.4 mm
Height
166.4 mm
Depth
9.6 mm
Built-in width
95.4 mm
Built-in height
166.4 mm

Packaging

EAN
8007352563346
Packed size (cm)
16.8 × 9.7 × 1.7
Packed weight
116.2 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

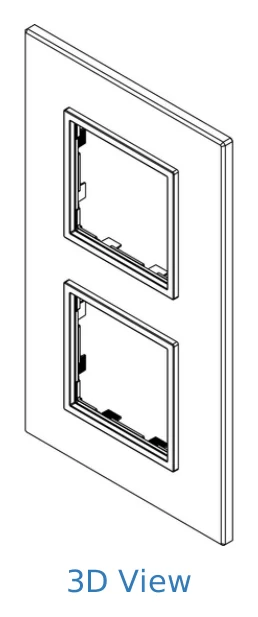

Technical drawings

VM-21643.G10 Drawings
Drawings

Downloads

FAQ

What is the Vimar Eikon Evo VM-21643.G10 used for?

The VM-21643.G10 is a Vimar Eikon Evo switch cover plate for finishing a compatible wall switch or control point. It is intended for projects where the visible plate design, material, and colour need to match the Eikon Evo range.

What does 4M (2+2) mean for this cover plate?

The product name identifies this as a 4M plate with a 2+2 layout. This is useful when matching the plate to the corresponding Eikon Evo modular configuration specified for the project.

Is this plate part of the Vimar Eikon Evo series?

Yes. This model is listed in the Vimar Eikon Evo cover plate family and is intended to coordinate with the Eikon Evo design range.

What finish is the VM-21643.G10?

This model has an aluminium satin gold finish. The listed finish colour is gold, making it suitable for interiors where a warm metallic accent is required.

What are the weight and warranty for this cover plate?

The listed weight for the VM-21643.G10 is 0.6370 kg. The product has a listed warranty period of 3 years.
