Vimar

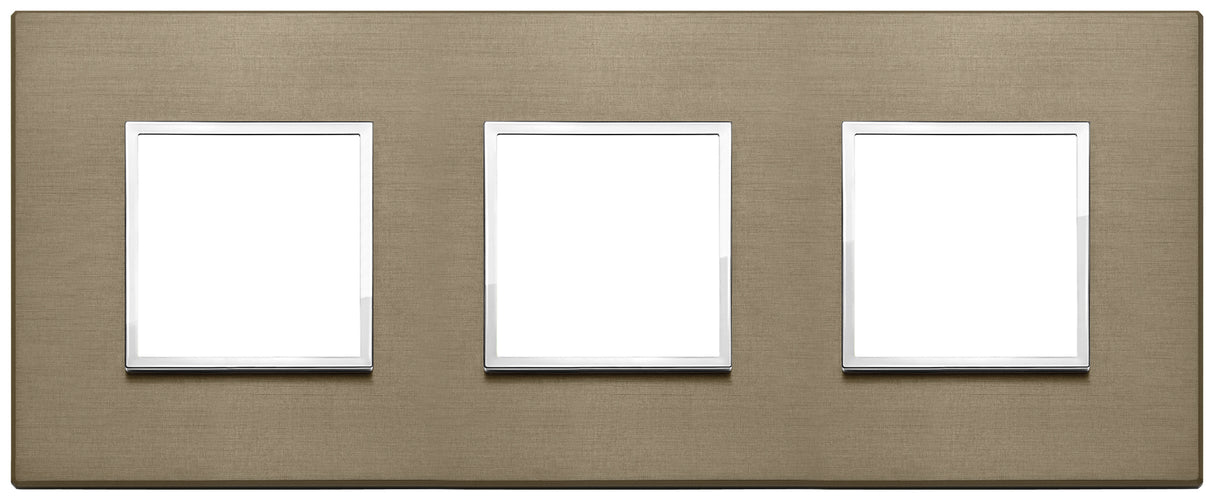

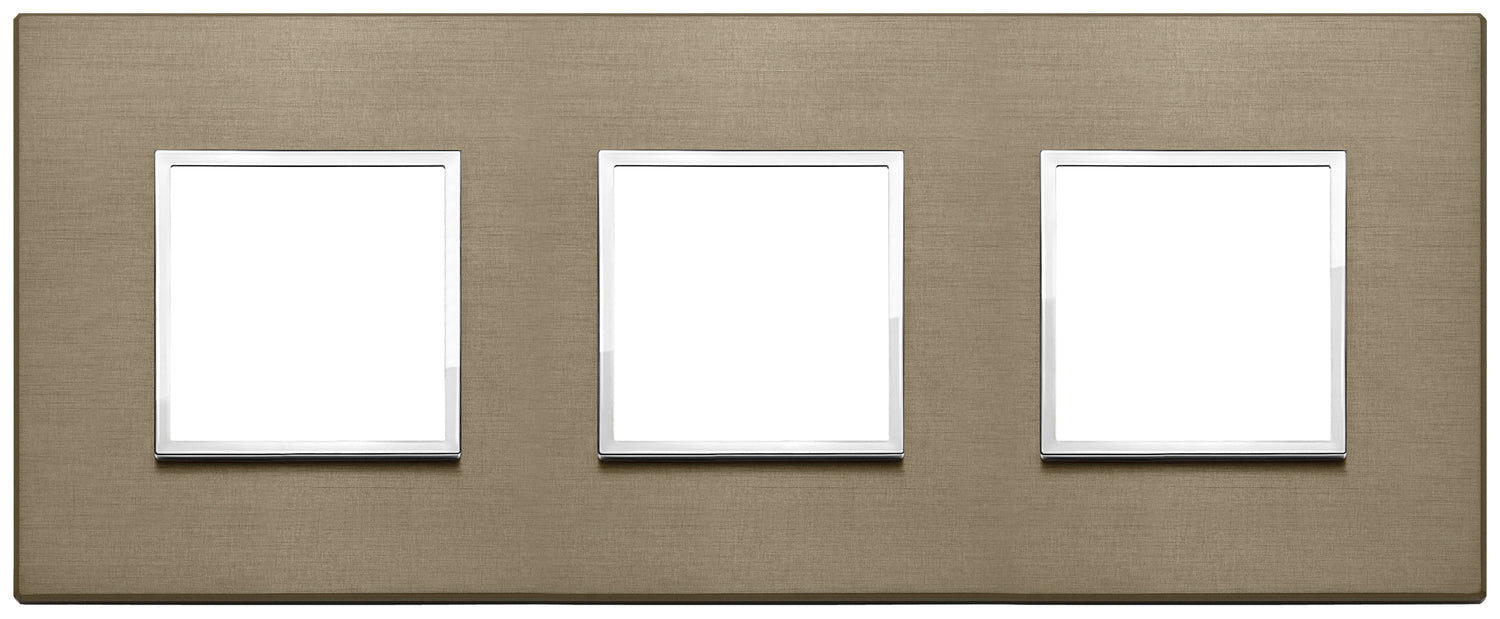

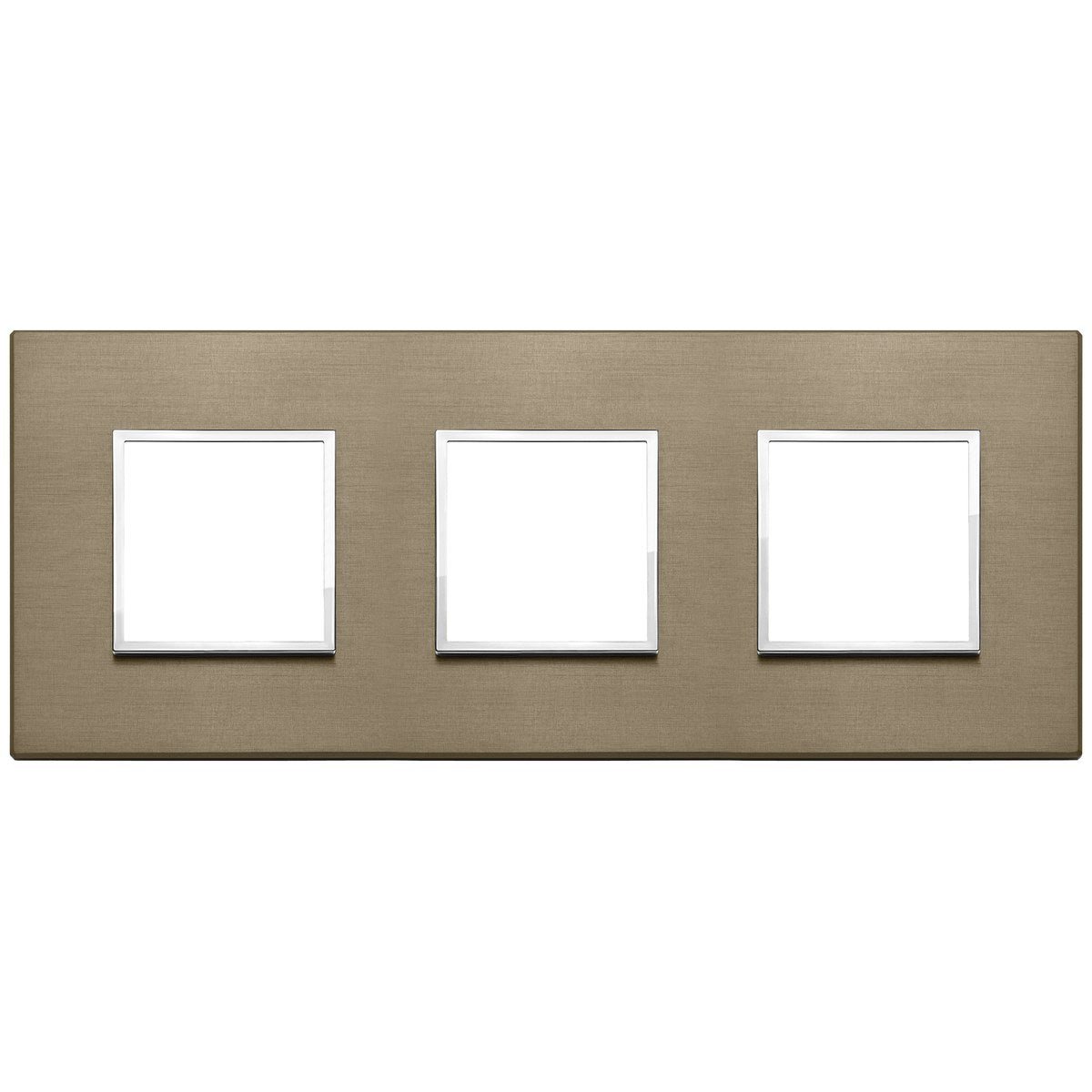

Vimar Eikon Evo Plate 6M (2+2+2) 71MM Aluminium Dark Bronze

6 ModuleBronze
SKU VM-21644.05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-21644.05 is Vimar EIKON 21644.05, plate 6M (2+2+2) 71mm dark bronze.

6-module cover plate (2+2+2, 71 mm distance between centres), Primari anodized aluminium, dark bronze

Specifications

VM-21644.05Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
6
Number of device inserts vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
8008
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95.4 mm
Height
237.4 mm
Depth
9.6 mm
Built-in width
95.4 mm
Built-in height
237.4 mm

Packaging

EAN
8007352435889
Packed size (cm)
24 × 9.7 × 1.7
Packed weight
156.7 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), CCC (China), IMQ (Italy)

Technical drawings

VM-21644.05 Drawings
Drawings

Downloads
