Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

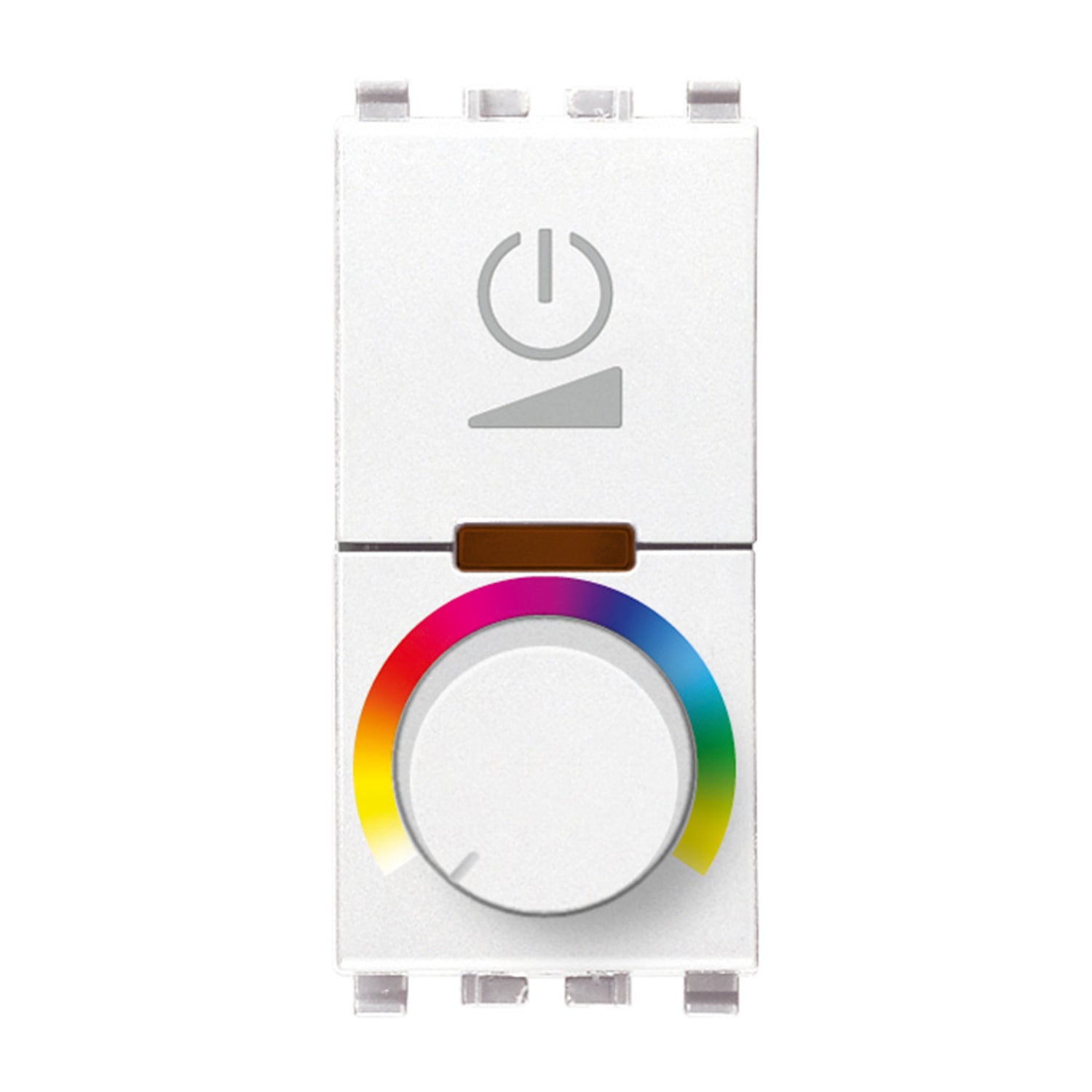

Vimar Eikon RGB Rotary Dimmer 230V White

230V White
SKU VM-20138.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-20138.B is Vimar EIKON 20138.B, RGB dimmer 230V white.

RGB dimmer 230 V~ 50 Hz for: RGB LED lamps, RGB LED electronic transfomers (01876), ON/OFF and brightness control with built-in push button or from peripheral NO push buttons, colour control via rotary potentiometer, visible in darkness, white. Not for Isoset enclosures

Specifications

VM-20138.BSpecifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Device width
22.3 mm
Device height
49 mm
Device depth
61 mm

Packaging

EAN
8007352469006
Packed size (cm)
5.2 Γ— 3.9 Γ— 6.2
Packed weight
59.5 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), TISI (Thailand), WEEE Directive

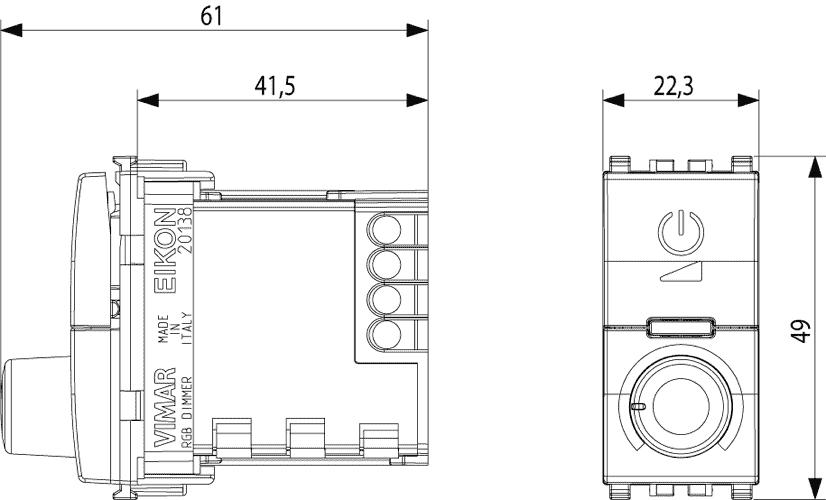

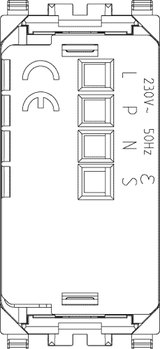

Technical drawings

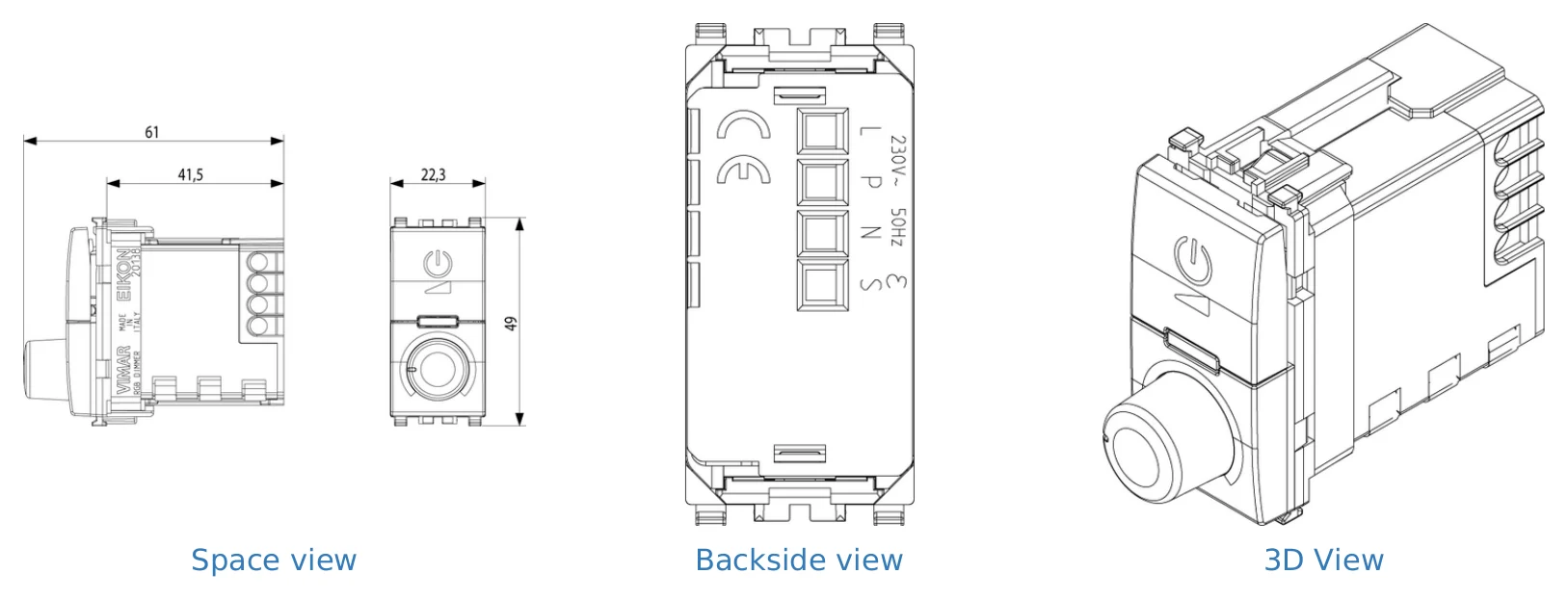

VM-20138.B Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-20138.B used for?

The Vimar VM-20138.B is a white RGB rotary dimmer module from the Eikon ExΓ© range. It is intended for product-page buyers looking for a matching switch or dimmer module within the Vimar Eikon ExΓ© design system.

What voltage is this dimmer rated for?

This model is listed as a 230V rotary dimmer. The product data identifies it as the Vimar Eikon RGB Rotary Dimmer 230V White, SKU VM-20138.B.

What finish does VM-20138.B have?

VM-20138.B has a white finish. It is part of the Eikon ExΓ© range, which is described as having pure, minimal shapes and a clean design style.

What temperature range is this product specified for?

The listed operating temperature range is from -20 Β°C to 50 Β°C. This helps buyers check whether the product fits the expected environmental conditions for their project.

How much does the Vimar VM-20138.B weigh?

The listed weight for this model is 0.0595 kg. This makes it a lightweight switch and dimmer module component within the Eikon ExΓ© series.

What warranty period is listed for this product?

The Vimar VM-20138.B has a listed warranty period of 3 years. Buyers should use this model-specific warranty value when comparing it with other switch or dimmer modules.
