Overview

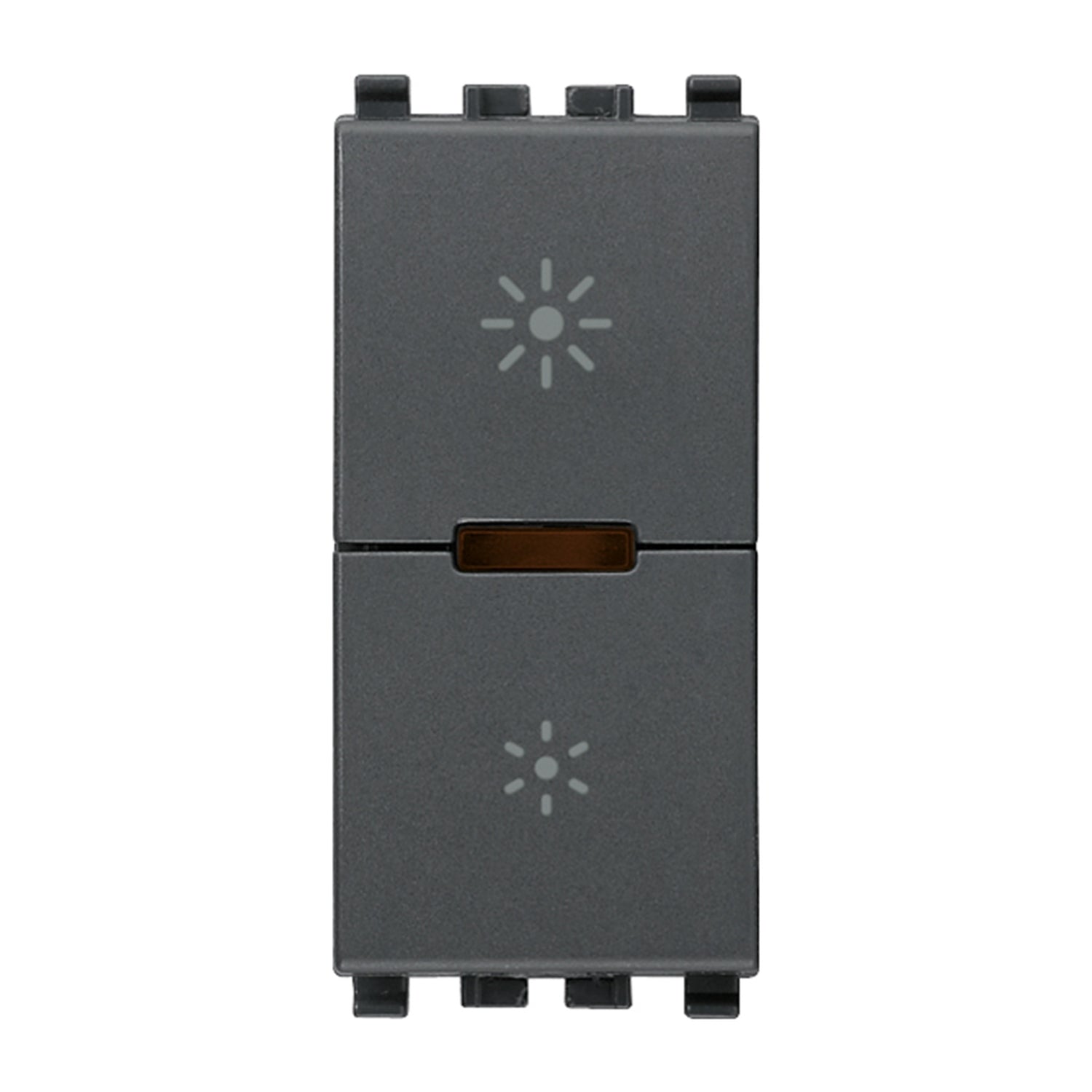

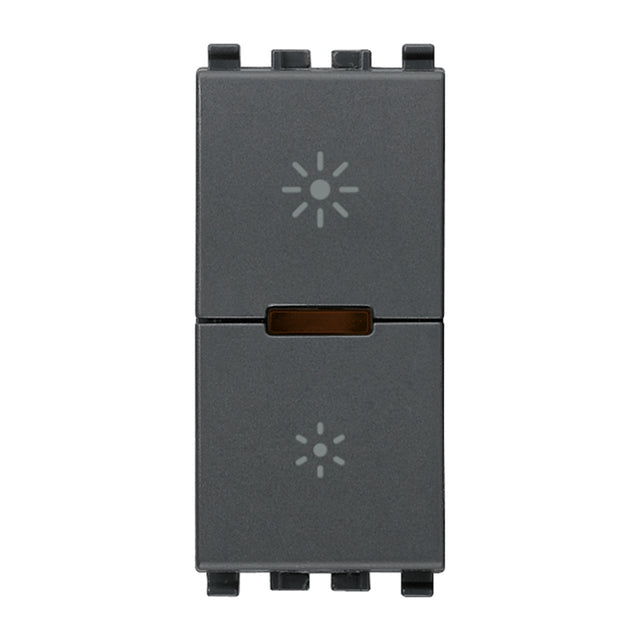

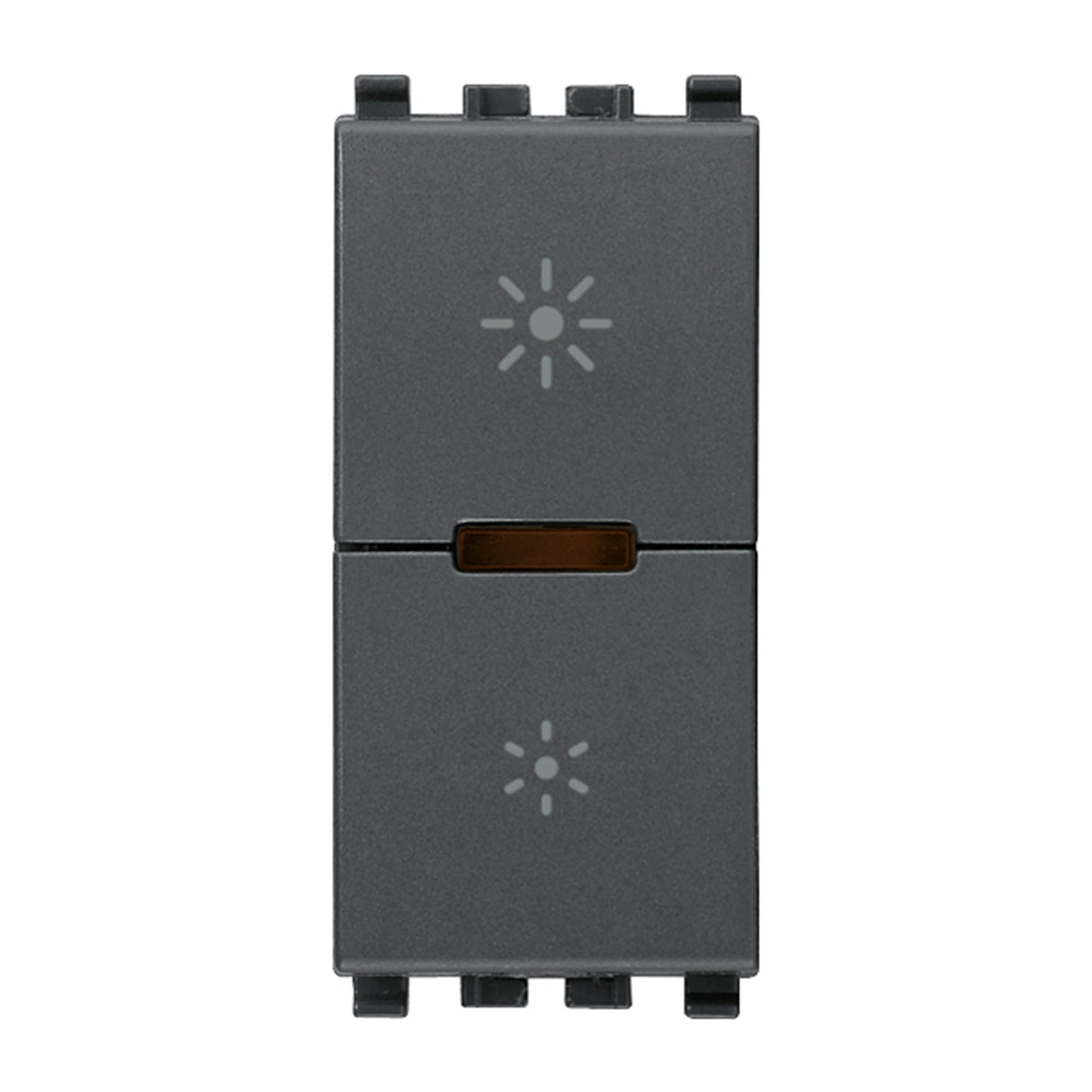

VM-20135.1 is Vimar EIKON 20135.1, universal MASTER dimmer 230V grey.
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 20137, minimum brightness regulation, visible in darkness, grey. Not for Isoset enclosures
Specifications
Technical data
- Product type
- Dimmer
- Operating method
- Push button
- Type of load
- Universal and LED Retrofit
- Applicable with button
- Yes
- Applicable with movement sensor
- No
- Applicable with presence indicator
- No
- Applicable with time switch/timer
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Click in mounting
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Transparent
- No
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 230 - 230.01 V
- Frequency
- 50 - 50.01 HZ
- Control voltage
- 230 - 230.01 V
- Connection type
- Screwed terminal
- Device width
- 22.2 mm
- Device height
- 49 mm
- Device depth
- 62.7 mm
Packaging
- EAN
- 8007352555853
- Packed size (cm)
- 5.1 × 4.3 × 5.3
- Packed weight
- 54.8 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), RoHS UAE, IMQ (Italy), TISI (Thailand), WEEE Directive
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues15
FAQ
What is the Vimar Eikon VM-20135.1 used for?
The Vimar VM-20135.1 is a universal master push dimmer for 230V applications in the Eikon Exé switch and dimmer range. It is intended for product pages where buyers need a grey dimmer module that matches the Eikon Exé design system.
Is this dimmer part of the Vimar Eikon Exé series?
Yes. This model belongs to the Vimar Eikon Exé switch and dimmer category, making it suitable for buyers standardizing on that series. Its grey finish is designed to coordinate with the Eikon Exé look.
What voltage is this Vimar Eikon dimmer rated for?
The product name identifies this model as a 230V universal master push dimmer. No additional electrical ratings are provided in the supplied product data.
What temperature range can the VM-20135.1 operate in?
The listed operating temperature range is -20 °C to 50 °C. This makes the specification relevant for buyers checking environmental suitability before selecting the dimmer.
What colour and weight is this dimmer module?
This Vimar Eikon dimmer module has a grey finish. Its listed weight is 0.0548 kg, which may be useful for cataloging, logistics, or project documentation.
What warranty period is listed for this product?
The listed warranty period for SKU VM-20135.1 is 3 years. Buyers should use this value when comparing warranty coverage across similar switch and dimmer modules.
