Overview

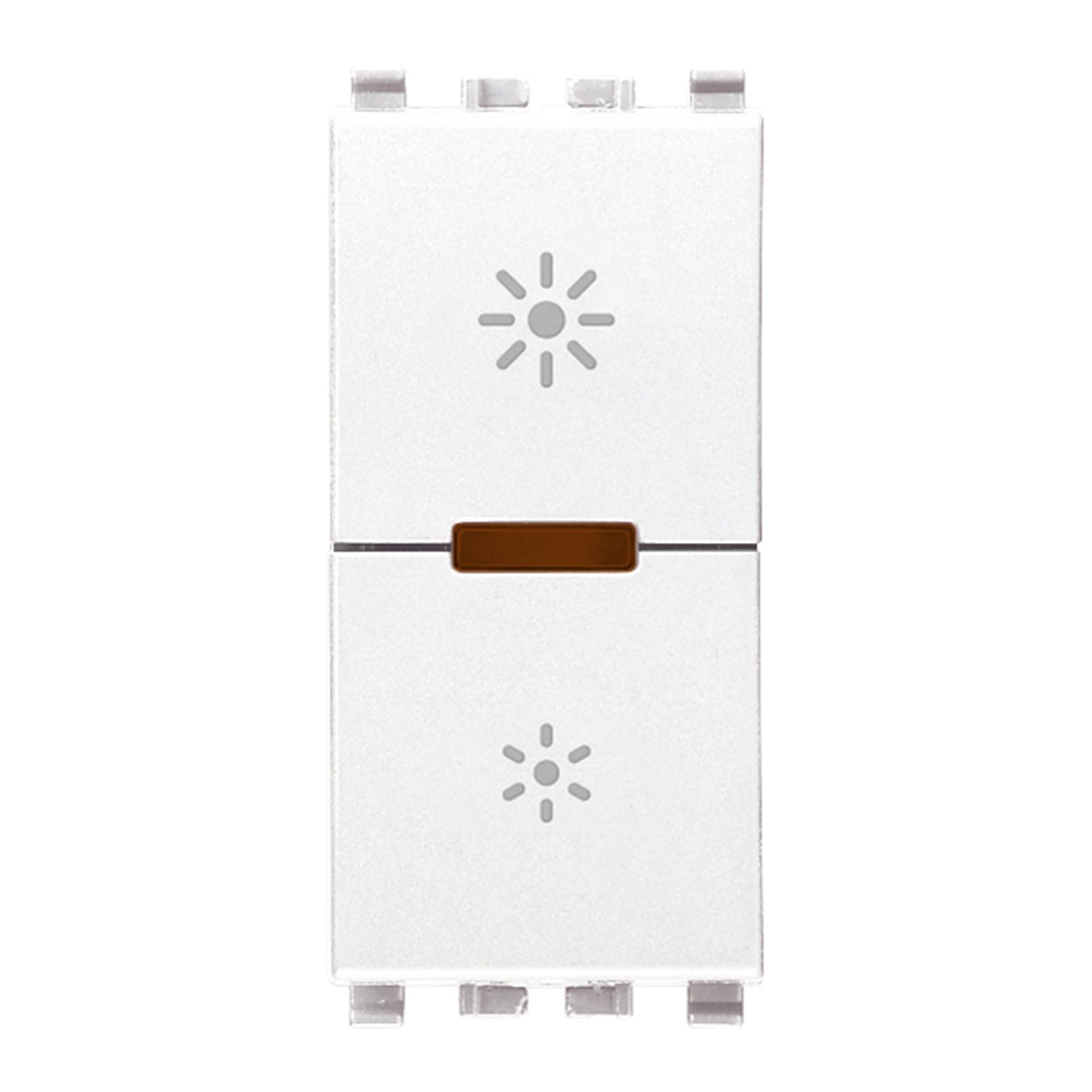

VM-20135.1.B is Vimar EIKON 20135.1.B, universal MASTER dimmer 230V white.
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 20137, minimum brightness regulation, visible in darkness, white. Not for Isoset enclosures
Specifications
Technical data
- Product type
- Dimmer
- Operating method
- Push button
- Type of load
- Universal and LED Retrofit
- Applicable with button
- Yes
- Applicable with movement sensor
- No
- Applicable with presence indicator
- No
- Applicable with time switch/timer
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Click in mounting
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9016
- Transparent
- No
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 230 - 230.01 V
- Frequency
- 50 - 50.01 HZ
- Control voltage
- 230 - 230.01 V
- Connection type
- Screwed terminal
- Device width
- 22.2 mm
- Device height
- 49 mm
- Device depth
- 50 mm
Packaging
- EAN
- 8007352555877
- Packed size (cm)
- 5.1 × 4.3 × 5.3
- Packed weight
- 55.2 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), RoHS UAE, IMQ (Italy), TISI (Thailand), WEEE Directive
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues15
FAQ
What is the Vimar VM-20135.1.B used for?
The Vimar VM-20135.1.B is a universal master push dimmer for 230V applications. It is intended for product pages or projects requiring a white Eikon Exe switch/dimmer module with a clean, minimal design.
Which Vimar series is this dimmer associated with?
This model is listed under the Vimar Eikon Exe switch and dimmer categories. It is also categorized within switch-by-series and Eikon Exe switch/dimmer product groupings.
What finish color does SKU VM-20135.1.B have?
SKU VM-20135.1.B has a white finish. The product description emphasizes the Eikon Exe style, with pure minimal shapes and a design intended to blend into a range of environments.
What temperature range is specified for this dimmer?
The specified operating temperature range for this model is -20 °C to 50 °C. This makes the listed environmental range important to check when matching the dimmer to a project location.
How much does the Vimar Eikon Universal Master Push Dimmer weigh?
The listed product weight is 0.0552 kg. This is a compact switch/dimmer module specification useful for cataloging, logistics, and product comparison.
What warranty period is listed for this product?
The listed warranty period for the Vimar VM-20135.1.B is 3 years. This warranty detail applies specifically to the product data provided for this SKU.
