Vimar

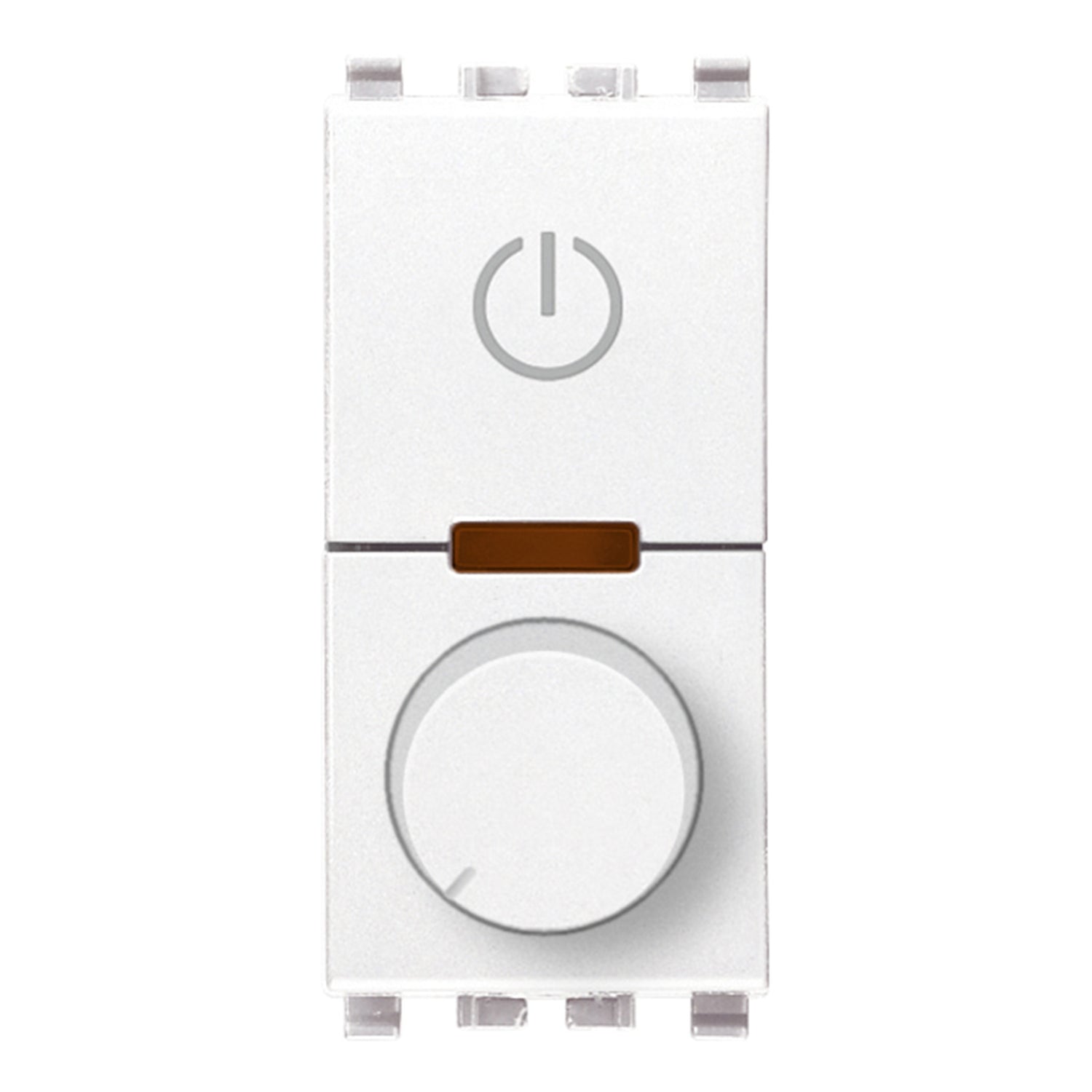

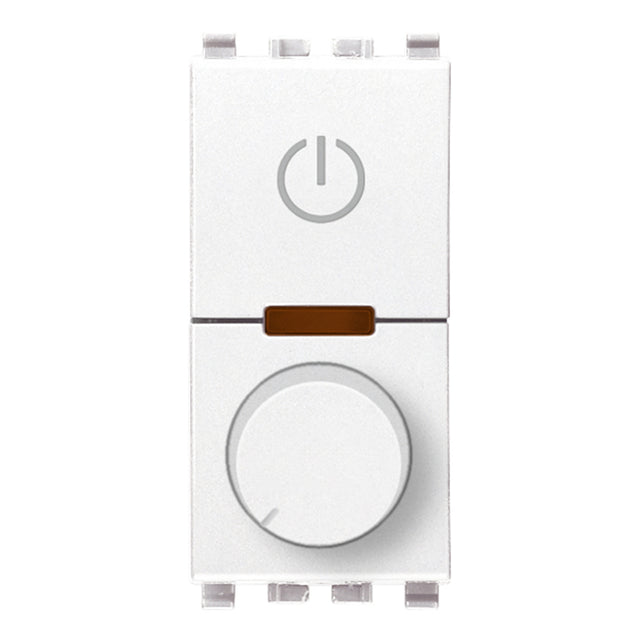

Vimar Eikon Universal Master Rotary Dimmer 230V White

230V White
SKU VM-20136.1.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-20136.1.B is Vimar EIKON 20136.1.B, univ.MASTER rotary-dimmer 230V white.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VAelectronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 20137, minimum brightness regulation, visible in darkness, white. Not for Isoset enclosures

Specifications

VM-20136.1.BSpecifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.3 mm
Device height
49 mm
Device depth
61.3 mm

Packaging

EAN
8007352555938
Packed size (cm)
5.2 Γ— 3.9 Γ— 6.2
Packed weight
56.8 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, TISI (Thailand), WEEE Directive

Downloads

FAQ

What is the Vimar VM-20136.1.B used for?

The Vimar VM-20136.1.B is a universal master rotary dimmer for 230V lighting control applications. It is part of the Eikon ExΓ© switch and dimmer range, making it suitable for projects that need a coordinated white finish within that series.

What finish does this Vimar Eikon dimmer have?

This model has a white finish. The minimal Eikon ExΓ© styling is designed to match compatible cover plates and other devices in the same Vimar range.

What temperature range is the VM-20136.1.B rated for?

The listed operating temperature range is -20 Β°C to 50 Β°C. This gives buyers a useful reference when selecting the dimmer for environments where temperature conditions must be checked against project requirements.

How much does the Vimar VM-20136.1.B weigh?

The listed weight for this model is 0.0568 kg. Its low weight can be useful for procurement, inventory planning, and estimating shipment quantities.

Is this dimmer part of the Vimar Eikon ExΓ© series?

Yes, the VM-20136.1.B belongs to the Vimar Eikon ExΓ© switch and dimmer category. It is intended for buyers who want the Eikon ExΓ© look, including a clean white finish and the series' minimal design language.

What warranty period is listed for this product?

The listed warranty period for the Vimar VM-20136.1.B is 3 years. This can help B2B buyers compare it with other switch and dimmer modules during specification and purchasing.
