Introduction
Navigating technical specifications can be daunting, especially when "Class II" and "Class 2" represent completely different concepts. Whether you are designing a medical device or a home automation system, understanding these safety classifications is vital for regulatory compliance and user safety.

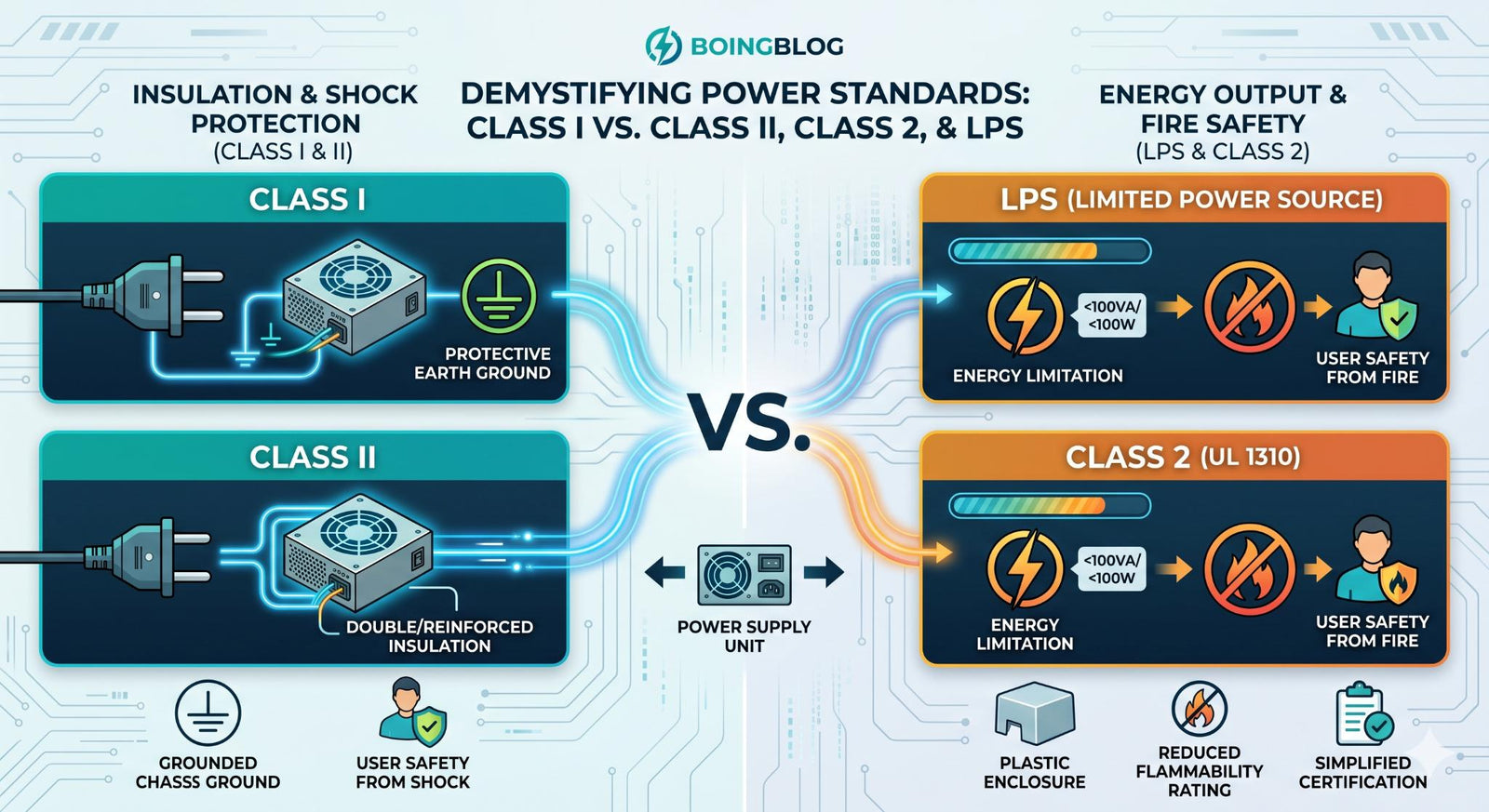

The Fundamental Difference: Class I vs. Class II
The "Roman Numeral" classes refer to the insulation method used to protect users from electric shock.
- Class I (Basic Insulation + Protective Earth):
In a Class I system, safety relies on a combination of basic insulation and a physical connection to the building’s Protective Earth (PE). If the primary insulation fails and a chassis becomes "live," the current is safely routed to the ground.
Identifier: These power supplies always feature a 3-pin AC inlet or a dedicated terminal for an earth ground connection.
- Class II (Double/Reinforced Insulation):
Class II equipment does not rely on a ground connection for safety. Instead, it uses Double Insulation or Reinforced Insulation to protect the user. Because they are "self-protected," they are safer in environments where a reliable ground connection might be missing.
Identifier: These units use a 2-pin AC inlet and do not have an earth ground pin. You will often see a "square-within-a-square" symbol on the label.
Energy Limitation: LPS and Class 2
While the Roman numerals above describe insulation, LPS and Class 2 describe the energy output. These standards are designed to reduce the risk of fire.
1. LPS (Limited Power Source)
Regulated by IEC 62368-1, an LPS-certified power supply ensures that the output current and power stay below specific safety thresholds (typically under 100VA).
- The Benefit: Because the energy is limited, the risk of fire is significantly lower. This allows manufacturers to use components with lower flammability ratings (like HB-rated plastics), which helps reduce overall system costs.
2. Class 2 (UL 1310)
Often confused with Class II, Class 2 is a North American standard governed by UL 1310. Like LPS, it limits the output power (maximum 100W) to ensure that even in a fault condition, the circuit will not cause a fire or a significant shock.
- The Benefit: Similar to LPS, using a Class 2 certified unit can simplify the safety certification process for the end product and allow for less stringent wiring and enclosure requirements.
Application Scenarios
- Class I: Best for heavy industrial machinery, large metal-chassis equipment, and high-power applications where a grounded electrical system is standard.
- Class II: Ideal for consumer electronics, medical devices used at home, and lighting where a 2-wire connection is preferred for portability and ease of use.
- LPS / Class 2: Essential for telecommunications, ITE (Information Technology Equipment), and IoT sensors where reducing fire risk and lowering enclosure costs are priorities.
Conclusion
In short: Class I and II are about preventing electric shock through grounding or insulation. LPS and Class 2 are about preventing fire by limiting the output power. When selecting a PSU, always verify which "Class" your specific region and application require to ensure both safety and cost-efficiency.
