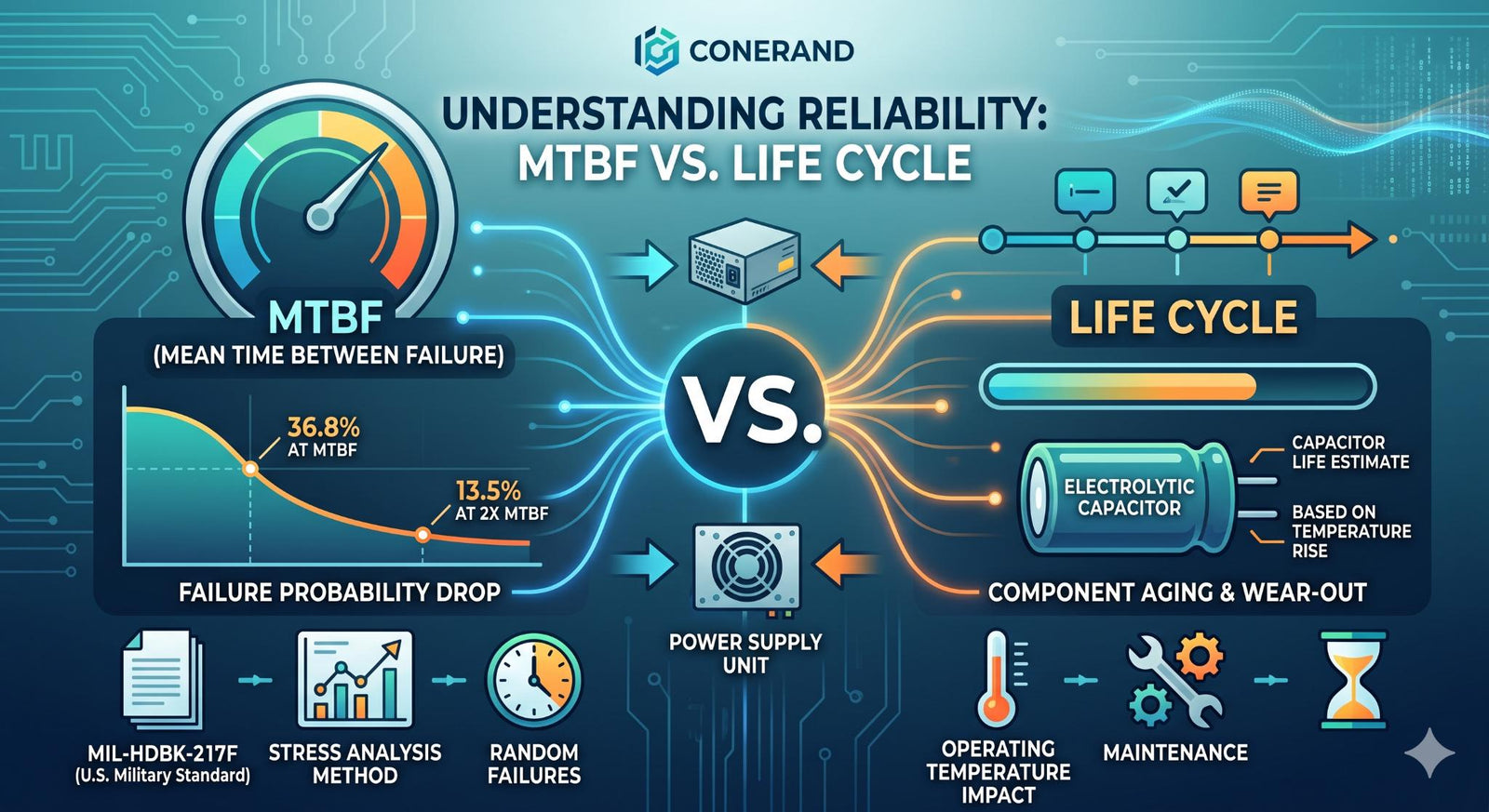

Introduction
When evaluating the reliability of a power supply, two terms frequently appear: MTBF (Mean Time Between Failure) and Life Cycle. While both are indicators of quality, they measure completely different aspects of a product's timeline. Understanding the difference is essential for accurate system maintenance and risk assessment.
What is MTBF?
MTBF is a statistical prediction of reliability, not a guarantee of how long an individual unit will last. Mathematically, it represents the point in time where the probability of a unit continuing to operate normally drops to 36.8% (e^{-1} = 0.368). If a unit reaches double its MTBF time, the probability of it still functioning drops to just 13.5% (e^{-2} = 0.135).
There are two primary standards used to calculate this:
- MIL-HDBK-217F (Notice 2): A US Military standard.
- TELCORDIA SR/TR-332 (Bellcore): A standard used primarily in commercial telecommunications.
MEAN WELL utilizes the MIL-HDBK-217F (Stress Analysis) method. This approach calculates reliability based on the actual stress levels of internal components (excluding fans) to provide a high-confidence forecast.
The Difference: MTBF vs. Life Cycle
The most important distinction is that MTBF focuses on random failures during the useful life of a product, while Life Cycle focuses on the wear-out of components.
- Life Cycle: This is determined by the "aging" of critical components, specifically electrolytic capacitors. Their lifespan is estimated based on temperature rise under maximum operating conditions.
- The Contrast: For example, the RSP-750-12 has an MTBF of 109,100 hours (at 25°C), but its Capacitor Life Cycle is 213,000 hours (at Ta=50°C). One is a statistical failure rate; the other is a wear-out estimate.
What is DMTBF?
DMTBF (Demonstration Mean Time Between Failure) is the empirical method used to verify or "demonstrate" the calculated MTBF through accelerated life testing. It uses the Chi-square distribution and an Acceleration Factor (AF) to simulate long-term use in a shorter period.
The formula for the total test time required to prove an MTBF is:
Where:
- MTBF：Mean Time Between Failure
- X2：Can be found in chi-square distribution
- N：Number of sampling
- AF：Acceleration factor, which can be derived from acceleration factor equation.
- Ae=0.6
- K(Boltzmann Constant)=(eV/k)
- T1：Rated temperature of specification. Note: Kelvin will be the unit used for calculation
- T2：The temperature that is used in the meaning of acceleration, and the chosen temperature could not result in physical change in materials. Note: Kelvin will be the unit used for calculation.
Application Scenario
In a data center or 24/7 manufacturing line, engineers use MTBF to calculate how many spare units they should keep in stock for a large installation (statistical risk). However, they use the Life Cycle data to schedule "preventative maintenance" (replacing units before capacitors dry out) to avoid costly unscheduled downtime.
Conclusion
MTBF provides a snapshot of statistical reliability, while Life Cycle tells you when the hardware will physically wear out. For a truly robust system, you must consider both: use MTBF to understand failure probability and Life Cycle to plan your long-term replacement strategy.
If you have any technical issues, feel free to contact our team at contact@wellforces.co.nz. We provide professional support and a wide range of solutions.
