Introduction
MEAN WELL’s long-standing TDR-240/480/960 series has earned global recognition over the past decade, with millions of units sold across industrial automation, power systems, renewable energy, networking equipment, semiconductor fabrication, and more.

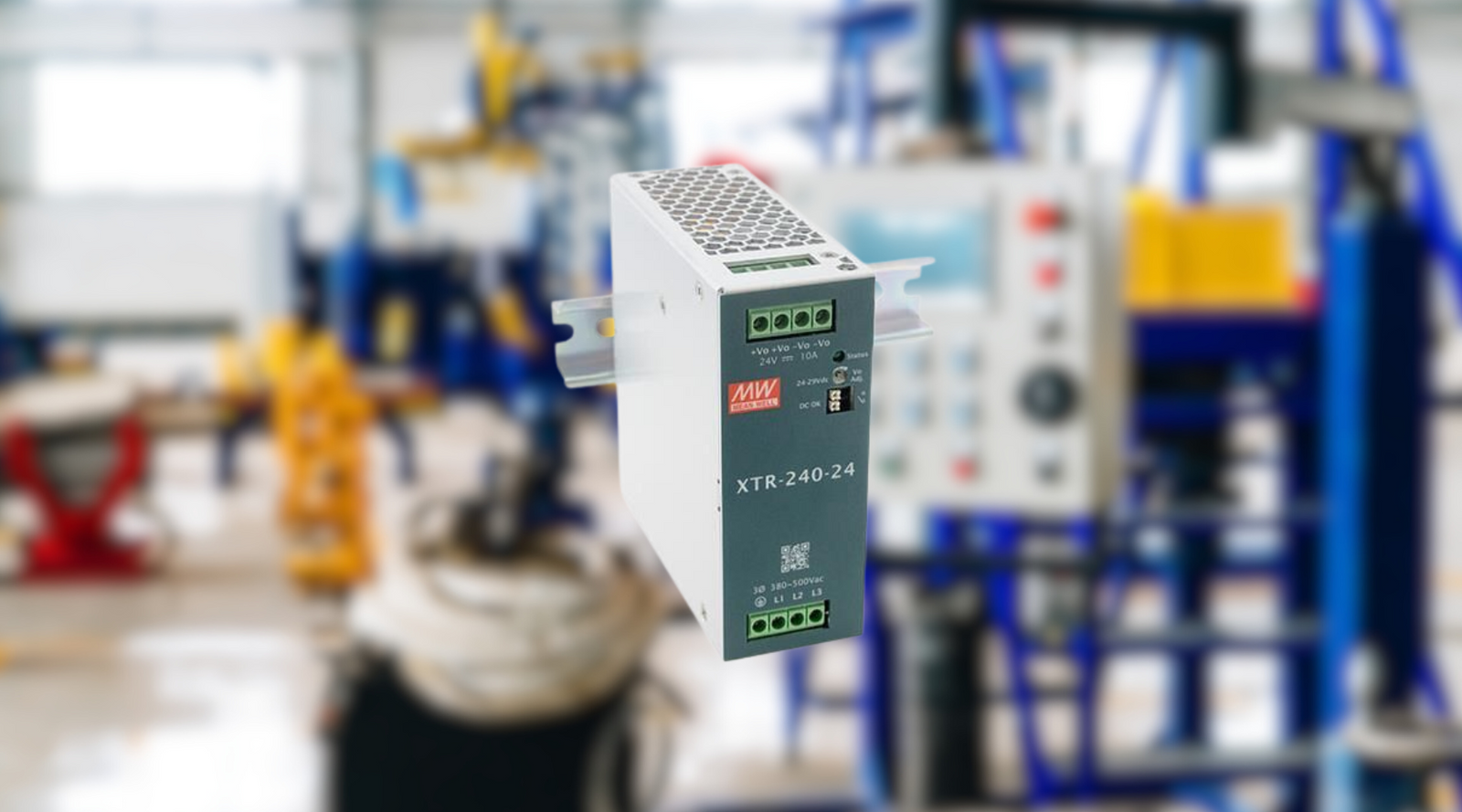

To meet the growing demands for higher performance, greater efficiency, and lower system costs, MEAN WELL now unveils the XTR Series — a brand-new generation of 3-phase input DIN rail power supplies available in 240W, 480W, and 960W models.
The XTR Series is engineered to outperform the TDR Series across the board — offering a more compact size, higher efficiency, broader voltage options, enhanced durability, and global safety certifications — all at a more competitive price. It’s the ideal upgrade or replacement solution for demanding industrial environments.
Key Enhancements at a Glance
- Smaller size: 16% to 28% more compact, saving valuable panel space
- Wider output range: Now available in 12V / 24V / 36V / 48V versions across all models
- Improved efficiency: Up to 96%, enabling lower energy consumption
- Extreme operating conditions: -40°C to +85°C (up to +60°C at full load)
- Extended warranty: 5 years (vs. 3 years on TDR series)
- Global certifications: Suitable for hazardous, marine, and semiconductor applications
- More affordable: Designed to improve cost-performance ratio in industrial systems
Product Features
- 3-phase input: 320~600Vac, ideal for industrial-grade systems
- Ultra-slim design: 48~96mm wide (depending on model)
- 150%~200% peak power capability
- High efficiency: 92%~ 96%, low no-load power consumption <2.5W~3.1W (by model)
- Built-in parallel function for flexible power expansion (XTR-480 / 960)
- Equipped with DC OK signal and OR-ing FET (XTR-480 / 960) for enhanced system redundancy and reliability in parallel applications
- Comprehensive protections: Short circuit / Overload / Overvoltage / Overtemperature
- Output voltage adjustment:
- 12V model: 12~15V
- 24V model: 24~29V
- 36V model: 36~42V
- 48V model: 48~55V
- Conformal coating on PCB for moisture and dust resistance
- Compliant with OVC III standards
- High altitude operation up to 5000 meters
- Certified globally: CB, TUV, UL, RCM, BSMI, CCC, EAC, BIS, KC, CE, UKCA
- Standards compliance: IEC 62368-1, 61010-1, 61558-1, and more
- Multiple installation and termination options available
Note: Initial batches may not show CCC marks due to certification schedule. Please contact our sales rep if CCC compliance is required.
Application
Product Information
If you are interested, please feel free to contact us at contact@wellforces.co.nz.
