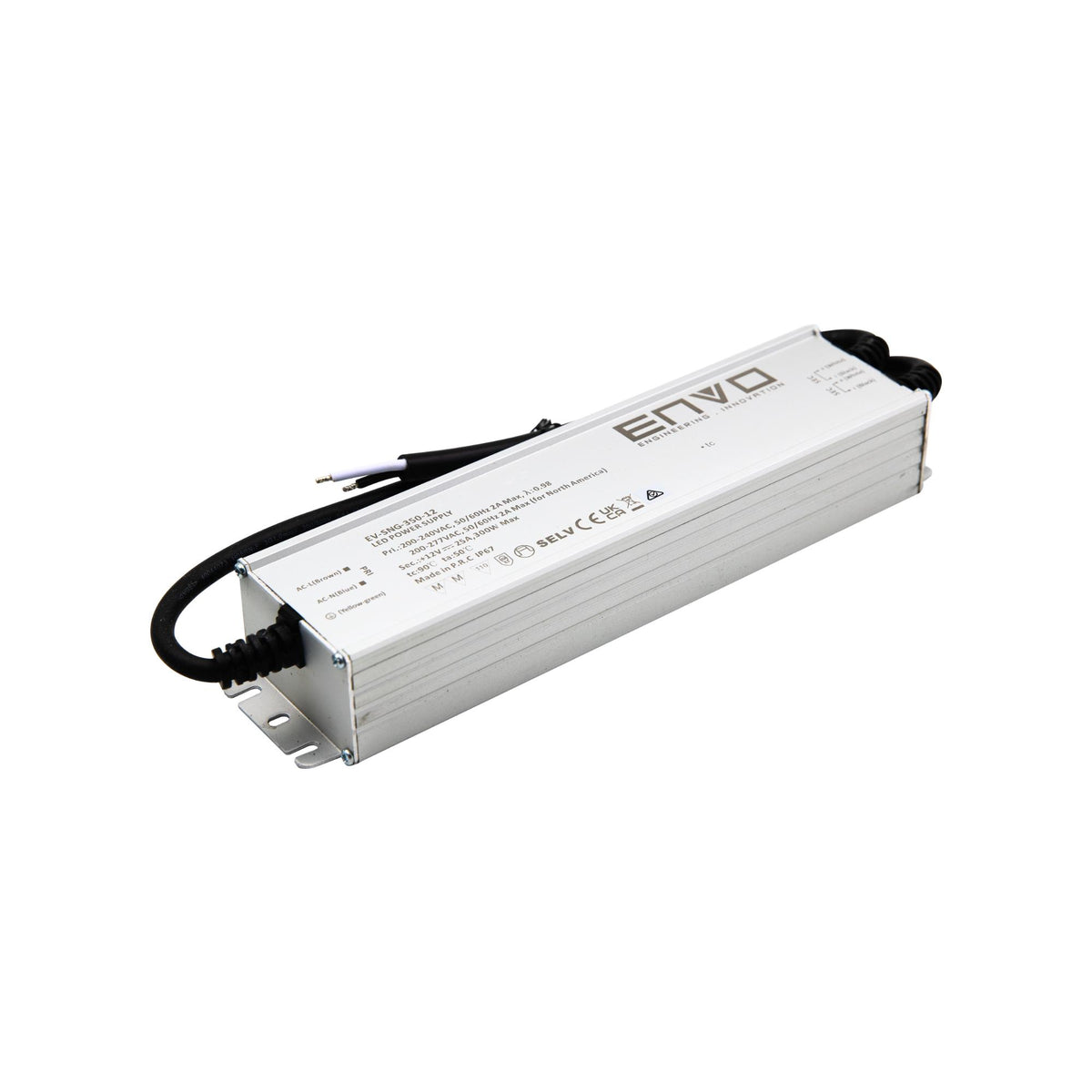

Envo EV-SNG-350-12 LED Driver 300W 12V Waterproof IP67 25A
Log in to see priceOverview
EV-SNG-350-12 is the model of this series: typical efficiency 93% @ Full Load.
The EV-SNG-350 series is a constant-voltage, outdoor waterproof power supply with 180–305 VAC input and up to 95% efficiency. It features a fanless design, wide operating temperature (-40 ~ +70 °C), high power factor, low THD, and low standby power. With built-in lightning and comprehensive protection, it offers high reliability and long service life — ideal for LED lighting such as street, flood, stage, and signage applications, meeting global safety standards.
Features
- AC input(180-305 VAC)
- Built-in active PFC function
- IP67, Metal Case
- Suitable for indoor and outdoor environment
- Protections: Short circuit / Over voltage/Over temperature
- Adopt metal shell and internal glue potting, can be used in dangerous situations
- Built in lightning protection device can meet the requirements of DM 4KV / CM 6kV
- Compliance to worldwide safety regulations for lighting
- 5 years warranty
Specifications
Output
- Output Power (W)
- 300
- Output Voltage Range (V)
- 12
- Output Voltage Tolerance
- ±5%
- Ripple Voltage (mV)
- 240
- Line Regulation
- 2%
- Load Regulation
- 5%
- Working Current Range (A)
- 0–25
- SVM
- 0.1
- Pst
- 0.1
- Turn On Time (S)
- <0.5
Input
- Rated DC Supply Voltage (Vdc)
- 255–431
- Rated Supply Voltage (Vac)
- 200–277
- Voltage Range (Vac)
- 180–305
- Line Frequency (Hz)
- 50/60
- Input Current (A)
- 1.8A @ 230V
- Efficiency (Type)
- 93% @ Full Load
- Average Efficiency (Type) 3
- 93.4%
- No Load Power Consumption (W)
- ≤0.5W
- Power Factor
- 0.98 @ Full Load
- Displacement Factor
- 0.98
- THD (Typ.)
- <10% @ Full Load 230V
- Inrush Current (Pk)
- 85A @ Twidth = 500μs
- Leakage Current (mA)
- 0.75 @ 240Vac 60Hz
Protection
- Short Circuit Protection
- Hiccup Mode, Restart Automatically After Fault Correction
- Over Load Protection
- Exceed Maximum Rated Load Times 1.1–1.6
- Over Voltage Protection
- Hiccup Mode, Restart Automatically After Fault Correction
- Over Temperature Protection
- Latch Off
Environment
- Storage Temperature (°C)
- –40…80
- Ambient Humidity Range
- 5%…85% RH, Not Condensing
Others
- Weight (g)
- 1400
- Dimensions (L×W×H) (mm)
- 261 × 62.5 × 41.4
Certifications & ratings
- Certification marks
- TÜV, CE, UKCA, Class II
Technical drawings
Downloads
Datasheet1
FAQ
What applications is the Envo EV-SNG-350-12 best suited for?
This model is designed for 12V constant-voltage lighting loads in demanding commercial and outdoor environments. It is a good fit for LED strips, signage, floodlights, and architectural lighting projects that need a regulated 12V DC supply with up to 25A output.
Is the EV-SNG-350-12 suitable for outdoor or wet-area use?
Yes. The EV-SNG-350-12 uses an IP67-rated, fully potted metal housing that is built for exposure to dust, moisture, and harsh operating conditions. Its rated operating temperature range of -40°C to +70°C also supports use in challenging indoor or outdoor environments.
What are the key electrical specifications of the EV-SNG-350-12?
This LED driver provides a constant 12V DC output with a rated current of 25A and a total power rating of 300W. It accepts 180-305VAC input, includes active power factor correction, and reaches efficiency up to 93% with power factor up to 0.98.
Is the Envo EV-SNG-350-12 dimmable?
No. This model is specified as non-dimmable, so it is intended for applications that require a fixed 12V constant-voltage output rather than integrated dimming control. That makes it more suitable for straightforward power delivery where dimming is handled elsewhere or not required.
What protection features does the EV-SNG-350-12 include for commercial installations?
The EV-SNG-350-12 includes short-circuit, overvoltage, overload, and overtemperature protection to help support reliable operation. It also includes lightning protection rated at DM 4kV and CM 6kV, which is useful for more exposed lighting environments.
How does the EV-SNG-350-12 differ from a constant-current LED driver?
The EV-SNG-350-12 is a constant-voltage driver, so it is intended for 12V DC lighting systems that are designed around a fixed output voltage. That differs from a constant-current driver, which is selected around a specific output current rather than a fixed 12V output.
What warranty and build characteristics make this model suitable for long-term projects?
This model is backed by a 5-year warranty and uses a fanless convection-cooled design, which supports silent operation and reduces dependence on moving parts. Its fully potted aluminum housing is also built for durability in demanding lighting applications.
