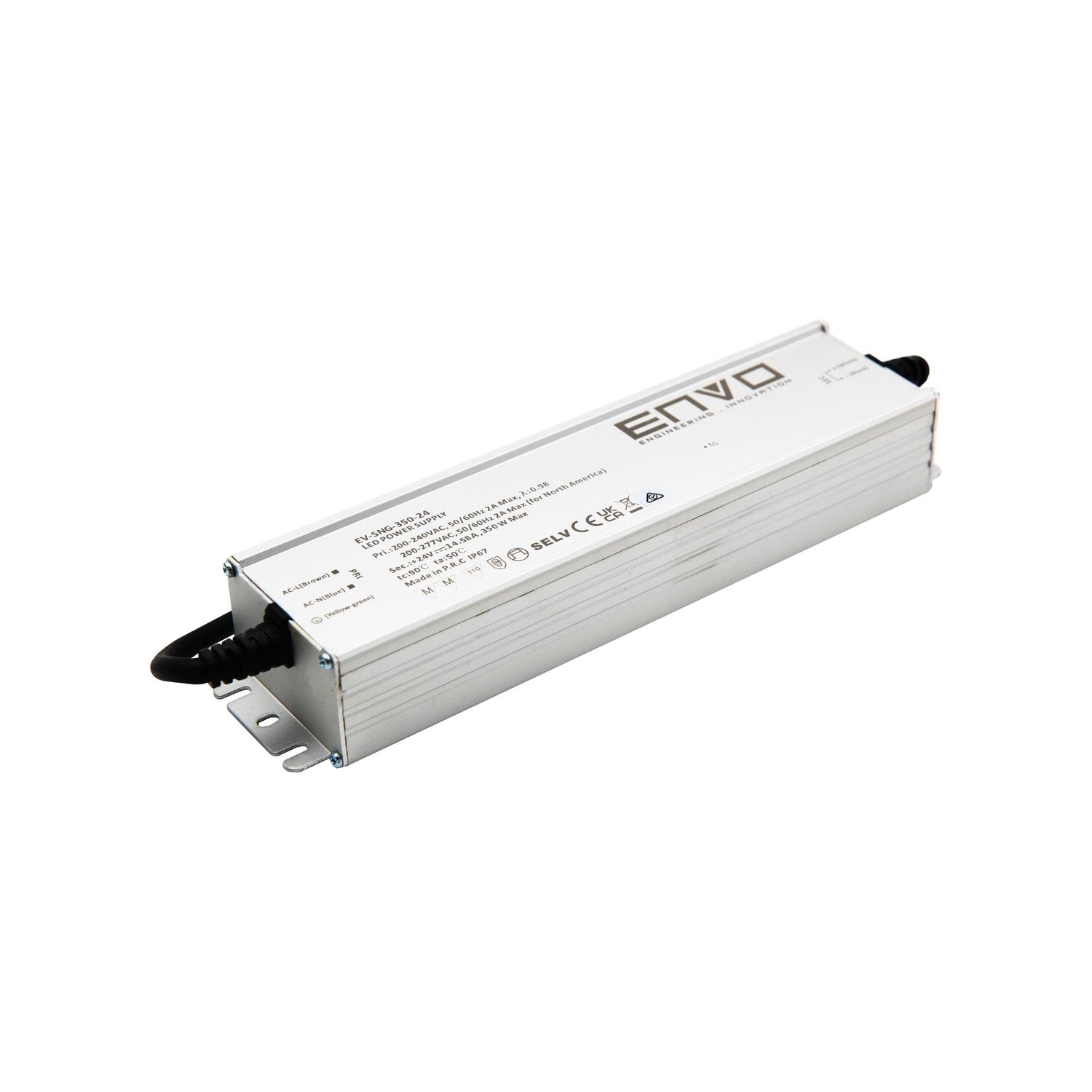

Envo EV-SNG-350-24 LED Driver 350W 24V Waterproof IP67 14.58A

Q: What type of LED applications is the Envo EV-SNG-350-24 designed for?

The EV-SNG-350-24 is a 24V constant voltage LED driver intended for higher-power indoor and outdoor lighting systems. Based on its 350W output, IP67 enclosure, and durability features, it is well suited to applications such as street lighting, floodlights, architectural illumination, and commercial LED projects.

Q: Is the Envo EV-SNG-350-24 suitable for outdoor or wet environments?

Yes. This model has an IP67-rated metal housing with full internal potting, which is designed to resist dust and water ingress. That makes it a strong choice for demanding environments where weather resistance and long-term durability matter.

Q: What are the main electrical specifications of the EV-SNG-350-24?

This model provides 24V DC constant voltage output with a maximum rated current of 14.58A and total output power of 350W. It supports a wide 180-305VAC input range and is specified with efficiency up to 94.6%, power factor of at least 0.98, and THD below 10%.

Q: Is the Envo EV-SNG-350-24 dimmable?

No. The EV-SNG-350-24 is specified as a non-dimmable LED driver. It is intended for applications that require stable 24V constant voltage output rather than integrated dimming control.

Q: How does this model compare with lower-power 24V LED drivers?

The EV-SNG-350-24 is designed for larger 24V lighting loads, offering 350W total power and up to 14.58A output current. Compared with lower-power 24V drivers, it is better suited to more demanding commercial or architectural systems where higher wattage capacity and robust environmental protection are required.

Q: What protection and reliability features does the EV-SNG-350-24 include?

This model includes active PFC, surge protection rated at DM 4kV and CM 6kV, and protections for short circuit, overload, overvoltage, and overtemperature. It also uses fanless natural air convection cooling and is backed by a 5-year warranty for long-service applications.

Q: What temperature range can the Envo EV-SNG-350-24 operate in?

The EV-SNG-350-24 is rated for operation from -40°C to +70°C. That wide range makes it suitable for harsh climates and demanding industrial or outdoor lighting environments.

220-240V input

SKU:

EV-SNG-350-24

Please for Pricing

Notify me when it's back in stock

Description

The ENVO EV-SNG-350-24 is a robust 350W constant voltage LED power supply built for high-performance indoor and outdoor lighting systems. Engineered with a metal IP67-rated enclosure and internal potting for durability, it delivers 24V DC output with excellent efficiency and power stability. Supporting an input range of 180–305VAC, the EV-SNG-350-24 features active PFC, ultra-low THD, and lightning protection to ensure safe and reliable operation even in challenging environments. Designed for long lifespan and superior reliability, it is well-suited for street lighting, floodlights, architectural illumination, and commercial LED systems.

Key Features

Constant voltage LED driver, 24VDC output, 14.6A max, 350W total power
Wide AC input range: 180–305VAC (200–277VAC nominal)
High efficiency up to 94.6%, PF ≥0.98, THD <10%
IP67 waterproof and dustproof metal housing with full potting
Built-in active PFC and surge protection (DM 4kV / CM 6kV)
Comprehensive protections: short circuit, overload, overvoltage, overtemperature
Silent, fanless operation with natural air convection
Operating temperature: -40°C to +70°C
Dimensions: 261×62.5×41.4 mm, weight: 1.4 kg
Meets global safety standards including EN61347, EN61547, EN55015, EN61000-3-2/3
5-year warranty

Specifications

Brand

Envo
Series

ENVO SNG Series
Power Rating

350 Watt
Output Voltage

24 Volt
Rated Current

14.58 Ampere
Input Voltage

180V~305V
Standards Met

CE,RCM,SELV
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

26.1 cm
Width

6.25 cm
Height

4.14 cm
Weight

1.4 kg
