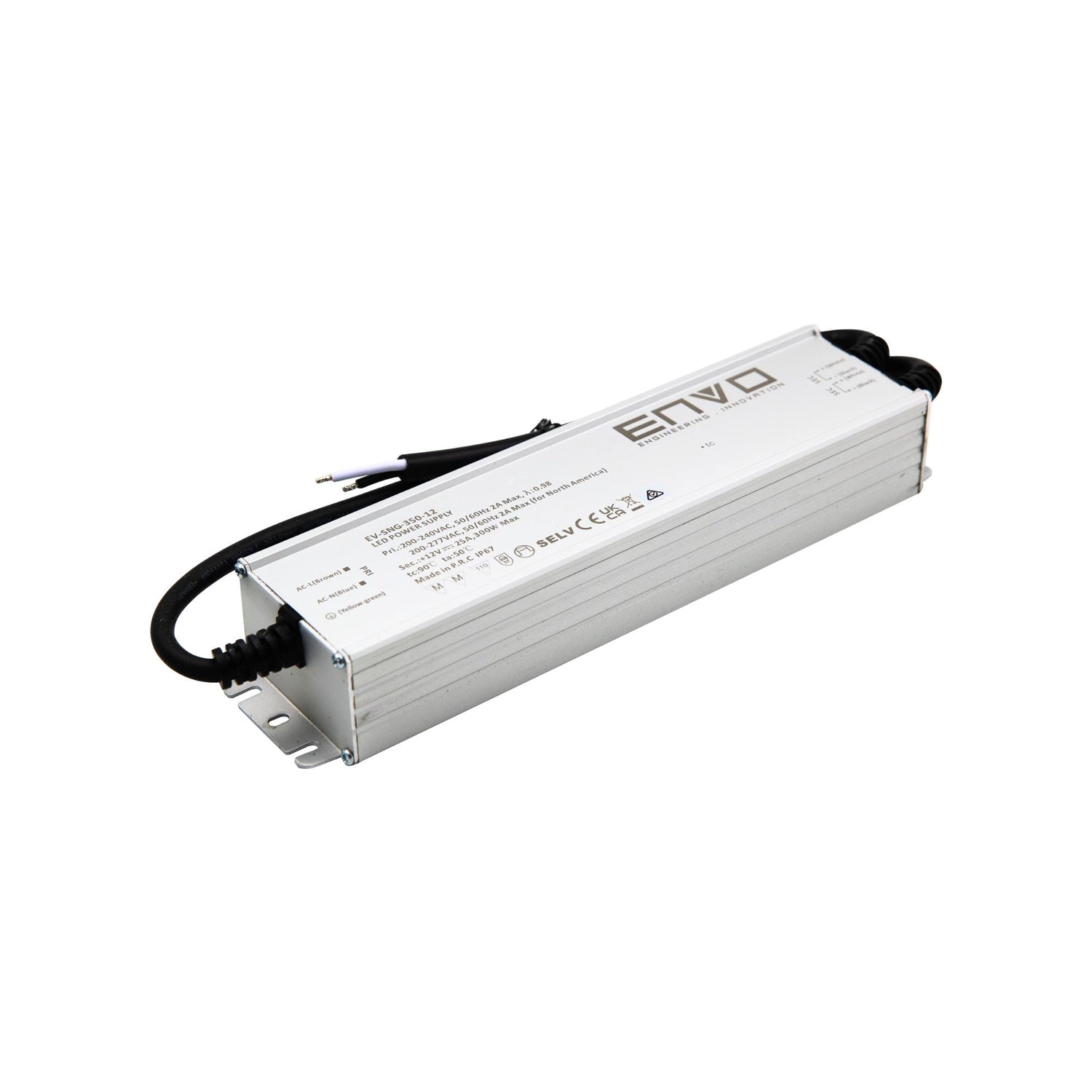

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo EV-SNG-350-12 LED Driver 300W 12V Waterproof IP67 25A

Q: What applications is the Envo EV-SNG-350-12 best suited for?

This model is designed for 12V constant-voltage lighting loads in demanding commercial and outdoor environments. It is a good fit for LED strips, signage, floodlights, and architectural lighting projects that need a regulated 12V DC supply with up to 25A output.

Q: Is the EV-SNG-350-12 suitable for outdoor or wet-area use?

Yes. The EV-SNG-350-12 uses an IP67-rated, fully potted metal housing that is built for exposure to dust, moisture, and harsh operating conditions. Its rated operating temperature range of -40°C to +70°C also supports use in challenging indoor or outdoor environments.

Q: What are the key electrical specifications of the EV-SNG-350-12?

This LED driver provides a constant 12V DC output with a rated current of 25A and a total power rating of 300W. It accepts 180-305VAC input, includes active power factor correction, and reaches efficiency up to 93% with power factor up to 0.98.

Q: Is the Envo EV-SNG-350-12 dimmable?

No. This model is specified as non-dimmable, so it is intended for applications that require a fixed 12V constant-voltage output rather than integrated dimming control. That makes it more suitable for straightforward power delivery where dimming is handled elsewhere or not required.

Q: What protection features does the EV-SNG-350-12 include for commercial installations?

The EV-SNG-350-12 includes short-circuit, overvoltage, overload, and overtemperature protection to help support reliable operation. It also includes lightning protection rated at DM 4kV and CM 6kV, which is useful for more exposed lighting environments.

Q: How does the EV-SNG-350-12 differ from a constant-current LED driver?

The EV-SNG-350-12 is a constant-voltage driver, so it is intended for 12V DC lighting systems that are designed around a fixed output voltage. That differs from a constant-current driver, which is selected around a specific output current rather than a fixed 12V output.

Q: What warranty and build characteristics make this model suitable for long-term projects?

This model is backed by a 5-year warranty and uses a fanless convection-cooled design, which supports silent operation and reduces dependence on moving parts. Its fully potted aluminum housing is also built for durability in demanding lighting applications.

200-240V input, 2 output wires can be combined together

SKU:

EV-SNG-350-12

Please for Pricing

Notify me when it's back in stock

Description

The ENVO EV-SNG-350-12 is a high-efficiency 300W constant voltage LED power supply designed for demanding indoor and outdoor lighting applications. Featuring a rugged IP67-rated metal housing with full glue potting, it provides reliable protection against dust, moisture, and harsh environments. With an input range of 180–305VAC and built-in active PFC, it ensures high performance with low harmonic distortion and power factor up to 0.98. The EV-SNG-350-12 delivers consistent 12V DC output and includes comprehensive protection functions, making it ideal for LED strips, signage, floodlights, and architectural lighting projects.

Key Features

Constant voltage LED driver, 12VDC output, 25A max, 300W total power
Wide input range: 180–305VAC (200–277VAC nominal)
High efficiency up to 93%, power factor ≥0.98, THD <10%
Fully potted IP67-rated aluminum housing for outdoor use
Built-in active PFC and lightning protection (DM 4kV / CM 6kV)
Short circuit, overvoltage, overload, and overtemperature protection
Fanless design with convection cooling for silent operation
Operating temperature range: -40°C to +70°C
Dimensions: 261×62.5×41.4 mm, weight: 1.4 kg
Compliance with EN61347, EN61547, EN61000-3-2/3, EN62493, and other global safety standards
5-year warranty

Specifications

Brand

Envo
Series

ENVO SNG Series
Power Rating

300 Watt
Output Voltage

12 Volt
Rated Current

25 Ampere
Input Voltage

180V~305V
Standards Met

CE,RCM,SELV
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

26.1 cm
Width

6.25 cm
Height

4.14 cm
Weight

1.4 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Envo EV-SNG-350-12 best suited for?

This model is designed for 12V constant-voltage lighting loads in demanding commercial and outdoor environments. It is a good fit for LED strips, signage, floodlights, and architectural lighting projects that need a regulated 12V DC supply with up to 25A output.

Is the EV-SNG-350-12 suitable for outdoor or wet-area use?

Yes. The EV-SNG-350-12 uses an IP67-rated, fully potted metal housing that is built for exposure to dust, moisture, and harsh operating conditions. Its rated operating temperature range of -40°C to +70°C also supports use in challenging indoor or outdoor environments.

What are the key electrical specifications of the EV-SNG-350-12?

This LED driver provides a constant 12V DC output with a rated current of 25A and a total power rating of 300W. It accepts 180-305VAC input, includes active power factor correction, and reaches efficiency up to 93% with power factor up to 0.98.

Is the Envo EV-SNG-350-12 dimmable?

No. This model is specified as non-dimmable, so it is intended for applications that require a fixed 12V constant-voltage output rather than integrated dimming control. That makes it more suitable for straightforward power delivery where dimming is handled elsewhere or not required.

What protection features does the EV-SNG-350-12 include for commercial installations?

The EV-SNG-350-12 includes short-circuit, overvoltage, overload, and overtemperature protection to help support reliable operation. It also includes lightning protection rated at DM 4kV and CM 6kV, which is useful for more exposed lighting environments.

How does the EV-SNG-350-12 differ from a constant-current LED driver?

The EV-SNG-350-12 is a constant-voltage driver, so it is intended for 12V DC lighting systems that are designed around a fixed output voltage. That differs from a constant-current driver, which is selected around a specific output current rather than a fixed 12V output.

What warranty and build characteristics make this model suitable for long-term projects?

This model is backed by a 5-year warranty and uses a fanless convection-cooled design, which supports silent operation and reduces dependence on moving parts. Its fully potted aluminum housing is also built for durability in demanding lighting applications.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNG-350-24 LED Driver 350W 24V Waterproof IP67 14.58A	350W	24V	14.58A	IP67	View
