Envo

Envo EV-SNT-15-24 Super Thin LED Driver 15W 24V 625mA

screw terminalultra thin
SKU EV-SNT-15-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

EV-SNT-15-24
Available to order
|

Overview

EV-SNT-15-24 is the 24V output model of this series: rated current 0-0.625A, rated power 15W.

EV-SNT-15-12, EV-SNT-15-24 is an indoor ultra thin constant voltage LED driver. Its input voltage range is 180-264Vac, witha maximum conversion efficiency of 85%, working at -20 ° C~+45 ° C ambient temperature range, with high power factor and low total harmonic distortion, can pass the EN61000-3-2 harmonic standard, low standbypower consumption and all-round protection functions, which not only greatly improves the reliability of the product, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamp and other lighting fixtures.

Features

  • High Cost Performance,SELV.
  • Compliance to worldwide saftey regulations for lighting.
  • Open circuit / Short circuit / overload / over temperature protection.
  • Compliance to ERP directive.
  • Screw terminals for easy installation

Specifications

EV-SNT-15-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-0.625A
Rated power
15W

Input

Voltage Range
AC 180V - 264V
Frequency Range
50-60HZ
Power Factor
0.75 - 0.80
Full Load Efficiency (Typ.)
85%
AC Current (Max.)
0.39A/230V
Leakage current
0.7mA 230Vac/50HZ

Protection

Short Circuit
Short circuit power ≤0.6W
Over load
1.5 times of rated output voltage

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C to 85°C, 5%RH - 95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.0585KG
Size
103*35.5*16mm (L*W*H)
Packing
200PCS

Notes

Warranty
5 years

Certifications & ratings

Marked features
SELV

Technical drawings

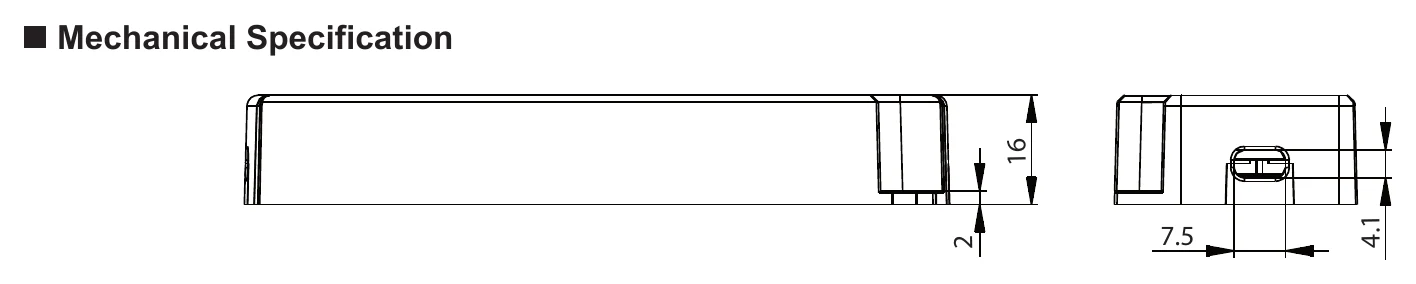

EV-SNT-15-24 Mechanical Specification
Mechanical Specification

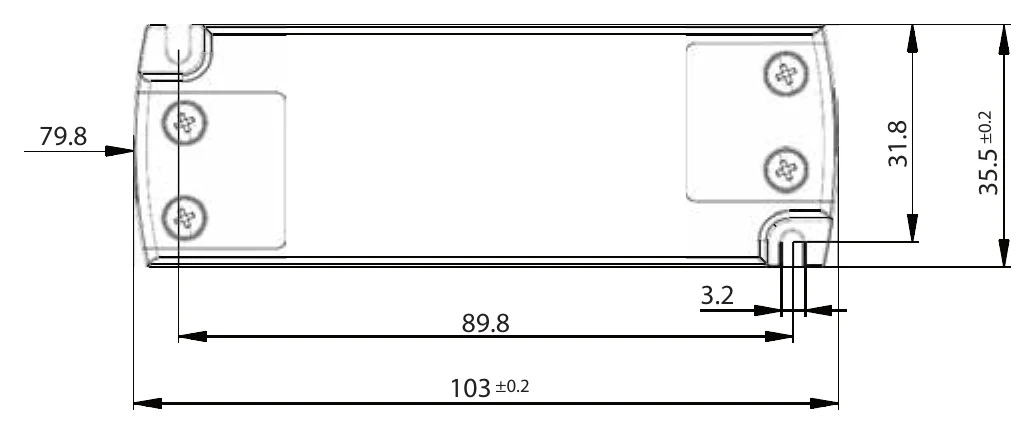

EV-SNT-15-24 Mechanical Specification (2)
Mechanical Specification (2)

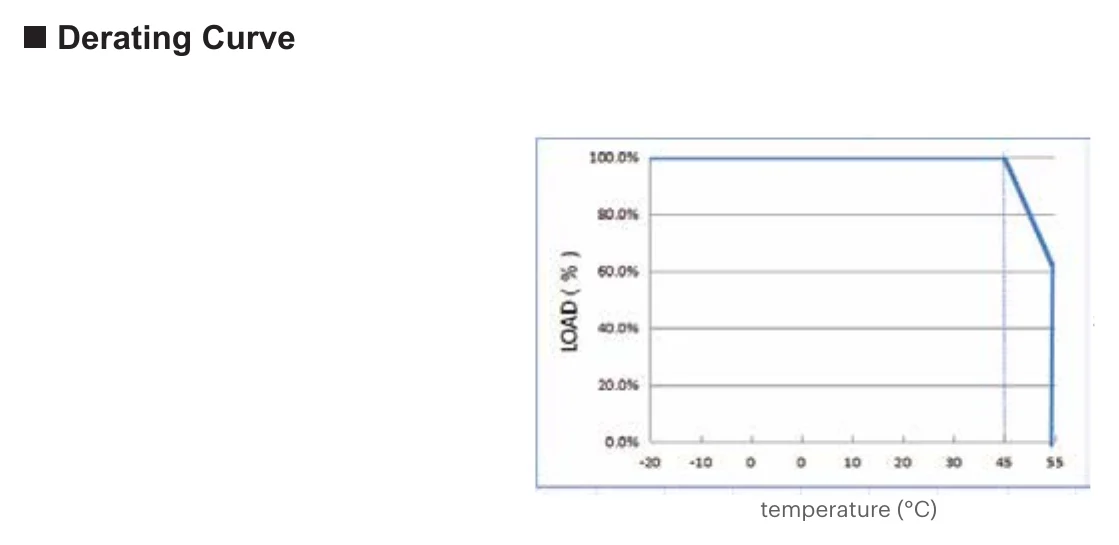

EV-SNT-15-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Envo EV-SNT-15-24 LED driver?

The Envo EV-SNT-15-24 is a 24V constant-voltage LED driver rated at 15W. Its rated output current is 0.625A, which makes it suitable for lower-power 24V LED loads within that limit.

What kind of LED applications is the EV-SNT-15-24 best suited for?

This model is best suited to 24V LED applications that need a compact, lower-wattage power supply. Its super thin form factor makes it a practical option where space is limited and a slim driver is preferred.

Does the Envo EV-SNT-15-24 support dimming?

No. The EV-SNT-15-24 does not include a dimming control function, so it is intended for applications that require a fixed 24V output rather than adjustable light levels.

What protection features are included in the EV-SNT-15-24?

This model includes open-circuit, short-circuit, and overload protection. Those built-in protections help support reliable operation in lighting applications and add a layer of protection under fault conditions.

What operating temperature range is specified for this LED driver?

The specified operating temperature range is -20°C to 45°C. That makes it suitable for indoor and other controlled-environment lighting applications that stay within that temperature window.

Why choose the EV-SNT-15-24 instead of a higher-wattage 24V driver?

The EV-SNT-15-24 is a better fit when your 24V application only requires up to 15W and you want a compact driver matched to a smaller load. Choosing a model closer to the actual power requirement can be more practical than using a much larger 24V driver for a low-power application.

What warranty does the Envo EV-SNT-15-24 include?

The EV-SNT-15-24 includes a 5-year warranty. That warranty period makes it a solid choice for commercial or project-based LED applications where long service support matters.
