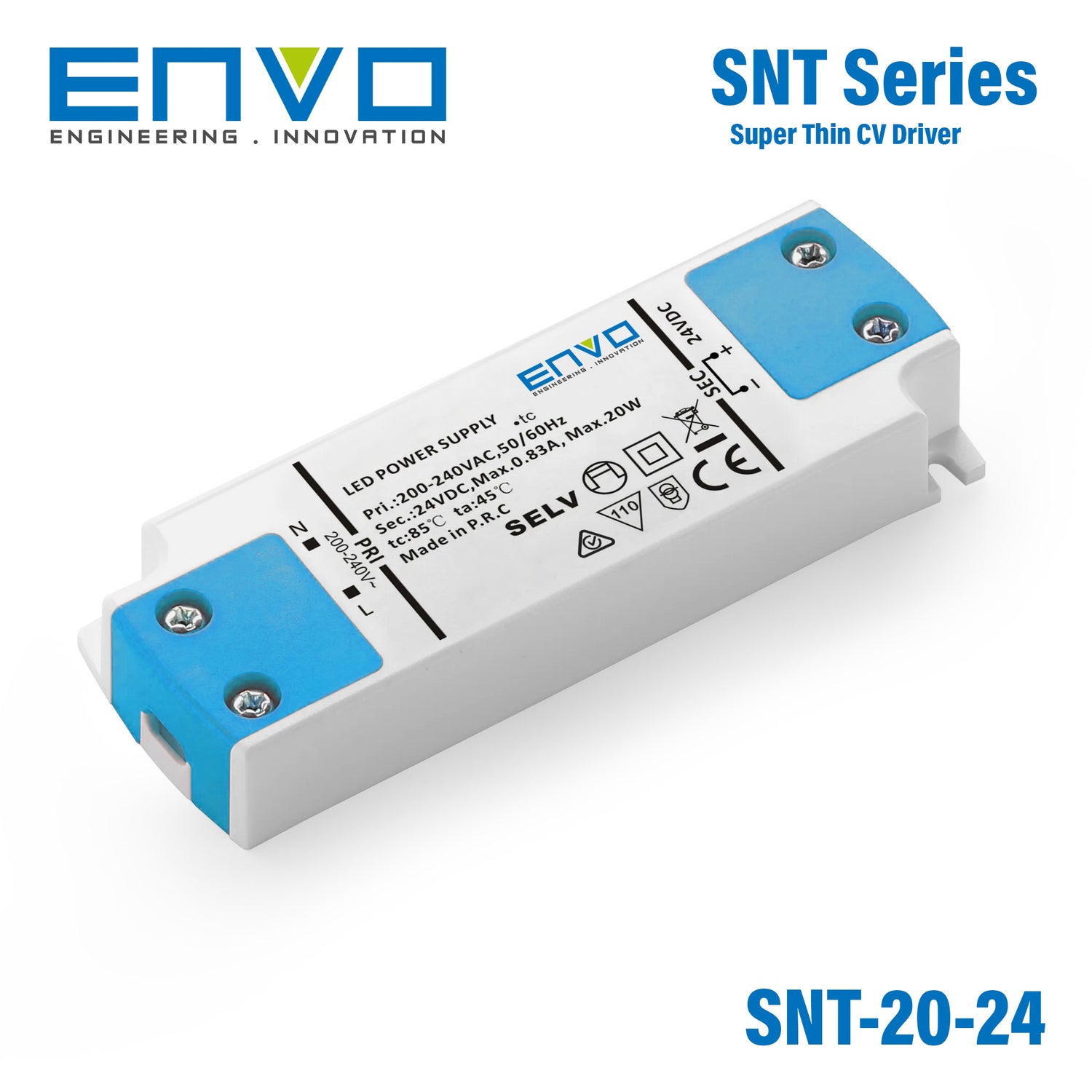

Envo EV-SNT-20-24 Super Thin LED Driver 20W 24V 833mA

Q: What type of LED load is the Envo EV-SNT-20-24 designed for?

The Envo EV-SNT-20-24 is a 24V constant-voltage LED driver rated at 20W. It is best matched with 24V LED lighting products that stay within its 0.833A maximum output current and 20W power limit. This makes it a fit for lower-power 24V LED applications where a compact driver is preferred.

Q: Can I use the Envo EV-SNT-20-24 with a 12V LED product?

No. This model has a fixed 24V output, so it is intended for 24V LED loads rather than 12V products. Using the wrong output voltage can make the driver unsuitable for the application.

Q: Does the Envo EV-SNT-20-24 support dimming?

No, this model does not include a dimming control function. If the project requires adjustable brightness, this driver is not the right choice on its own. It is intended for applications that need a stable non-dimming 24V output.

Q: What protection features are included in the Envo EV-SNT-20-24?

The Envo EV-SNT-20-24 includes short circuit, overload, and over-voltage protection. Those built-in protections help safeguard the driver during abnormal operating conditions. For buyers comparing compact LED drivers, this is a practical reliability feature for the 20W class.

Q: What operating conditions and service life should I expect from the Envo EV-SNT-20-24?

This model is rated for operation from -20°C to 45°C. Envo lists a 30,000-hour lifetime and a 5-year warranty for this driver. Those specifications make it more suitable for buyers who need a slim 24V driver with defined temperature and durability limits.

screw terminal, ultra thin

SKU:

EV-SNT-20-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Compliance to EN IEC 61000-3-2（<25W）standard.
Screw terminals for easy installation.
Short circuit / overload / over-voltage protection.
Compliance to worldwide saftey regulations for lighting.
Lifetime: 30000 hours.

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

20 Watt
Output Voltage

24 Volt
Rated Current

0.83 Ampere
Input Voltage

180V~240V
Standards Met

CE,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

10.3 cm
Width

3.55 cm
Height

1.6 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED load is the Envo EV-SNT-20-24 designed for?

The Envo EV-SNT-20-24 is a 24V constant-voltage LED driver rated at 20W. It is best matched with 24V LED lighting products that stay within its 0.833A maximum output current and 20W power limit. This makes it a fit for lower-power 24V LED applications where a compact driver is preferred.

Can I use the Envo EV-SNT-20-24 with a 12V LED product?

No. This model has a fixed 24V output, so it is intended for 24V LED loads rather than 12V products. Using the wrong output voltage can make the driver unsuitable for the application.

Does the Envo EV-SNT-20-24 support dimming?

No, this model does not include a dimming control function. If the project requires adjustable brightness, this driver is not the right choice on its own. It is intended for applications that need a stable non-dimming 24V output.

What protection features are included in the Envo EV-SNT-20-24?

The Envo EV-SNT-20-24 includes short circuit, overload, and over-voltage protection. Those built-in protections help safeguard the driver during abnormal operating conditions. For buyers comparing compact LED drivers, this is a practical reliability feature for the 20W class.

What operating conditions and service life should I expect from the Envo EV-SNT-20-24?

This model is rated for operation from -20°C to 45°C. Envo lists a 30,000-hour lifetime and a 5-year warranty for this driver. Those specifications make it more suitable for buyers who need a slim 24V driver with defined temperature and durability limits.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNT-15-24 Super Thin LED Driver 15W 24V 625mA	15W	24V	0.62A	Indoor	View
Envo EV-SNT-15-12 Super Thin LED Driver 15W 12V 1.25A	15W	12V	1.25A	Indoor	View
Envo EV-SNT-20-12 Super Thin LED Driver 20W 12V 1.67A	20W	12V	1.67A	Indoor	View
