Envo EV-SNT-20-24 Super Thin LED Driver 20W 24V 833mA

screw terminalultra thin
SKU EV-SNT-20-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

EV-SNT-20-24
In stock
|

Overview

EV-SNT-20-24 is the 24V output model of this series: rated current 0-0.833A, rated power 20W.

EV-SNT-20-12/24 is an indoor ultra thin constant voltage LED driver. Its input voltage range is180-264Vac, with a maximum conversion efficiency of 85%, working in the temperature range of -20°C~+45°C ambient temperature range. with high power factor, low THD, low standby power consumption and all round protection function, which not only greatly improves the reliability of the product, but also ensures the life cycle of product. The product completely in accordance with EN IEC 61000-3-2 THD standard. This series is designed for LED lighting and applied to indoor bathroom mirror lamp and other lighting fixtures

Features

  • Compliance to EN IEC 61000-3-2 <25W standard.
  • Screw terminals for easy installation.
  • Short circuit / overload / over-voltage protection.
  • Compliance to worldwide saftey regulations for lighting.
  • Lifetime: 30000 hours.

Specifications

EV-SNT-20-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-0.833A
Rated power
20W

Input

Voltage Range
AC 180V - 264V
Frequency Range
50-60HZ
Power Factor
0.80 - 0.84
Full Load Efficiency (Typ.)
86%
AC Current (Max.)
0.17A/230V
Leakage current
0.7mA 230Vac/50HZ

Protection

Short Circuit
Short circuit power ≤0.6W
Over load
1.5 times of rated output voltage

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C to 85°C, 5%RH to 95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.0765KG
Size
103*35.5*16mm (L*W*H)
Packing
200PCS

Notes

Warranty
5 years

Technical drawings

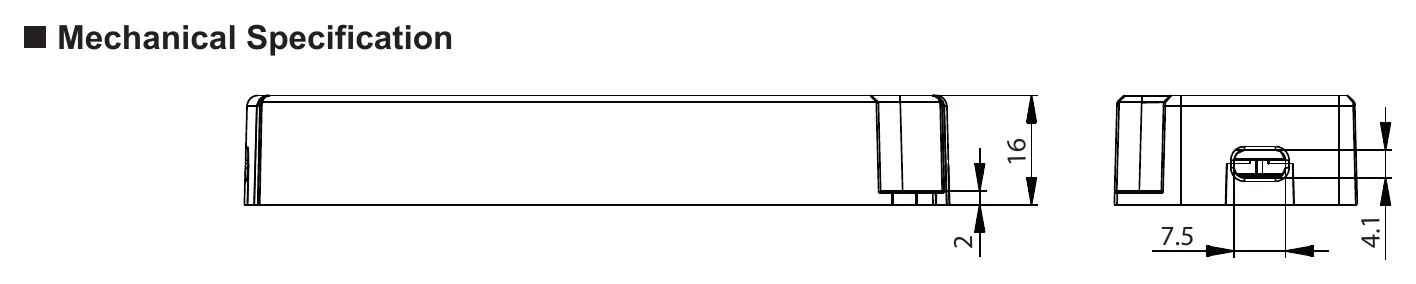

EV-SNT-20-24 Mechanical Specification
Mechanical Specification

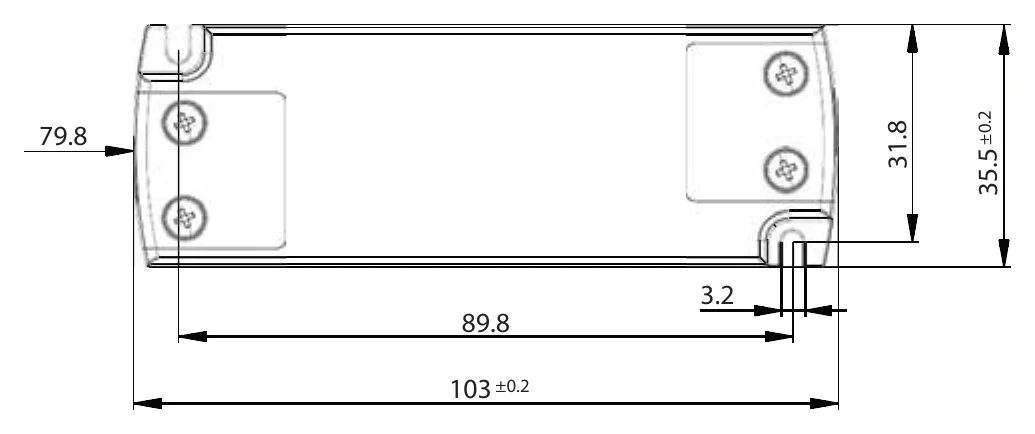

EV-SNT-20-24 Mechanical Specification (2)
Mechanical Specification (2)

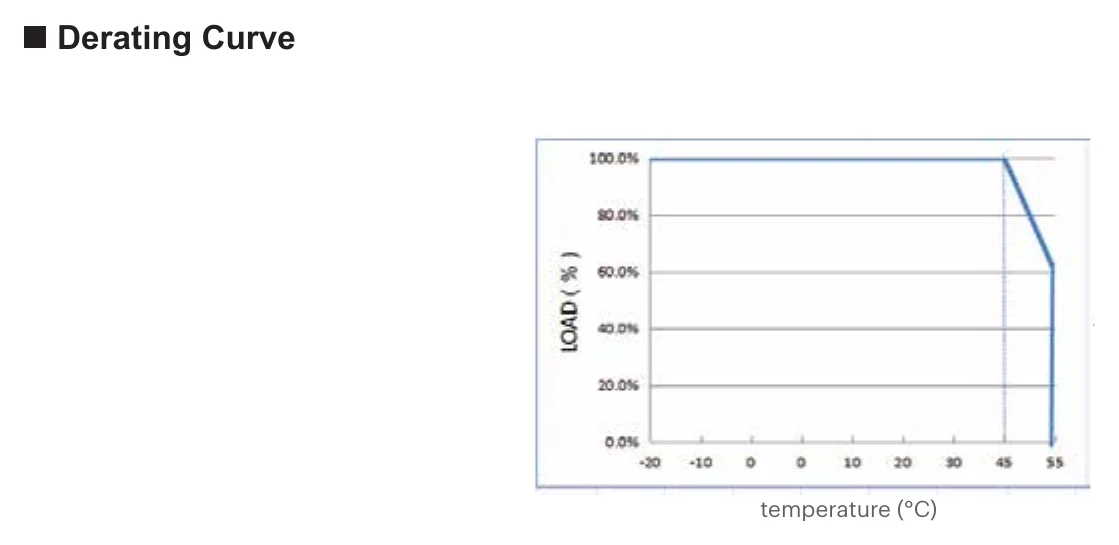

EV-SNT-20-24 Derating Curve
Derating Curve

Downloads

FAQ

What type of LED load is the Envo EV-SNT-20-24 designed for?

The Envo EV-SNT-20-24 is a 24V constant-voltage LED driver rated at 20W. It is best matched with 24V LED lighting products that stay within its 0.833A maximum output current and 20W power limit. This makes it a fit for lower-power 24V LED applications where a compact driver is preferred.

Can I use the Envo EV-SNT-20-24 with a 12V LED product?

No. This model has a fixed 24V output, so it is intended for 24V LED loads rather than 12V products. Using the wrong output voltage can make the driver unsuitable for the application.

Does the Envo EV-SNT-20-24 support dimming?

No, this model does not include a dimming control function. If the project requires adjustable brightness, this driver is not the right choice on its own. It is intended for applications that need a stable non-dimming 24V output.

What protection features are included in the Envo EV-SNT-20-24?

The Envo EV-SNT-20-24 includes short circuit, overload, and over-voltage protection. Those built-in protections help safeguard the driver during abnormal operating conditions. For buyers comparing compact LED drivers, this is a practical reliability feature for the 20W class.

What operating conditions and service life should I expect from the Envo EV-SNT-20-24?

This model is rated for operation from -20°C to 45°C. Envo lists a 30,000-hour lifetime and a 5-year warranty for this driver. Those specifications make it more suitable for buyers who need a slim 24V driver with defined temperature and durability limits.
