Envo

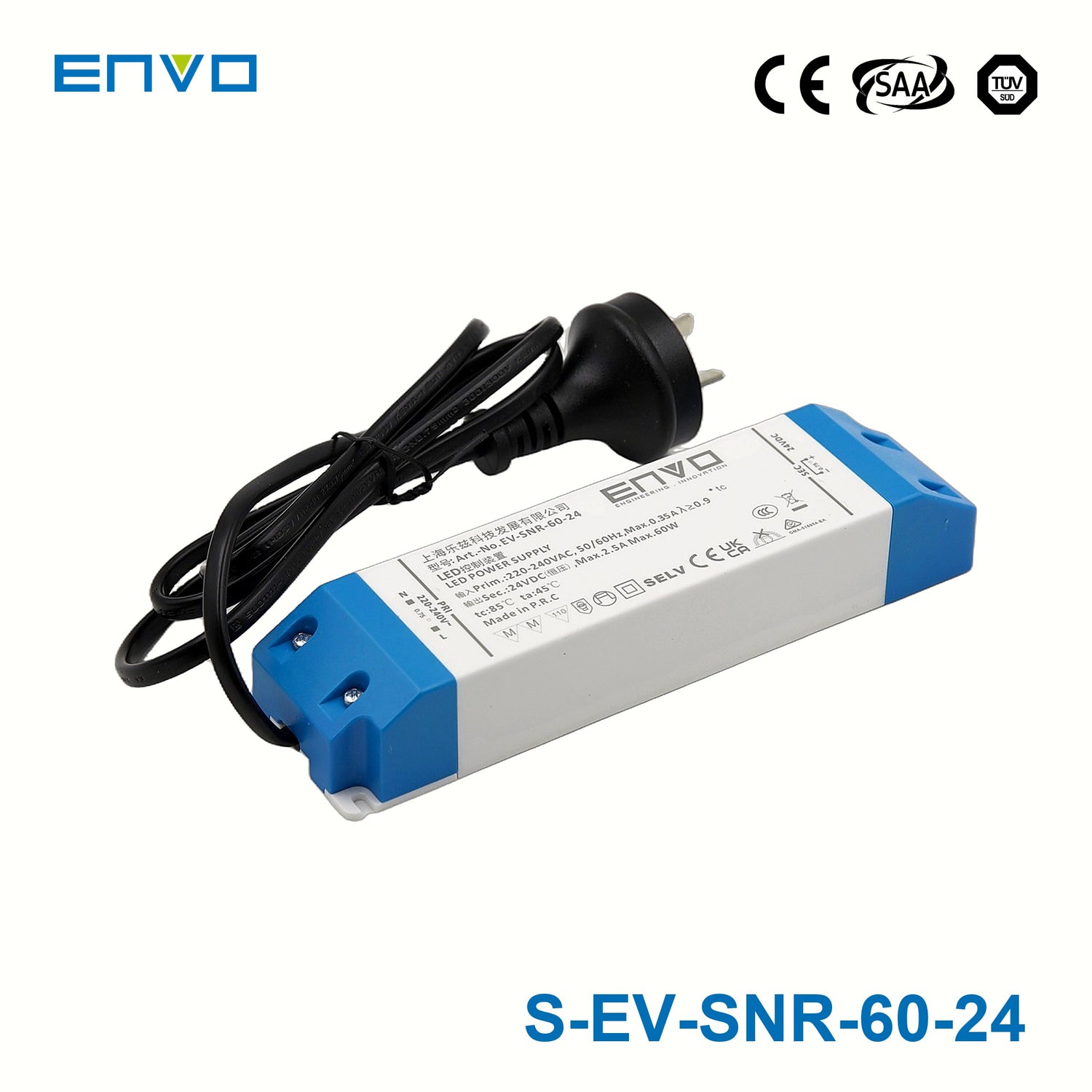

Envo S-EV-SNR-60-24 LED Driver 60W 24V with 1m NZ Plug 2.5A

screw terminalcompact sizeeconomical1m NZ plug included
SKU S-EV-SNR-60-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

S-EV-SNR-60-24
Available to order
|

Overview

S-EV-SNR-60-24 is the 24V output model of this series: rated current 0-2.5A, rated power 60W.

EV-SNR-60-12/24 series is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 90%, fanless design, working in the temperature range of -20°C-+45°C under free air convection. It has ultraihigh power factor, ultra-low total harmonic distortion, low standby power consumption, with all-round protection functions, which not only greatly improves the reliability of the product, but also ensures the life cycle of product. The product is designed completely in accordance with world’s lighting equipment saftey regulations to ensure booth user and luminaire system safety during installation

Features

  • AC input / (198-264VAC)
  • Compliance to worldwide saftey regulations for lighting
  • Adopt plastic shell
  • Short circuit/overload/over-voltage /overtemperature protection.
  • Built-in lighting protection device, can meet the differential mode 1KV
  • High eficiency power supply: the highest eficiency is more than 89%

Specifications

S-EV-SNR-60-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-2.5A
Rated power
60W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.9 - 0.95
Full Load Efficiency (Typ.)
88%
AC Current (Max.)
0.5A/230V
Leakage current
0.7mA (240Vac/60HZ)

Protection

Short Circuit
Short circuit power ≤3W
Over load
1.1 - 1.5 times of rated load

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C to 85°C, 5%RH to 85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.2KG
Size
170*44.5*28.2mm (L*W*H)
Packing
25PCS
Warranty
5 years

Technical drawings

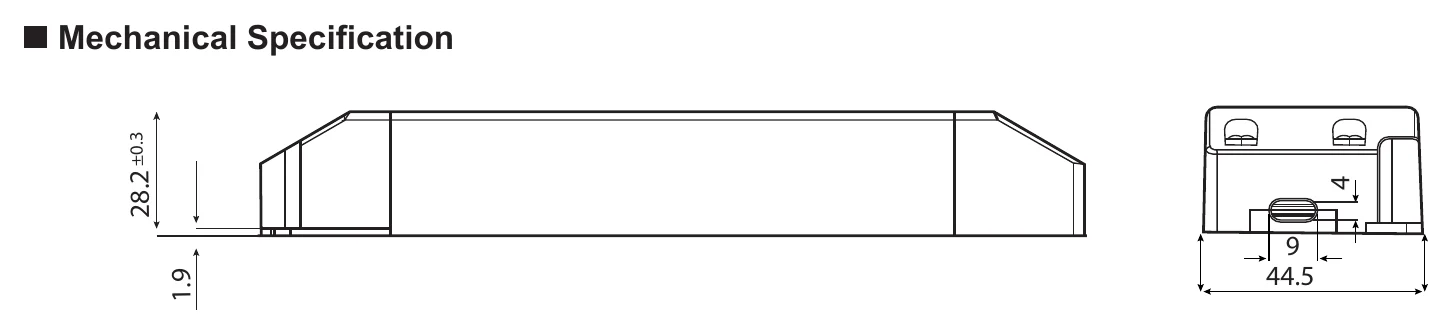

S-EV-SNR-60-24 Mechanical Specification
Mechanical Specification

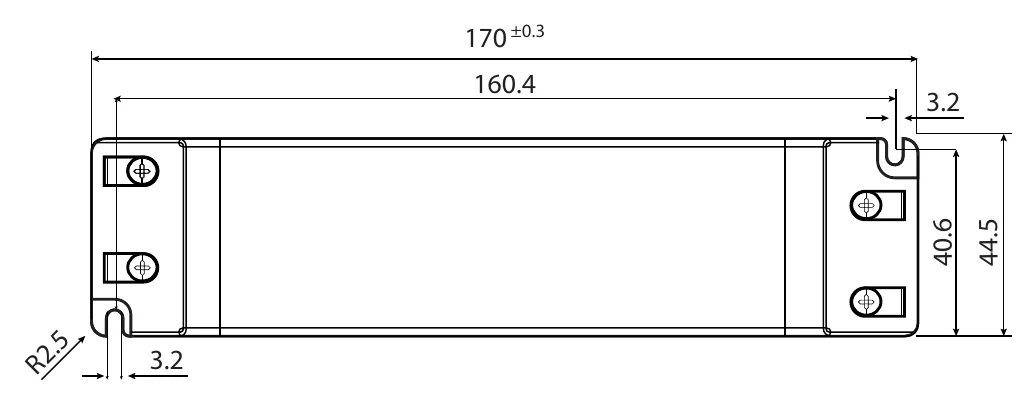

S-EV-SNR-60-24 Mechanical Specification (2)
Mechanical Specification (2)

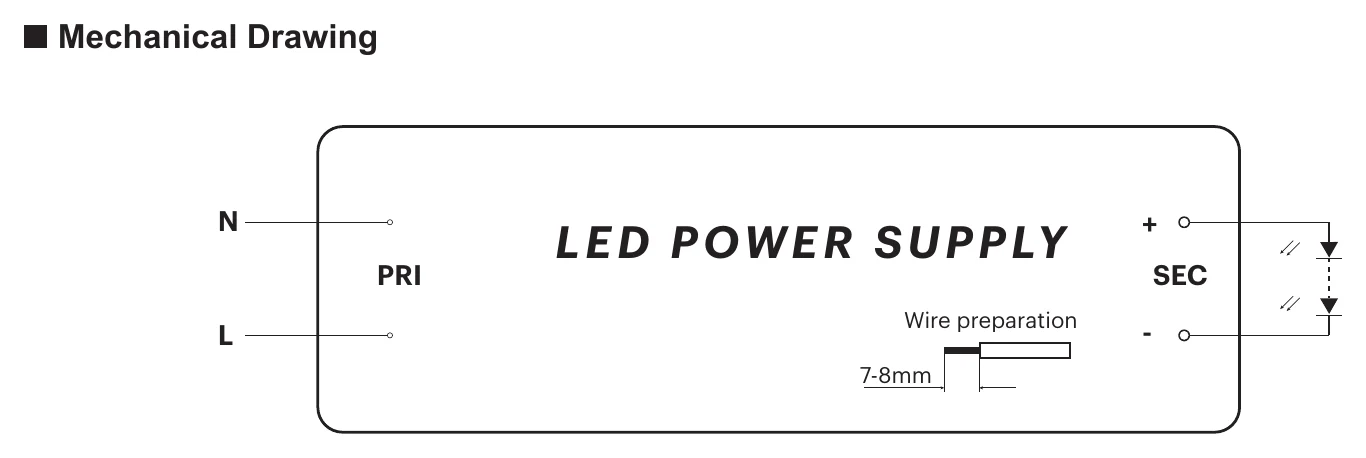

S-EV-SNR-60-24 Mechanical Drawing
Mechanical Drawing

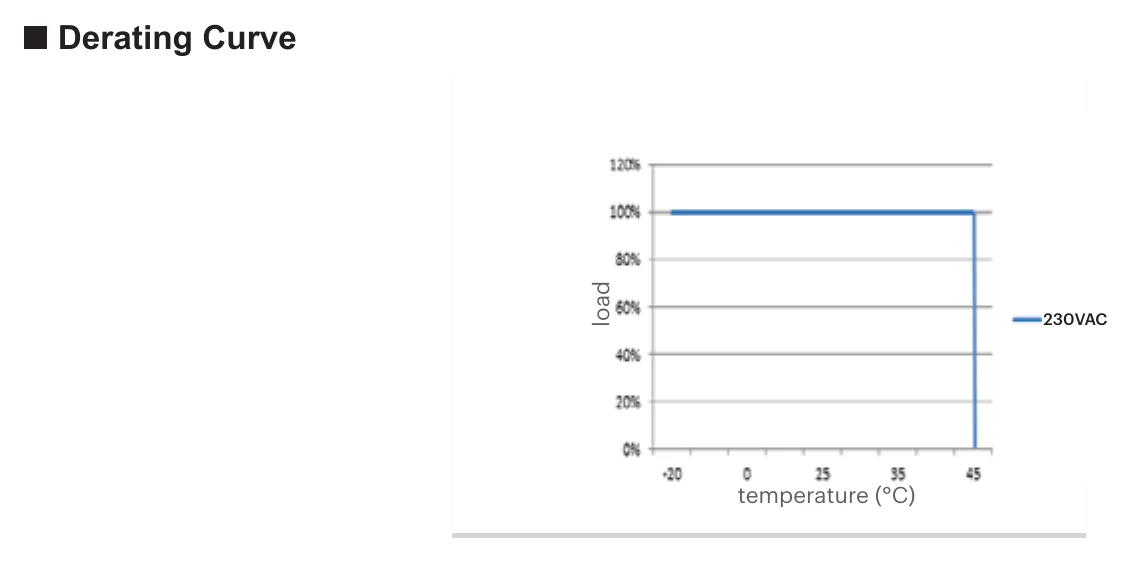

S-EV-SNR-60-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the output of the Envo S-EV-SNR-60-24 LED Driver?

This model provides a 24V constant voltage output and is rated for 60W. Its rated current is 2.5A. It is designed for applications that require a 24V LED power supply within those ratings.

Does this LED driver support dimming?

No, the S-EV-SNR-60-24 is a non-dimming LED driver. It is intended for constant voltage 24V lighting applications where dimming control is not required. Buyers needing dimming should compare it with models that explicitly list a dimming interface.

Is this model suitable for use in New Zealand?

Yes, this version includes a 1m NZ plug input cable, which makes it suited to New Zealand supply setups. The listed AC input range is 198-264VAC. That makes it a practical option for NZ-based LED lighting projects using 24V constant voltage equipment.

What protection features are included in this LED driver?

The S-EV-SNR-60-24 includes short circuit, overload, and over-voltage protection. It also includes a built-in lighting protection device with differential mode 1KV capability. These protections help support reliability in lighting applications.

What operating temperature range is this LED driver rated for?

This model is rated for operation from -20°C to 45°C. That range makes it suitable for many indoor and protected commercial lighting environments. Buyers should confirm the planned environment stays within that stated temperature range.

What kind of LED application is this model best suited for?

This driver is best suited to 24V constant voltage LED lighting applications that need up to 60W of output power. It is a good fit for buyers looking for a compact plastic-shell driver with an included NZ plug lead. It is not intended for applications that require dimming control.
