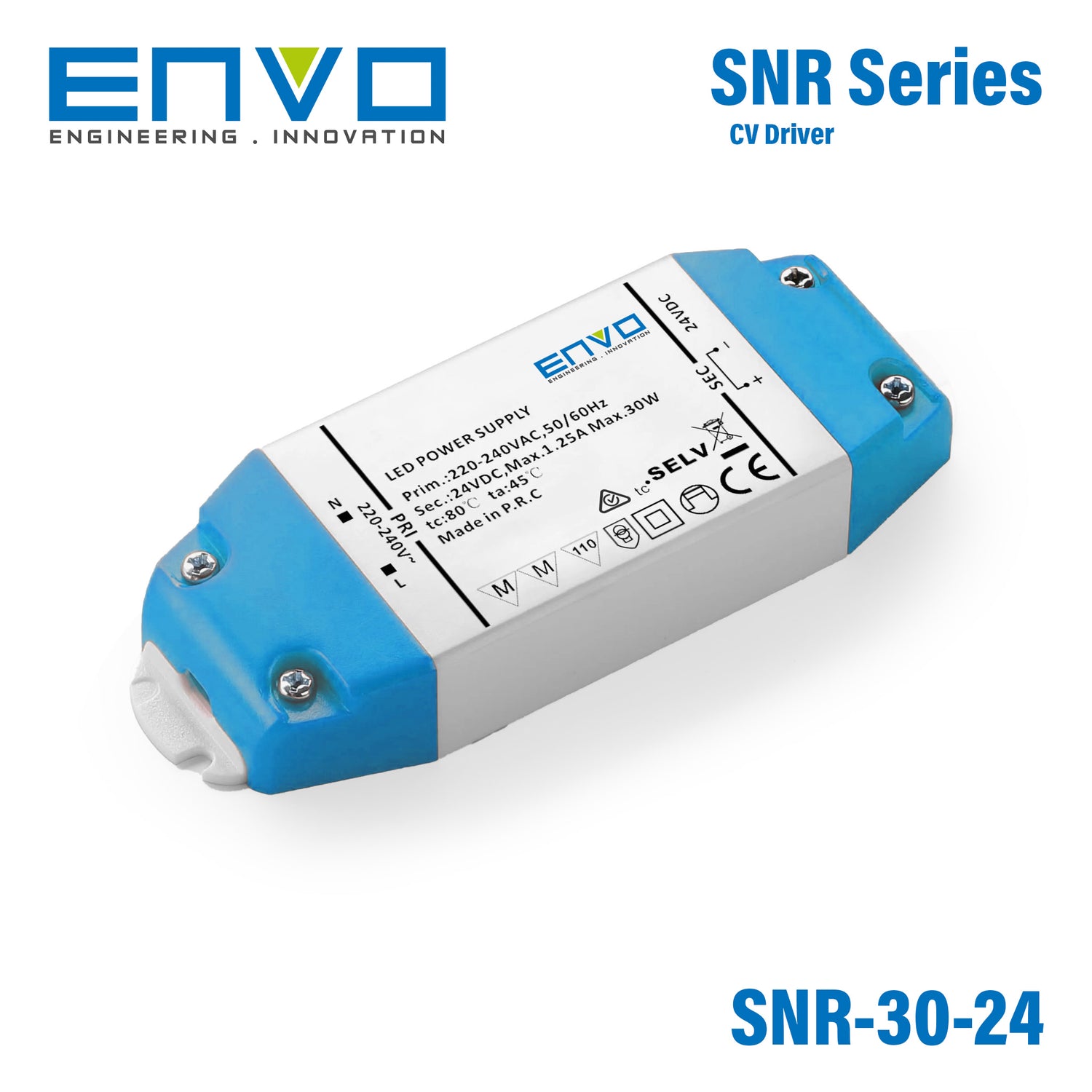

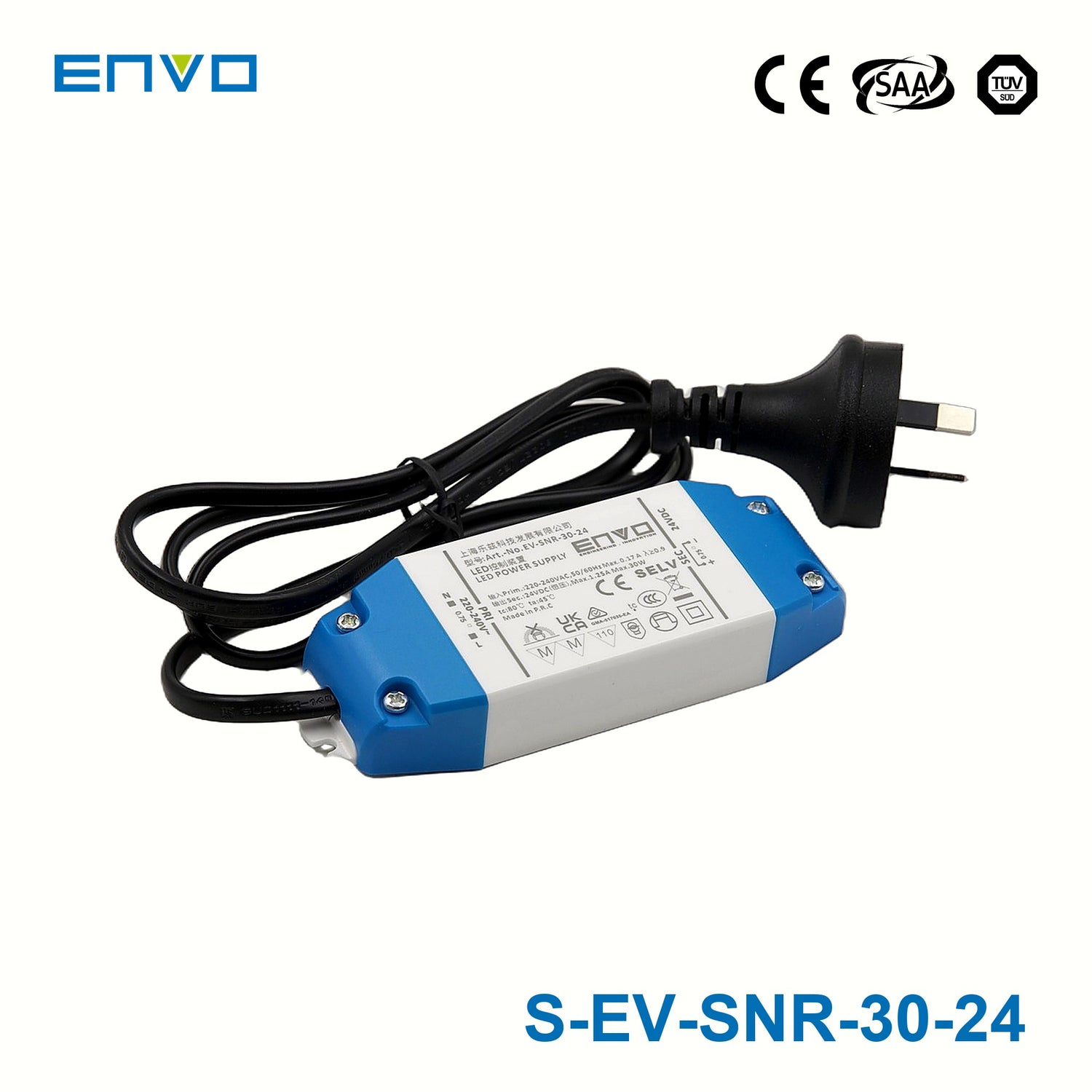

Envo S-EV-SNR-30-24 LED Driver 30W 24V with 1m NZ Plug 1.25A
Log in to see priceOverview
S-EV-SNR-30-24 is the 24V output model of this series: rated current 0-1.25A, rated power 30W.
Features
- Output constant voltage
- Range AC input: 200-240VAC
- Bulli-in active PFC function
- Efficiency :up to 89%
- Protections: short circuit/over loading/ over temperature
- Screw terminals for easy installation
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
Specifications
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±5%
- Rated current
- 0-1.25A
- Rated power
- 30W
Input
- Voltage Range
- AC 220V - 240V
- Frequency Range
- 50-60HZ
- Power Factor
- ≥0.9/230V50HZ
- Full Load Efficiency (Typ.)
- 86%
- AC Current (Max.)
- 0.17A/230V
- Leakage current
- 0.7mA 230Vac/50Hz
Protection
- Short Circuit
- Protected (tested at Ta, 0.94-1.06 × rated input voltage)
- Over load
- Protected above 1.3 × rated power (tested at Ta, 0.94-1.06 × rated input voltage)
- Over Temperature
- Shuts down above 115°C (tested at Ta, 0.94-1.06 × rated input voltage)
Environment
- Working TEMP.
- -20 - 45°C
- Working Humidity
- 10%RH - 90%RH
- Storage TEM.,Humidity
- -40°C-80°C; 5%RH-85%RH
- TEMP.coefficient
- ±0.03%/°C (0 ~ 60°C)
Safety&EMC
- Safety standards
- EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
- Withstand voltage
- Input-Output 3750V/5mA/1min
- Isolation resistance
- >5M Ohm/500VDC/25°C/70%RH
- EMC EMISSION
- Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
- EMC immunity
- Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11
Others
- Weight
- 0.11KG
- Size
- 123*44.6*19.2mm (L*W*H)
- Packing
- 100PCS
Notes
- Warranty
- 5 years

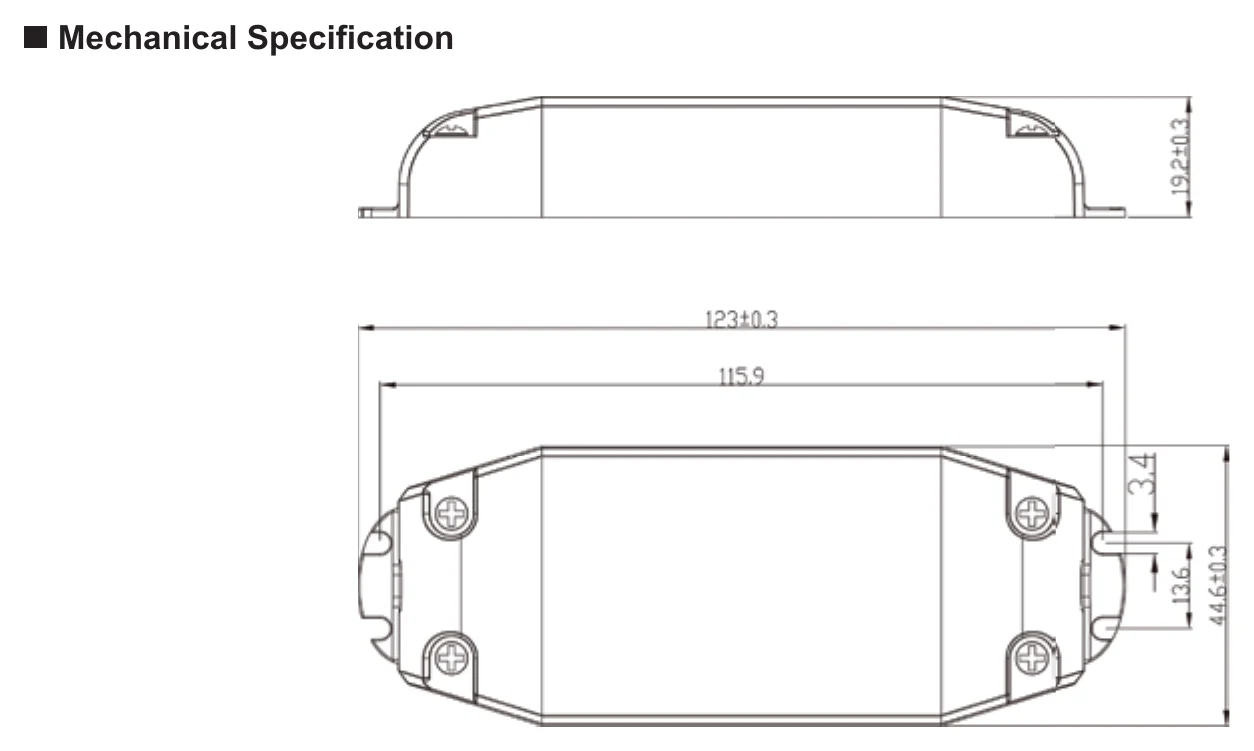

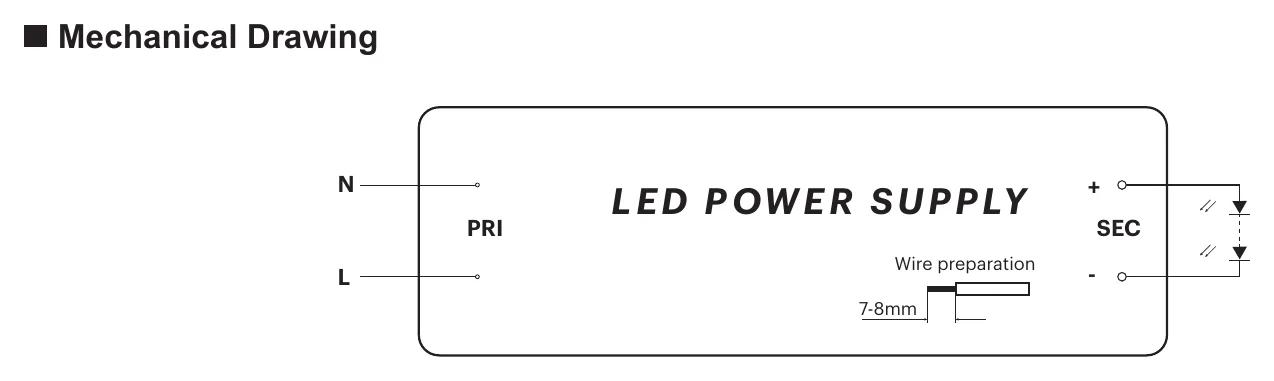

Technical drawings
Downloads
Datasheet1
FAQ
What is this power supply used for?
It is an LED driver suitable for LED lighting and moving sign applications.
What are the output specifications?
It provides a constant 24V DC output with a rated current of 0-1.25A and a rated power of 30W.
What is the input voltage range?
The input range is AC 220V - 240V at 50-60Hz. It includes built-in active PFC.
How is it installed and cooled?
It uses screw terminals for easy installation and is cooled by free air convection. Ensure adequate ventilation around the unit.
What are the operating temperature limits?

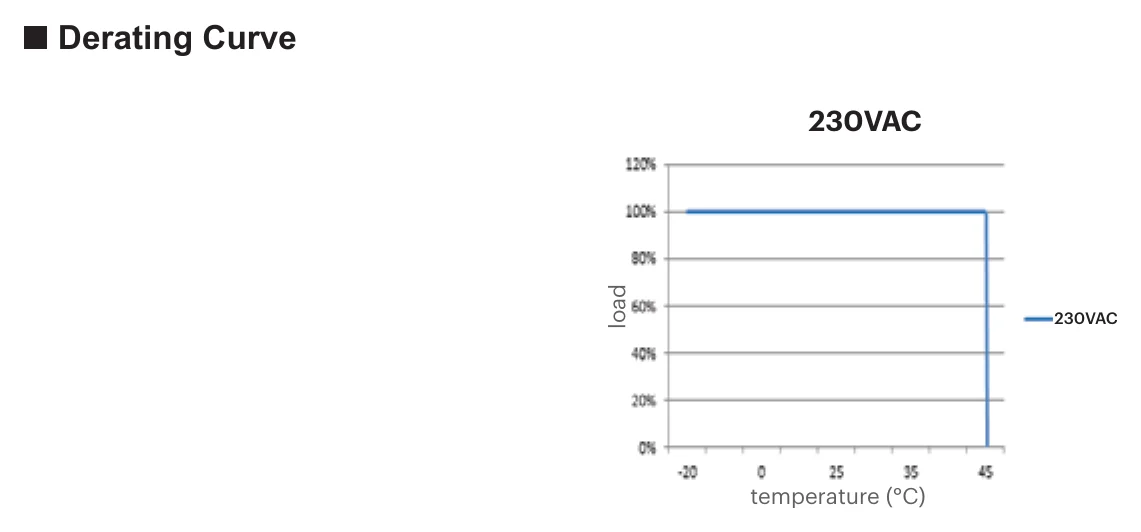

The working temperature range is -20°C to 45°C. Refer to the derating curve for high-temperature environments.
Which safety standards does it meet?
It is approved to EN/IEC-61347, EN/IEC-60598, and AS/NZS-61347/60598 standards.
What is the warranty period?
The product comes with a 5-year warranty.
