Envo S-EV-SNR-60-24 LED Driver 60W 24V with 1m NZ Plug 2.5A

screw terminalcompact sizeeconomical1m NZ plug included

SKU S-EV-SNR-60-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

S-EV-SNR-60-24

S-EV-SNR-30-24 30W 24V In stock

S-EV-SNR-60-24 60W 24V Backorder

EV-SNR-75-24 75W 24V In stock

Product variants

Notify me when it's back in stock

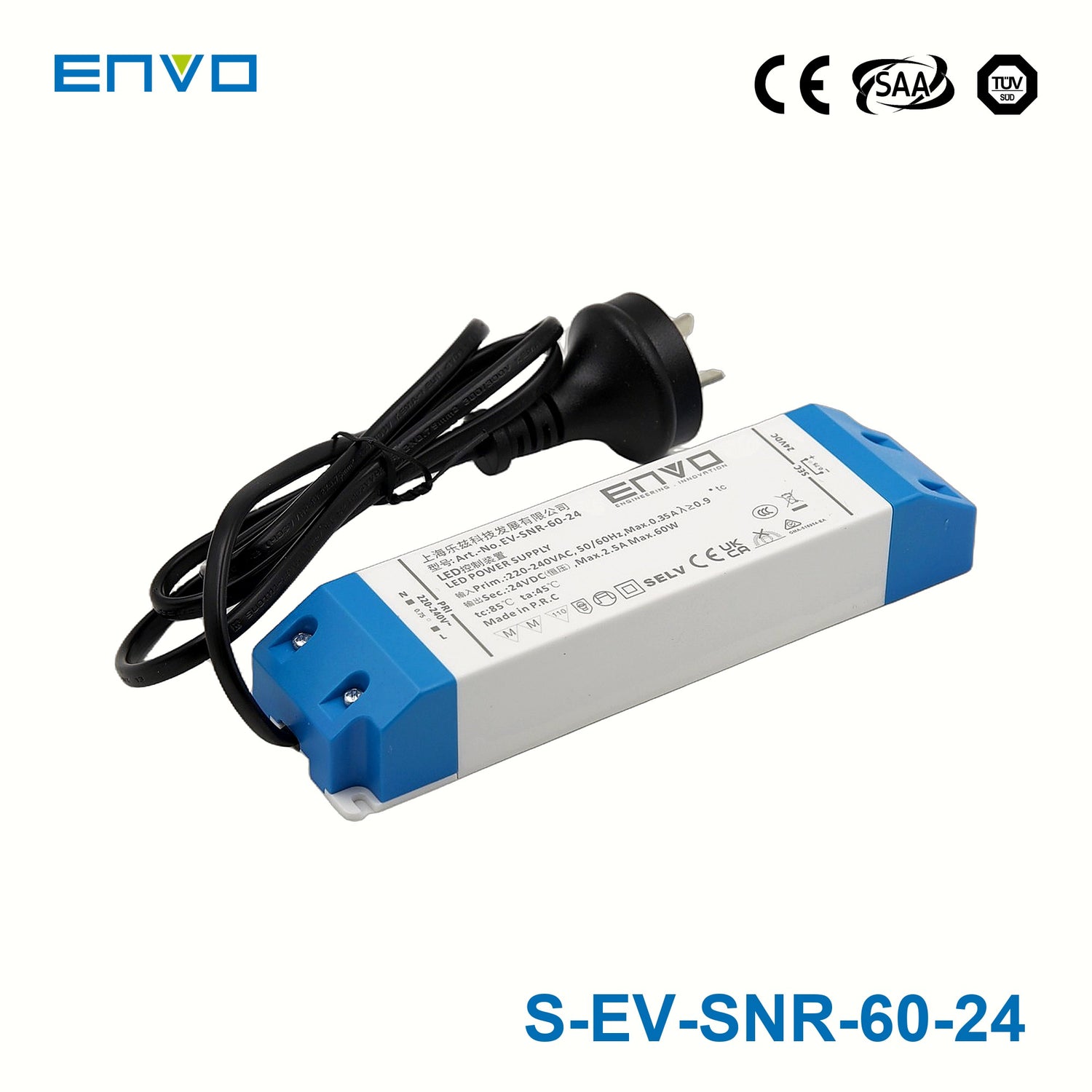

The ENVO S-EV-SNR-60-24 is a 60W, 24V constant voltage LED driver supplied with a 1 m input lead and NZ plug already fitted, so it is ready to use straight out of the box. It delivers a stable 24V DC output at up to 2.5A and forms part of the SC Envo Series of compact, economical drivers for indoor LED lighting and signage.

A wide 198–264VAC input, high 0.9–0.95 power factor and up to 88% full-load efficiency suit it to continuous commercial duty, while the fanless plastic-shell design cools by free air convection. Short circuit, overload and over-voltage protection plus a built-in 1kV differential-mode surge device protect both the driver and the connected load. It is approved to EN/IEC-61347, EN/IEC-60598 and AS/NZS-61347/60598, and rated for −20°C to +45°C in dry, indoor locations.

Key Features

✓ Constant voltage output: 24V DC at up to 2.5A (60W max), ±5% tolerance
✓ 1 m input lead with NZ plug prefitted — no wiring needed on the supply side
✓ Wide AC input: 198–264VAC, 50–60Hz
✓ High power factor: 0.9–0.95
✓ Full-load efficiency up to 88%
✓ Protections: short circuit (≤3W), overload (1.1–1.5× rated load) and over-voltage
✓ Built-in surge protection: differential mode 1kV
✓ Screw terminals for the DC output, fanless free-air convection cooling
✓ Certifications: CE, SAA, TÜV — EN/IEC-61347, EN/IEC-60598 and AS/NZS-61347/60598 approved
✓ Operating temperature: −20°C to +45°C, 10–90% RH
✓ Compact enclosure: 170 × 44.5 × 28.2 mm, 0.2 kg
✓ 5 year warranty

Frequently Asked Questions

What is the output of the Envo S-EV-SNR-60-24 LED Driver?

This model provides a 24V constant voltage output and is rated for 60W. Its rated current is 2.5A. It is designed for applications that require a 24V LED power supply within those ratings.

Does this LED driver support dimming?

No, the S-EV-SNR-60-24 is a non-dimming LED driver. It is intended for constant voltage 24V lighting applications where dimming control is not required. Buyers needing dimming should compare it with models that explicitly list a dimming interface.

Is this model suitable for use in New Zealand?

Yes, this version includes a 1m NZ plug input cable, which makes it suited to New Zealand supply setups. The listed AC input range is 198-264VAC. That makes it a practical option for NZ-based LED lighting projects using 24V constant voltage equipment.

What protection features are included in this LED driver?

The S-EV-SNR-60-24 includes short circuit, overload, over-voltage, and overtemperature protection. It also includes a built-in lighting protection device with differential mode 1KV capability. These protections help support reliability in lighting applications.

What operating temperature range is this LED driver rated for?

This model is rated for operation from -20°C to 45°C. That range makes it suitable for many indoor and protected commercial lighting environments. Buyers should confirm the planned environment stays within that stated temperature range.

What kind of LED application is this model best suited for?

This driver is best suited to 24V constant voltage LED lighting applications that need up to 60W of output power. It is a good fit for buyers looking for a compact plastic-shell driver with an included NZ plug lead. It is not intended for applications that require dimming control.
