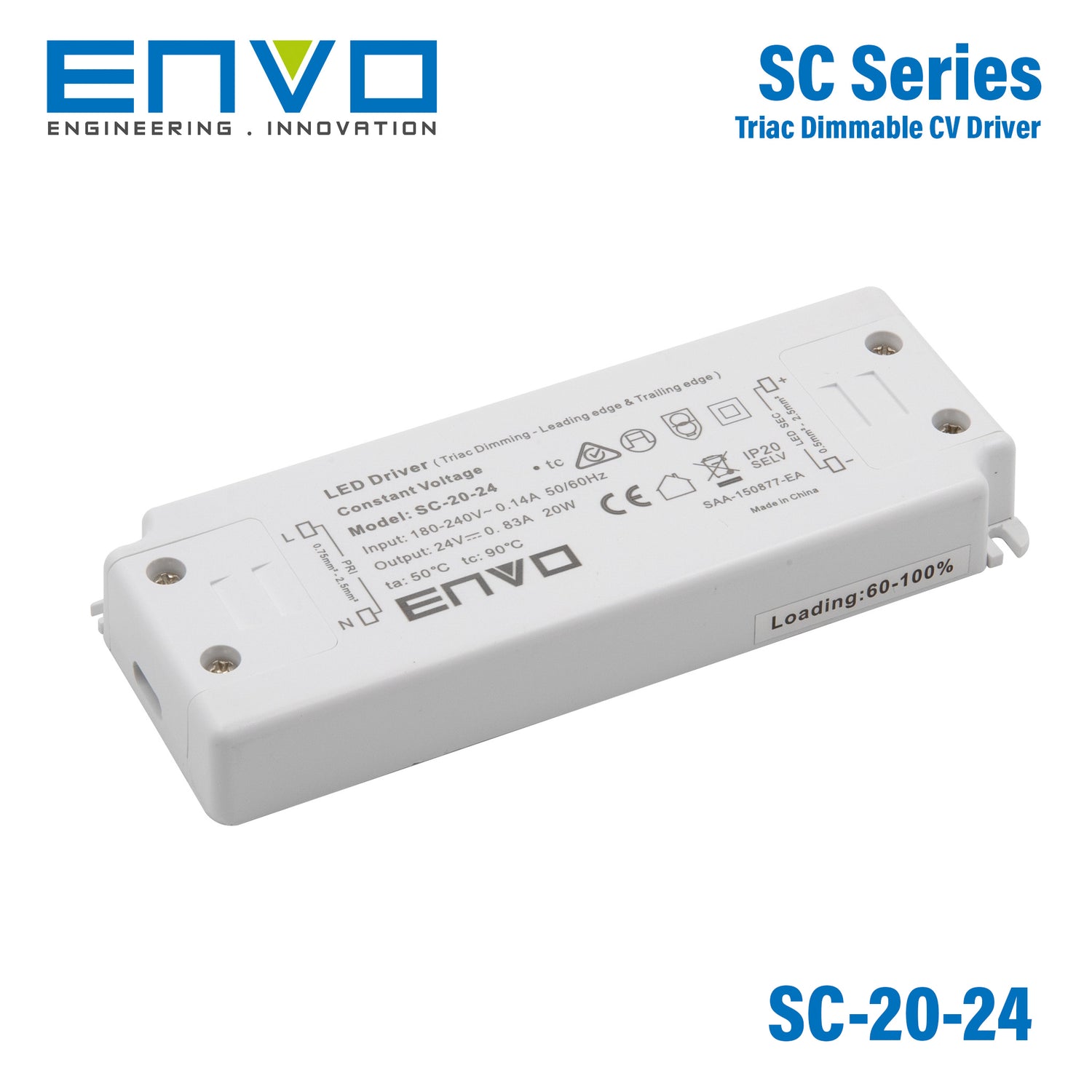

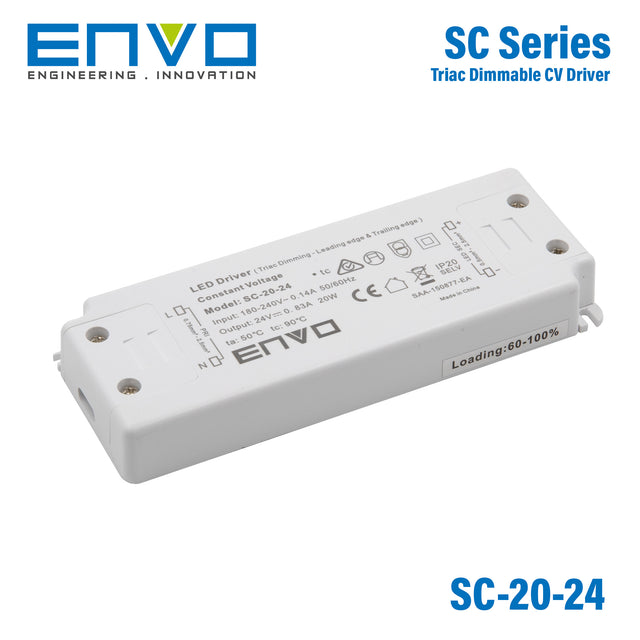

Envo SC-20-24 Power Supply 20W 24V - Triac dimmable 830mA
Log in to see priceOverview
SC-20-24 is the 24V output model of this series: rated current 0.83A, rated power 20W.
Features
- Output constant voltage
- Universal AC input/ :180-250VAC
- Built-in active PFC function
- High efficiency :up to 84%
- Protections:short circuit/over loading/over current
- Full protection plastic housing
- Easy installation
- Cooling by free air convection

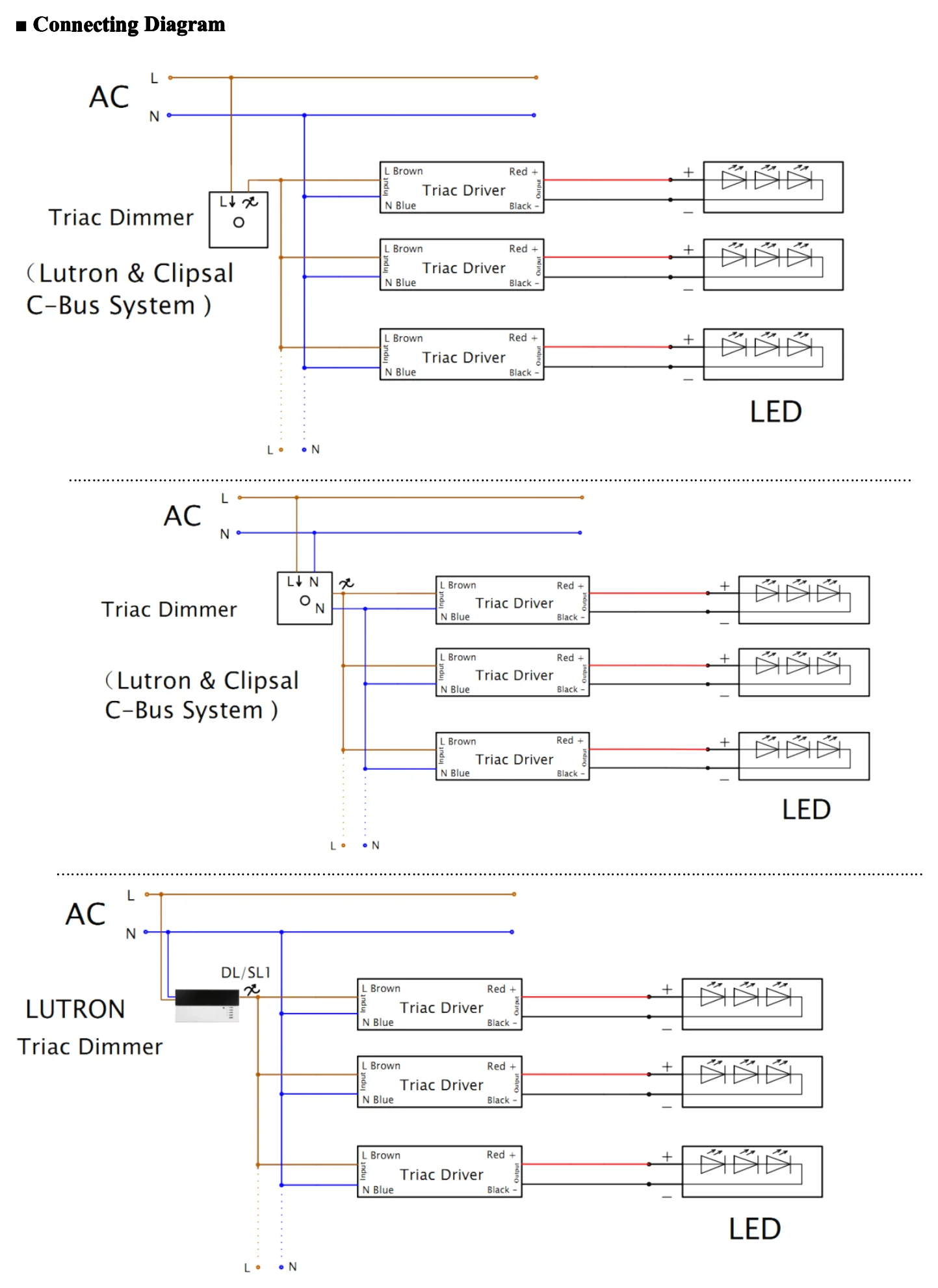

- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Specifications
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Rated current
- 0.83A
- Rated power
- 20W
Input
- Voltage Range
- 180～250VAC (or 90～130VAC)
- Frequency Range
- 47～63Hz
- Power Factor （Typ.）
- PF≧0.9
- Full Load Efficiency (Typ.)
- 82%
- AC Current（Typ.）
- 0.13A
- Leakage current
- <0.70mA/220VAC
Protection
- Short Circuit
- Hiccup mode, recovers automatically after fault condition is removed
- Over Loading
- ≦120%
Environment

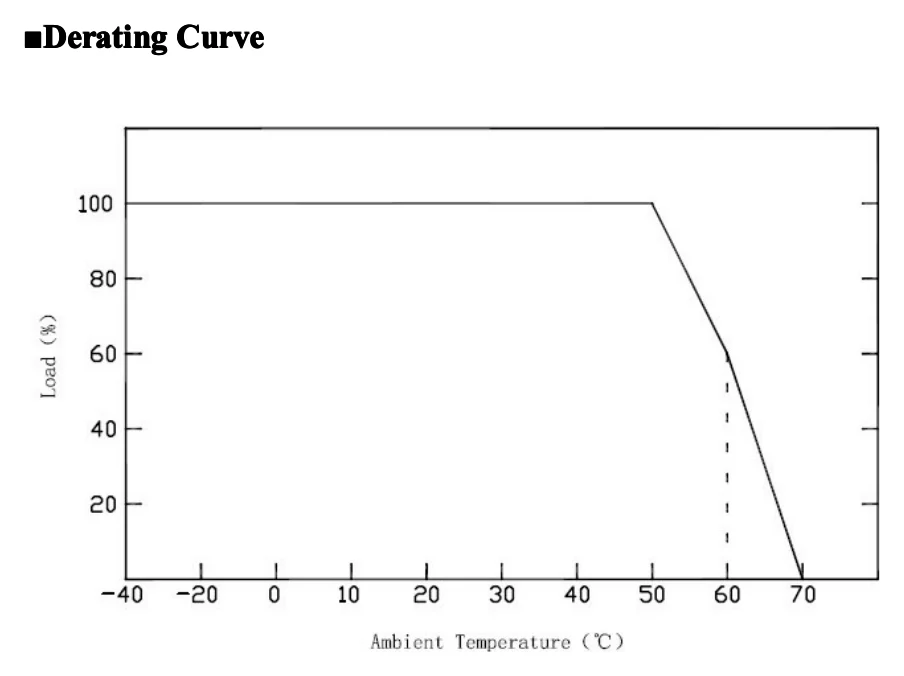

- Working TEMP.
- -40～+60℃
- Working Humidity
- 20～90%RH, non-condensing
- Storage TEM.,Humidity
- -40～+80℃, 10～95%RH
- TEMP.coefficient
- ±0.03%/℃ (0～50℃)
- Vibration
- 10～500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety&EMC
- Safety standards
- EN61347-1 EN61347-2-13
- Withstand voltage
- I/P-O/P: 3.75KVAC
- Isolation resistance
- I/P-O/P: 100MΩ/500VDC/25℃/70%RH
- EMC EMISSION
- EN55015, EN61000-3-2,3 (≧50%loading)
- EMC IMMUNITY
- EN61000-4-2,3,4,5,6,11 (Surge 4KV)
Others
- Net.Weight
- 0.19Kg
- Size
- 145*55*20mm (L*W*H)
- packing
- 350*240*130 40PCS
Test conditions and notes3
- 1. All parameters if NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
- 2. To extend the driver’s using life ,please reduce the loading when start the drivers at lower input voltage.
- 3.Loading should be 60-100%

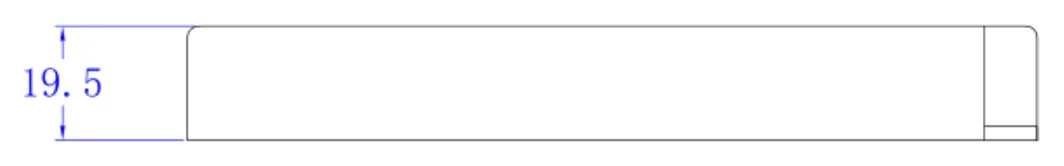

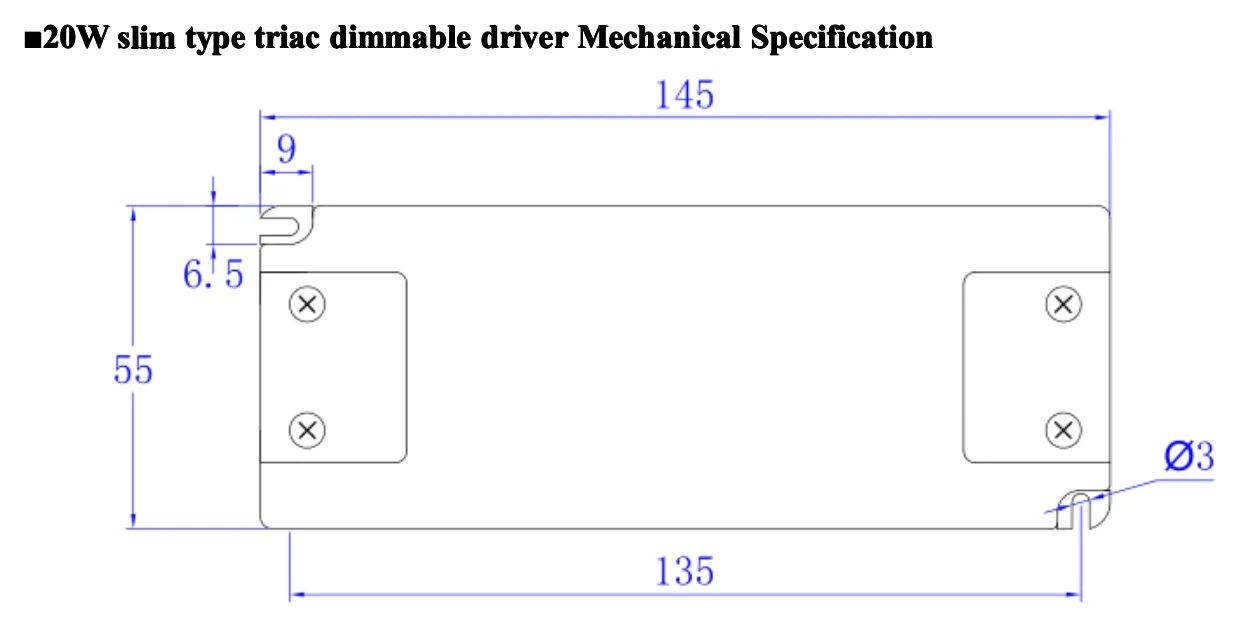

Technical drawings
Downloads
Datasheet1
FAQ
What type of LED application is the Envo SC-20-24 designed for?
The Envo SC-20-24 is a 24V constant voltage power supply intended for indoor LED lighting and moving sign applications. Its 20W output makes it suitable for lower-power 24V systems that need stable constant voltage operation.
Is the Envo SC-20-24 dimmable?
Yes, this model is TRIAC dimmable and works with both leading edge and trailing edge phase-cut dimmers. It is also described as offering strong compatibility and flicker-free dimming for applications where smooth light control matters.
What are the main electrical ratings of the Envo SC-20-24?
This model is rated at 20W output, 24V output voltage, and 0.83A rated current. It accepts an AC input range of 180-250VAC (or 90-130VAC) and includes active PFC with efficiency up to 82%.
Can this power supply be used outdoors or in wet areas?
No, the SC-20-24 is designed for indoor use and is specified for dry locations. It is not intended for exposure to water or wet environmental conditions.
What operating temperature range does the Envo SC-20-24 support?
This power supply is rated for operation from -40°C to 60°C. That range supports use in a wide variety of indoor commercial and industrial environments, provided the location remains dry.
What protections are built into the Envo SC-20-24?
The SC-20-24 includes protection against short circuit, over loading, and over current conditions. These built-in protections help support reliable operation in demanding LED power applications.
Why would a buyer choose the Envo SC-20-24 over a non-dimmable 24V power supply?
A key differentiator is its TRIAC dimming support, including compatibility with both leading edge and trailing edge dimmers. For projects that require phase-cut dimming and flicker-free performance from a compact 20W 24V unit, this model is better suited than a basic non-dimmable supply.
