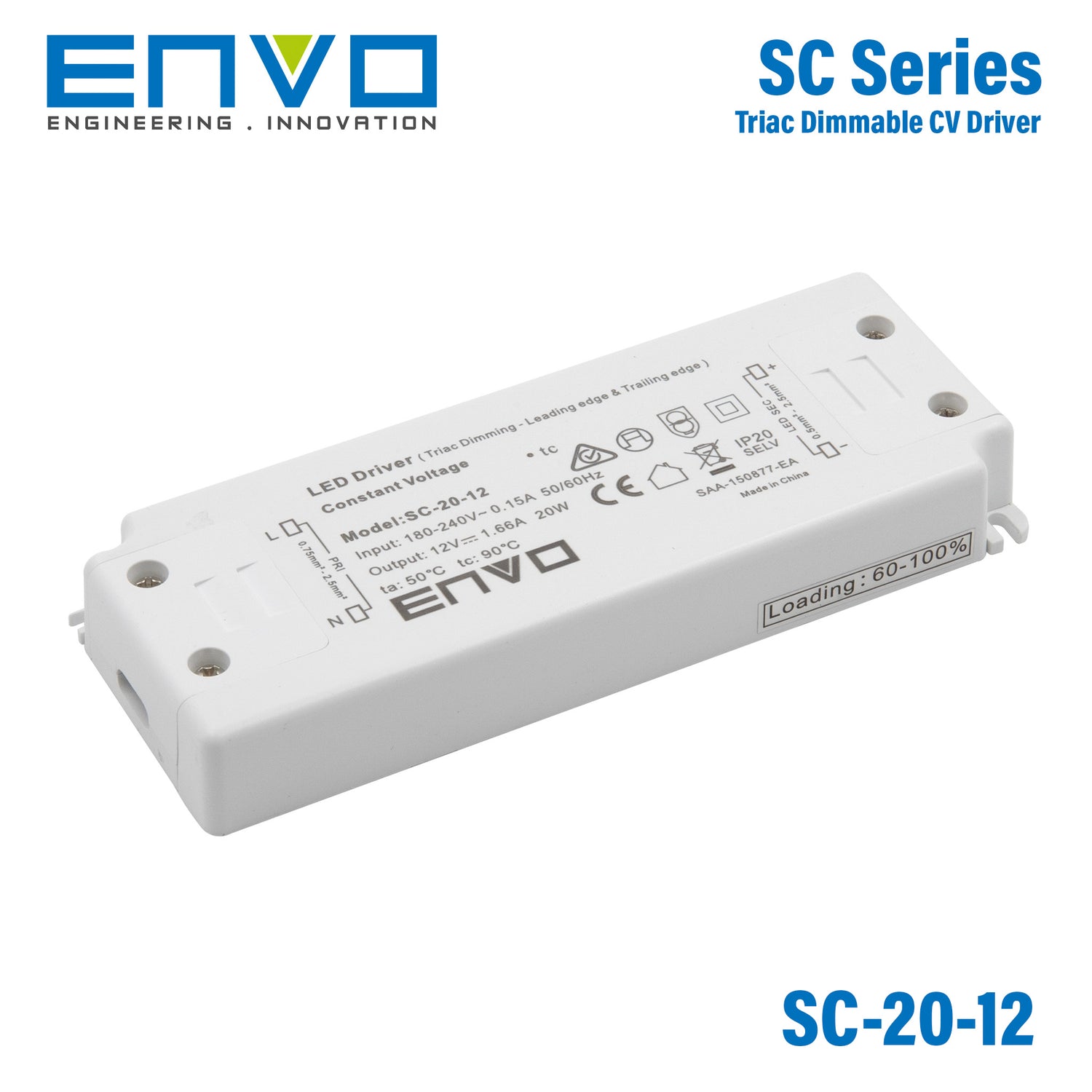

Envo SC-20-12 Power Supply 20W 12V - Triac Dimmable LED Driver

Overview

SC-20-12 is the 12V output model of this series: rated current 1.67A, rated power 20W.

Features

Output constant voltage
Universal AC input/ :180-250VAC
Built-in active PFC function
High efficiency :up to 84%
Protections:short circuit/over loading/over current
Full protection plastic housing
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting

Specifications

SC-20-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage: 12V
Voltage Tolerance: ±0.5V
Rated current: 1.67A
Rated power: 20W

Input

Voltage Range: 180～250VAC (or 90～130VAC)
Frequency Range: 47～63Hz
Power Factor （Typ.）: PF≧0.9
Full Load Efficiency (Typ.): 80%
AC Current（Typ.）: 0.13A
Leakage current: <0.70mA/220VAC

Protection

Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Loading: ≦120%

Environment

Working TEMP.: -40～+60℃
Working Humidity: 20～90%RH, non-condensing
Storage TEM.,Humidity: -40～+80℃, 10～95%RH
TEMP.coefficient: ±0.03%/℃ (0～50℃)
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P: 3.75KVAC
Isolation resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH
EMC EMISSION: EN55015, EN61000-3-2,3 (≧50% loading)
EMC IMMUNITY: EN61000-4-2,3,4,5,6,11 (Surge 4KV)

Others

Net.Weight: 0.19Kg
Size: 145*55*20mm (L*W*H)
packing: 350*240*130 40PCS

Test conditions and notes3

1. All parameters if NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver’s using life ,please reduce the loading when start the drivers at lower input voltage.
3.Loading should be 60-100%

Technical drawings

SC-20-12 20W slim type triac dimmable driver Mechanical Specification — 20W slim type triac dimmable driver Mechanical Specification

SC-20-12 Illustration (page 2) — Illustration (page 2)

SC-20-12 Derating Curve — Derating Curve

SC-20-12 Connecting Diagram — Connecting Diagram

Downloads

Datasheet1

SC-20-12 datasheetSC_20_12__SC_20_24_Triac_Dimmable_CV_Driver.pdf PDF Download

FAQ

What type of power supply is the Envo SC-20-12?

The Envo SC-20-12 is a constant-voltage LED power supply rated at 12V DC output. It delivers up to 20W of power with a rated current of 1.67A, making it suitable for compatible 12V LED lighting applications.

Is the Envo SC-20-12 dimmable?

Yes. This model is TRIAC dimmable and is designed to work with both leading-edge and trailing-edge phase-cut dimmers. It is also described as offering strong compatibility and flicker-free dimming performance.

What applications is the Envo SC-20-12 intended for?

This model is intended for LED lighting and moving sign applications that require a 12V constant-voltage power supply. Its 20W output makes it a fit for lower-power indoor commercial or residential lighting uses within its rated limits.

Can the Envo SC-20-12 be used outdoors or in wet areas?

No. The SC-20-12 has an IP20 design and is specified as suitable for indoor installation in dry locations. It should be selected for environments where exposure to water or dust ingress is not expected.

What input range and efficiency does the Envo SC-20-12 offer?

The listed AC input range for this model is 180-250VAC. It includes active PFC and is rated for a typical full load efficiency of 80%, which can help support stable performance in compatible lighting systems.

What protection and operating temperature features does this model have?

The SC-20-12 includes protection for short circuit, overloading, and over current conditions. It is rated to operate in ambient temperatures from -40°C to 60°C, supporting use across a wide range of indoor environments.

What are the main differentiators of the Envo SC-20-12 compared with a non-dimmable 12V driver?

A key difference is its support for TRIAC dimming with both leading-edge and trailing-edge dimmers, along with flicker-free dimming performance. It also combines active PFC, indoor IP20 housing, and a compact 20W 12V format.
